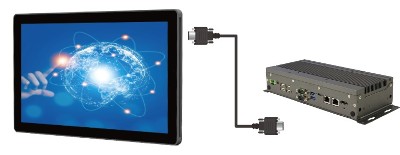

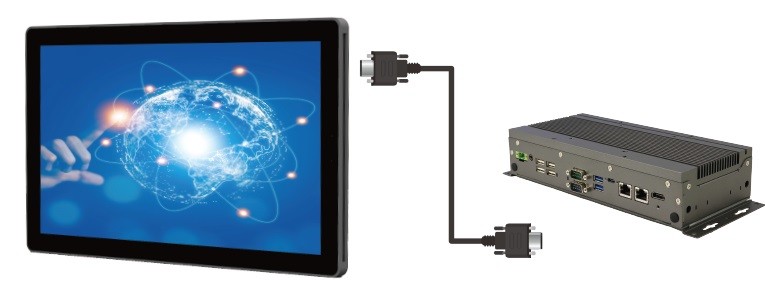

Panel PC für IoT / Cloud Computing / Industrie 4.0
// 21,5" TFT-LCD Panel-PC
// [Intel Atom x7835RE | Intel Core i3-N305 | Intel N97]
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 128 GB SSD (M.2)
// 2 x G-LAN (Back side)
// 8 x USB (Back side)
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

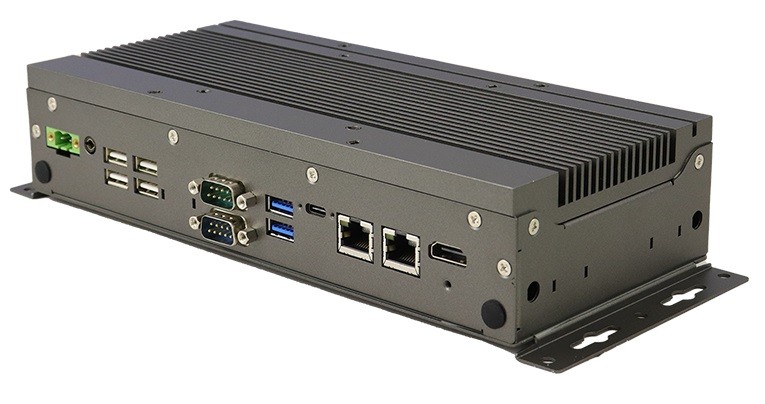

Basismodul: IBASE IXPC-W215
| Allgemein | ||||
| SKU / Artikelnummer | IXPC-W215 | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| System | ||||
| Prozessor | Vertikales Segment | Mobile | ||
| Serie | Intel Alder Lake, Intel Amston Lake | |||
| Nummer | Intel Atom x7835RE, Intel Core i3-N305, Intel N97 | |||
| CPU Kerne | 4 St, 8 St | |||
| Threads | 8 St, - | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 12 W, 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| ECC | wird nicht unterstützt | |||
| Speicher onBoard | 8 GB | |||
| Storage | Solid State Drive (M.2) | 128 GB | ||
| Storage | Solid State Drive (M.2) 128 GB | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Display | ||||
| Display Type | 21,5" TFT-LCD | |||
| Max. Auflösung | 1920 x 1080 | |||
| Seitenverhältnis | 16 : 9 | |||
| Kontrast | 1000:1 | |||
| Leuchtdichte | 800 cd/m² | |||
| Betrachtungswinkel | Horizontal | 178 ° | ||
| Vertikal | 178 ° | |||
| Touchscreen | Typ | Kapazitiv | ||
| Lichtdurchlässigkeit | 85 % | |||
| Interface | USB | |||
| Multitouch | 10-Punkt | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module | |||
| Unterstütze Abmaße | 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | M | ||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||

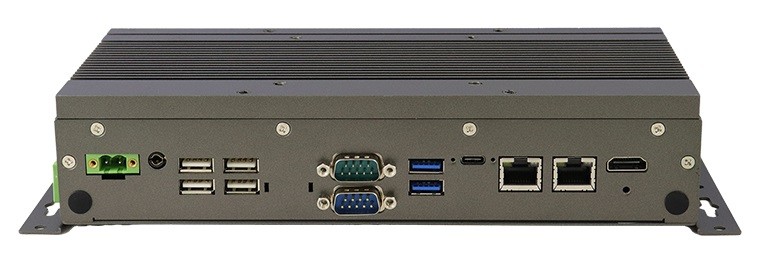

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP USB-C | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Digital I/O | Anzahl | 1 St | ||
| Bits | 8-Bit | |||
| Anschluss | 10 Pin Terminal Stecker | |||
| USB | USB v2.0 | 6 St | ||
| USB v3.2 (Gen 1) | 2 St | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | 2 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 9~36V | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 45°C | ||
| Lagerung | -20° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | 21,5" | ||
| Schutzart (IP) | IP65 (frontseitig) | |||
| Bedienelemente | Power | 1 St | ||
| Reset | 1 St | |||
| Statusanzeigen | Power | 1 St | ||
| Antennenlöcher | 8 St | |||
| Farbe | Dunkel Grau | |||
| Material | Aluminium, Stahl | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | LVD | |||
| RoHS konform | Ja | |||
