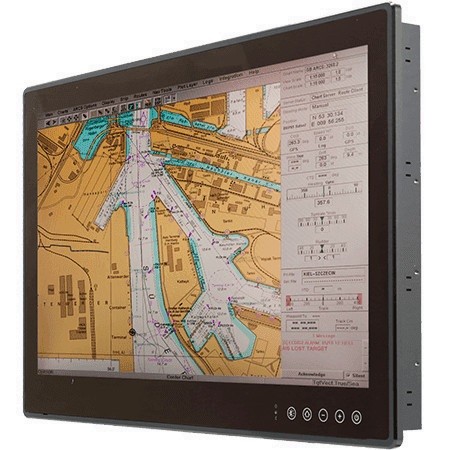

Marine Panel PC
// 26" TFT-LCD Panel-PC
// Intel Core i5-5350U
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP66 (frontseitig)
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 128 GB SSD (mSATA)
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// Power Supply DC Wide range 9~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W26IH3S-MRA1FP
Allgemein | ||||
SKU / Artikelnummer | W26IH3S-MRA1FP | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Broadwell | |||
Nummer | Intel Core i5-5350U | |||
CPU Kerne | 2 St | |||
Threads | 4 St | |||
Sockel | BGA 1168 | |||
Basis Frequenz | 1,8 GHz | |||
Max. Turbo-Taktfrequenz | 2,9 GHz | |||
Cache | 3 MB | |||
Thermal Design Power (TDP) | 9,5 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
DIMM Datarate | 1600 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (mSATA) | 128 GB | ||
Storage | Solid State Drive (mSATA) 128 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Display | ||||
Display Type | 26" TFT-LCD | |||
Max. Auflösung | 1920 x 1200 | |||
Seitenverhältnis | 8 : 5 | |||
Kontrast | 1500:1 | |||
Leuchtdichte | 350 cd/m² | |||
Betrachtungswinkel | Horizontal | 88 ° | ||
Vertikal | 88 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I218LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

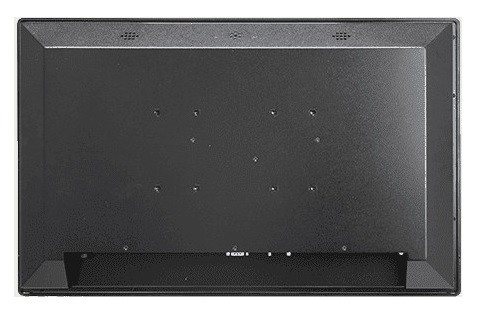

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 1 St | ||
USB v3.0 | 2 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Stromaufnahme Typisch | 75 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -15° bis 55°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 26" | ||
Breite | 621 mm | |||
Tiefe | 85,5 mm | |||
Höhe | 432,4 mm | |||
Schutzart (IP) | IP66 (frontseitig) | |||
Vibration | Vibration | 0.7G | ||
Schock | Messdaten | 15G, halben Sinusschwingung, 11 ms Dauer | ||
Bedienelemente | Power | 1 St | ||
Farbe | Schwarz | |||
Coating | Beschichtung | Ja | ||
Material | Blendschutzglas | |||
Material | Aluminium | |||
Montageoption | Panelmontage, VESA | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | DNVGL-CG-0339, IACS E10 / DNV, IEC 60945 | |||
RoHS konform | Ja |
