Panel PC mit IP65 (frontseitig)
// 10,1" TFT-LCD Panel-PC
// [Intel Celeron J3455 | Intel Celeron N3350]
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig) / IP41 (rückseitig)
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue ARC-10W33
Allgemein | ||||
SKU / Artikelnummer | ARC-10W33 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Celeron J3455, Intel Celeron N3350 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,5 GHz | |||
Max. Turbo-Taktfrequenz | 2,3 GHz, 2,4 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 10 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
DIMM Type | Unbuffered SO-DIMM | |||
IC Data Rate | 1600 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics 500 | |||
Display | ||||
Display Type | 10,1" TFT-LCD | |||
Max. Auflösung | 1280 x 800 | |||
Seitenverhältnis | 8 : 5 | |||
Kontrast | 800:1 | |||
Leuchtdichte | 350 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 85 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Lichtdurchlässigkeit | 88 % | |||
Interface | USB | |||
Multitouch | 10-Punkt | |||
Audio | Lautsprecher | 2 St | ||
Leistung | 2 W | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | mSATA | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

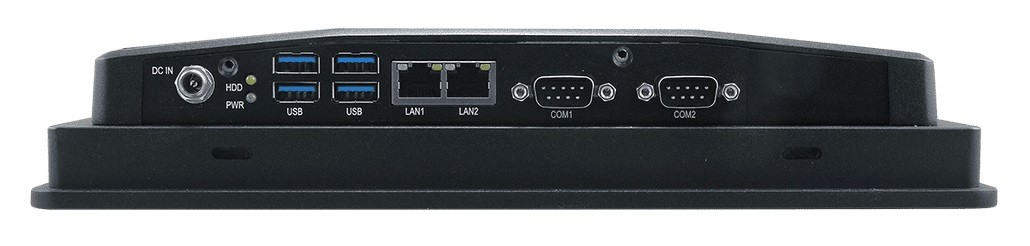

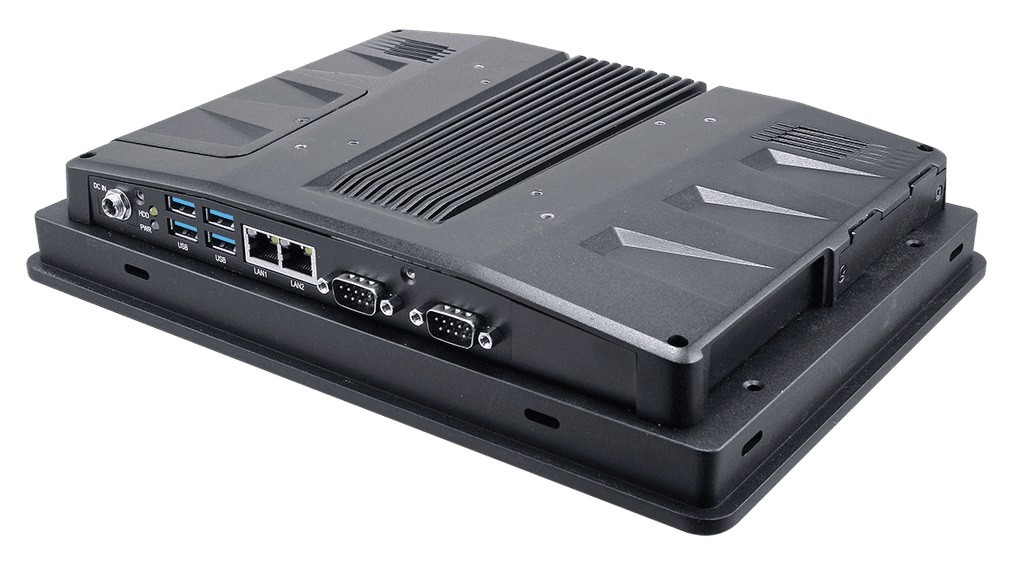

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v3.0 | 4 St | ||
Interne I/O | ||||
Digital I/O | Bits | 16-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 10,1" | ||
Breite | 282,29 mm | |||
Tiefe | 50,9 mm | |||
Höhe | 200,93 mm | |||
Schutzart (IP) | IP65 (frontseitig) / IP41 (rückseitig) | |||
Vibration | Vibration | 1,5G, 5-500Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 20G, 11 ms | ||
Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | |||
Sturzprüfung | Referenz Standard | ISTA-2A | ||
Gewicht | 2170 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 3 St | |||
Farbe | Schwarz | |||
Montageoption | Base (oder Ständer), VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
