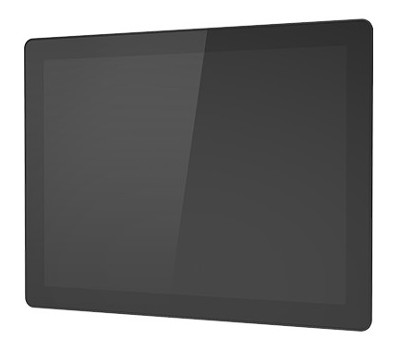

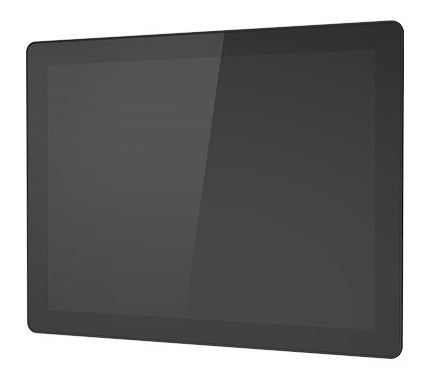

Panel PC mit IP65 (frontseitig)
// 15" TFT-LCD Panel-PC
// [Intel Core i3-1115G4E | Intel Core i5-1135G7 | Intel Core i7-1165G7]
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig) / IP41 (rückseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue ARC-1538-B
Allgemein | ||||
SKU / Artikelnummer | ARC-1538-B | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i3-1115G4E, Intel Core i5-1135G7, Intel Core i7-1165G7 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 4 St, 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 2,2 GHz, - | |||
Max. Turbo-Taktfrequenz | 3,9 GHz, 4,2 GHz, 4,7 GHz | |||
Cache | 6 MB, 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8528E / FX | |
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Gen 11 LP | |||
Display | ||||
Display Type | 15" TFT-LCD | |||
Max. Auflösung | 1024 x 768 | |||
Seitenverhältnis | 4 : 3 | |||
Kontrast | 2000:1 | |||
Leuchtdichte | 300 cd/m² | |||
Reaktionszeit | 16 ms | |||
Betrachtungswinkel | Horizontal | 88 ° | ||
Vertikal | 88 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Lichtdurchlässigkeit | 89 % | |||
Interface | USB | |||
Multitouch | 10-Punkt | |||
Audio | Lautsprecher | 2 St | ||
Leistung | 2 W | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, NVMe, PCIe ×4, SATA III, USB 3.0 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×2, USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
IET Interface | SMBus | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v3.0 | 4 St | ||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Nuvoton NPCT754AABYX | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12~24V | |||

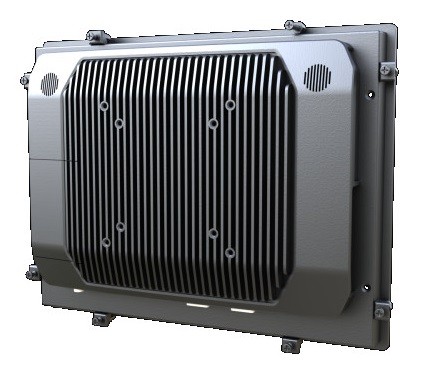

Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Breite | 350,51 mm | ||
Tiefe | 274,51 mm | |||
Höhe | 56,5 mm | |||
Schutzart (IP) | IP65 (frontseitig) / IP41 (rückseitig) | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 20G, 11 ms | ||
Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | |||
Gewicht | 3700 g | |||
Antennenlöcher | 7 St | |||
Farbe | Schwarz | |||
Montageoption | Panelmontage, VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
