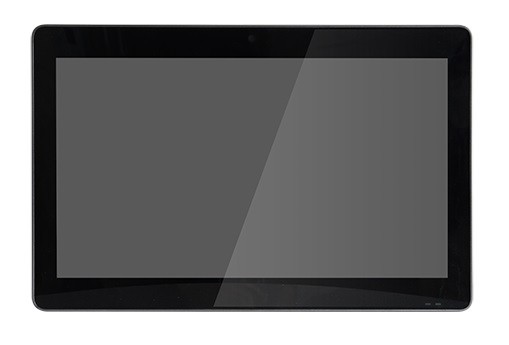

Panel PC mit IP65 (frontseitig)
// 15,6" TFT-LCD Panel-PC
// [Intel Celeron 6305E | Intel Core i5-1145GRE]
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 3 x G-LAN (Back side)
// 5 x USB (Back side)
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI KS156P-TGU
Allgemein | ||||
SKU / Artikelnummer | KS156P-TGU | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 750-KS156P3-000G, 750-KS156P3-100G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Celeron 6305E, Intel Core i5-1145GRE | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 1,5 GHz, 1,8 GHz | |||
Max. Turbo-Taktfrequenz | 4,1 GHz, - | |||
Cache | 4 MB, 8 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI SPI 256 Mbit | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 24 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Display | ||||
Display Type | 15,6" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Leuchtdichte | 400 cd/m² | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 50000 h | |||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), SATA III, USB 3.1 Gen1 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 3 | Key ID | E | ||
Interface | USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E, M | |||
Storage | M.2 | |||

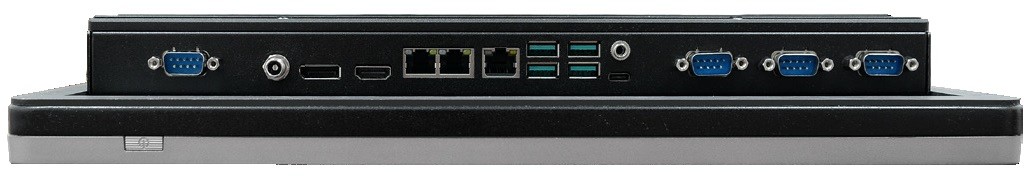

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP++ | 1 St | |||
DP USB-C | 1 St | |||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 3 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | DB-9 | 2 St | ||
USB | USB v3.1 Gen. 2 | 4 St | ||
USB v3.1 (Gen 2, Type C) | 1 St | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -30° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 15,6" | ||
Breite | 392 mm | |||
Tiefe | 58,7 mm | |||
Höhe | 256 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
mit SSD | 5~500 HZ, 1G | |||
Schock | Messdaten | 5G, halben Sinusschwingung, 11 ms Dauer | ||
Gewicht | 4500 g | |||
Bedienelemente | Power | 1 St | ||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Material | Plastik, Stahl | |||
Montageoption | VESA | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | KC, UKCA | |||
RoHS konform | Ja |
