Panel PC mit IP65 (frontseitig)
// 12,1" TFT-LCD Panel-PC
// [Intel Core 3 Prozessor N355 | Intel Core i3-N305 | Intel N97]
// Touchscreen (Kapazitiv)
// Passiv gekühlt
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 128 GB SSD (NVMe)
// 2 x G-LAN (Rückseite)
// 7 x USB (Rückseite)
// Stromversorgung DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE IPPC-121
Allgemein | ||||
SKU / Artikelnummer | IPPC-121 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
Produkt-ID | S02IPPC121-0B1100R, S02IPPC121-0B1200R, S02IPPC121-0B1300R, S02IPPC121-0B1400R | |||
System | ||||
Prozessor | Serie | Intel Alder Lake, Intel Twin Lake | ||
Nummer | Intel Core 3 Prozessor N355, Intel Core i3-N305, Intel N97 | |||
CPU Kerne | 4 St, 8 St | |||
Threads | 8 St, - | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,6 GHz, 3,8 GHz, 3,9 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 12 W, 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 8 GB | |||
Storage | Solid State Drive (NVMe SSD) | 128 GB | ||

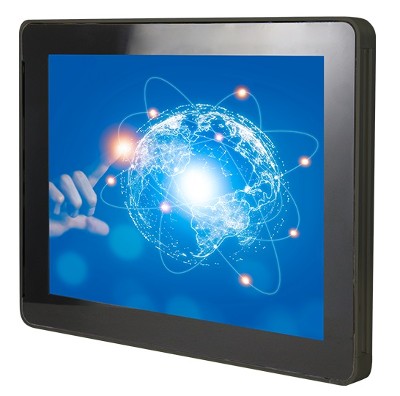

Display | ||||
Display Type | 12,1" TFT-LCD | |||
Max. Auflösung | 1024 x 768 | |||
Seitenverhältnis | 4 : 3 | |||
Max. Farben | 16,7M | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 500 cd/m² | |||
Betrachtungswinkel | Horizontal | 178 ° | ||
Vertikal | 178 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 30000 h | |||
Touchscreen | Typ | Kapazitiv | ||
Lichtdurchlässigkeit | 85 % | |||
Interface | USB | |||
Multitouch | 10-Punkt | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B + M | |
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module | |||
Unterstütze Abmaße | 3042 | |||
M.2 Key IDs | B, B + M, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||

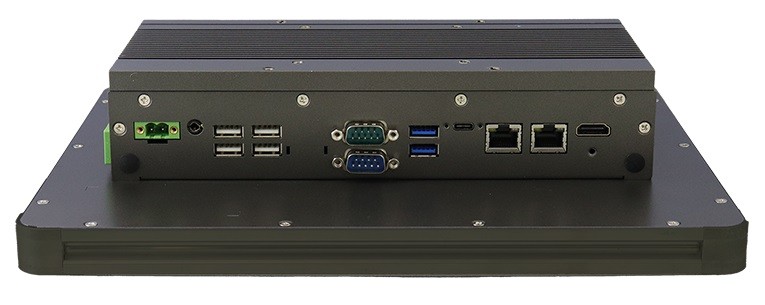

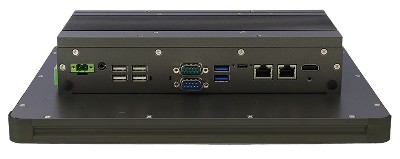

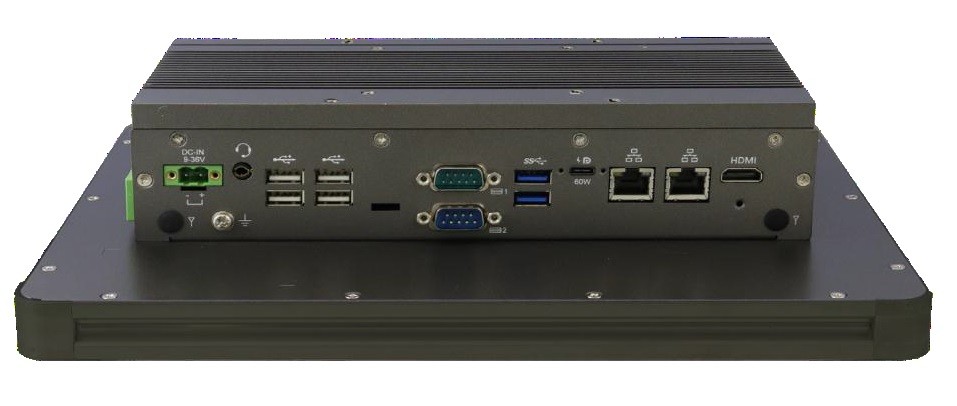

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP USB-C | 1 St | |||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | 10 Pin Terminal Stecker | |||
USB | USB v2.0 | 4 St | ||
USB v3.1 (Gen 2, Type C) | 1 St | |||
USB v3.2 (Gen 1) | 2 St | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Typ (Ausgang) | DC | Anschluss | USB Type C | |
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 35°C, -30° bis 50°C | ||
Lagerung | -30° bis 60°C, -40° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 12,1" | ||
Breite | 303,4 mm | |||
Tiefe | 72,9 mm | |||
Höhe | 242 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Gewicht | 3600 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Antennenlöcher | 6 St | |||
Farbe | Dunkel Grau | |||
Material | Aluminium, Stahl | |||
Montageoption | Panelmontage, VESA | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Kernel | 4.x | |||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | LVD | |||
RoHS konform | Ja |
