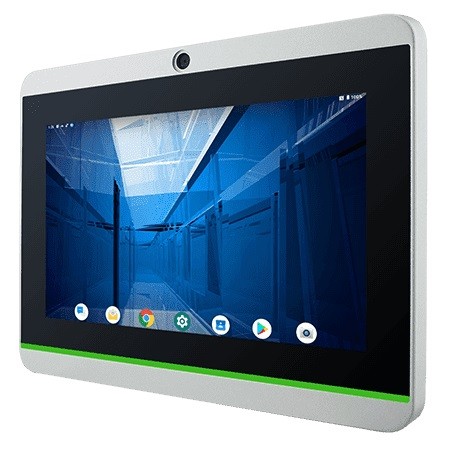

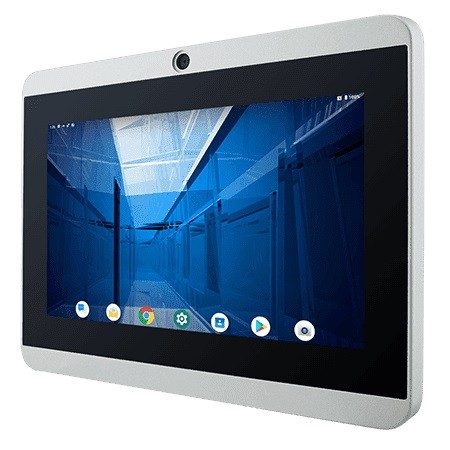

Panel PC mit IP65 (frontseitig)
// 7" TFT-LCD Panel-PC
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// 32 GB eMMC
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W07MG3S-PC
Allgemein | ||||
SKU / Artikelnummer | W07MG3S-PC | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78 | ||
CPU Kerne | 2 St | |||
Max. Turbo-Taktfrequenz | 2 GHz | |||
Prozessor 2 | Serie | ARM Cortex-A55 | ||
CPU Kerne | 4 St | |||
Max. Turbo-Taktfrequenz | 2 GHz | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Display | ||||
Display Type | 7" TFT-LCD | |||
Max. Auflösung | 1024 x 600 | |||
Seitenverhältnis | 128 : 75 | |||
Kontrast | 700:1, 1000:1 | |||
Leuchtdichte | 320 cd/m², 1000 cd/m² | |||
Betrachtungswinkel | Horizontal | 75 ° | ||
Vertikal | 70 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Audio | Lautsprecher | 1 St | ||
Erweiterung | ||||
Storage | Micro-SD (extern) | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 mit POE | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | 3 Pin Terminal Stecker | |||
POE | Anschlüsse | 1 St | ||
Protokoll | IEEE 802.3at / 25,5W | |||
Stromversorgung - Eingang | DC: 12V | |||
Stromaufnahme Maximal | 50 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 7" | ||
Breite | 189,4 mm | |||
Tiefe | 40 mm | |||
Höhe | 145,4 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Referenz Standard | MIL-STD-810H Method 514.8 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | ||
Gewicht | 1000 g | |||
Farbe | Schwarz | |||
Material | Stahl | |||
Montageoption | Panelmontage, VESA | |||
Zubehör | -, Built-in RGB LED Light Bar Indicator | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 22.04, Yocto 5.10.104 | ||
Android | Release | 13 | ||
Unterstützte BS | Android, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
