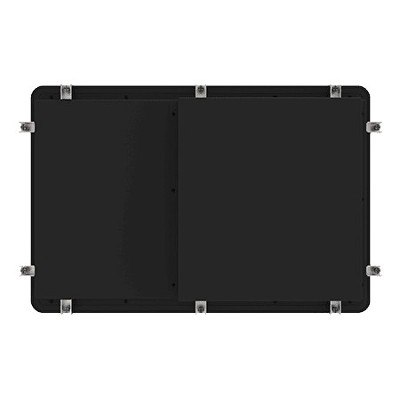

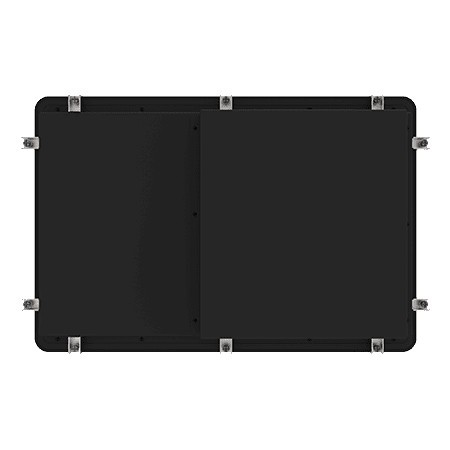

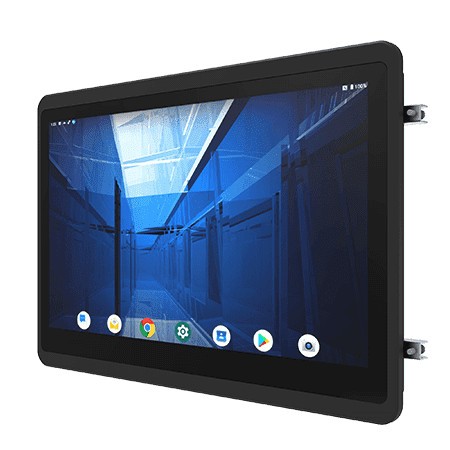

Panel PC mit IP65 (frontseitig)
// 15,6" TFT-LCD Panel-PC
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig)
// 4 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// 32 GB eMMC
// Power Supply DC 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W15IM3S-EHA4
Allgemein | ||||
SKU / Artikelnummer | W15IM3S-EHA4 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Industrial | ||
Serie | ARM Cortex-A53 | |||
CPU Kerne | 4 St | |||
Basis Frequenz | 2 GHz | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Display | ||||
Display Type | 15,6" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 800:1 | |||
Leuchtdichte | 300 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 85 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
Storage | Micro-SD | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12V | |
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Stromaufnahme Maximal | 50 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 15,6" | ||
Breite | 388 mm | |||
Tiefe | 260 mm | |||
Höhe | 58 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 | ||
Schock | Referenz Standard | MIL-STD-810G Method 516.6 | ||
Material | Stahl | |||
Montageoption | Panelmontage, VESA | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 20.04, Yocto 5.10.104 | ||
Android | Release | 11 | ||
Unterstützte BS | Linux, Android | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
