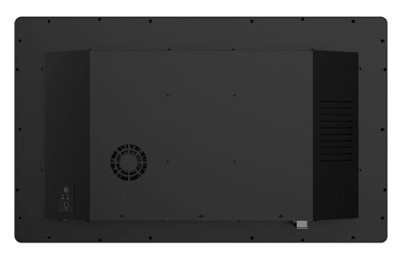

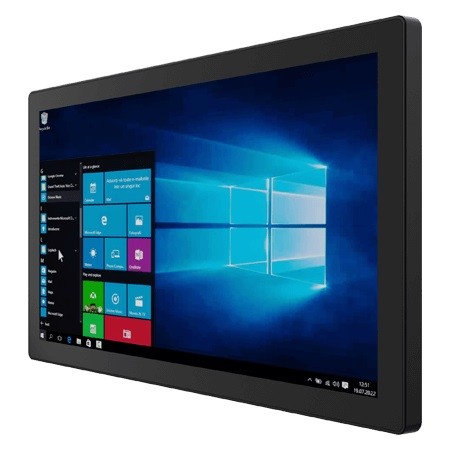

Panel PC mit IP65 (frontseitig)
// 23,8" TFT-LCD Panel-PC
// Intel Core i7-12700TE
// Touchscreen (Kapazitiv)
// Aktiv (Lüfterkühlung) cooled
// IP65 (frontseitig)
// Intel R680E
// 288 Pin DIMM DDR5
// 512 GB SSD (NVMe)
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x PCIe x16
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W24IAD7T-GPA2
Allgemein | ||||
SKU / Artikelnummer | W24IAD7T-GPA2 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Core i7-12700TE | |||
CPU Kerne | 12 St | |||
Threads | 20 St | |||
Sockel | LGA 1700 (H6) | |||
Performance-core Max Turbo Frequenz | 4,6 GHz | |||
Efficient-core Max Turbo Frequenz | 3,4 GHz | |||
Cache | 25 MB | |||
Thermal Design Power (TDP) | 35 W | |||
Chipsatz | Intel R680E | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 4800 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Speicher onBoard | 16 GB | |||
Storage | Solid State Drive (NVMe SSD) | 512 GB | ||
Grafik | ||||
Prozessor | Intel UHD Graphics 770 | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4a | |||
Dual Mode | Ja (DP++) | |||
Display | ||||
Display Type | 23,8" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 3000:1 | |||
Leuchtdichte | 250 cd/m² | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | OOB, WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Bereich | 80~264V | |
Anschluss | C14 | |||
Stromversorgung - Eingang | AC: 80~264V | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 1 St | |
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 55°C | ||
Lagerung | -10° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 23,8" | ||
Breite | 588 mm | |||
Tiefe | 75,5 mm | |||
Höhe | 358 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Gewicht | 8500 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 2 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Slot Brackets | Standard | 1 St | ||
Farbe | Dunkel Grau | |||
Material | Stahl | |||
Montageoption | Panelmontage, VESA | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Windows, Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
