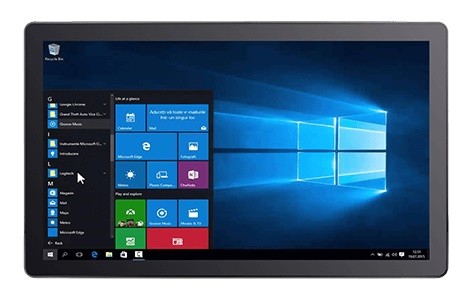

Panel PC mit IP65 (frontseitig)
// 23,8" TFT-LCD Panel-PC
// Intel Celeron N6211
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 128 GB SSD (M.2)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W24IE3S-GCA2
Allgemein | ||||
SKU / Artikelnummer | W24IE3S-GCA2 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Elkhart Lake | |||
Nummer | Intel Celeron N6211 | |||
CPU Kerne | 2 St | |||
Threads | 2 St | |||
Sockel | BGA 1493 | |||
Basis Frequenz | 1,2 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz | |||
Cache | 1,5 MB | |||
Thermal Design Power (TDP) | 6,5 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (M.2) | 128 GB | ||
Storage | Solid State Drive (M.2) 128 GB | |||
Display | ||||
Display Type | 23,8" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 3000:1 | |||
Leuchtdichte | 250 cd/m² | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 1 St | ||
USB v3.0 | 1 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 23,8" | ||
Breite | 588 mm | |||
Tiefe | 55 mm | |||
Höhe | 358 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | ||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Farbe | Schwarz / Silber | |||
Material | Aluminium, Plastik | |||
Montageoption | Panelmontage, VESA | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Windows, Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (ESD), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC 60950-1 | |||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
