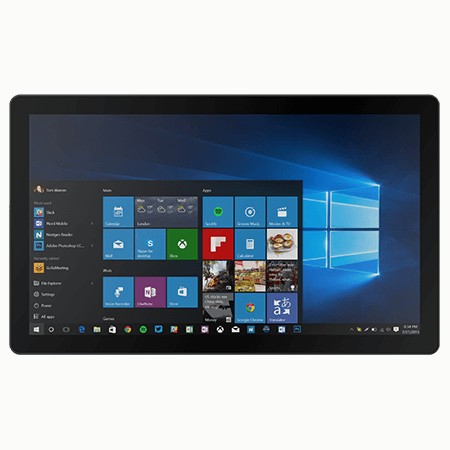

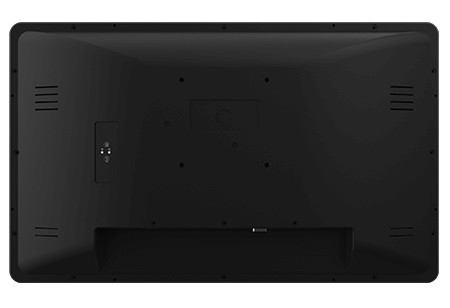

Panel PC mit IP65 (frontseitig)
// 23,8" TFT-LCD Panel-PC
// Intel Core i5-1135G7
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 128 GB SSD (NVMe)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W24IT3S-PTA2
Allgemein | ||||
SKU / Artikelnummer | W24IT3S-PTA2 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i5-1135G7 | |||
CPU Kerne | 4 St | |||
Threads | 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 2,4 GHz | |||
Max. Turbo-Taktfrequenz | 4,2 GHz | |||
Cache | 8 MB | |||
Thermal Design Power (TDP) | 28 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Display | ||||
Display Type | 23,8" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 3000:1 | |||
Leuchtdichte | 250 cd/m² | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 2 St | ||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -10° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 23,8" | ||
Breite | 588 mm | |||
Tiefe | 358 mm | |||
Höhe | 60 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Farbe | Schwarz | |||
Material | Plastik | |||
Montageoption | VESA | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | |||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
