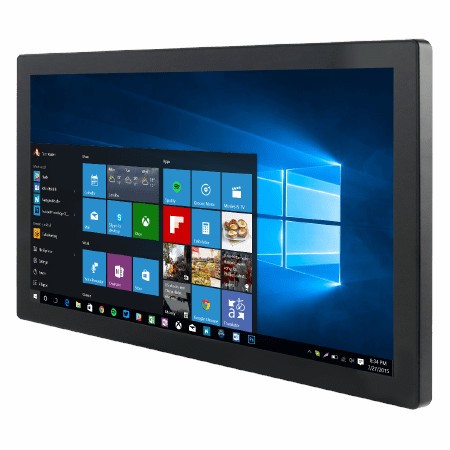

Panel PC mit IP65 (frontseitig)
// 32" TFT-LCD Panel-PC
// Intel Core i7-9700TE
// Touchscreen (Kapazitiv)
// Aktiv (Lüfterkühlung) cooled
// IP65 (frontseitig)
// Intel B360
// 260 Pin SO-DIMM DDR4
// 128 GB SSD (M.2)
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate W32IF7T-PCA3
Allgemein | ||||
SKU / Artikelnummer | W32IF7T-PCA3 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Coffee Lake | |||
Nummer | Intel Core i7-9700TE | |||
CPU Kerne | 8 St | |||
Threads | 8 St | |||
Sockel | LGA 1151 (H4) | |||
Basis Frequenz | 1,8 GHz | |||
Max. Turbo-Taktfrequenz | 3,8 GHz | |||
Cache | 12 MB | |||
Thermal Design Power (TDP) | 35 W | |||
Chipsatz | Intel B360 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (M.2) | 128 GB | ||
Storage | Solid State Drive (M.2) 128 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 630 | |||
Display | ||||
Display Type | 32" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 4000:1 | |||
Leuchtdichte | 400 cd/m² | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WLAN | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B, E, M | |||
Storage | M.2 | |||
Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 1 St | ||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 24V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 24V | |||
Stromaufnahme Maximal | 120 W | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -10° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 32" | ||
Breite | 777,6 mm | |||
Tiefe | 64,3 mm | |||
Höhe | 477,6 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | ||
Gewicht | 14800 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Farbe | Schwarz | |||
Material | Stahl | |||
Montageoption | Armhalterung, VESA | |||
Zubehör | 100~240V AC to DC Adapter, Power Cord, VESA screws | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
