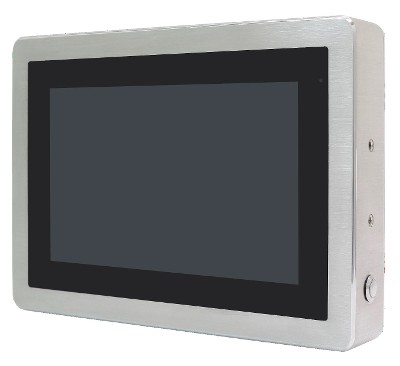

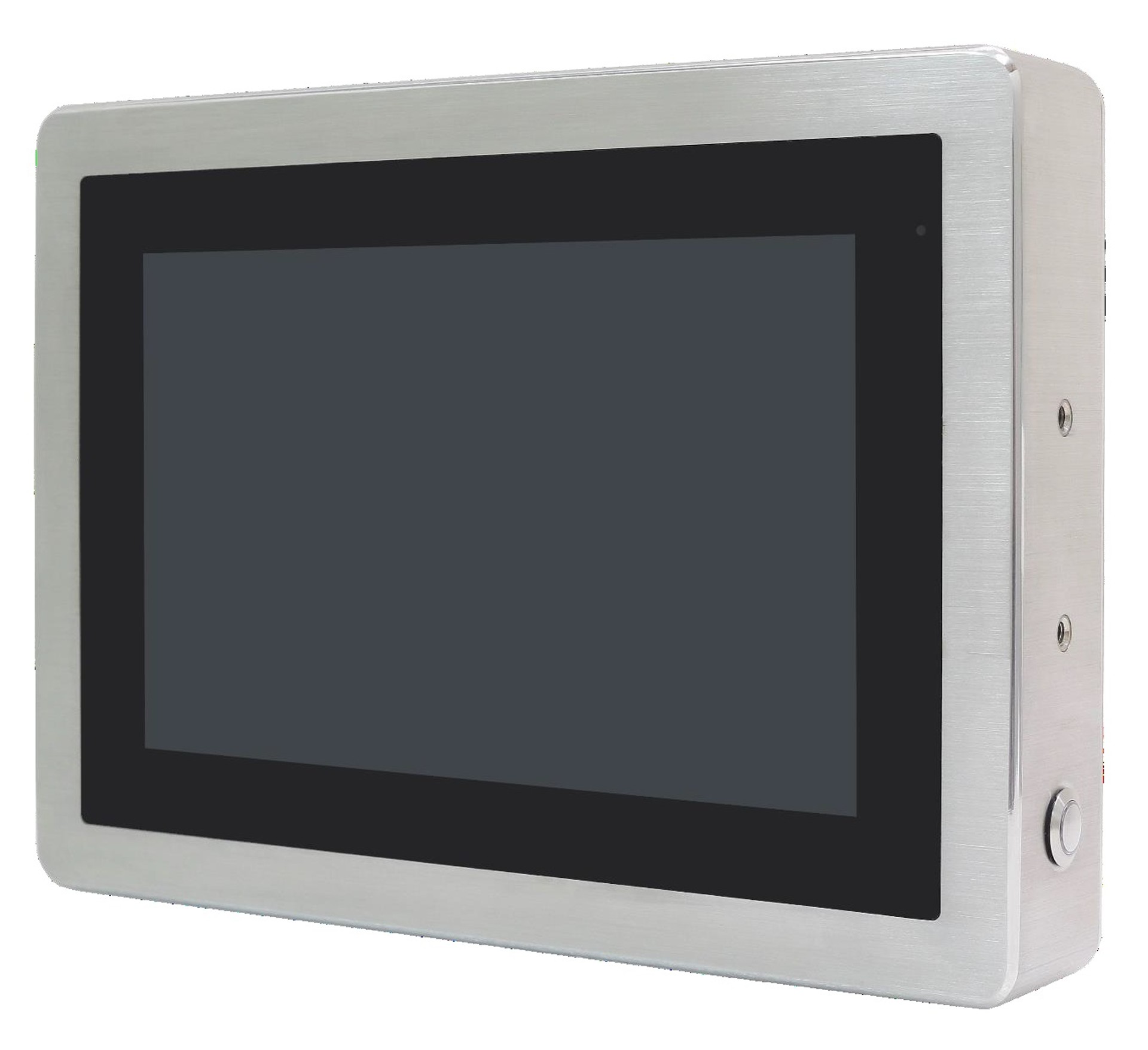

Panel PC mit IP66/69K (komplett)
// 21,5" TFT-LCD Panel-PC
// NXP i.MX 8M Quad Plus
// Touchscreen ([Analog Resistiv | Glas | Kapazitiv])
// Passiv cooled
// IP66/IP69K (komplett)
// SoC (System-On-Chip)
// 4 GB
// 1 x G-LAN (Back side)
// 1 x USB (Back side)
// 16 GB eMMC
// Power Supply DC 24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Aplex ViTAM-621A
Allgemein | ||||
SKU / Artikelnummer | ViTAM-621A | |||
Produktgrunddaten | ||||
Hersteller | Aplex | |||
System | ||||
Prozessor | Serie | ARM Cortex-A53 | ||
Nummer | NXP i.MX 8M Quad Plus | |||
CPU Kerne | 4 St | |||
Basis Frequenz | 1,6 GHz | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
DIMM Datarate | 4000 MT/s | |||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 16 GB | |||
Display | ||||
Display Type | 21,5" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Max. Farben | 16,7M | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 250 cd/m², 1000 cd/m² | |||
Betrachtungswinkel | Horizontal | 178 ° | ||
Vertikal | 178 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 50000 h | |||
Touchscreen | Typ | Analog Resistiv, Glas, Kapazitiv | ||
Lichtdurchlässigkeit | 80 %, 90 %, - | |||
Interface | -, USB | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||

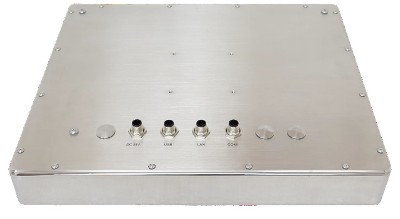

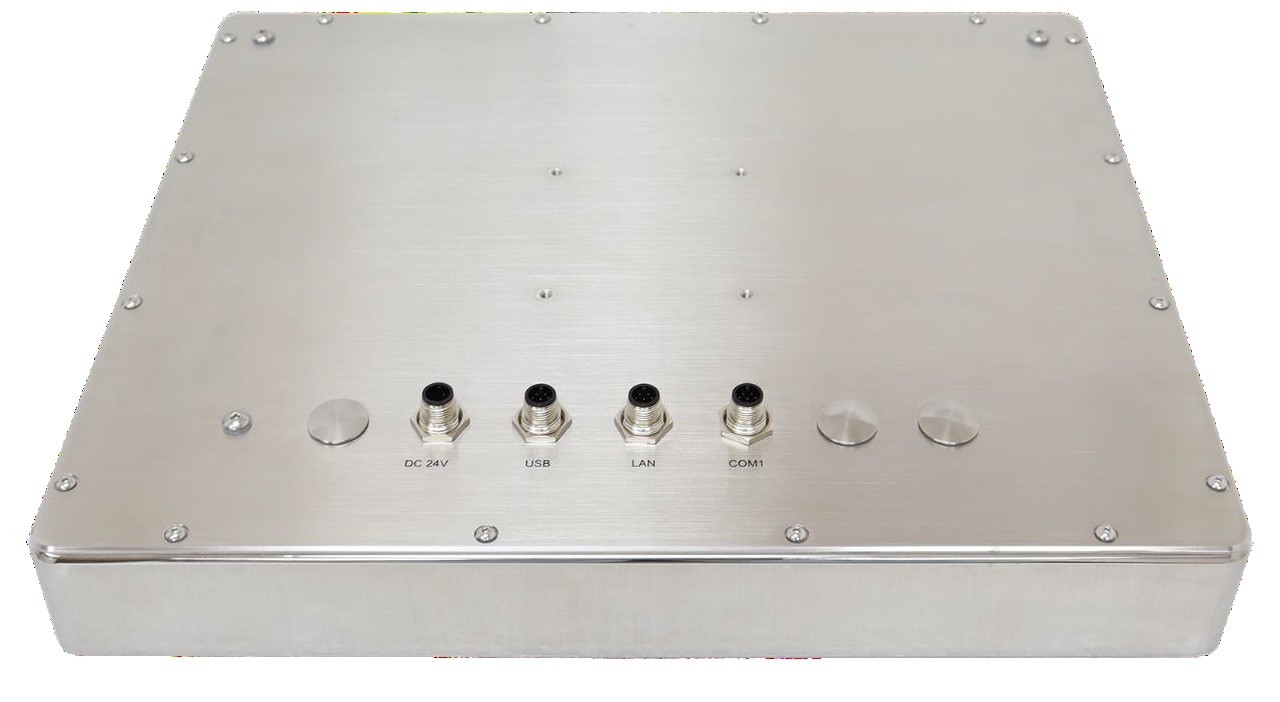

Externe I/O (Rückseite) | ||||
Ethernet | M12 Steckverbinder | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
M12 Steckverbinder | 1 St | |||
USB | USB v2.0 | 1 St | ||
M12 Steckverbinder | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 24V | |||
Anschluss | M12 | |||
Stromversorgung - Eingang | DC: 24V | |||
Stromaufnahme Maximal | 23,18 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Lagerung | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 21,5" | ||
Breite | 571 mm | |||
Tiefe | 55 mm | |||
Höhe | 362 mm | |||
Schutzart (IP) | IP66/IP69K (komplett) | |||
Gewicht | 9720 g | |||
Bedienelemente | Power | 1 St | ||
Farbe | Silber | |||
Material | Stahl (rostfrei) | |||
Montageoption | Bügelhalterung, VESA | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Yocto 4.0 | ||
Android | Release | 11 | ||
Unterstützte BS | Android, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
