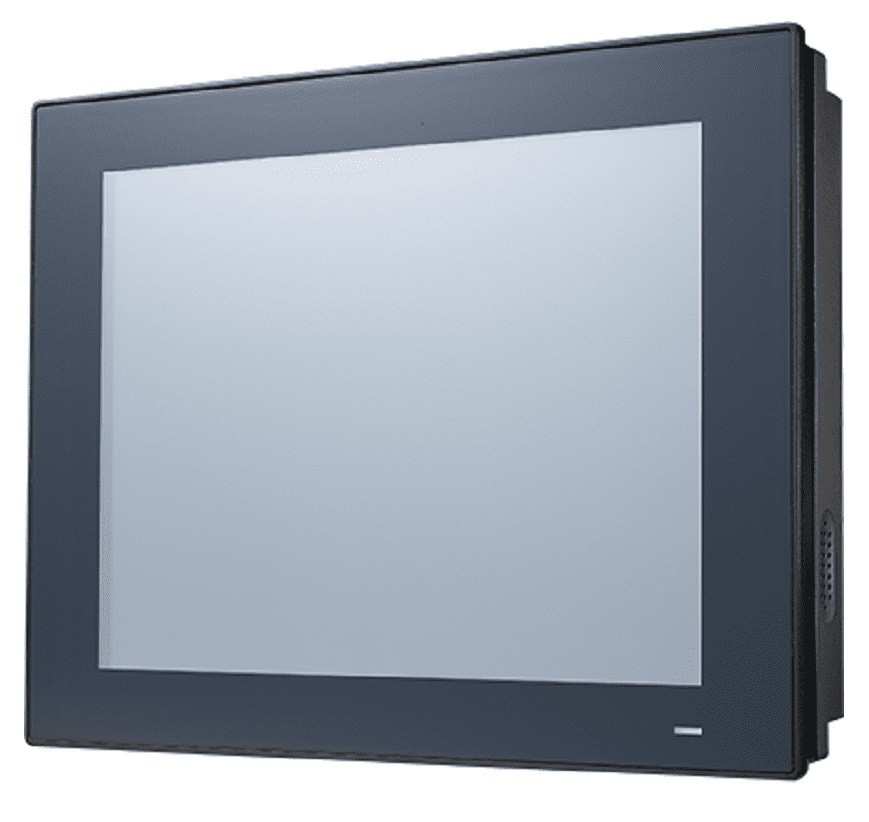

Panel PC mit IP66 (frontseitig)
// 12,1" TFT-LCD Panel-PC
// [Intel Core i3-7100U | Intel Core i5-7300U | Intel Core i7-7600U]
// Touchscreen (Analog Resistiv)
// Passiv cooled
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN
// 4 x USB (Back side)
// 1 x Mini-PCIe
// Power Supply DC 9~32V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech PPC-412
Allgemein | ||||
SKU / Artikelnummer | PPC-412 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Kaby Lake | |||
Nummer | Intel Core i3-7100U, Intel Core i5-7300U, Intel Core i7-7600U | |||
CPU Kerne | 2 St | |||
Threads | 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2,4 GHz, 2,6 GHz, 2,8 GHz | |||
Max. Turbo-Taktfrequenz | 3,5 GHz, 3,9 GHz, - | |||
Cache | 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 1866 / 2133 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
ECC | wird nicht unterstützt | |||
Grafik | ||||
Prozessor | Intel HD Graphics 620 | |||
Displayport | Version | 1.2 | ||
Display | ||||
Display Type | 12,1" TFT-LCD | |||
Max. Auflösung | 1024 x 768 | |||
Seitenverhältnis | 4 : 3 | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 600 cd/m² | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 50000 h | |||
Touchscreen | Typ | Analog Resistiv | ||
Lichtdurchlässigkeit | 80 % | |||
Interface | USB | |||
Audio | Lautsprecher | 2 St | ||
Leistung | 1 W | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | NVMe, SATA III | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

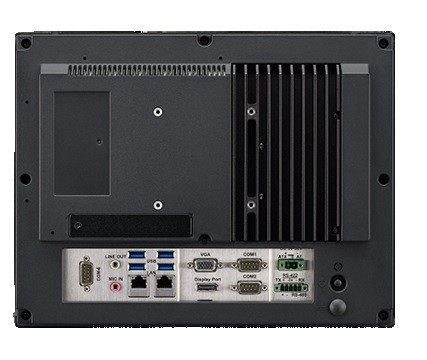

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Seriell | RS-232 | DB-9 | 3 St | |
RS-232 / 422 / 485 | 5 Pin Terminal Stecker | 1 St | ||
USB | USB v3.0 | 4 St | ||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~32V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~32V | |||
Stromaufnahme Maximal | 60 W | |||
Stromaufnahme Maximal | Burn-in test 8.0 in Windows 10 64bit | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 12,1" | ||
Breite | 317 mm | |||
Tiefe | 60,5 mm | |||
Höhe | 246 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 3400 g | |||
Bedienelemente | Power | 1 St | ||
Antennenlöcher | 2 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Plastik | |||
Montageoption | VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB, EN 61000-6-2, UKCA, VCCI | |||
RoHS konform | Ja |
