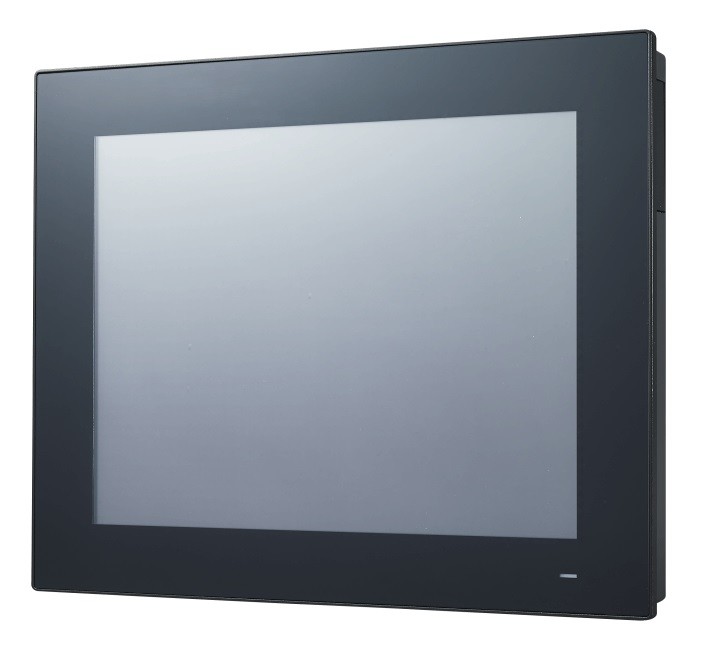

Panel PC mit IP66 (frontseitig)
// 15" TFT-LCD Panel-PC
// [Intel Core i3-1115G4E | Intel Core i5-1145G7E | Intel Core i7-1185G7E]
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP66 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x PCIe x4
// Power Supply DC 9~32V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech PPC-415 TGL
Allgemein | ||||
SKU / Artikelnummer | PPC-415 TGL | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i3-1115G4E, Intel Core i5-1145G7E, Intel Core i7-1185G7E | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 4 St, 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 1,5 GHz, 1,8 GHz, 2,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz | |||
Cache | 6 MB, 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Maximale Turbo-Leistungsaufnahme | 28 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Version | 1.4 | ||
Displayport | Version | 1.2 | ||
Display | ||||
Display Type | 15" TFT-LCD | |||
Max. Auflösung | 1024 x 768 | |||
Seitenverhältnis | 4 : 3 | |||
Kontrast | 2500:1 | |||
Leuchtdichte | 500 cd/m² | |||
Betrachtungswinkel | Horizontal | 88 ° | ||
Vertikal | 88 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 70000 h | |||
Touchscreen | Typ | Kapazitiv | ||
Lichtdurchlässigkeit | 85 % | |||
Interface | USB | |||
Multitouch | 10-Punkt | |||
Audio | Lautsprecher | 2 St | ||
Leistung | 1 W | |||
Erweiterung | ||||
PCIe x4 | x4 Signal | 1 St | ||
PCIe Schnittstellen | 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
M.2 Key IDs | B, E, M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

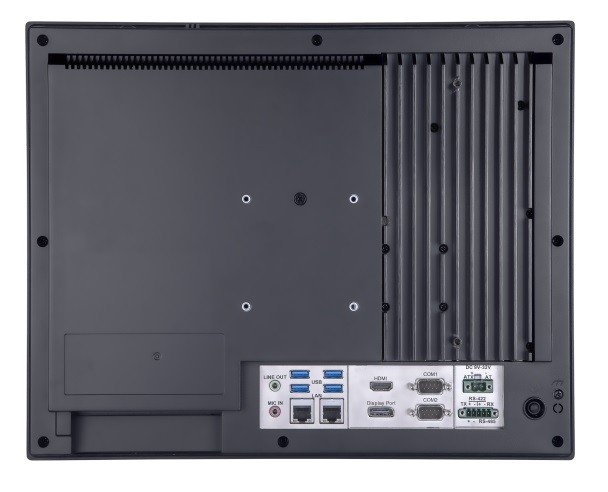

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | 5 Pin Terminal Stecker | 1 St | ||
USB | USB v3.2 (Gen 1) | 4 St | ||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~32V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~32V | |||
Stromaufnahme Maximal | 60 W | |||
Stromaufnahme Maximal | Burn-in test 8.1 in Windows 10, 64 bit | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 15" | ||
Breite | 392,3 mm | |||
Tiefe | 55,2 mm | |||
Höhe | 313,6 mm | |||
Schutzart (IP) | IP66 (frontseitig) | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 5400 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Slot Brackets | Standard | 1 St | ||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Plastik | |||
Montageoption | Panelmontage, VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB, EN 61000-6-2, UKCA, VCCI | |||
RoHS konform | Ja |
