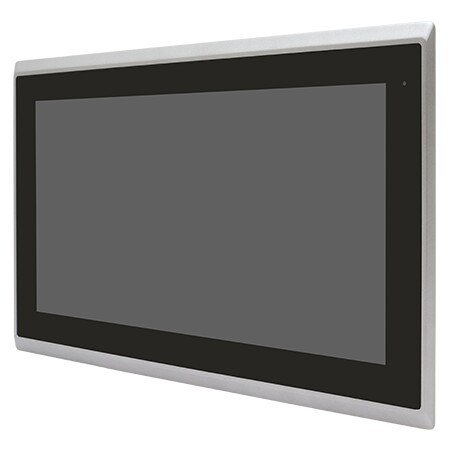

Panel PC mit IP66 (frontseitig)
// 15,6" TFT-LCD Panel-PC
// Intel Celeron J6412
// Touchscreen ([Analog Resistiv | Kapazitiv])
// Passiv cooled
// IP66 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x Mini-PCIe
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Aplex ARCHMI-S-816B
Allgemein | ||||
SKU / Artikelnummer | ARCHMI-S-816B | |||
Produktgrunddaten | ||||
Hersteller | Aplex | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Elkhart Lake | |||
Nummer | Intel Celeron J6412 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1493 | |||
Basis Frequenz | 2 GHz | |||
Max. Turbo-Taktfrequenz | 2,6 GHz | |||
Cache | 1,5 MB | |||
Thermal Design Power (TDP) | 10 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | AMI UEFI BIOS | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.4 | |||
Display | ||||
Display Type | 15,6" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Max. Farben | 16,7M | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 500 cd/m², 1000 cd/m² | |||
Betrachtungswinkel | Horizontal | 170 °, 178 ° | ||
Vertikal | 170 °, 178 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 50000 h | |||
Touchscreen | Typ | Analog Resistiv, Kapazitiv | ||
Lichtdurchlässigkeit | 80 %, 90 % | |||
Interface | USB | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

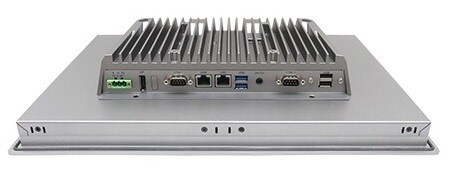

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 1 St | ||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 2, Type A) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Stromaufnahme Maximal | 60,48 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 15,6" | ||
Breite | 412 mm | |||
Tiefe | 78 mm | |||
Höhe | 277,5 mm | |||
Schutzart (IP) | IP66 (frontseitig) | |||
Gewicht | 4200 g | |||
Farbe | Dunkel Grau | |||
Material | Aluminium | |||
Montageoption | Panelmontage, VESA | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
