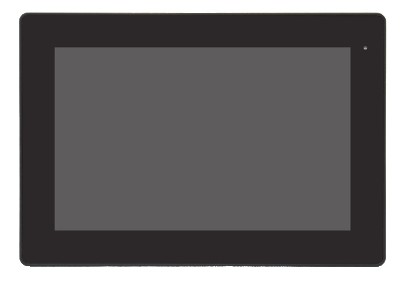

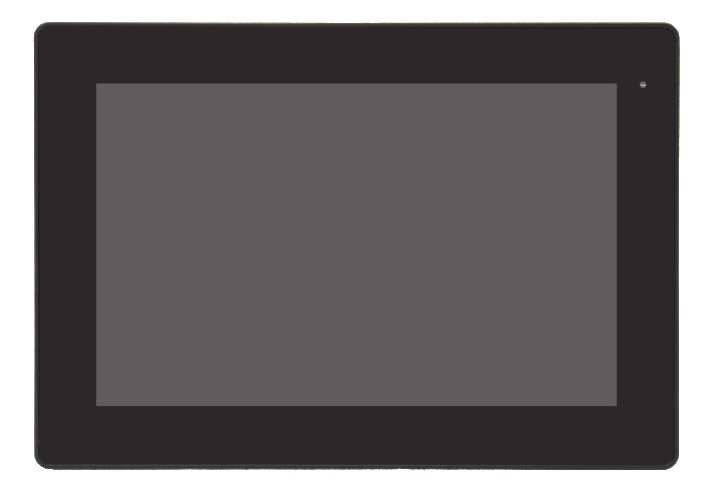

Panel PC mit IP66 (frontseitig)
// 10,1" TFT-LCD Panel-PC
// Intel Celeron J6412
// Touchscreen (Kapazitiv)
// Passiv cooled
// IP66 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Aplex AUHMI-810BP(H)
| Allgemein | ||||
| SKU / Artikelnummer | AUHMI-810BP(H) | |||
| Produktgrunddaten | ||||
| Hersteller | Aplex | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Elkhart Lake | |||
| Nummer | Intel Celeron J6412 | |||
| CPU Kerne | 4 St | |||
| Threads | 4 St | |||
| Sockel | BGA 1493 | |||
| Basis Frequenz | 2 GHz | |||
| Max. Turbo-Taktfrequenz | 2,6 GHz | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 3200 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 32 GB | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Display | ||||
| Display Type | 10,1" TFT-LCD | |||
| Max. Auflösung | 1280 x 800 | |||
| Seitenverhältnis | 8 : 5 | |||
| Max. Farben | 16,2M, 16,7M | |||
| Kontrast | 800:1, 1300:1 | |||
| Leuchtdichte | 350 cd/m², 1000 cd/m² | |||
| Betrachtungswinkel | Horizontal | 170 ° | ||
| Vertikal | 170 ° | |||
| Hintergrundbeleuchtung | Ausführung | LED | ||
| Lebensdauer | 30000 h, 50000 h | |||
| Touchscreen | Typ | Kapazitiv | ||
| Lichtdurchlässigkeit | 90 % | |||
| Interface | USB | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | E | |
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 3 | Key ID | B | ||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||

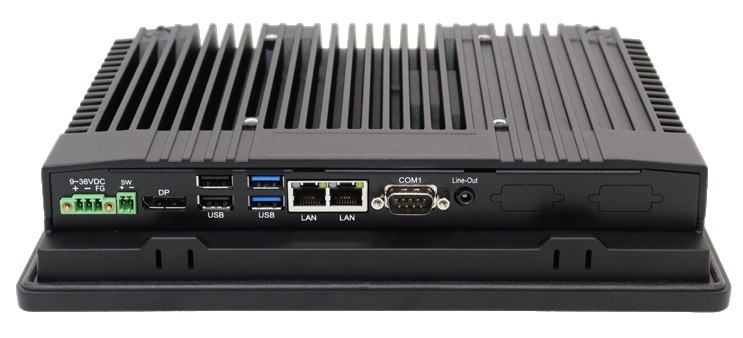

| Externe I/O (Rückseite) | ||||
| Anzeige | DP++ | 1 St | ||
| Audio | Line-Out | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 2) | 2 St | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | 3 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 9~36V | |||
| Stromaufnahme Typisch | 35 W | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 50°C | ||
| Lagerung | -30° bis 70°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | 10,1" | ||
| Breite | 269 mm | |||
| Tiefe | 51 mm | |||
| Höhe | 189 mm | |||
| Schutzart (IP) | IP66 (frontseitig) | |||
| Gewicht | 2400 g | |||
| Bedienelemente | Power (Terminal Anschluss) | 1 St | ||
| Farbe | Schwarz | |||
| Material | Aluminium | |||
| Montageoption | Panelmontage, VESA | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Windows 11 IoT | wird unterstützt | |||
| Unterstützte BS | Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
