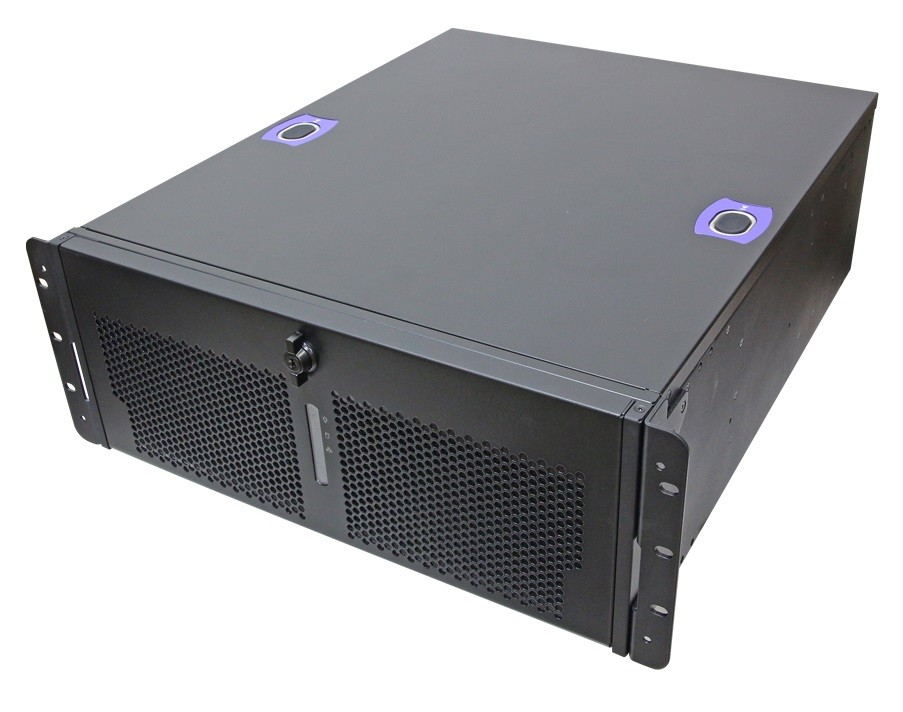

4 HE Server
// 19"
// Intel Xeon Silver 4514Y
// LGA 4677 (P5)
// TDP 150 W
// null
// 5 x G-LAN (Back side)
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue GAI-ERSR-70B-Lite
Allgemein | ||||
SKU / Artikelnummer | GAI-ERSR-70B-Lite | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
Produkt-ID | GAI-ERS70LR-A1R | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Emerald Rapids | |||
Nummer | Intel Xeon Silver 4514Y | |||
CPU Kerne | 16 St | |||
Threads | 32 St | |||
Sockel | LGA 4677 (P5) | |||
Basis Frequenz | 2 GHz | |||
Max. Turbo-Taktfrequenz | 3,4 GHz | |||
Cache | 30 MB | |||
Thermal Design Power (TDP) | 150 W | |||
Chipsatz | Intel C741 | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
DIMM Type | Registered DIMM | |||
DIMM Datarate | 4800 MT/s | |||
Steckplätze | 6 St | |||
Maximaler Ausbau | 576 GB | |||
Speicher onBoard | 576 GB | |||
Storage | Solid State Drive (SSD) | 4 TB | ||
Solid State Drive (NVMe SSD) | 2 x 2 TB | |||
BIOS | AMI UEFI BIOS | |||
IPMI | IPMI-Controller | Aspeed AST2620 BMC | ||
Version | 2.0 | |||
Storage | Solid State Drive (SSD) 4 TB | |||
Grafik | ||||
Prozessor | Nvidia RTX 4000 Ada | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x4 | Generation | 5 | ||
x4 Signal | 3 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 4 St | |||
PCIe Schnittstellen | 3x PCIe x4, 4x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | M | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | Intel X550-AT2 (10 Gbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 mit POE | 4 St | ||
RJ-45 mit OOB | 1 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 1) | 4 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Einschübe | 1 St | |
Anschluss | C14 | |||
Stromaufnahme Maximal | 1.300 W | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 35°C | ||
Lagerung | -40° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | 19" | ||
Breite | 430 mm | |||
Tiefe | 528 mm | |||
Höhe | 174,8 mm | |||
Höheneinheiten | 4 HE | |||
Gewicht | 22000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
GbE | 1 St | |||
Montageoption | Rackmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux |
Gerne beraten wir Sie persönlich.
