M.2
// M.2
// iSLC
// PCI Express Gen. 4
// 4IG2-P
// 0° bis 70°C | -40° bis 85°C
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

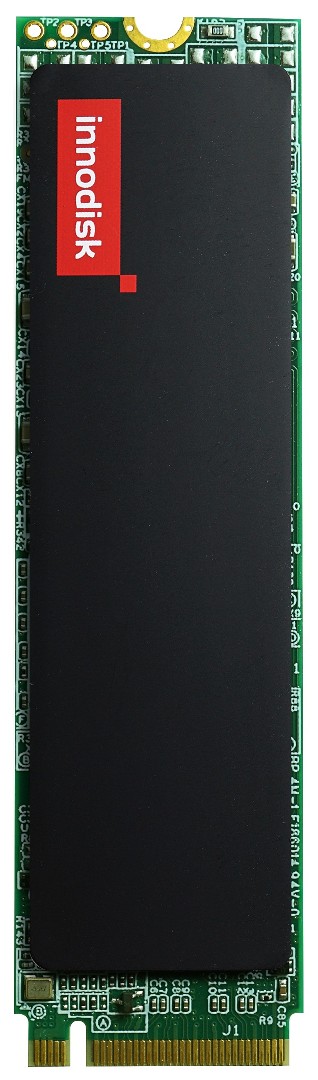

Basismodul: Innodisk M.2 (P80) 4IG2-P
| Allgemein | ||||
| SKU / Artikelnummer | M.2 (P80) 4IG2-PDHM28-1T2DP1KCCEF, DHM28-1T2DP1KWCEFH, DHM28-1T2DP2KCCEF, DHM28-1T2DP2KWCEFH, DHM28-A60DP1KCCEF, DHM28-A60DP1KWCEFH, DHM28-A60DP2KCCEF, DHM28-A60DP2KWCEFH, DHM28-D2GDP1KCCEF, DHM28-D2GDP1KWCEFH, DHM28-D2GDP2KCCEF, DHM28-D2GDP2KWCEFH, DHM28-F4GDP1KCCEF, DHM28-F4GDP1KWCEFH, DHM28-F4GDP2KCCEF, DHM28-F4GDP2KWCEFH | |||
| Produktgrunddaten | ||||
| Hersteller | Innodisk | |||
| Flash Speichermedien | ||||
| Serie | 4IG2-P | |||
| Anschluss (Interface) | PCI Express Gen. 4 | |||
| Flash Aufbau | M.2 (NGFF) | |||
| Key Typ | M | |||
| Flash Type | iSLC | |||
| Schreib-/Löschzyklen (P/E Limit) | 30000, 100000 | |||
| Kapazität | 1.28 TB, 160 GB, 320 GB, 640 GB | |||
| Controller | Innogrit | |||
| Channel | 8 | |||
| Maximale Stromaufnahme | 8,5 W | |||
| iDataguard | wird unterstützt | |||
| iPowerguard | wird unterstützt | |||
| NVMe | Ja | |||
| Performance | Flash Chip | Kioxia (Toshiba) | ||
| Wärmesensor | Ja | |||
| TRIM | wird unterstützt | |||
| Externer DRAM Buffer | wird unterstützt | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Advanced Encryption Standard (AES) | -, Ja | |||
| S.M.A.R.T | Ja | |||
| TCG Opal | -, Ja | |||
| Customized | H/W WT solution | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||

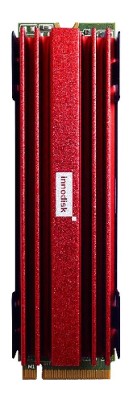

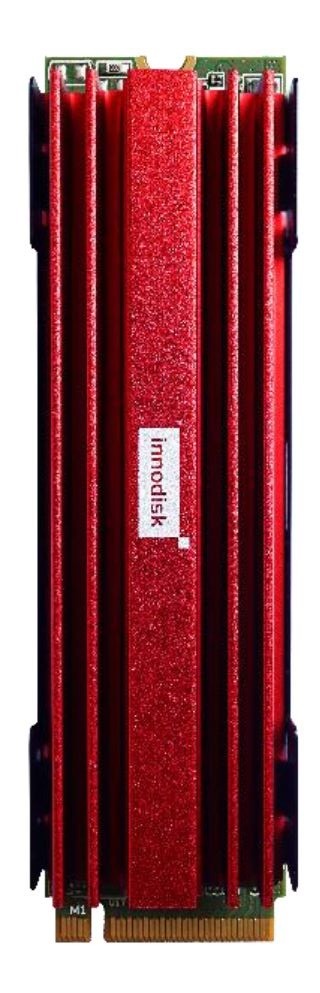

| Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 70°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | M.2 | ||
| Typ | 2280 | |||
| Interface | PCI Express 4.0 x 4 | |||
| Breite | 22 mm, 25 mm | |||
| Tiefe | 80 mm | |||
| Höhe | 4,1 mm, 14,5 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 Axen | ||
| Referenz Standard | IEC 68-2-6 | |||
| Schock | Messdaten | 1500G, 0.5 ms, 3 Axen | ||
| Referenz Standard | IEC 68-2-27 | |||
| Gewicht | 7 g | |||
| MTBF | MTBF 25°C | 3.000.000 h | ||
| Berechnungsmodell | Telcordia SR-332 GB | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
| Product Change Notification (PCN) | |
| Title ESD Bag Running Change Notice for M.2 Products with Heatsink and E1.S Series Products Description This PCN is being issued to address M.2 products with heatsink and E1.S series products ESD bag change. To standardise packaging materials and improve material management efficiency, Innodisk will integrate the current ESD bag specifi cations into one unified ESD bag specification as below “Summary of Change”. Summary of Change Prior to the change, ESD bags were managed under multiple parts. Following the change, these have been consolidated into a single part, featuring an anti-static warning print, a self-adhesive seal, and a standardised 70×130mm dimension. | |
| Revision: | F260024 |
| Revision date: | 8. Juni 2026 |
| Last purchase date: | 12. Juni 2026 |
| Last shipping date: | |
| Betroffene Produkte: |
DEM23-01TDF1KWADFH, DEM23-01TDF1KWBDFH, DEM23-01TDF2KWADFH, DEM23-01TDF2KWBDFH, DEM23-01TDH1KCBDF, DEM23-01TDH1KWBDFH, DEM23-01TDH2KCBDF, DEM23-01TDH2KWBDFH, DEM23-32GIG1ECADH, DEM23-32GIG1ECASH, DEM23-32GIG1EWADH, DEM23-32GIG1EWASH, DEM23-64GIG1ECADH, DEM23-64GIG1EWADH, DEM23-A28DF1KWADFH, DEM23-A28DF1KWBDFH, DEM23-A28DF2KWADFH, DEM23-A28DF2KWBDFH, DEM23-A28DH1KCBDF, DEM23-A28DH1KWBDFH, DEM23-A28DH2KCBDF, DEM23-A28DH2KWBDFH, DEM23-A28IG1ECADH, DEM23-A28IG1ECAQH, DEM23-A28IG1EWADH, DEM23-A28IG1EWAQH, DEM23-B56DF1KWADFH, DEM23-B56DF1KWBDFH, DEM23-B56DF2KWADFH, DEM23-B56DF2KWBDFH, DEM23-B56DH1KCBDF, DEM23-B56DH1KWBDFH, DEM23-B56DH2KCBDF, DEM23-B56DH2KWBDFH, DEM23-B56IG1ECADH, DEM23-B56IG1ECAQH, DEM23-B56IG1EWADH, DEM23-B56IG1EWAQH, DEM23-C12DF1KWADFH, DEM23-C12DF1KWBDFH, DEM23-C12DF2KWADFH, DEM23-C12DF2KWBDFH, DEM23-C12DH1KCBDF, DEM23-C12DH1KWBDFH, DEM23-C12DH2KCBDF, DEM23-C12DH2KWBDFH, DEM23-C12IG1ECADH, DEM23-C12IG1ECAQH, DEM23-C12IG1EWADH, DEM23-C12IG1EWAQH, DEM24-01TDF1KWADFPH, DEM24-01TDF1KWAQFH, DEM24-01TDF2KWADFPH, DEM24-01TDF2KWAQFH, DEM24-01TDH1KCAQF, DEM24-01TDH1KCAQL, DEM24-01TDH1KWAQFH, DEM24-01TDH2KCADL, DEM24-01TDH2KCAQF, DEM24-01TDH2KCAQL, DEM24-01TDH2KCAQQ, DEM24-01TDH2KWAQFH, DEM24-01TDH2PCAQF, DEM24-01TDS2KWAQFH, DEM24-01TDS2KWCQFH, DEM24-02TDF1KWAQFH, DEM24-02TDF2KWAQFH, DEM24-02TDH1KCAQF, DEM24-02TDH1KCAQQ, DEM24-02TDH1KWAQFH, DEM24-02TDH2KCADL, DEM24-02TDH2KCAQF, DEM24-02TDH2KCAQL, DEM24-02TDH2KCAQQ, DEM24-02TDH2KWAQFH, DEM24-02TDH2PCAQF, DEM24-04TDF1KWBQFH, DEM24-04TDF2KWBQFH, DEM24-A28DF1KWADFH, DEM24-A28DF1KWADFPH, DEM24-A28DF2KWADFH, DEM24-A28DF2KWADFPH, DEM24-A28DH1KCADF, DEM24-A28DH1KCADL, DEM24-A28DH1KWADFH, DEM24-A28DH2KCADF, DEM24-A28DH2KCADL, DEM24-A28DH2KCAQL, DEM24-A28DH2KCAQQ, DEM24-A28DH2KWADFH, DEM24-A28DS2KWADFH, DEM24-A28DS2KWCDFH, DEM24-B56DF1KWADFPH, DEM24-B56DF1KWAQFH, DEM24-B56DF2KWADFPH, DEM24-B56DF2KWAQFH, DEM24-B56DH1KCAQF, DEM24-B56DH1KCAQL, DEM24-B56DH1KWAQFH, DEM24-B56DH2KCADL, DEM24-B56DH2KCAQF, DEM24-B56DH2KCAQL, DEM24-B56DH2KCAQQ, DEM24-B56DH2KWAQFH, DEM24-B56DH2PCADF, DEM24-B56DS2KWAQFH, DEM24-B56DS2KWCQFH, DEM24-C12DF1KWADFPH, DEM24-C12DF1KWAQFH, DEM24-C12DF2KWADFPH, DEM24-C12DF2KWAQFH, DEM24-C12DH1KCAQF, DEM24-C12DH1KCAQL, DEM24-C12DH1KWAQFH, DEM24-C12DH2KCADL, DEM24-C12DH2KCAQF, DEM24-C12DH2KCAQL, DEM24-C12DH2KCAQQ, DEM24-C12DH2KWAQFH, DEM24-C12DH2PCAQF, DEM24-C12DS2KWAQFH, DEM24-C12DS2KWCQFH, DEM28-01TDF1KWAQFH, DEM28-01TDF1KWAQFPH, DEM28-01TDF2KWAQFH, DEM28-01TDF2KWAQFPH, DEM28-01TDH1KCAQF, DEM28-01TDH1KCAQL, DEM28-01TDH1KCBQFP, DEM28-01TDH1KWAQFH, DEM28-01TDH1KWBQFPH, DEM28-01TDH2KCAQF, DEM28-01TDH2KCAQL, DEM28-01TDH2KCBQFP, DEM28-01TDH2KWAQFH, DEM28-01TDH2KWBQFPH, DEM28-01TDH2PCAQF, DEM28-01TDS2KWAQFSH, DEM28-01TDS2KWCQFSH, DEM28-02TDF1KWAQFH, DEM28-02TDF1KWAQFPH, DEM28-02TDF2KWAQFH, DEM28-02TDF2KWAQFPH, DEM28-02TDH1KCAQF, DEM28-02TDH1KCAQL, DEM28-02TDH1KCBQFP, DEM28-02TDH1KWAQFH, DEM28-02TDH1KWBQFPH, DEM28-02TDH2KCAQF, DEM28-02TDH2KCAQL, DEM28-02TDH2KCBQFP, DEM28-02TDH2KWAQFH, DEM28-02TDH2KWBQFPH, DEM28-02TDH2PCAQF, DEM28-02TDS2KWAQFSH, DEM28-02TDS2KWCQFSH, DEM28-A28DF1KWADFH, DEM28-A28DF1KWADFPH, DEM28-A28DF2KWADFH, DEM28-A28DF2KWADFPH, DEM28-A28DH1KCADF, DEM28-A28DH1KCADL, DEM28-A28DH1KCBDFP, DEM28-A28DH1KWADFH, DEM28-A28DH1KWBDFPH, DEM28-A28DH2KCADF, DEM28-A28DH2KCADL, DEM28-A28DH2KCBDFP, DEM28-A28DH2KWADFH, DEM28-A28DH2KWBDFPH, DEM28-A28DS2KWADFSH, DEM28-A28DS2KWCDFSH, DEM28-B56DF1KWAQFH, DEM28-B56DF1KWAQFPH, DEM28-B56DF2KWAQFH, DEM28-B56DF2KWAQFPH, DEM28-B56DH1KCAQF, DEM28-B56DH1KCAQL, DEM28-B56DH1KCBQFP, DEM28-B56DH1KWAQFH, DEM28-B56DH1KWBQFPH, DEM28-B56DH2KCAQF, DEM28-B56DH2KCAQL, DEM28-B56DH2KCBQFP, DEM28-B56DH2KWAQFH, DEM28-B56DH2KWBQFPH, DEM28-B56DH2PCADF, DEM28-B56DS2KWAQFSH, DEM28-B56DS2KWCQFSH, DEM28-C12DF1KWAQFH, DEM28-C12DF1KWAQFPH, DEM28-C12DF2KWAQFH, DEM28-C12DF2KWAQFPH, DEM28-C12DH1KCAQF, DEM28-C12DH1KCAQL, DEM28-C12DH1KCBQFP, DEM28-C12DH1KWAQFH, DEM28-C12DH1KWBQFPH, DEM28-C12DH2KCAQF, DEM28-C12DH2KCAQL, DEM28-C12DH2KCBQFP, DEM28-C12DH2KWAQFH, DEM28-C12DH2KWBQFPH, DEM28-C12DH2PCAQF, DEM28-C12DS2KWAQFSH, DEM28-C12DS2KWCQFSH, DESDC-04GS02AE1SB, DESDC-08GS02AE1SB, DESDC-16GS02AE1SB, DESDC-32GS02AE1SB, DESDC-32GS06EE1SL, DESDC-64GS06GE1SL, DESDC-64GS06KE1SL, DESDC-A28S06GE1SL, DESDC-A28S06KE1SL, DESDC-B56S06GE1SL, DESDC-B56S06KE1SL, DESDM-04GS02AE1ST, DESDM-08GS02AE1ST, DESDM-08GS02SE1SK, DESDM-16GS02SE1SK, DESDM-32GS02SE1SK, DESDM-32GS06EE1SL, DESDM-64GS02SE1SK, DESDM-64GS06GE1SL, DESDM-64GS06KE1SL, DESDM-A28S06GE1SL, DESDM-A28S06KE1SL, DESDM-B56S06GE1SL, DESDM-B56S06KE1SL, DESDM-C12S06GE1SL, DESDM-C12S06KE1SL, DGE1S-01TDP2KCAEFP, DGE1S-01TDP2KCAEFPH, DGE1S-01TDP2KCAEFPH1, DGE1S-01TDP2KWAEFP, DGE1S-01TDP2KWAEFPH, DGE1S-01TDP2KWAEFPH1, DGE1S-02TDP2KCAEFP, DGE1S-02TDP2KCAEFPH, DGE1S-02TDP2KCAEFPH1, DGE1S-02TDP2KWAEFP, DGE1S-02TDP2KWAEFPH, DGE1S-02TDP2KWAEFPH1, DGE1S-04TDP2KCAEFP, DGE1S-04TDP2KCAEFPH, DGE1S-04TDP2KCAEFPH1, DGE1S-04TDP2KWAEFP, DGE1S-04TDP2KWAEFPH, DGE1S-04TDP2KWAEFPH1, DGE1S-08TDP2KCBEFP, DGE1S-08TDP2KCBEFPH, DGE1S-08TDP2KCBEFPH1, DGE1S-08TDP2KWBEFP, DGE1S-08TDP2KWBEFPH, DGE1S-08TDP2KWBEFPH1, DGE1S-C12DP2KCAEFP, DGE1S-C12DP2KCAEFPH, DGE1S-C12DP2KCAEFPH1, DGE1S-C12DP2KWAEFP, DGE1S-C12DP2KWAEFPH, DGE1S-C12DP2KWAEFPH1, DGM21-01TDP1KCAEFP, DGM21-01TDP1KCBEFP, DGM21-01TDP1KWBEFPH, DGM21-01TDP2KCBEFP, DGM21-01TDP2KWBEFPH, DGM21-02TDA1ECAEH, DGM21-02TDP1KCAEFP, DGM21-02TDP1KCBEFP, DGM21-02TDP1KWBEFPH, DGM21-02TDP2KCBEFP, DGM21-02TDP2KWBEFPH, DGM21-04TDP1KCAEFP, DGM21-04TDP1KCBEFP, DGM21-04TDP1KWBEFPH, DGM21-04TDP2KCBEFP, DGM21-04TDP2KWBEFPH, DGM21-08TDP1KCCEF, DGM21-08TDP1KWCEFH, DGM21-08TDP2KCCEF, DGM21-08TDP2KWCEFH, DGM21-C12DP1KCAEFP, DGM21-C12DP1KCBEFP, DGM21-C12DP1KWBEFPH, DGM21-C12DP2KCBEFP, DGM21-C12DP2KWBEFPH, DGM28-01TDA1GWAELH, DGM28-01TDA2ECBEH, DGM28-01TDA2HWBEHH, DGM28-01TDC1EWBEFH, DGM28-01TDC1GWBELH, DGM28-01TDC1KWBEFH, DGM28-01TDP1KWAEFH, DGM28-01TDP1KWCEFH, DGM28-01TDP1KWDEFPH, DGM28-01TDP2KWCEFH, DGM28-01TDP2KWDEFPH, DGM28-02TDA1GWAEQH, DGM28-02TDA2ECBEH, DGM28-02TDC1GWBEQH, DGM28-02TDC1KWBEFH, DGM28-02TDP1KWAEFH, DGM28-02TDP1KWCEFH, DGM28-02TDP1KWDEFPH, DGM28-02TDP2KWCEFH, DGM28-02TDP2KWDEFPH, DGM28-04TDP1KWAEFH, DGM28-04TDP1KWCEFH, DGM28-04TDP2KWCEFH, DGM28-A28DA2ECBDH, DGM28-A28DA2HWADHH, DGM28-A28DC1EWBQFH, DGM28-A28DC1GWBDLH, DGM28-A28DC1KWBDFH, DGM28-B56DA1GWAQLH, DGM28-B56DA2ECBQH, DGM28-B56DA2HWAQHH, DGM28-B56DC1EWBEFH, DGM28-B56DC1GWBQLH, DGM28-B56DC1KWBQFH, DGM28-B56DP1KWCQFH, DGM28-B56DP1KWDQFPH, DGM28-B56DP2KWCQFH, DGM28-B56DP2KWDQFPH, DGM28-C12DA1GWAELH, DGM28-C12DA2ECBEH, DGM28-C12DA2HWAEHH, DGM28-C12DC1EWBEFH, DGM28-C12DC1GWBELH, DGM28-C12DC1KWBEFH, DGM28-C12DP1KWAEFH, DGM28-C12DP1KWCEFH, DGM28-C12DP1KWDEFPH, DGM28-C12DP2KWCEFH, DGM28-C12DP2KWDEFPH, DHM21-1T2DP1KCBEFP, DHM21-1T2DP1KCBEQP, DHM21-1T2DP1KWBEFPH, DHM21-1T2DP1KWBEQPH, DHM21-1T2DP2KCBEFP, DHM21-1T2DP2KCBEQP, DHM21-1T2DP2KWBEFPH, DHM21-1T2DP2KWBEQPH, DHM21-2T5DP1KCCEF, DHM21-2T5DP1KWCEFH, DHM21-2T5DP2KCCEF, DHM21-2T5DP2KWCEFH, DHM21-A60DP1KCBEFP, DHM21-A60DP1KCBELP, DHM21-A60DP1KWBEFPH, DHM21-A60DP1KWBELPH, DHM21-A60DP2KCBEFP, DHM21-A60DP2KCBELP, DHM21-A60DP2KWBEFPH, DHM21-A60DP2KWBELPH, DHM21-D2GDP1KCBEFP, DHM21-D2GDP1KCBELP, DHM21-D2GDP1KWBEFPH, DHM21-D2GDP1KWBELPH, DHM21-D2GDP2KCBEFP, DHM21-D2GDP2KCBELP, DHM21-D2GDP2KWBEFPH, DHM21-D2GDP2KWBELPH, DHM21-F4GDP1KCBEFP, DHM21-F4GDP1KCBELP, DHM21-F4GDP1KWBEFPH, DHM21-F4GDP1KWBELPH, DHM21-F4GDP2KCBEFP, DHM21-F4GDP2KCBELP, DHM21-F4GDP2KWBEFPH, DHM21-F4GDP2KWBELPH, DHM23-40GDF1KWADFH, DHM23-40GDF2KWADFH, DHM23-40GDH1KCBDF, DHM23-40GDH1KWBDFH, DHM23-40GDH2KCBDF, DHM23-40GDH2KWBDFH, DHM23-80GDF1KWADFH, DHM23-80GDF2KWADFH, DHM23-80GDH1KCBDF, DHM23-80GDH1KWBDFH, DHM23-80GDH2KCBDF, DHM23-80GDH2KWBDFH, DHM23-A60DF1KWADFH, DHM23-A60DF2KWADFH, DHM23-A60DH1KCBDF, DHM23-A60DH1KWBDFH, DHM23-A60DH2KCBDF, DHM23-A60DH2KWBDFH, DHM24-40GDF1KWADFH, DHM24-40GDF1KWADLH, DHM24-40GDF2KWADFH, DHM24-40GDF2KWADLH, DHM24-40GDH1KCADF, DHM24-40GDH1KCADL, DHM24-40GDH1KWADFH, DHM24-40GDH1KWADLH, DHM24-40GDH2KCADF, DHM24-40GDH2KCADL, DHM24-40GDH2KWADFH, DHM24-40GDH2KWADLH, DHM24-40GDS2KWADLH, DHM24-40GDS2KWCDLH, DHM24-80GDF1KWAQFH, DHM24-80GDF1KWAQLH, DHM24-80GDF2KWAQFH, DHM24-80GDF2KWAQLH, DHM24-80GDH1KCAQF, DHM24-80GDH1KCAQL, DHM24-80GDH1KWAQFH, DHM24-80GDH2KCAQF, DHM24-80GDH2KCAQL, DHM24-80GDH2KWAQFH, DHM24-80GDH2KWAQLH, DHM24-80GDS2KWAQLH, DHM24-80GDS2KWCQLH, DHM24-A60DF1KWAQFH, DHM24-A60DF1KWAQLH, DHM24-A60DF2KWAQFH, DHM24-A60DF2KWAQLH, DHM24-A60DH1KCAQF, DHM24-A60DH1KCAQL, DHM24-A60DH1KWAQFH, DHM24-A60DH1KWAQLH, DHM24-A60DH2KCAQF, DHM24-A60DH2KCAQL, DHM24-A60DH2KWAQFH, DHM24-A60DH2KWAQLH, DHM24-A60DS2KWAQLH, DHM24-A60DS2KWCQLH, DHM24-D2GDF1KWAQFH, DHM24-D2GDF1KWAQLH, DHM24-D2GDF2KWAQFH, DHM24-D2GDF2KWAQLH, DHM24-D2GDH1KCAQF, DHM24-D2GDH1KCAQL, DHM24-D2GDH1KWAQFH, DHM24-D2GDH1KWAQLH, DHM24-D2GDH2KCAQF, DHM24-D2GDH2KCAQL, DHM24-D2GDH2KWAQFH, DHM24-D2GDH2KWAQLH, DHM24-D2GDS2KWAQLH, DHM24-D2GDS2KWCQLH, DHM24-F4GDF1KWAQFH, DHM24-F4GDF1KWAQQH, DHM24-F4GDF2KWAQFH, DHM24-F4GDF2KWAQQH, DHM24-F4GDH1KCAQQ, DHM24-F4GDH1KWAQQH, DHM24-F4GDH2KCAQQ, DHM24-F4GDH2KWAQQH, DHM28-1T2DP1KWCEFH, DHM28-1T2DP1KWCEQH, DHM28-1T2DP2KWCEFH, DHM28-1T2DP2KWCEQH, DHM28-40GDC1GWADLH, DHM28-40GDF1KWADFH, DHM28-40GDF1KWADFPH, DHM28-40GDF1KWADLH, DHM28-40GDF2KWADFH, DHM28-40GDF2KWADFPH, DHM28-40GDF2KWADLH, DHM28-40GDF2KWADLPH, DHM28-40GDH1KCADF, DHM28-40GDH1KCADL, DHM28-40GDH1KCBDFP, DHM28-40GDH1KCBDLP, DHM28-40GDH1KWADFH, DHM28-40GDH1KWADLH, DHM28-40GDH1KWBDFPH, DHM28-40GDH2KCADF, DHM28-40GDH2KCADL, DHM28-40GDH2KCBDFP, DHM28-40GDH2KCBDLP, DHM28-40GDH2KWADFH, DHM28-40GDH2KWADLH, DHM28-40GDH2KWBDFPH, DHM28-40GDS2KWADLSH, DHM28-40GDS2KWCDLSH, DHM28-80GDC1GWAQLH, DHM28-80GDF1KWAQFH, DHM28-80GDF1KWAQFPH, DHM28-80GDF1KWAQLH, DHM28-80GDF2KWAQFH, DHM28-80GDF2KWAQFPH, DHM28-80GDF2KWAQLH, DHM28-80GDF2KWAQLPH, DHM28-80GDH1KCAQF, DHM28-80GDH1KCAQL, DHM28-80GDH1KCBQFP, DHM28-80GDH1KCBQLP, DHM28-80GDH1KWAQFH, DHM28-80GDH1KWAQLH, DHM28-80GDH1KWBQFPH, DHM28-80GDH2KCAQF, DHM28-80GDH2KCAQL, DHM28-80GDH2KCBQFP, DHM28-80GDH2KCBQLP, DHM28-80GDH2KWAQFH, DHM28-80GDH2KWAQLH, DHM28-80GDH2KWBQFPH, DHM28-80GDS2KWAQLSH, DHM28-80GDS2KWCQLSH, DHM28-A60DC1GWAELH, DHM28-A60DF1KWAQFH, DHM28-A60DF1KWAQFPH, DHM28-A60DF1KWAQLH, DHM28-A60DF2KWAQFH, DHM28-A60DF2KWAQFPH, DHM28-A60DF2KWAQLH, DHM28-A60DF2KWAQLPH, DHM28-A60DH1KCAQF, DHM28-A60DH1KCAQL, DHM28-A60DH1KCBQFP, DHM28-A60DH1KCBQLP, DHM28-A60DH1KWAQFH, DHM28-A60DH1KWAQLH, DHM28-A60DH1KWBQFPH, DHM28-A60DH2KCAQF, DHM28-A60DH2KCAQL, DHM28-A60DH2KCBQFP, DHM28-A60DH2KCBQLP, DHM28-A60DH2KWAQFH, DHM28-A60DH2KWAQLH, DHM28-A60DH2KWBQFPH, DHM28-A60DP1KWCEFH, DHM28-A60DP1KWCELH, DHM28-A60DP2KWCEFH, DHM28-A60DP2KWCELH, DHM28-A60DS2KWAQLSH, DHM28-A60DS2KWCQLSH, DHM28-D2GDC1GWAELH, DHM28-D2GDF1KWAQFH, DHM28-D2GDF1KWAQFPH, DHM28-D2GDF1KWAQLH, DHM28-D2GDF2KWAQFH, DHM28-D2GDF2KWAQFPH, DHM28-D2GDF2KWAQLH, DHM28-D2GDF2KWAQLPH, DHM28-D2GDH1KCAQF, DHM28-D2GDH1KCAQL, DHM28-D2GDH1KCBQFP, DHM28-D2GDH1KCBQLP, DHM28-D2GDH1KWAQFH, DHM28-D2GDH1KWAQLH, DHM28-D2GDH1KWBQFPH, DHM28-D2GDH2KCAQF, DHM28-D2GDH2KCAQL, DHM28-D2GDH2KCBQFP, DHM28-D2GDH2KCBQLP, DHM28-D2GDH2KWAQFH, DHM28-D2GDH2KWAQLH, DHM28-D2GDH2KWBQFPH, DHM28-D2GDP1KWCEFH, DHM28-D2GDP1KWCELH, DHM28-D2GDP2KWCEFH, DHM28-D2GDP2KWCELH, DHM28-D2GDS2KWAQLSH, DHM28-D2GDS2KWCQLSH, DHM28-F4GDC1GWAEQH, DHM28-F4GDF1KWAQFH, DHM28-F4GDF1KWAQFPH, DHM28-F4GDF1KWAQLH, DHM28-F4GDF2KWAQFH, DHM28-F4GDF2KWAQFPH, DHM28-F4GDF2KWAQLH, DHM28-F4GDF2KWAQLPH, DHM28-F4GDH1KCAQF, DHM28-F4GDH1KCAQL, DHM28-F4GDH1KCBQFP, DHM28-F4GDH1KCBQLP, DHM28-F4GDH1KWAQFH, DHM28-F4GDH1KWAQLH, DHM28-F4GDH1KWBQFPH, DHM28-F4GDH2KCAQF, DHM28-F4GDH2KCAQL, DHM28-F4GDH2KCBQFP, DHM28-F4GDH2KCBQLP, DHM28-F4GDH2KWAQFH, DHM28-F4GDH2KWAQLH, DHM28-F4GDH2KWBQFPH, DHM28-F4GDP1KWCEFH, DHM28-F4GDP1KWCELH, DHM28-F4GDP2KWCEFH, DHM28-F4GDP2KWCELH, DHM28-F4GDS2KWAQLSH, DHM28-F4GDS2KWCQLSH, DHSDC-04GS02BE1SC, DHSDC-08GS02BE1SC, DHSDC-08GS06EE1SL, DHSDC-16GS02BE1SC, DHSDC-16GS06GE1SL, DHSDC-16GS06KE1SL, DHSDC-32GS02BE1SC, DHSDC-32GS06GE1SL, DHSDC-32GS06KE1SL, DHSDC-64GS02BE1SC, DHSDC-64GS06GE1SL, DHSDC-64GS06KE1SL, DHSDM-08GS06EE1SL, DHSDM-16GS06GE1SL, DHSDM-16GS06KE1SL, DHSDM-32GS06GE1SL, DHSDM-32GS06KE1SL, DHSDM-64GS06GE1SL, DHSDM-64GS06KE1SL, DHSDM-A28S06GE1SL, DHSDM-A28S06KE1SL, DM2-121E-HL-R10, DM2-121EL-HL-R10, DM2-170H-R10, DM2-170HL-R10, DM2-190H-R10, DM2-190HL-R10, DM2-W121G-HL-R10, DM2-W121GL-HL-R10, DSE1S-1T6DP2KCAEFP, DSE1S-1T6DP2KCAEFPH, DSE1S-1T6DP2KCAEFPH1, DSE1S-1T6DP2KWAEFP, DSE1S-1T6DP2KWAEFPH, DSE1S-1T6DP2KWAEFPH1, DSE1S-1T6DP2NCAEFP, DSE1S-1T6DP2NCAEFPH, DSE1S-1T6DP2NCAEFPH1, DSE1S-1T9DP2NCAEFP, DSE1S-1T9DP2NCAEFPH, DSE1S-1T9DP2NCAEFPH1, DSE1S-1T9DP2NCBEFP, DSE1S-1T9DP2NCBEFPH, DSE1S-1T9DP2NCBEFPH1, DSE1S-1T9IX1UCAHHPH1, DSE1S-3T2DP2KCAEFP, DSE1S-3T2DP2KCAEFPH, DSE1S-3T2DP2KCAEFPH1, DSE1S-3T2DP2KWAEFP, DSE1S-3T2DP2KWAEFPH, DSE1S-3T2DP2KWAEFPH1, DSE1S-3T8DP2NCBEFP, DSE1S-3T8DP2NCBEFPH, DSE1S-3T8DP2NCBEFPH1, DSE1S-3T8IX1UCAHHPH1, DSE1S-400DP2KCAEFP, DSE1S-400DP2KCAEFPH, DSE1S-400DP2KCAEFPH1, DSE1S-400DP2KWAEFP, DSE1S-400DP2KWAEFPH, DSE1S-400DP2KWAEFPH1, DSE1S-400DP2NCAEFP, DSE1S-400DP2NCAEFPH, DSE1S-400DP2NCAEFPH1, DSE1S-480DP2NCAEFP, DSE1S-480DP2NCAEFPH, DSE1S-480DP2NCAEFPH1, DSE1S-6T4DP2KCBEFP, DSE1S-6T4DP2KCBEFPH, DSE1S-6T4DP2KCBEFPH1, DSE1S-6T4DP2KWBEFP, DSE1S-6T4DP2KWBEFPH, DSE1S-6T4DP2KWBEFPH1, DSE1S-7T6IX1UCAHHPH1, DSE1S-800DP2KCAEFP, DSE1S-800DP2KCAEFPH, DSE1S-800DP2KCAEFPH1, DSE1S-800DP2KWAEFP, DSE1S-800DP2KWAEFPH, DSE1S-800DP2KWAEFPH1, DSE1S-800DP2NCAEFP, DSE1S-800DP2NCAEFPH, DSE1S-800DP2NCAEFPH1, DSE1S-960DP2NCAEFP, DSE1S-960DP2NCAEFPH, DSE1S-960DP2NCAEFPH1, DSE1S-960DP2NCBEFP, DSE1S-960DP2NCBEFPH, DSE1S-960DP2NCBEFPH1, DSM21-1T6DP1KCBEFP, DSM21-1T6DP1KWBEFPH, DSM21-1T6DP1NCBEFP, DSM21-1T6DP2NCBEFP, DSM21-1T9DP1NCBEFP, DSM21-1T9DP2NCBEFP, DSM21-200DP1NCBQFP, DSM21-200DP2NCBQFP, DSM21-240DP1NCBQFP, DSM21-240DP2NCBQFP, DSM21-3T2DP1KCBEFP, DSM21-3T2DP1KWBEFPH, DSM21-400DP1KCBEFP, DSM21-400DP1KWBEFPH, DSM21-400DP1NCBEFP, DSM21-400DP2NCBEFP, DSM21-480DP1NCBEFP, DSM21-480DP2NCBEFP, DSM21-800DP1KCBEFP, DSM21-800DP1KWBEFPH, DSM21-800DP1NCBEFP, DSM21-800DP2NCBEFP, DSM21-960DP1NCBEFP, DSM21-960DP2NCBEFP, DSM28-1T6DP1KWAEFH, DSM28-1T6DP1KWCEFH, DSM28-1T6DP1KWDEFPH, DSM28-1T6DP1KWDELPH, DSM28-1T6DP1LCCEH, DSM28-1T6DP1NWCEFH, DSM28-1T6DP2KWCEFH, DSM28-1T6DP2KWDEFPH, DSM28-1T6DP2KWDELPH, DSM28-1T9DP1LCCEH, DSM28-200DP1KWCQFH, DSM28-200DP2KWCQFH, DSM28-3T2DP1KWAEFH, DSM28-3T2DP1KWCEFH, DSM28-3T2DP1LCCEH, DSM28-3T2DP2KWCEFH, DSM28-3T8DP1LCCEH, DSM28-400DP1KWAEFH, DSM28-400DP1KWCEFH, DSM28-400DP1KWDEFPH, DSM28-400DP1KWDELPH, DSM28-400DP1LCCEH, DSM28-400DP2KWCEFH, DSM28-400DP2KWDEFPH, DSM28-400DP2KWDELPH, DSM28-480DP1LCCEH, DSM28-800DP1KWAEFH, DSM28-800DP1KWCEFH, DSM28-800DP1KWDEFPH, DSM28-800DP1KWDELPH, DSM28-800DP1LCCEH, DSM28-800DP1NWCEFH, DSM28-800DP2KWCEFH, DSM28-800DP2KWDEFPH, DSM28-800DP2KWDELPH, DSM28-960DP1LCCEH, DSM28-B56D21ECAQH, DSM28-C12D21ECAQH, DSM28-WCEFH, DSM28-WCQFH, DUM24-32GDK1EC1SFxxG, DUM24-32GDK1EW1SFxxG, DUM24-64GDK1EC1DFxxG, DUM24-64GDK1EW1DFxxG, DUM24-A28DK1EC1DFxxG, DUM24-A28DK1EW1DFxxG, DUM24-B56DK1EC1DFxxG, DUM24-B56DK1EW1DFxxG, DUM24-C12DK1ECAQFxxG, DUM24-C12DK1EWAQFxxG, DUM28-01TDK1ECAQF, DUM28-01TDK1ECBQF, DUM28-01TDK1EWAQF, DUM28-01TDK1EWBQF, DUM28-01TDK1KCAQF, DUM28-01TDK1KWAQF, DUM28-02TDK1KCAQF, DUM28-02TDK1KWAQF, DUM28-64GDK1ECADF, DUM28-64GDK1ECBDF, DUM28-64GDK1EWADF, DUM28-64GDK1EWBDF, DUM28-A28DK1ECAQF, DUM28-A28DK1ECBQF, DUM28-A28DK1EWAQF, DUM28-A28DK1EWBQF, DUM28-A28DK1KCADF, DUM28-A28DK1KWADF, DUM28-B56DK1ECAQF, DUM28-B56DK1ECBQF, DUM28-B56DK1EWAQF, DUM28-B56DK1EWBQF, DUM28-B56DK1KCAQF, DUM28-B56DK1KWAQF, DUM28-C12DK1ECAQF, DUM28-C12DK1ECBQF, DUM28-C12DK1EWAQF, DUM28-C12DK1EWBQF, DUM28-C12DK1KCAQF, DUM28-C12DK1KWAQF
|
| Hinweis Dokument: | Innodisk PCN_F260024 ESD Bag Running Change Notice for M.2 Products with Heatsink and E1.S Series Products.pdf |
| Product Change Notification (PCN) | |
| This PCN is being issued to address that the series mentioned below are going to adopt substituting on-board DDR4 IC due to the DRAM process technology advancement. This component substitution does not pose any potential risks to the SSD functionality and no additionality action is required from the user. All the standard PNs and customized PNs are affected by this change. The products with the new DDR4 IC will be implemented as a running change atier September 26th, 2024. PCIe: 4TG2-P/4IG2-P/4TS2-P/3TG3-P/3TG6-P SATA: 3TG6-P/3IE6-P/3TS6-P/3TV6-P Summary of Change Due to supply conditions, Innodisk hereby announces that the on-board DDR4 IC will change from 1xnm to 1znm. And this change for all the product using DDR4 1xnm IC. Item Manufature PN (1xnm) Manufature PN (1znm) 4Gb 8bit K4A4G085WF-BCTD K4A4G085WG-BCWE 4Gb 16bit K4A4G165WF-BCTD K4A4G165WG-BCWE 8Gb 8bit K4A8G085WC-BCTD K4A8G085WG-BCWE 8Gb 16bit K4A8G165WC-BCTD K4A8G165WG-BCWE 16Gb 8bit K4AAG085WA-BCTD K4AAG085WC-BCWE 16Gb 16bit K4AAG165WA-BCTD K4AAG165WC-BCWE | |
| Revision: | F240012 |
| Revision date: | 26. Juni 2024 |
| Last purchase date: | 26. September 2024 |
| Last shipping date: | |
| Betroffene Produkte: |
DEV-MXM-6DP, DI5-9GDPB-P1-GP, E1.S 4TG2-P, DGE1S-01TDP2KCAEFP, DGE1S-01TDP2KCAEFPH, DGE1S-01TDP2KCAEFPH1, DGE1S-01TDP2KWAEFP, DGE1S-01TDP2KWAEFPH, DGE1S-01TDP2KWAEFPH1, DGE1S-02TDP2KCAEFP, DGE1S-02TDP2KCAEFPH, DGE1S-02TDP2KCAEFPH1, DGE1S-02TDP2KWAEFP, DGE1S-02TDP2KWAEFPH, DGE1S-02TDP2KWAEFPH1, DGE1S-04TDP2KCAEFP, DGE1S-04TDP2KCAEFPH, DGE1S-04TDP2KCAEFPH1, DGE1S-04TDP2KWAEFP, DGE1S-04TDP2KWAEFPH, DGE1S-04TDP2KWAEFPH1, DGE1S-08TDP2KCBEFP, DGE1S-08TDP2KCBEFPH, DGE1S-08TDP2KCBEFPH1, DGE1S-08TDP2KWBEFP, DGE1S-08TDP2KWBEFPH, DGE1S-08TDP2KWBEFPH1, DGE1S-C12DP2KCAEFP, DGE1S-C12DP2KCAEFPH, DGE1S-C12DP2KCAEFPH1, DGE1S-C12DP2KWAEFP, DGE1S-C12DP2KWAEFPH, DGE1S-C12DP2KWAEFPH1, DGEU2-01TDA1ECAEH, DGEU2-01TDA1HWAEH, DGEU2-01TDC1ECAEF, DGEU2-01TDC1EWAEF, DGEU2-01TDP1KCBEFP, DGEU2-01TDP1KWBEFP, DGEU2-01TDP2KCBEFP, DGEU2-01TDP2KWBEFP, DGEU2-02TDA1ECAEH, DGEU2-02TDA1HWAEH, DGEU2-02TDC1ECAEF, DGEU2-02TDC1EWAEF, DGEU2-02TDP1KCBEFP, DGEU2-02TDP1KWBEFP, DGEU2-02TDP2KCBEFP, DGEU2-02TDP2KWBEFP, DGEU2-04TDP1KCBEFP, DGEU2-04TDP1KWBEFP, DGEU2-04TDP2KCBEFP, DGEU2-04TDP2KWBEFP, DGEU2-08TDP1KCBEFP, DGEU2-08TDP1KWBEFP, DGEU2-08TDP2KCBEFP, DGEU2-08TDP2KWBEFP, DGEU2-A28DA1ECADH, DGEU2-A28DA1HWADH, DGEU2-A28DC1ECAQF, DGEU2-A28DC1EWAQF, DGEU2-B56DA1ECAQH, DGEU2-B56DA1HWAQH, DGEU2-B56DC1ECAEF, DGEU2-B56DC1EWAEF, DGEU2-C12DA1ECAEH, DGEU2-C12DA1HWAEH, DGEU2-C12DC1ECAEF, DGEU2-C12DC1EWAEF, DGEU2-C12DP1KCBEFP, DGEU2-C12DP1KWBEFP, DGEU2-C12DP2KCBEFP, DGEU2-C12DP2KWBEFP, DGEU2-C12TDA1ECAEH, DGEU2-C12TDA1HWAEH, DGM21-02TDA1ECAEH, DGM24-01TM71KCAQF, DGM24-01TM71KCAQL, DGM24-01TM71KWAQF, DGM24-A28M71ECAQF, DGM24-A28M71ECCQF, DGM24-A28M71EWAQF, DGM24-A28M71EWCQF, DGM24-A28M71KCADF, DGM24-A28M71KCADL, DGM24-A28M71KWADF, DGM24-A28M72ECAQF, DGM24-A28M72EWAQF, DGM24-B56M71ECAQF, DGM24-B56M71ECCQF, DGM24-B56M71EWAQF, DGM24-B56M71EWCQF, DGM24-B56M71KCADL, DGM24-B56M71KCAQF, DGM24-B56M71KCAQL, DGM24-B56M72ECAQF, DGM24-B56M72EWAQF, DGM24-C12M71ECAQF, DGM24-C12M71ECCQF, DGM24-C12M71EWAQF, DGM24-C12M71EWCQF, DGM24-C12M71KCAQF, DGM24-C12M71KCAQL, DGM24-C12M72ECAQF, DGM24-C12M72EWAQF, DGM28-01TDA1GCAEF, DGM28-01TDA1GCAEL, DGM28-01TDA1GWAELH, DGM28-01TDA2ECBEH, DGM28-01TDA2HWBEHH, DGM28-01TDC1ECBEF, DGM28-01TDC1EWBEFH, DGM28-01TDC1GCBEL, DGM28-01TDC1KCBEF, DGM28-01TDC1KWBEFH, DGM28-01TDP1KCCEF, DGM28-01TDP1KCCEL, DGM28-01TDP1KCDEFP, DGM28-01TDP1KWCEFH, DGM28-01TDP1KWDEFPH, DGM28-01TDP2KCCEF, DGM28-01TDP2KCCEL, DGM28-01TDP2KCDEFP, DGM28-01TDP2KWCEFH, DGM28-01TDP2KWDEFPH, DGM28-01TM71ECAQF, DGM28-01TM71ECBQF, DGM28-01TM71ECBQFP, DGM28-01TM71EWAQF, DGM28-01TM71EWBQF, DGM28-01TM71EWBQFP, DGM28-01TM71KCBQF, DGM28-01TM71KCBQFP, DGM28-01TM71KCBQLP, DGM28-01TM71KCCQFS, DGM28-01TM71KWBQFP, DGM28-01TM71KWCQFS, DGM28-01TM72ECAQF, DGM28-01TM72ECBQF, DGM28-01TM72EWAQF, DGM28-01TM72EWBQF, DGM28-01TM72KCCQFS, DGM28-01TM72KWCQFS, DGM28-02TDA1GCAEF, DGM28-02TDA2ECBEH, DGM28-02TDC1KCBEF, DGM28-02TDC1KWBEFH, DGM28-02TDP1KCCEF, DGM28-02TDP1KCCEL, DGM28-02TDP1KCDEFP, DGM28-02TDP1KWCEFH, DGM28-02TDP1KWDEFPH, DGM28-02TDP2KCCEF, DGM28-02TDP2KCCEL, DGM28-02TDP2KCDEFP, DGM28-02TDP2KWCEFH, DGM28-02TDP2KWDEFPH, DGM28-02TM71ECAQF, DGM28-02TM71EWAQF, DGM28-02TM71KCBQF, DGM28-02TM71KCBQFP, DGM28-02TM71KCBQLP, DGM28-02TM71KCCQF, DGM28-02TM71KWBQFP, DGM28-02TM71KWCQF, DGM28-02TM72KCCQF, DGM28-02TM72KWCQF, DGM28-04TDP1KCCEF, DGM28-04TDP1KCCEQ, DGM28-04TDP1KWCEFH, DGM28-04TDP2KCCEF, DGM28-04TDP2KCCEQ, DGM28-04TDP2KWCEFH, DGM28-A28DA2ECBDH, DGM28-A28DA2HWADHH, DGM28-A28DC1ECBQF, DGM28-A28DC1EWBQFH, DGM28-A28DC1KCBDF, DGM28-A28DC1KWBDFH, DGM28-A28M71EC1QF, DGM28-A28M71ECBQFP, DGM28-A28M71EW1QF, DGM28-A28M71EWBQFP, DGM28-A28M71KCBDFP, DGM28-A28M71KCBDFS, DGM28-A28M71KCBDLP, DGM28-A28M71KCCDFS, DGM28-A28M71KWBDFP, DGM28-A28M71KWCDFS, DGM28-A28M72ECAQF, DGM28-A28M72EWAQF, DGM28-A28M72KCCDFS, DGM28-A28M72KWCDFS, DGM28-B56DA1GCAQF, DGM28-B56DA1GCAQL, DGM28-B56DA1GWAQLH, DGM28-B56DA2ECBQH, DGM28-B56DA2HWAQHH, DGM28-B56DC1ECBEF, DGM28-B56DC1EWBEFH, DGM28-B56DC1KCBQF, DGM28-B56DC1KWBQFH, DGM28-B56DP1KCCQF, DGM28-B56DP1KWCQFH, DGM28-B56DP2KCCQF, DGM28-B56DP2KWCQFH, DGM28-B56M71EC1QF, DGM28-B56M71ECBQFP, DGM28-B56M71EW1QF, DGM28-B56M71EWBQFP, DGM28-B56M71KCBQFP, DGM28-B56M71KCBQFS, DGM28-B56M71KCBQLP, DGM28-B56M71KCCQFS, DGM28-B56M71KWBQFP, DGM28-B56M71KWCQFS, DGM28-B56M72ECAQF, DGM28-B56M72EWAQF, DGM28-B56M72KCCQFS, DGM28-B56M72KWCQFS, DGM28-C12DA1GCAEF, DGM28-C12DA1GCAEL, DGM28-C12DA1GWAELH, DGM28-C12DA2ECBEH, DGM28-C12DA2HWAEHH, DGM28-C12DC1ECBEF, DGM28-C12DC1EWBEFH, DGM28-C12DC1KCBEF, DGM28-C12DC1KWBEFH, DGM28-C12DP1KCCEF, DGM28-C12DP1KCCEL, DGM28-C12DP1KCDEFP, DGM28-C12DP1KWCEFH, DGM28-C12DP1KWDEFPH, DGM28-C12DP2KCCEF, DGM28-C12DP2KCCEL, DGM28-C12DP2KCDEFP, DGM28-C12DP2KWCEFH, DGM28-C12DP2KWDEFPH, DGM28-C12M71EC1QF, DGM28-C12M71ECBQFP, DGM28-C12M71EW1QF, DGM28-C12M71EWBQFP, DGM28-C12M71KCBQF, DGM28-C12M71KCBQFP, DGM28-C12M71KCBQLP, DGM28-C12M71KCCQFS, DGM28-C12M71KWBQFP, DGM28-C12M71KWCQFS, DGM28-C12M72ECAQF, DGM28-C12M72EWAQF, DGM28-C12M72KCCQFS, DGM28-C12M72KWCQFS, DGMSR-01TM71ECAQF, DGMSR-01TM71ECBQF, DGMSR-01TM71EWAQF, DGMSR-01TM71EWBQF, DGMSR-01TM71KCAQF, DGMSR-01TM71KCAQL, DGMSR-01TM71KWAQF, DGMSR-02TM71KCAQF, DGMSR-02TM71KCAQL, DGMSR-02TM71KWAQF, DGMSR-A28M71EC1QF, DGMSR-A28M71EC1QL, DGMSR-A28M71ECBQF, DGMSR-A28M71EW1QF, DGMSR-A28M71EWBQF, DGMSR-A28M71KCADF, DGMSR-A28M71KCADL, DGMSR-A28M71KCAQF, DGMSR-A28M71KWADF, DGMSR-B56M71EC1QF, DGMSR-B56M71EC1QL, DGMSR-B56M71ECBQF, DGMSR-B56M71EW1QF, DGMSR-B56M71EWBQF, DGMSR-B56M71KCADL, DGMSR-B56M71KCAQF, DGMSR-B56M71KCAQL, DGMSR-B56M71KWAQF, DGMSR-C12M71EC1QF, DGMSR-C12M71ECAQL, DGMSR-C12M71ECBQF, DGMSR-C12M71EW1QF, DGMSR-C12M71EWBQF, DGMSR-C12M71KCAQF, DGMSR-C12M71KCAQL, DGMSR-C12M71KWAQF, DGS18-01TM71EC1QF, DGS18-01TM71EC1QFP, DGS18-01TM71EC2QF, DGS18-01TM71EC2QFP, DGS18-01TM71EW1QF, DGS18-01TM71EW1QFP, DGS18-01TM71EW2QF, DGS18-01TM71EW2QFP, DGS18-A28M71EC1QF, DGS18-A28M71EC1QFP, DGS18-A28M71EC2QF, DGS18-A28M71EC2QFP, DGS18-A28M71EW1QF, DGS18-A28M71EW1QFP, DGS18-A28M71EW2QF, DGS18-A28M71EW2QFP, DGS18-B56M71EC1QF, DGS18-B56M71EC1QFP, DGS18-B56M71EC2QF, DGS18-B56M71EC2QFP, DGS18-B56M71EW1QF, DGS18-B56M71EW1QFP, DGS18-B56M71EW2QF, DGS18-B56M71EW2QFP, DGS18-C12M71EC1QF, DGS18-C12M71EC1QFP, DGS18-C12M71EC2QF, DGS18-C12M71EC2QFP, DGS18-C12M71EW1QF, DGS18-C12M71EW1QFP, DGS18-C12M71EW2QF, DGS18-C12M71EW2QFP, DGS25-01TM71EC1QF, DGS25-01TM71ECCQF, DGS25-01TM71EW1QF, DGS25-01TM71EWCQF, DGS25-01TM71KCAQF, DGS25-01TM71KCAQL, DGS25-01TM71KCBQF, DGS25-01TM71KWAQF, DGS25-01TM72EC1QF, DGS25-01TM72EW1QF, DGS25-01TM72KCAQF, DGS25-01TM72KWAQF, DGS25-02TM71ECAQF, DGS25-02TM71EWAQF, DGS25-02TM71KCAQF, DGS25-02TM71KCAQL, DGS25-02TM71KCBQF, DGS25-02TM71KWAQF, DGS25-02TM72ECAQF, DGS25-02TM72EWAQF, DGS25-02TM72KCAQF, DGS25-02TM72KWAQF, DGS25-04TM71KCAQF, DGS25-04TM71KCAQL, DGS25-04TM71KWAQF, DGS25-04TM72KCAQF, DGS25-04TM72KWAQF, DGS25-A28M71EC1QF, DGS25-A28M71EC3QF, DGS25-A28M71ECCDF, DGS25-A28M71EW1QF, DGS25-A28M71EW3QF, DGS25-A28M71EWCDF, DGS25-A28M71KCASF, DGS25-A28M71KCASL, DGS25-A28M71KCCDF, DGS25-A28M71KCCDL, DGS25-A28M71KWASF, DGS25-A28M71KWCDF, DGS25-A28M72EC1QF, DGS25-A28M72EC3QF, DGS25-A28M72EW1QF, DGS25-A28M72EW3QF, DGS25-A28M72KCCDF, DGS25-A28M72KWCDF, DGS25-B56M71EC1QF, DGS25-B56M71EC3QF, DGS25-B56M71ECCQF, DGS25-B56M71EW1QF, DGS25-B56M71EW3QF, DGS25-B56M71EWCQF, DGS25-B56M71KCADF, DGS25-B56M71KCASL, DGS25-B56M71KCCQF, DGS25-B56M71KCCQL, DGS25-B56M71KWADF, DGS25-B56M71KWCQF, DGS25-B56M72EC1QF, DGS25-B56M72EC3QF, DGS25-B56M72EW1QF, DGS25-B56M72EW3QF, DGS25-B56M72KCCQF, DGS25-B56M72KWCQF, DGS25-C12M71EC1QF, DGS25-C12M71EC3QF, DGS25-C12M71ECCQF, DGS25-C12M71EW1QF, DGS25-C12M71EW3QF, DGS25-C12M71EWCQF, DGS25-C12M71KCADL, DGS25-C12M71KCAQF, DGS25-C12M71KCCQF, DGS25-C12M71KCCQL, DGS25-C12M71KWAQF, DGS25-C12M71KWCQF, DGS25-C12M72EC1QF, DGS25-C12M72EC3QF, DGS25-C12M72EW1QF, DGS25-C12M72EW3QF, DGS25-C12M72KCCQF, DGS25-C12M72KWCQF, DGSLM-A28M71EC1QF, DGSLM-A28M71EW1QF, DGSLM-B56M71EC1QF, DGSLM-B56M71EW1QF, DGSLM-C12M71EC1QF, DGSLM-C12M71EW1QF, DGSML-A28M71ECAQFA, DGSML-A28M71EWAQFA, DGSML-B56M71ECAQFA, DGSML-B56M71EWAQFA, DHEU2-1T2DP1KCAEL, DHEU2-1T2DP1KWAEL, DHEU2-1T2DP2KCAEL, DHEU2-1T2DP2KWAEL, DHEU2-A60DP1KCAEL, DHEU2-A60DP1KWAEL, DHEU2-A60DP2KCAEL, DHEU2-A60DP2KWAEL, DHEU2-D2GDP1KCAEL, DHEU2-D2GDP1KWAEL, DHEU2-D2GDP2KCAEL, DHEU2-D2GDP2KWAEL, DHEU2-F4GDP1KCAEL, DHEU2-F4GDP1KWAEL, DHEU2-F4GDP2KCAEL, DHEU2-F4GDP2KWAEL, DHM21-1T2DP1KCBEQP, DHM21-1T2DP1KWBEQPH, DHM21-A60DP1KCBELP, DHM21-A60DP1KWBELPH, DHM21-D2GDP1KCBELP, DHM21-D2GDP1KWBELPH, DHM21-F4GDP1KCBELP, DHM21-F4GDP1KWBELPH, DHM24-80GM71ECAQF, DHM24-80GM71ECCQF, DHM24-80GM71EWAQF, DHM24-80GM71EWCQF, DHM24-A60M71ECAQF, DHM24-A60M71ECCQF, DHM24-A60M71EWAQF, DHM24-A60M71EWCQF, DHM28-1T2DP1KCCEF, DHM28-1T2DP1KCCEQ, DHM28-1T2DP1KWCEFH, DHM28-1T2DP1KWCEQH, DHM28-1T2DP2KCCEF, DHM28-1T2DP2KCCEQ, DHM28-1T2DP2KWCEFH, DHM28-1T2DP2KWCEQH, DHM28-40GDC1GCADL, DHM28-40GDC1GWADLH, DHM28-80GDC1GCAQL, DHM28-80GDC1GWAQLH, DHM28-80GM71ECAQFS, DHM28-80GM71EWAQFS, DHM28-A60DC1GCAEL, DHM28-A60DC1GWAELH, DHM28-A60DP1KCCEF, DHM28-A60DP1KCCEL, DHM28-A60DP1KWCEFH, DHM28-A60DP1KWCELH, DHM28-A60DP2KCCEF, DHM28-A60DP2KCCEL, DHM28-A60DP2KWCEFH, DHM28-A60DP2KWCELH, DHM28-A60M71ECAQFS, DHM28-A60M71EWAQFS, DHM28-D2GDC1GCAEL, DHM28-D2GDC1GWAELH, DHM28-D2GDP1KCCEF, DHM28-D2GDP1KCCEL, DHM28-D2GDP1KWCEFH, DHM28-D2GDP1KWCELH, DHM28-D2GDP2KCCEF, DHM28-D2GDP2KCCEL, DHM28-D2GDP2KWCEFH, DHM28-D2GDP2KWCELH, DHM28-F4GDC1GCAEQ, DHM28-F4GDC1GWAEQH, DHM28-F4GDP1KCCEF, DHM28-F4GDP1KCCEL, DHM28-F4GDP1KWCEFH, DHM28-F4GDP1KWCELH, DHM28-F4GDP2KCCEF, DHM28-F4GDP2KCCEL, DHM28-F4GDP2KWCEFH, DHM28-F4GDP2KWCELH, DHS25-08GD82BCDP, DHS25-1T2M71KCAQFP, DHS25-1T2M71KCAQLP, DHS25-1T2M71KWAQFP, DHS25-1T2M71KWAQLP, DHS25-80GM71EC3QF, DHS25-80GM71EW3QF, DHS25-A60M71EC3QF, DHS25-A60M71EW3QF, DHS25-A60M71KCAQFP, DHS25-A60M71KCAQLP, DHS25-A60M71KWAQFP, DHS25-A60M71KWAQLP, DHS25-D2GM71EC1QF, DHS25-D2GM71EW1QF, DHS25-D2GM71KCAQFP, DHS25-D2GM71KCAQLP, DHS25-D2GM71KWAQFP, DHS25-D2GM71KWAQLP, DHS25-F4GM71ECAQF, DHS25-F4GM71EWAQF, DHS25-F4GM71KCAQFP, DHS25-F4GM71KCAQLP, DHS25-F4GM71KWAQFP, DHS25-F4GM71KWAQLP, DRS25-01TM72EC1QFP, DRS25-01TM72EW1QFP, DRS25-02TM72ECAQFP, DRS25-02TM72EWAQFP, DRS25-A28M72EC1QFP, DRS25-A28M72EW1QFP, DRS25-B56M72EC1QFP, DRS25-B56M72EW1QFP, DRS25-C12M72EC1QFP, DRS25-C12M72EW1QFP, DSE1S-1T6DP2KCAEFP, DSE1S-1T6DP2KCAEFPH, DSE1S-1T6DP2KCAEFPH1, DSE1S-1T6DP2KWAEFP, DSE1S-1T6DP2KWAEFPH, DSE1S-1T6DP2KWAEFPH1, DSE1S-1T9DP2NCAEFP, DSE1S-1T9DP2NCAEFPH, DSE1S-1T9DP2NCAEFPH1, DSE1S-3T2DP2KCAEFP, DSE1S-3T2DP2KCAEFPH, DSE1S-3T2DP2KCAEFPH1, DSE1S-3T2DP2KWAEFP, DSE1S-3T2DP2KWAEFPH, DSE1S-3T2DP2KWAEFPH1, DSE1S-400DP2KCAEFP, DSE1S-400DP2KCAEFPH, DSE1S-400DP2KCAEFPH1, DSE1S-400DP2KWAEFP, DSE1S-400DP2KWAEFPH, DSE1S-400DP2KWAEFPH1, DSE1S-800DP2KCAEFP, DSE1S-800DP2KCAEFPH, DSE1S-800DP2KCAEFPH1, DSE1S-800DP2KWAEFP, DSE1S-800DP2KWAEFPH, DSE1S-800DP2KWAEFPH1, DSE1S-960DP2NCAEFP, DSE1S-960DP2NCAEFPH, DSE1S-960DP2NCAEFPH1, DSE3S-12TDP2KCAEFP, DSE3S-12TDP2KWAEFP, DSE3S-1T6DP2KCAEFP, DSE3S-1T6DP2KWAEFP, DSE3S-3T2DP2KCAEFP, DSE3S-3T2DP2KWAEFP, DSE3S-400DP2KCAEFP, DSE3S-400DP2KWAEFP, DSE3S-6T4DP2KCAEFP, DSE3S-6T4DP2KWAEFP, DSE3S-800DP2KCAEFP, DSE3S-800DP2KWAEFP, DSEU2-1T6DP1KCAEF, DSEU2-1T6DP1KWAEF, DSEU2-1T6DP1LCAEH, DSEU2-1T9DP1LCAEH, DSEU2-3T2DP1KCAEF, DSEU2-3T2DP1KWAEF, DSEU2-3T2DP1LCAEH, DSEU2-3T8DP1LCAEH, DSEU2-400DP1KCAEF, DSEU2-400DP1KWAEF, DSEU2-400DP1LCAEH, DSEU2-480DP1LCAEH, DSEU2-6T4DP1KCAEF, DSEU2-6T4DP1KWAEF, DSEU2-800DP1KCAEF, DSEU2-800DP1KWAEF, DSEU2-800DP1LCAEH, DSEU2-960DP1LCAEH, DSM21-1T6DP1KCBEFP, DSM21-1T6DP1KWBEFPH, DSM21-3T2DP1KCBEFP, DSM21-3T2DP1KWBEFPH, DSM21-400DP1KCBEFP, DSM21-400DP1KWBEFPH, DSM21-800DP1KCBEFP, DSM21-800DP1KWBEFPH, DSM28-1T6DP1KCCEF, DSM28-1T6DP1KCDEFP, DSM28-1T6DP1KCDELP, DSM28-1T6DP1KWCEFH, DSM28-1T6DP1KWDEFPH, DSM28-1T6DP1KWDELPH, DSM28-1T6DP1LCCEH, DSM28-1T6DP1NCCEF, DSM28-1T6DP2KCCEF, DSM28-1T6DP2KWCEFH, DSM28-1T6M71KCBQFP, DSM28-1T6M71KWBQFP, DSM28-1T6M71NCBQFP, DSM28-1T9DP1LCCEH, DSM28-1T9DP1NCCEF, DSM28-200M71KCBDFP, DSM28-200M71KWBDFP, DSM28-200M71NCBDFP, DSM28-3T2DP1KCCEF, DSM28-3T2DP1KWCEFH, DSM28-3T2DP1LCCEH, DSM28-3T2DP2KCCEF, DSM28-3T2DP2KWCEFH, DSM28-3T8DP1LCCEH, DSM28-400DP1KCCEF, DSM28-400DP1KCDEFP, DSM28-400DP1KCDELP, DSM28-400DP1KWCEFH, DSM28-400DP1KWDEFPH, DSM28-400DP1KWDELPH, DSM28-400DP1LCCEH, DSM28-400DP1NCCEF, DSM28-400DP2KCCEF, DSM28-400DP2KWCEFH, DSM28-400M71KCBQFP, DSM28-400M71KWBQFP, DSM28-400M71NCBQFP, DSM28-480DP1LCCEH, DSM28-480DP1NCCEF, DSM28-800DP1KCCEF, DSM28-800DP1KCDEFP, DSM28-800DP1KCDELP, DSM28-800DP1KWCEFH, DSM28-800DP1KWDEFPH, DSM28-800DP1KWDELPH, DSM28-800DP1LCCEH, DSM28-800DP1NCCEF, DSM28-800DP2KCCEF, DSM28-800DP2KWCEFH, DSM28-800M71KCBQFP, DSM28-800M71KWBQFP, DSM28-800M71NCBQFP, DSM28-960DP1LCCEH, DSM28-960DP1NCCEF, DSS25-1T6M72KCAQFP, DSS25-1T6M72KWAQFP, DSS25-200M72KCADFP, DSS25-200M72KWADFP, DSS25-3T2M72KCAQFP, DSS25-3T2M72KWAQFP, DSS25-400M72KCAQFP, DSS25-400M72KWAQFP, DSS25-800M72KCAQFP, DSS25-800M72KWAQFP, DVS25-01TM72KCAQFP, DVS25-01TM72KWAQFP, DVS25-02TM72KCAQFP, DVS25-02TM72KWAQFP, DVS25-04TM72KCAQFP, DVS25-04TM72KWAQFP, DVS25-A28M72KCASFP, DVS25-A28M72KWASFP, DVS25-B56M72KCADFP, DVS25-B56M72KWADFP, DVS25-C12M72KCAQFP, DVS25-C12M72KWAQFP
|
| Hinweis Dokument: | Innodisk [PCN_F240012] DDR4 IC Substitution Notice from 1xnm to 1znm.pdf |
| Product Change Notification (PCN) | |
| Title Kioxia NAND Flash SRO diameter Change Description This PCN is being issued to address that KIOXIA will change the substrate Solder Resist Opening (SRO) diameter from 480um to 550um, which is used in part of Innodisk products. Please find the affected model table as below. There are no changes to the PCB layout, and the NAND IC has no functional differences. Innodisk andticipates no negave impact on customer’s application. The new NAND Flash will be applied in SSD as a running change. | |
| Revision: | F240025 |
| Revision date: | 24. Mai 2024 |
| Last purchase date: | 27. Mai 2024 |
| Last shipping date: | |
| Betroffene Produkte: |
DECFX-02TDH1KCAQF, DECFX-02TDH1KWAQF, DEM24-02TDF1KCAQF, DEM24-02TDF1KWAQFH, DEM24-02TDH1KCAQF, DEM24-02TDH1KWAQFH, DEM24-02TDH2KCAQF, DEM24-02TDH2KWAQFH, DGE1S-04TDP2KCAEFP, DGE1S-04TDP2KCAEFPH, DGE1S-04TDP2KCAEFPH1, DGE1S-04TDP2KWAEFP, DGE1S-04TDP2KWAEFPH, DGE1S-04TDP2KWAEFPH1, DGEU2-08TDP1KCBEFP, DGEU2-08TDP1KWBEFP, DGEU2-08TDP2KCBEFP, DGEU2-08TDP2KWBEFP, DGM28-04TDP1KCCEF, DGM28-04TDP1KWCEFH, DGM28-04TDP2KCCEF, DGM28-04TDP2KWCEFH, DHM28-1T2DP1KCCEF, DHM28-1T2DP1KWCEFH, DHM28-1T2DP2KCCEF, DHM28-1T2DP2KWCEFH, DSE1S-3T2DP2KCAEFP, DSE1S-3T2DP2KCAEFPH, DSE1S-3T2DP2KCAEFPH1, DSE1S-3T2DP2KWAEFP, DSE1S-3T2DP2KWAEFPH, DSE1S-3T2DP2KWAEFPH1, DSEU2-6T4DP1KCAEF, DSEU2-6T4DP1KWAEF, DSM21-3T2DP1KCBEFP, DSM21-3T2DP1KWBEFPH, DSM28-3T2DP1KCCEF, DSM28-3T2DP1KWCEFH, DSM28-3T2DP2KCCEF, DSM28-3T2DP2KWCEFH
|
Innodisk DHM28-1T2DP1KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | - | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 30000 | |||
| Kapazität | 1.28 TB | |||
Innodisk DHM28-1T2DP1KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | H/W WT solution | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 30000 | |||
| Kapazität | 1.28 TB | |||
Innodisk DHM28-1T2DP2KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | - | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 30000 | |||
| Kapazität | 1.28 TB | |||
Innodisk DHM28-1T2DP2KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | H/W WT solution | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 30000 | |||
| Kapazität | 1.28 TB | |||
Innodisk DHM28-A60DP1KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | - | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 160 GB | |||
Innodisk DHM28-A60DP1KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | H/W WT solution | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 160 GB | |||
Innodisk DHM28-A60DP2KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | - | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 160 GB | |||
Innodisk DHM28-A60DP2KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | H/W WT solution | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 160 GB | |||
Innodisk DHM28-D2GDP1KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | - | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 320 GB | |||
Innodisk DHM28-D2GDP1KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | H/W WT solution | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 320 GB | |||
Innodisk DHM28-D2GDP2KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | - | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 320 GB | |||
Innodisk DHM28-D2GDP2KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | H/W WT solution | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 320 GB | |||
Innodisk DHM28-F4GDP1KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | - | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 640 GB | |||
Innodisk DHM28-F4GDP1KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | - | ||
| Customized | H/W WT solution | |||
| TCG Opal | - | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 640 GB | |||
Innodisk DHM28-F4GDP2KCCEF Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Breite | 22 mm | ||
| Höhe | 4,1 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | - | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 640 GB | |||
Innodisk DHM28-F4GDP2KWCEFH Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, iSLC, PCI Express Gen. 4, 4IG2-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Breite | 25 mm | ||
| Höhe | 14,5 mm | |||
| Flash Speichermedien | Advanced Encryption Standard (AES) | Ja | ||
| Customized | H/W WT solution | |||
| TCG Opal | Ja | |||
| Schreib-/Löschzyklen (P/E Limit) | 100000 | |||
| Kapazität | 640 GB | |||
