MicroSD
// microSD
// SLC
// SD 3.0
// 3SE3
// -25° bis 85°C | -40° bis 85°C
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

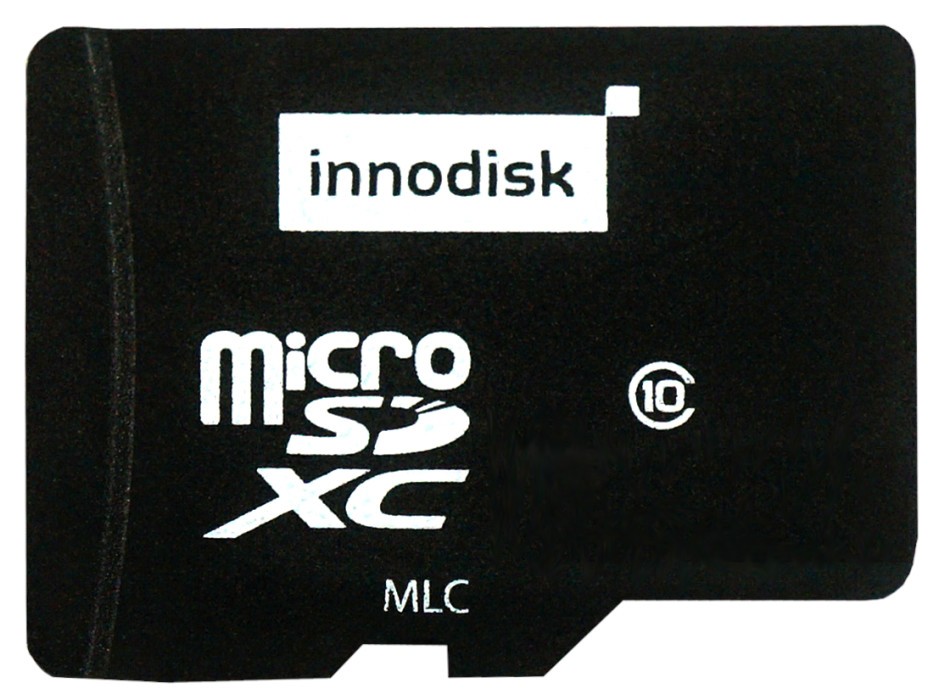

Basismodul: Innodisk MSD 3SE3
| Allgemein | ||||
| SKU / Artikelnummer | MSD 3SE3DESDM-04GS02AE1ST, DESDM-04GS02AW1ST, DESDM-08GS02AE1ST, DESDM-08GS02AW1ST | |||
| Produktgrunddaten | ||||
| Hersteller | Innodisk | |||
| Flash Speichermedien | ||||
| Serie | 3SE3 | |||
| Anschluss (Interface) | SD 3.0 | |||
| Flash Aufbau | SD / MicroSD Card | |||
| Flash Type | SLC | |||
| Chipgehäuse | TSOP 1 | |||
| Schreib-/Löschzyklen (P/E Limit) | 60000 | |||
| Kapazität | 4 GB, 8 GB | |||
| Controller | SMI 2702BAC | |||
| Channel | 1 | |||
| Maximale Stromaufnahme | 1,3 W | |||
| Performance | Flash Chip | Micron | ||
| Flash Mode | Asynchron NAND | |||
| S.M.A.R.T | Ja | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -25° bis 85°C, -40° bis 85°C | ||
| Lagerung | -55° bis 95°C | |||
| Relative Luftfeuchtigkeit | Lagerung | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | microSD | ||
| Breite | 11 mm | |||
| Tiefe | 15 mm | |||
| Höhe | 1 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 Axen | ||
| Referenz Standard | IEC 68-2-6 | |||
| Schock | Messdaten | 1500G, 0.5 ms, 3 Axen | ||
| Referenz Standard | IEC 68-2-27 | |||
| MTBF | MTBF 25°C | 3.000.000 h | ||
| Berechnungsmodell | Telcordia SR - 332 GB | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | EN 55022, EN 55024, EN 61000-4-2 (ESD), EN 61000-4-3, EN 61000-4-4 (EFT) | |||
| RoHS konform | Ja | |||
| Product Change Notification (PCN) | |
| Title ESD Bag Running Change Notice for M.2 Products with Heatsink and E1.S Series Products Description This PCN is being issued to address M.2 products with heatsink and E1.S series products ESD bag change. To standardise packaging materials and improve material management efficiency, Innodisk will integrate the current ESD bag specifi cations into one unified ESD bag specification as below “Summary of Change”. Summary of Change Prior to the change, ESD bags were managed under multiple parts. Following the change, these have been consolidated into a single part, featuring an anti-static warning print, a self-adhesive seal, and a standardised 70×130mm dimension. | |
| Revision: | F260024 |
| Revision date: | 8. Juni 2026 |
| Last purchase date: | 12. Juni 2026 |
| Last shipping date: | |
| Betroffene Produkte: |
DEM23-01TDF1KWADFH, DEM23-01TDF1KWBDFH, DEM23-01TDF2KWADFH, DEM23-01TDF2KWBDFH, DEM23-01TDH1KCBDF, DEM23-01TDH1KWBDFH, DEM23-01TDH2KCBDF, DEM23-01TDH2KWBDFH, DEM23-32GIG1ECADH, DEM23-32GIG1ECASH, DEM23-32GIG1EWADH, DEM23-32GIG1EWASH, DEM23-64GIG1ECADH, DEM23-64GIG1EWADH, DEM23-A28DF1KWADFH, DEM23-A28DF1KWBDFH, DEM23-A28DF2KWADFH, DEM23-A28DF2KWBDFH, DEM23-A28DH1KCBDF, DEM23-A28DH1KWBDFH, DEM23-A28DH2KCBDF, DEM23-A28DH2KWBDFH, DEM23-A28IG1ECADH, DEM23-A28IG1ECAQH, DEM23-A28IG1EWADH, DEM23-A28IG1EWAQH, DEM23-B56DF1KWADFH, DEM23-B56DF1KWBDFH, DEM23-B56DF2KWADFH, DEM23-B56DF2KWBDFH, DEM23-B56DH1KCBDF, DEM23-B56DH1KWBDFH, DEM23-B56DH2KCBDF, DEM23-B56DH2KWBDFH, DEM23-B56IG1ECADH, DEM23-B56IG1ECAQH, DEM23-B56IG1EWADH, DEM23-B56IG1EWAQH, DEM23-C12DF1KWADFH, DEM23-C12DF1KWBDFH, DEM23-C12DF2KWADFH, DEM23-C12DF2KWBDFH, DEM23-C12DH1KCBDF, DEM23-C12DH1KWBDFH, DEM23-C12DH2KCBDF, DEM23-C12DH2KWBDFH, DEM23-C12IG1ECADH, DEM23-C12IG1ECAQH, DEM23-C12IG1EWADH, DEM23-C12IG1EWAQH, DEM24-01TDF1KWADFPH, DEM24-01TDF1KWAQFH, DEM24-01TDF2KWADFPH, DEM24-01TDF2KWAQFH, DEM24-01TDH1KCAQF, DEM24-01TDH1KCAQL, DEM24-01TDH1KWAQFH, DEM24-01TDH2KCADL, DEM24-01TDH2KCAQF, DEM24-01TDH2KCAQL, DEM24-01TDH2KCAQQ, DEM24-01TDH2KWAQFH, DEM24-01TDH2PCAQF, DEM24-01TDS2KWAQFH, DEM24-01TDS2KWCQFH, DEM24-02TDF1KWAQFH, DEM24-02TDF2KWAQFH, DEM24-02TDH1KCAQF, DEM24-02TDH1KCAQQ, DEM24-02TDH1KWAQFH, DEM24-02TDH2KCADL, DEM24-02TDH2KCAQF, DEM24-02TDH2KCAQL, DEM24-02TDH2KCAQQ, DEM24-02TDH2KWAQFH, DEM24-02TDH2PCAQF, DEM24-04TDF1KWBQFH, DEM24-04TDF2KWBQFH, DEM24-A28DF1KWADFH, DEM24-A28DF1KWADFPH, DEM24-A28DF2KWADFH, DEM24-A28DF2KWADFPH, DEM24-A28DH1KCADF, DEM24-A28DH1KCADL, DEM24-A28DH1KWADFH, DEM24-A28DH2KCADF, DEM24-A28DH2KCADL, DEM24-A28DH2KCAQL, DEM24-A28DH2KCAQQ, DEM24-A28DH2KWADFH, DEM24-A28DS2KWADFH, DEM24-A28DS2KWCDFH, DEM24-B56DF1KWADFPH, DEM24-B56DF1KWAQFH, DEM24-B56DF2KWADFPH, DEM24-B56DF2KWAQFH, DEM24-B56DH1KCAQF, DEM24-B56DH1KCAQL, DEM24-B56DH1KWAQFH, DEM24-B56DH2KCADL, DEM24-B56DH2KCAQF, DEM24-B56DH2KCAQL, DEM24-B56DH2KCAQQ, DEM24-B56DH2KWAQFH, DEM24-B56DH2PCADF, DEM24-B56DS2KWAQFH, DEM24-B56DS2KWCQFH, DEM24-C12DF1KWADFPH, DEM24-C12DF1KWAQFH, DEM24-C12DF2KWADFPH, DEM24-C12DF2KWAQFH, DEM24-C12DH1KCAQF, DEM24-C12DH1KCAQL, DEM24-C12DH1KWAQFH, DEM24-C12DH2KCADL, DEM24-C12DH2KCAQF, DEM24-C12DH2KCAQL, DEM24-C12DH2KCAQQ, DEM24-C12DH2KWAQFH, DEM24-C12DH2PCAQF, DEM24-C12DS2KWAQFH, DEM24-C12DS2KWCQFH, DEM28-01TDF1KWAQFH, DEM28-01TDF1KWAQFPH, DEM28-01TDF2KWAQFH, DEM28-01TDF2KWAQFPH, DEM28-01TDH1KCAQF, DEM28-01TDH1KCAQL, DEM28-01TDH1KCBQFP, DEM28-01TDH1KWAQFH, DEM28-01TDH1KWBQFPH, DEM28-01TDH2KCAQF, DEM28-01TDH2KCAQL, DEM28-01TDH2KCBQFP, DEM28-01TDH2KWAQFH, DEM28-01TDH2KWBQFPH, DEM28-01TDH2PCAQF, DEM28-01TDS2KWAQFSH, DEM28-01TDS2KWCQFSH, DEM28-02TDF1KWAQFH, DEM28-02TDF1KWAQFPH, DEM28-02TDF2KWAQFH, DEM28-02TDF2KWAQFPH, DEM28-02TDH1KCAQF, DEM28-02TDH1KCAQL, DEM28-02TDH1KCBQFP, DEM28-02TDH1KWAQFH, DEM28-02TDH1KWBQFPH, DEM28-02TDH2KCAQF, DEM28-02TDH2KCAQL, DEM28-02TDH2KCBQFP, DEM28-02TDH2KWAQFH, DEM28-02TDH2KWBQFPH, DEM28-02TDH2PCAQF, DEM28-02TDS2KWAQFSH, DEM28-02TDS2KWCQFSH, DEM28-A28DF1KWADFH, DEM28-A28DF1KWADFPH, DEM28-A28DF2KWADFH, DEM28-A28DF2KWADFPH, DEM28-A28DH1KCADF, DEM28-A28DH1KCADL, DEM28-A28DH1KCBDFP, DEM28-A28DH1KWADFH, DEM28-A28DH1KWBDFPH, DEM28-A28DH2KCADF, DEM28-A28DH2KCADL, DEM28-A28DH2KCBDFP, DEM28-A28DH2KWADFH, DEM28-A28DH2KWBDFPH, DEM28-A28DS2KWADFSH, DEM28-A28DS2KWCDFSH, DEM28-B56DF1KWAQFH, DEM28-B56DF1KWAQFPH, DEM28-B56DF2KWAQFH, DEM28-B56DF2KWAQFPH, DEM28-B56DH1KCAQF, DEM28-B56DH1KCAQL, DEM28-B56DH1KCBQFP, DEM28-B56DH1KWAQFH, DEM28-B56DH1KWBQFPH, DEM28-B56DH2KCAQF, DEM28-B56DH2KCAQL, DEM28-B56DH2KCBQFP, DEM28-B56DH2KWAQFH, DEM28-B56DH2KWBQFPH, DEM28-B56DH2PCADF, DEM28-B56DS2KWAQFSH, DEM28-B56DS2KWCQFSH, DEM28-C12DF1KWAQFH, DEM28-C12DF1KWAQFPH, DEM28-C12DF2KWAQFH, DEM28-C12DF2KWAQFPH, DEM28-C12DH1KCAQF, DEM28-C12DH1KCAQL, DEM28-C12DH1KCBQFP, DEM28-C12DH1KWAQFH, DEM28-C12DH1KWBQFPH, DEM28-C12DH2KCAQF, DEM28-C12DH2KCAQL, DEM28-C12DH2KCBQFP, DEM28-C12DH2KWAQFH, DEM28-C12DH2KWBQFPH, DEM28-C12DH2PCAQF, DEM28-C12DS2KWAQFSH, DEM28-C12DS2KWCQFSH, DESDC-04GS02AE1SB, DESDC-08GS02AE1SB, DESDC-16GS02AE1SB, DESDC-32GS02AE1SB, DESDC-32GS06EE1SL, DESDC-64GS06GE1SL, DESDC-64GS06KE1SL, DESDC-A28S06GE1SL, DESDC-A28S06KE1SL, DESDC-B56S06GE1SL, DESDC-B56S06KE1SL, DESDM-04GS02AE1ST, DESDM-08GS02AE1ST, DESDM-08GS02SE1SK, DESDM-16GS02SE1SK, DESDM-32GS02SE1SK, DESDM-32GS06EE1SL, DESDM-64GS02SE1SK, DESDM-64GS06GE1SL, DESDM-64GS06KE1SL, DESDM-A28S06GE1SL, DESDM-A28S06KE1SL, DESDM-B56S06GE1SL, DESDM-B56S06KE1SL, DESDM-C12S06GE1SL, DESDM-C12S06KE1SL, DGE1S-01TDP2KCAEFP, DGE1S-01TDP2KCAEFPH, DGE1S-01TDP2KCAEFPH1, DGE1S-01TDP2KWAEFP, DGE1S-01TDP2KWAEFPH, DGE1S-01TDP2KWAEFPH1, DGE1S-02TDP2KCAEFP, DGE1S-02TDP2KCAEFPH, DGE1S-02TDP2KCAEFPH1, DGE1S-02TDP2KWAEFP, DGE1S-02TDP2KWAEFPH, DGE1S-02TDP2KWAEFPH1, DGE1S-04TDP2KCAEFP, DGE1S-04TDP2KCAEFPH, DGE1S-04TDP2KCAEFPH1, DGE1S-04TDP2KWAEFP, DGE1S-04TDP2KWAEFPH, DGE1S-04TDP2KWAEFPH1, DGE1S-08TDP2KCBEFP, DGE1S-08TDP2KCBEFPH, DGE1S-08TDP2KCBEFPH1, DGE1S-08TDP2KWBEFP, DGE1S-08TDP2KWBEFPH, DGE1S-08TDP2KWBEFPH1, DGE1S-C12DP2KCAEFP, DGE1S-C12DP2KCAEFPH, DGE1S-C12DP2KCAEFPH1, DGE1S-C12DP2KWAEFP, DGE1S-C12DP2KWAEFPH, DGE1S-C12DP2KWAEFPH1, DGM21-01TDP1KCAEFP, DGM21-01TDP1KCBEFP, DGM21-01TDP1KWBEFPH, DGM21-01TDP2KCBEFP, DGM21-01TDP2KWBEFPH, DGM21-02TDA1ECAEH, DGM21-02TDP1KCAEFP, DGM21-02TDP1KCBEFP, DGM21-02TDP1KWBEFPH, DGM21-02TDP2KCBEFP, DGM21-02TDP2KWBEFPH, DGM21-04TDP1KCAEFP, DGM21-04TDP1KCBEFP, DGM21-04TDP1KWBEFPH, DGM21-04TDP2KCBEFP, DGM21-04TDP2KWBEFPH, DGM21-08TDP1KCCEF, DGM21-08TDP1KWCEFH, DGM21-08TDP2KCCEF, DGM21-08TDP2KWCEFH, DGM21-C12DP1KCAEFP, DGM21-C12DP1KCBEFP, DGM21-C12DP1KWBEFPH, DGM21-C12DP2KCBEFP, DGM21-C12DP2KWBEFPH, DGM28-01TDA1GWAELH, DGM28-01TDA2ECBEH, DGM28-01TDA2HWBEHH, DGM28-01TDC1EWBEFH, DGM28-01TDC1GWBELH, DGM28-01TDC1KWBEFH, DGM28-01TDP1KWAEFH, DGM28-01TDP1KWCEFH, DGM28-01TDP1KWDEFPH, DGM28-01TDP2KWCEFH, DGM28-01TDP2KWDEFPH, DGM28-02TDA1GWAEQH, DGM28-02TDA2ECBEH, DGM28-02TDC1GWBEQH, DGM28-02TDC1KWBEFH, DGM28-02TDP1KWAEFH, DGM28-02TDP1KWCEFH, DGM28-02TDP1KWDEFPH, DGM28-02TDP2KWCEFH, DGM28-02TDP2KWDEFPH, DGM28-04TDP1KWAEFH, DGM28-04TDP1KWCEFH, DGM28-04TDP2KWCEFH, DGM28-A28DA2ECBDH, DGM28-A28DA2HWADHH, DGM28-A28DC1EWBQFH, DGM28-A28DC1GWBDLH, DGM28-A28DC1KWBDFH, DGM28-B56DA1GWAQLH, DGM28-B56DA2ECBQH, DGM28-B56DA2HWAQHH, DGM28-B56DC1EWBEFH, DGM28-B56DC1GWBQLH, DGM28-B56DC1KWBQFH, DGM28-B56DP1KWCQFH, DGM28-B56DP1KWDQFPH, DGM28-B56DP2KWCQFH, DGM28-B56DP2KWDQFPH, DGM28-C12DA1GWAELH, DGM28-C12DA2ECBEH, DGM28-C12DA2HWAEHH, DGM28-C12DC1EWBEFH, DGM28-C12DC1GWBELH, DGM28-C12DC1KWBEFH, DGM28-C12DP1KWAEFH, DGM28-C12DP1KWCEFH, DGM28-C12DP1KWDEFPH, DGM28-C12DP2KWCEFH, DGM28-C12DP2KWDEFPH, DHM21-1T2DP1KCBEFP, DHM21-1T2DP1KCBEQP, DHM21-1T2DP1KWBEFPH, DHM21-1T2DP1KWBEQPH, DHM21-1T2DP2KCBEFP, DHM21-1T2DP2KCBEQP, DHM21-1T2DP2KWBEFPH, DHM21-1T2DP2KWBEQPH, DHM21-2T5DP1KCCEF, DHM21-2T5DP1KWCEFH, DHM21-2T5DP2KCCEF, DHM21-2T5DP2KWCEFH, DHM21-A60DP1KCBEFP, DHM21-A60DP1KCBELP, DHM21-A60DP1KWBEFPH, DHM21-A60DP1KWBELPH, DHM21-A60DP2KCBEFP, DHM21-A60DP2KCBELP, DHM21-A60DP2KWBEFPH, DHM21-A60DP2KWBELPH, DHM21-D2GDP1KCBEFP, DHM21-D2GDP1KCBELP, DHM21-D2GDP1KWBEFPH, DHM21-D2GDP1KWBELPH, DHM21-D2GDP2KCBEFP, DHM21-D2GDP2KCBELP, DHM21-D2GDP2KWBEFPH, DHM21-D2GDP2KWBELPH, DHM21-F4GDP1KCBEFP, DHM21-F4GDP1KCBELP, DHM21-F4GDP1KWBEFPH, DHM21-F4GDP1KWBELPH, DHM21-F4GDP2KCBEFP, DHM21-F4GDP2KCBELP, DHM21-F4GDP2KWBEFPH, DHM21-F4GDP2KWBELPH, DHM23-40GDF1KWADFH, DHM23-40GDF2KWADFH, DHM23-40GDH1KCBDF, DHM23-40GDH1KWBDFH, DHM23-40GDH2KCBDF, DHM23-40GDH2KWBDFH, DHM23-80GDF1KWADFH, DHM23-80GDF2KWADFH, DHM23-80GDH1KCBDF, DHM23-80GDH1KWBDFH, DHM23-80GDH2KCBDF, DHM23-80GDH2KWBDFH, DHM23-A60DF1KWADFH, DHM23-A60DF2KWADFH, DHM23-A60DH1KCBDF, DHM23-A60DH1KWBDFH, DHM23-A60DH2KCBDF, DHM23-A60DH2KWBDFH, DHM24-40GDF1KWADFH, DHM24-40GDF1KWADLH, DHM24-40GDF2KWADFH, DHM24-40GDF2KWADLH, DHM24-40GDH1KCADF, DHM24-40GDH1KCADL, DHM24-40GDH1KWADFH, DHM24-40GDH1KWADLH, DHM24-40GDH2KCADF, DHM24-40GDH2KCADL, DHM24-40GDH2KWADFH, DHM24-40GDH2KWADLH, DHM24-40GDS2KWADLH, DHM24-40GDS2KWCDLH, DHM24-80GDF1KWAQFH, DHM24-80GDF1KWAQLH, DHM24-80GDF2KWAQFH, DHM24-80GDF2KWAQLH, DHM24-80GDH1KCAQF, DHM24-80GDH1KCAQL, DHM24-80GDH1KWAQFH, DHM24-80GDH2KCAQF, DHM24-80GDH2KCAQL, DHM24-80GDH2KWAQFH, DHM24-80GDH2KWAQLH, DHM24-80GDS2KWAQLH, DHM24-80GDS2KWCQLH, DHM24-A60DF1KWAQFH, DHM24-A60DF1KWAQLH, DHM24-A60DF2KWAQFH, DHM24-A60DF2KWAQLH, DHM24-A60DH1KCAQF, DHM24-A60DH1KCAQL, DHM24-A60DH1KWAQFH, DHM24-A60DH1KWAQLH, DHM24-A60DH2KCAQF, DHM24-A60DH2KCAQL, DHM24-A60DH2KWAQFH, DHM24-A60DH2KWAQLH, DHM24-A60DS2KWAQLH, DHM24-A60DS2KWCQLH, DHM24-D2GDF1KWAQFH, DHM24-D2GDF1KWAQLH, DHM24-D2GDF2KWAQFH, DHM24-D2GDF2KWAQLH, DHM24-D2GDH1KCAQF, DHM24-D2GDH1KCAQL, DHM24-D2GDH1KWAQFH, DHM24-D2GDH1KWAQLH, DHM24-D2GDH2KCAQF, DHM24-D2GDH2KCAQL, DHM24-D2GDH2KWAQFH, DHM24-D2GDH2KWAQLH, DHM24-D2GDS2KWAQLH, DHM24-D2GDS2KWCQLH, DHM24-F4GDF1KWAQFH, DHM24-F4GDF1KWAQQH, DHM24-F4GDF2KWAQFH, DHM24-F4GDF2KWAQQH, DHM24-F4GDH1KCAQQ, DHM24-F4GDH1KWAQQH, DHM24-F4GDH2KCAQQ, DHM24-F4GDH2KWAQQH, DHM28-1T2DP1KWCEFH, DHM28-1T2DP1KWCEQH, DHM28-1T2DP2KWCEFH, DHM28-1T2DP2KWCEQH, DHM28-40GDC1GWADLH, DHM28-40GDF1KWADFH, DHM28-40GDF1KWADFPH, DHM28-40GDF1KWADLH, DHM28-40GDF2KWADFH, DHM28-40GDF2KWADFPH, DHM28-40GDF2KWADLH, DHM28-40GDF2KWADLPH, DHM28-40GDH1KCADF, DHM28-40GDH1KCADL, DHM28-40GDH1KCBDFP, DHM28-40GDH1KCBDLP, DHM28-40GDH1KWADFH, DHM28-40GDH1KWADLH, DHM28-40GDH1KWBDFPH, DHM28-40GDH2KCADF, DHM28-40GDH2KCADL, DHM28-40GDH2KCBDFP, DHM28-40GDH2KCBDLP, DHM28-40GDH2KWADFH, DHM28-40GDH2KWADLH, DHM28-40GDH2KWBDFPH, DHM28-40GDS2KWADLSH, DHM28-40GDS2KWCDLSH, DHM28-80GDC1GWAQLH, DHM28-80GDF1KWAQFH, DHM28-80GDF1KWAQFPH, DHM28-80GDF1KWAQLH, DHM28-80GDF2KWAQFH, DHM28-80GDF2KWAQFPH, DHM28-80GDF2KWAQLH, DHM28-80GDF2KWAQLPH, DHM28-80GDH1KCAQF, DHM28-80GDH1KCAQL, DHM28-80GDH1KCBQFP, DHM28-80GDH1KCBQLP, DHM28-80GDH1KWAQFH, DHM28-80GDH1KWAQLH, DHM28-80GDH1KWBQFPH, DHM28-80GDH2KCAQF, DHM28-80GDH2KCAQL, DHM28-80GDH2KCBQFP, DHM28-80GDH2KCBQLP, DHM28-80GDH2KWAQFH, DHM28-80GDH2KWAQLH, DHM28-80GDH2KWBQFPH, DHM28-80GDS2KWAQLSH, DHM28-80GDS2KWCQLSH, DHM28-A60DC1GWAELH, DHM28-A60DF1KWAQFH, DHM28-A60DF1KWAQFPH, DHM28-A60DF1KWAQLH, DHM28-A60DF2KWAQFH, DHM28-A60DF2KWAQFPH, DHM28-A60DF2KWAQLH, DHM28-A60DF2KWAQLPH, DHM28-A60DH1KCAQF, DHM28-A60DH1KCAQL, DHM28-A60DH1KCBQFP, DHM28-A60DH1KCBQLP, DHM28-A60DH1KWAQFH, DHM28-A60DH1KWAQLH, DHM28-A60DH1KWBQFPH, DHM28-A60DH2KCAQF, DHM28-A60DH2KCAQL, DHM28-A60DH2KCBQFP, DHM28-A60DH2KCBQLP, DHM28-A60DH2KWAQFH, DHM28-A60DH2KWAQLH, DHM28-A60DH2KWBQFPH, DHM28-A60DP1KWCEFH, DHM28-A60DP1KWCELH, DHM28-A60DP2KWCEFH, DHM28-A60DP2KWCELH, DHM28-A60DS2KWAQLSH, DHM28-A60DS2KWCQLSH, DHM28-D2GDC1GWAELH, DHM28-D2GDF1KWAQFH, DHM28-D2GDF1KWAQFPH, DHM28-D2GDF1KWAQLH, DHM28-D2GDF2KWAQFH, DHM28-D2GDF2KWAQFPH, DHM28-D2GDF2KWAQLH, DHM28-D2GDF2KWAQLPH, DHM28-D2GDH1KCAQF, DHM28-D2GDH1KCAQL, DHM28-D2GDH1KCBQFP, DHM28-D2GDH1KCBQLP, DHM28-D2GDH1KWAQFH, DHM28-D2GDH1KWAQLH, DHM28-D2GDH1KWBQFPH, DHM28-D2GDH2KCAQF, DHM28-D2GDH2KCAQL, DHM28-D2GDH2KCBQFP, DHM28-D2GDH2KCBQLP, DHM28-D2GDH2KWAQFH, DHM28-D2GDH2KWAQLH, DHM28-D2GDH2KWBQFPH, DHM28-D2GDP1KWCEFH, DHM28-D2GDP1KWCELH, DHM28-D2GDP2KWCEFH, DHM28-D2GDP2KWCELH, DHM28-D2GDS2KWAQLSH, DHM28-D2GDS2KWCQLSH, DHM28-F4GDC1GWAEQH, DHM28-F4GDF1KWAQFH, DHM28-F4GDF1KWAQFPH, DHM28-F4GDF1KWAQLH, DHM28-F4GDF2KWAQFH, DHM28-F4GDF2KWAQFPH, DHM28-F4GDF2KWAQLH, DHM28-F4GDF2KWAQLPH, DHM28-F4GDH1KCAQF, DHM28-F4GDH1KCAQL, DHM28-F4GDH1KCBQFP, DHM28-F4GDH1KCBQLP, DHM28-F4GDH1KWAQFH, DHM28-F4GDH1KWAQLH, DHM28-F4GDH1KWBQFPH, DHM28-F4GDH2KCAQF, DHM28-F4GDH2KCAQL, DHM28-F4GDH2KCBQFP, DHM28-F4GDH2KCBQLP, DHM28-F4GDH2KWAQFH, DHM28-F4GDH2KWAQLH, DHM28-F4GDH2KWBQFPH, DHM28-F4GDP1KWCEFH, DHM28-F4GDP1KWCELH, DHM28-F4GDP2KWCEFH, DHM28-F4GDP2KWCELH, DHM28-F4GDS2KWAQLSH, DHM28-F4GDS2KWCQLSH, DHSDC-04GS02BE1SC, DHSDC-08GS02BE1SC, DHSDC-08GS06EE1SL, DHSDC-16GS02BE1SC, DHSDC-16GS06GE1SL, DHSDC-16GS06KE1SL, DHSDC-32GS02BE1SC, DHSDC-32GS06GE1SL, DHSDC-32GS06KE1SL, DHSDC-64GS02BE1SC, DHSDC-64GS06GE1SL, DHSDC-64GS06KE1SL, DHSDM-08GS06EE1SL, DHSDM-16GS06GE1SL, DHSDM-16GS06KE1SL, DHSDM-32GS06GE1SL, DHSDM-32GS06KE1SL, DHSDM-64GS06GE1SL, DHSDM-64GS06KE1SL, DHSDM-A28S06GE1SL, DHSDM-A28S06KE1SL, DM2-121E-HL-R10, DM2-121EL-HL-R10, DM2-170H-R10, DM2-170HL-R10, DM2-190H-R10, DM2-190HL-R10, DM2-W121G-HL-R10, DM2-W121GL-HL-R10, DSE1S-1T6DP2KCAEFP, DSE1S-1T6DP2KCAEFPH, DSE1S-1T6DP2KCAEFPH1, DSE1S-1T6DP2KWAEFP, DSE1S-1T6DP2KWAEFPH, DSE1S-1T6DP2KWAEFPH1, DSE1S-1T6DP2NCAEFP, DSE1S-1T6DP2NCAEFPH, DSE1S-1T6DP2NCAEFPH1, DSE1S-1T9DP2NCAEFP, DSE1S-1T9DP2NCAEFPH, DSE1S-1T9DP2NCAEFPH1, DSE1S-1T9DP2NCBEFP, DSE1S-1T9DP2NCBEFPH, DSE1S-1T9DP2NCBEFPH1, DSE1S-1T9IX1UCAHHPH1, DSE1S-3T2DP2KCAEFP, DSE1S-3T2DP2KCAEFPH, DSE1S-3T2DP2KCAEFPH1, DSE1S-3T2DP2KWAEFP, DSE1S-3T2DP2KWAEFPH, DSE1S-3T2DP2KWAEFPH1, DSE1S-3T8DP2NCBEFP, DSE1S-3T8DP2NCBEFPH, DSE1S-3T8DP2NCBEFPH1, DSE1S-3T8IX1UCAHHPH1, DSE1S-400DP2KCAEFP, DSE1S-400DP2KCAEFPH, DSE1S-400DP2KCAEFPH1, DSE1S-400DP2KWAEFP, DSE1S-400DP2KWAEFPH, DSE1S-400DP2KWAEFPH1, DSE1S-400DP2NCAEFP, DSE1S-400DP2NCAEFPH, DSE1S-400DP2NCAEFPH1, DSE1S-480DP2NCAEFP, DSE1S-480DP2NCAEFPH, DSE1S-480DP2NCAEFPH1, DSE1S-6T4DP2KCBEFP, DSE1S-6T4DP2KCBEFPH, DSE1S-6T4DP2KCBEFPH1, DSE1S-6T4DP2KWBEFP, DSE1S-6T4DP2KWBEFPH, DSE1S-6T4DP2KWBEFPH1, DSE1S-7T6IX1UCAHHPH1, DSE1S-800DP2KCAEFP, DSE1S-800DP2KCAEFPH, DSE1S-800DP2KCAEFPH1, DSE1S-800DP2KWAEFP, DSE1S-800DP2KWAEFPH, DSE1S-800DP2KWAEFPH1, DSE1S-800DP2NCAEFP, DSE1S-800DP2NCAEFPH, DSE1S-800DP2NCAEFPH1, DSE1S-960DP2NCAEFP, DSE1S-960DP2NCAEFPH, DSE1S-960DP2NCAEFPH1, DSE1S-960DP2NCBEFP, DSE1S-960DP2NCBEFPH, DSE1S-960DP2NCBEFPH1, DSM21-1T6DP1KCBEFP, DSM21-1T6DP1KWBEFPH, DSM21-1T6DP1NCBEFP, DSM21-1T6DP2NCBEFP, DSM21-1T9DP1NCBEFP, DSM21-1T9DP2NCBEFP, DSM21-200DP1NCBQFP, DSM21-200DP2NCBQFP, DSM21-240DP1NCBQFP, DSM21-240DP2NCBQFP, DSM21-3T2DP1KCBEFP, DSM21-3T2DP1KWBEFPH, DSM21-400DP1KCBEFP, DSM21-400DP1KWBEFPH, DSM21-400DP1NCBEFP, DSM21-400DP2NCBEFP, DSM21-480DP1NCBEFP, DSM21-480DP2NCBEFP, DSM21-800DP1KCBEFP, DSM21-800DP1KWBEFPH, DSM21-800DP1NCBEFP, DSM21-800DP2NCBEFP, DSM21-960DP1NCBEFP, DSM21-960DP2NCBEFP, DSM28-1T6DP1KWAEFH, DSM28-1T6DP1KWCEFH, DSM28-1T6DP1KWDEFPH, DSM28-1T6DP1KWDELPH, DSM28-1T6DP1LCCEH, DSM28-1T6DP1NWCEFH, DSM28-1T6DP2KWCEFH, DSM28-1T6DP2KWDEFPH, DSM28-1T6DP2KWDELPH, DSM28-1T9DP1LCCEH, DSM28-200DP1KWCQFH, DSM28-200DP2KWCQFH, DSM28-3T2DP1KWAEFH, DSM28-3T2DP1KWCEFH, DSM28-3T2DP1LCCEH, DSM28-3T2DP2KWCEFH, DSM28-3T8DP1LCCEH, DSM28-400DP1KWAEFH, DSM28-400DP1KWCEFH, DSM28-400DP1KWDEFPH, DSM28-400DP1KWDELPH, DSM28-400DP1LCCEH, DSM28-400DP2KWCEFH, DSM28-400DP2KWDEFPH, DSM28-400DP2KWDELPH, DSM28-480DP1LCCEH, DSM28-800DP1KWAEFH, DSM28-800DP1KWCEFH, DSM28-800DP1KWDEFPH, DSM28-800DP1KWDELPH, DSM28-800DP1LCCEH, DSM28-800DP1NWCEFH, DSM28-800DP2KWCEFH, DSM28-800DP2KWDEFPH, DSM28-800DP2KWDELPH, DSM28-960DP1LCCEH, DSM28-B56D21ECAQH, DSM28-C12D21ECAQH, DSM28-WCEFH, DSM28-WCQFH, DUM24-32GDK1EC1SFxxG, DUM24-32GDK1EW1SFxxG, DUM24-64GDK1EC1DFxxG, DUM24-64GDK1EW1DFxxG, DUM24-A28DK1EC1DFxxG, DUM24-A28DK1EW1DFxxG, DUM24-B56DK1EC1DFxxG, DUM24-B56DK1EW1DFxxG, DUM24-C12DK1ECAQFxxG, DUM24-C12DK1EWAQFxxG, DUM28-01TDK1ECAQF, DUM28-01TDK1ECBQF, DUM28-01TDK1EWAQF, DUM28-01TDK1EWBQF, DUM28-01TDK1KCAQF, DUM28-01TDK1KWAQF, DUM28-02TDK1KCAQF, DUM28-02TDK1KWAQF, DUM28-64GDK1ECADF, DUM28-64GDK1ECBDF, DUM28-64GDK1EWADF, DUM28-64GDK1EWBDF, DUM28-A28DK1ECAQF, DUM28-A28DK1ECBQF, DUM28-A28DK1EWAQF, DUM28-A28DK1EWBQF, DUM28-A28DK1KCADF, DUM28-A28DK1KWADF, DUM28-B56DK1ECAQF, DUM28-B56DK1ECBQF, DUM28-B56DK1EWAQF, DUM28-B56DK1EWBQF, DUM28-B56DK1KCAQF, DUM28-B56DK1KWAQF, DUM28-C12DK1ECAQF, DUM28-C12DK1ECBQF, DUM28-C12DK1EWAQF, DUM28-C12DK1EWBQF, DUM28-C12DK1KCAQF, DUM28-C12DK1KWAQF
|
| Hinweis Dokument: | Innodisk PCN_F260024 ESD Bag Running Change Notice for M.2 Products with Heatsink and E1.S Series Products.pdf |
| Product Change Notification (PCN) | |
| Description: This PCN is being issued to address that Innodisk MicroSD 3SE3 are going to upgrade product firmware from Q1014IN to R1128In. Summary of Change 1. support iTracker 2. Fix table establish error handling caused by abnormal power on/off | |
| Revision: | F2152 |
| Revision date: | 29. Dezember 2021 |
| Last purchase date: | 29. März 2022 |
| Last shipping date: | |
| Betroffene Produkte: |
MSD 3SE3
|
| Hinweis Dokument: | [PCN_F2152] MicroSD 3SE3 FW change .pdf |
| Product Change Notification (PCN) | |
| MicroSD 3SE3 back laser printing change Description: This PCN is being issued to address that MicroSD 3SE3 is going to running change for the product back laser printing to recognize extend grade (25°C ~ +85°C) or industrial grade (40°C ~ +85°C). We change the 14th code to E or W respectively, instead of X. Moreover, adding controller and substrate version S021 for management. The part number will not be changed. | |
| Revision: | F20361 |
| Revision date: | 3. Mai 2021 |
| Last purchase date: | |
| Last shipping date: | |
| Betroffene Produkte: |
DESDM-04GS02AE1ST, DESDM-04GS02AW1ST, DESDM-08GS02AE1ST, DESDM-08GS02AW1ST
|
| Hinweis Dokument: | [PCN_F2036-1] MicroSD 3SE3 back laser printing change (2).pdf |
| Product Change Notification (PCN) | |
| Summary of Change SATA 3ME3/ 3SE3 /3IE3 Series New Firmware S20326 and S20326i. 1.SATA signal quality improvement 2.Download microcode process improvement 3.Support WWN 4.Wearleveling process improvement 5.Garbage collection efficiency improvement 6.Bad block management improvemen | |
| Revision: | F2054 |
| Revision date: | 9. September 2020 |
| Last purchase date: | 9. September 2020 |
| Last shipping date: | |
| Betroffene Produkte: |
2.5 SATA SSD 3IE3, 2.5 SATA SSD 3ME3, 2.5 SATA SSD 3SE3, CFast 3IE3, CFast 3ME3, CFast 3SE3, FL-mSATA mini 3ME3, FL-mSATA mini 3SE3, M.2 (S42) 3IE3, M.2 (S42) 3ME3, M.2 (S42) 3SE3, M.2 (S60) 3ME3, M.2 (S80) 3SE3, MSD 3SE3, SATA Slim 3IE3, SATA Slim 3ME3, SATA Slim 3SE3, SATADOM-MH 3ME3, SATADOM-ML 3SE3, SATADOM-SH 3IE3 V2, SATADOM-SH 3SE3, SATADOM-SH Type C 3SE3, SATADOM-SH Type D 3SE3, SATADOM-SL 3IE3 V2, SATADOM-SL 3SE3, SATADOM-SV 3IE3 V2, SATADOM-SV 3SE3, ServerDOM-H 3IE3, ServerDOM-L 3IE3, ServerDOM-L 3ME3, Slim SSD 3ME3, mSATA 3IE3, mSATA 3ME3, mSATA 3SE3, nanoSSD 3IE3, nanoSSD 3ME3, DECFA-04GD09AC1SB, DECFA-04GD09AW1SB, DECFA-08GD09AC1DB, DECFA-08GD09AW1DB, DECFA-08GD09BC1SC, DECFA-08GD09BW1SC, DECFA-16GD08SCAQB, DECFA-16GD08SWAQB, DECFA-16GD09BC1DC, DECFA-16GD09BC1SC, DECFA-16GD09BW1DC, DECFA-16GD09BW1SC, DECFA-32GD08SCAQB, DECFA-32GD08SWAQB, DECFA-32GD09BC1DC, DECFA-32GD09BW1DC, DECFA-64GD08BCBQC, DECFA-64GD08BWBQC, DECFA-64GD08SCAQB, DECFA-64GD08SWAQB, DECFA-64GD09BC1DC, DECFA-64GD09BW1DC, DECFA-A28D08BCBQC, DECFA-A28D08BWBQC, DECFA-A28D09BC1DC, DECFA-A28D09BW1DC, DECFA-B56D08BCBQC, DECFA-B56D08BWBQC, DECFA-B56D09BC1DC, DECFA-B56D09BW1DC, DECFA-C12D08BCBQC, DECFA-C12D08BWBQC, DEM24-04GD09SCADB, DEM24-04GD09SWADB, DEM24-08GD09BC1SC, DEM24-08GD09BW1SC, DEM24-08GD09SCADB, DEM24-08GD09SWADB, DEM24-16GD09BC1DC, DEM24-16GD09BC1SC, DEM24-16GD09BW1DC, DEM24-16GD09BW1SC, DEM24-16GD09SCADB, DEM24-16GD09SWADB, DEM24-32GD09BC1DC, DEM24-32GD09BW1DC, DEM24-32GD09SCADB, DEM24-32GD09SWADB, DEM24-64GD09BC1DC, DEM24-64GD09BW1DC, DEM24-A28D09BC1DC, DEM24-A28D09BW1DC, DEM26-32GD08BCADC, DEM26-32GD08BWADC, DEM26-64GD08BCAQC, DEM26-64GD08BWAQC, DEM26-A28D08BCAQC, DEM26-A28D08BWAQC, DEM26-B56D08BCAQC, DEM26-B56D08BWAQC, DEM26-C12D08BCAQC, DEM26-C12D08BWAQC, DEM28-32GD08SCAQB, DEM28-32GD08SWAQB, DEM28-64GD08SCAQB, DEM28-64GD08SWAQB, DEM28-A28D08SCAQB, DEM28-A28D08SWAQB, DEMLM-08GD09BC1SC, DEMLM-08GD09BW1SC, DEMLM-16GD09BC1DC, DEMLM-16GD09BC1SC, DEMLM-16GD09BW1DC, DEMLM-16GD09BW1SC, DEMLM-32GD09BC1DC, DEMLM-32GD09BW1DC, DEMLM-64GD08BC1QC, DEMLM-64GD08BW1QC, DEMLM-A28D08BC1QC, DEMLM-A28D08BW1QC, DEMLM-B56D08BC1QC, DEMLM-B56D08BW1QC, DEMSM-04GD09SCADB, DEMSM-04GD09SWADB, DEMSM-08GD09BC1SC, DEMSM-08GD09BW1SC, DEMSM-08GD09SCADB, DEMSM-08GD09SWADB, DEMSM-16GD09BC1DC, DEMSM-16GD09BC1SC, DEMSM-16GD09BW1DC, DEMSM-16GD09BW1SC, DEMSM-16GD09SCADB, DEMSM-16GD09SWADB, DEMSM-32GD09BC1DC, DEMSM-32GD09BW1DC, DEMSM-32GD09SCADB, DEMSM-32GD09SWADB, DEMSM-64GD09BC1DC, DEMSM-64GD09BW1DC, DEMSM-A28D09BC1DC, DEMSM-A28D09BW1DC, DEMSR-04GD09AC1SB, DEMSR-04GD09AW1SB, DEMSR-08GD09AC1DB, DEMSR-08GD09AW1DB, DEMSR-08GD09BC2SC, DEMSR-08GD09BW2SC, DEMSR-16GD08AC1QB, DEMSR-16GD08AW1QB, DEMSR-16GD09BC2DC, DEMSR-16GD09BC2SC, DEMSR-16GD09BW2DC, DEMSR-16GD09BW2SC, DEMSR-32GD08BC1QC, DEMSR-32GD08BW1QC, DEMSR-32GD08SCAQB, DEMSR-32GD08SWAQB, DEMSR-32GD09BC2DC, DEMSR-32GD09BW2DC, DEMSR-64GD08BC1QC, DEMSR-64GD08BW1QC, DEMSR-64GD08SCAQB, DEMSR-64GD08SWAQB, DEMSR-64GD09BC2DC, DEMSR-64GD09BW2DC, DEMSR-A28D08BC1QC, DEMSR-A28D08BW1QC, DEMSR-A28D08SCAQB, DEMSR-A28D08SWAQB, DEMSR-A28D09BC2DC, DEMSR-A28D09BW2DC, DEMSR-B56D08BC1QC, DEMSR-B56D08BW1QC, DEMSR-C12D08BCBQC, DEMSR-C12D08BWBQC, DENSD-16GD08BCASC, DENSD-16GD08BWASC, DENSD-32GD08BCADC, DENSD-32GD08BWADC, DENSD-64GD08BCAQC, DENSD-64GD08BWAQC, DENSD-A28D08BCAQC, DENSD-A28D08BWAQC, DES25-08GD08SCAQB, DES25-08GD08SWAQB, DES25-08GD09BC1SC, DES25-08GD09BW1SC, DES25-16GD08SCAQB, DES25-16GD08SWAQB, DES25-16GD09BC1DC, DES25-16GD09BC1SC, DES25-16GD09BW1DC, DES25-16GD09BW1SC, DES25-32GD08BC3QC, DES25-32GD08BW3QC, DES25-32GD08SCAQB, DES25-32GD08SWAQB, DES25-32GD09BC1DC, DES25-32GD09BW1DC, DES25-64GD08BC1QC, DES25-64GD08BC3QC, DES25-64GD08BW1QC, DES25-64GD08BW3QC, DES25-64GD08SCAQB, DES25-64GD08SWAQB, DES25-A28D08BC1QC, DES25-A28D08BC3QC, DES25-A28D08BW1QC, DES25-A28D08BW3QC, DES25-A28D08SCAQB, DES25-A28D08SWAQB, DES25-B56D08BC1QC, DES25-B56D08BC3QC, DES25-B56D08BW1QC, DES25-B56D08BW3QC, DES25-C12D08BC1QC, DES25-C12D08BW1QC, DESDM-04GS02AE1ST, DESDM-04GS02AW1ST, DESDM-08GS02AE1ST, DESDM-08GS02AW1ST, DESLM-08GD09BC1SC, DESLM-08GD09BW1SC, DESLM-16GD08SCAQB, DESLM-16GD08SWAQB, DESLM-16GD09BC1DC, DESLM-16GD09BC1SC, DESLM-16GD09BW1DC, DESLM-16GD09BW1SC, DESLM-32GD08BC1QC, DESLM-32GD08BW1QC, DESLM-32GD08SCAQB, DESLM-32GD08SWAQB, DESLM-32GD09BC1DC, DESLM-32GD09BW1DC, DESLM-64GD08BC1QC, DESLM-64GD08BW1QC, DESLM-64GD08SCAQB, DESLM-64GD08SWAQB, DESLM-A28D08BC1QC, DESLM-A28D08BW1QC, DESLM-A28D08SCAQB, DESLM-A28D08SWAQB, DESLM-B56D08BC1QC, DESLM-B56D08BW1QC, DESMH-08GD09BC1SC, DESMH-08GD09BC1SCF, DESMH-16GD09BC1DC, DESMH-16GD09BC1DCF, DESMH-16GD09BC1SC, DESMH-16GD09BC1SCF, DESMH-32GD09BC1DC, DESMH-32GD09BC1DCF, DESMH-64GD09BC1DC, DESMH-64GD09BC1DCF, DESMH-A28D09BC1DC, DESMH-A28D09BC1DCF, DESML-16GD08SCAQBA, DESML-16GD08SCAQBB, DESML-16GD08SWAQBA, DESML-16GD08SWAQBB, DESML-32GD08SCAQBA, DESML-32GD08SCAQBB, DESML-32GD08SWAQBA, DESML-32GD08SWAQBB, DESML-64GD08SCAQBA, DESML-64GD08SCAQBB, DESML-64GD08SWAQBA, DESML-64GD08SWAQBB, DESNL-16GD08BCASCA, DESNL-16GD08BWASCA, DESNL-32GD08BCADCA, DESNL-32GD08BWADCA, DESNL-64GD08BCAQCA, DESNL-64GD08BWAQCA, DESNL-A28D08BCAQCA, DESNL-A28D08BWAQCA, DESSC-08GD09SCADBA, DESSC-08GD09SCADBB, DESSC-08GD09SWADBA, DESSC-08GD09SWADBB, DESSC-16GD09SCADBA, DESSC-16GD09SCADBB, DESSC-16GD09SWADBA, DESSC-16GD09SWADBB, DESSC-32GD09SCADBA, DESSC-32GD09SCADBB, DESSC-32GD09SWADBA, DESSC-32GD09SWADBB, DESSF-08GD09SCADBA, DESSF-08GD09SCADBB, DESSF-08GD09SWADBA, DESSF-08GD09SWADBB, DESSF-16GD09SCADBA, DESSF-16GD09SCADBB, DESSF-16GD09SWADBA, DESSF-16GD09SWADBB, DESSF-32GD09SCADBA, DESSF-32GD09SCADBB, DESSF-32GD09SWADBA, DESSF-32GD09SWADBB, DESSH-08GD09SCADBA, DESSH-08GD09SCADBB, DESSH-08GD09SWADBA, DESSH-08GD09SWADBB, DESSH-16GD09SCADBA, DESSH-16GD09SCADBB, DESSH-16GD09SWADBA, DESSH-16GD09SWADBB, DESSH-32GD09SCADBA, DESSH-32GD09SCADBB, DESSH-32GD09SWADBA, DESSH-32GD09SWADBB, DESSL-08GD09SCADBA, DESSL-08GD09SCADBB, DESSL-08GD09SWADBA, DESSL-08GD09SWADBB, DESSL-16GD09SCADBA, DESSL-16GD09SCADBB, DESSL-16GD09SWADBA, DESSL-16GD09SWADBB, DESSL-32GD09SCADBA, DESSL-32GD09SCADBB, DESSL-32GD09SWADBA, DESSL-32GD09SWADBB, DESSV-08GD09SCADBA, DESSV-08GD09SCADBB, DESSV-08GD09SWADBA, DESSV-08GD09SWADBB, DESSV-16GD09SCADBA, DESSV-16GD09SCADBB, DESSV-16GD09SWADBA, DESSV-16GD09SWADBB, DESSV-32GD09SCADBA, DESSV-32GD09SCADBB, DESSV-32GD09SWADBA, DESSV-32GD09SWADBB, DHCFA-08GD09BC1DC, DHCFA-08GD09BC1SC, DHCFA-08GD09BW1SC, DHCFA-16GD09BC1DC, DHCFA-16GD09BW1DC, DHCFA-32GD09BC1DC, DHCFA-32GD09BW1DC, DHCFA-64GD09BC1DC, DHCFA-64GD09BW1DC, DHCFA-A28D09BC1DC, DHCFA-A28D09BW1DC, DHM24-08GD09BC1DC, DHM24-08GD09BC1SC, DHM24-08GD09BW1DC, DHM24-08GD09BW1SC, DHM24-16GD09BC1DC, DHM24-16GD09BW1DC, DHM24-32GD09BC1DC, DHM24-32GD09BW1DC, DHM24-64GD09BC1DC, DHM24-64GD09BW1DC, DHMSR-08GD09BC1DC, DHMSR-08GD09BC1SC, DHMSR-08GD09BW1DC, DHMSR-08GD09BW1SC, DHMSR-16GD08BC1QC, DHMSR-16GD08BW1QC, DHMSR-16GD09BC1DC, DHMSR-16GD09BW1DC, DHMSR-32GD08BC1QC, DHMSR-32GD08BW1QC, DHMSR-32GD09BC1DC, DHMSR-32GD09BW1DC, DHMSR-64GD08BC1QC, DHMSR-64GD08BCAQC, DHMSR-64GD08BW1QC, DHMSR-64GD08BWAQC, DHMSR-64GD09BC1DC, DHMSR-64GD09BW1DC, DHMSR-A28D08BC1QC, DHMSR-A28D08BCAQC, DHMSR-A28D08BW1QC, DHMSR-A28D08BWAQC, DHMSR-B56D08BCAQC, DHMSR-B56D08BWAQC, DHNSD-16GD08BCADC, DHNSD-16GD08BWADC, DHNSD-32GD08BCAQC, DHNSD-32GD08BWAQC, DHNSD-64GD08BCAQC, DHNSD-64GD08BWAQC, DHS25-08GD09BC1DC, DHS25-08GD09BC1SC, DHS25-08GD09BW1DC, DHS25-08GD09BW1SC, DHS25-16GD08BC3QC, DHS25-16GD08BW3QC, DHS25-16GD09BC1DC, DHS25-16GD09BW1DC, DHS25-32GD08BC3QC, DHS25-32GD08BW3QC, DHS25-64GD08BC3QC, DHS25-64GD08BW3QC, DHS25-A28D08BC1QC, DHS25-A28D08BC3QC, DHS25-A28D08BW1QC, DHS25-A28D08BW3QC, DHS25-B56D08BC1QC, DHS25-B56D08BW1QC, DHSLM-08GD08BC1DC, DHSLM-08GD08BC1SC, DHSLM-08GD08BW1DC, DHSLM-08GD08BW1SC, DHSLM-16GD08BC1DC, DHSLM-16GD08BW1DC, DHSLM-32GD08BC1QC, DHSLM-32GD08BW1QC, DHSLM-64GD08BC1QC, DHSLM-64GD08BW1QC, DHSLM-A28D08BC1QC, DHSLM-A28D08BW1QC, DHSNH-16GD08BCADCA, DHSNH-16GD08BCAQCA, DHSNH-16GD08BWADCA, DHSNH-16GD08BWAQCA, DHSNH-32GD08BCADCA, DHSNH-32GD08BCAQCA, DHSNH-32GD08BWADCA, DHSNH-32GD08BWAQCA, DHSNH-64GD08BCADCA, DHSNH-64GD08BCAQCA, DHSNH-64GD08BWADCA, DHSNH-64GD08BWAQCA, DHSNL-16GD08BCADCA, DHSNL-16GD08BWADCA, DHSNL-32GD08BCAQCA, DHSNL-32GD08BWAQCA, DHSNL-64GD08BCAQCA, DHSNL-64GD08BWAQCA, DHSSH-08GD09BC1SCA, DHSSH-08GD09BC1SCB, DHSSH-08GD09BW1SCA, DHSSH-08GD09BW1SCB, DHSSH-16GD09BC1SCA, DHSSH-16GD09BC1SCB, DHSSH-16GD09BW1SCA, DHSSH-16GD09BW1SCB, DHSSH-32GD09BCADCA, DHSSH-32GD09BCADCB, DHSSH-32GD09BWADCA, DHSSH-32GD09BWADCB, DHSSH-64GD09BCADCA, DHSSH-64GD09BCADCB, DHSSH-64GD09BWADCA, DHSSH-64GD09BWADCB, DHSSL-08GD09BC1SCA, DHSSL-08GD09BC1SCB, DHSSL-08GD09BW1SCA, DHSSL-08GD09BW1SCB, DHSSL-16GD09BC1SCA, DHSSL-16GD09BC1SCB, DHSSL-16GD09BW1SCA, DHSSL-16GD09BW1SCB, DHSSL-32GD09BCBDCA, DHSSL-32GD09BCBDCB, DHSSL-32GD09BWBDCA, DHSSL-32GD09BWBDCB, DHSSL-64GD09BCBDCA, DHSSL-64GD09BCBDCB, DHSSL-64GD09BWBDCA, DHSSL-64GD09BWBDCB, DHSSV-08GD09BC1SCA, DHSSV-08GD09BC1SCB, DHSSV-08GD09BW1SCA, DHSSV-08GD09BW1SCB, DHSSV-16GD09BC1SCA, DHSSV-16GD09BC1SCB, DHSSV-16GD09BW1SCA, DHSSV-16GD09BW1SCB, DHSSV-32GD09BC1SCA, DHSSV-32GD09BC1SCB, DHSSV-32GD09BCADCA, DHSSV-32GD09BCADCB, DHSSV-32GD09BW1SCA, DHSSV-32GD09BW1SCB, DHSSV-32GD09BWADCA, DHSSV-32GD09BWADCB, DHSSV-64GD09BCADCA, DHSSV-64GD09BCADCB, DHSSV-64GD09BWADCA, DHSSV-64GD09BWADCB
|
| Hinweis Dokument: | [PCN_F2054] SATA 3ME3 3SE3 3IE3 FW Change Notice.pdf |
| Product Change Notification (PCN) | |
| Because Micron convert the bond pad metallization of SLC NAND for wafer sales products, and also the packaging factory changed substrate vender owing to their strategy, this PCN is being issued to address that MicroSD Card 3SE3 is going to implement running change for two parts. First , the wafer of metallization composition from Cu+ Ni/Pd (plating) to AL (Sputer), which has been proven to be more robust at Micron's Fab. Second, packaging factory changed substrate vender for their strategy and got the cerification done. Thus, there is no change to specification or function of MicroSD 3SE3 and the part number will not be changed. | |
| Revision: | F2048 |
| Revision date: | 25. August 2020 |
| Last purchase date: | |
| Last shipping date: | |
| Betroffene Produkte: |
DESDM-04GS02AE1ST, DESDM-04GS02AW1ST, DESDM-08GS02AE1ST, DESDM-08GS02AW1ST
|
| Hinweis Dokument: | [PCN_F2048] MicroSD 3SE3 with flash bond pad metallization change and substrate vender change.pdf |
Innodisk DESDM-04GS02AE1ST Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
microSD, SLC, SD 3.0, 3SE3, -25° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -25° bis 85°C | |
| Flash Speichermedien | Kapazität | 4 GB | ||
Innodisk DESDM-04GS02AW1ST Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
microSD, SLC, SD 3.0, 3SE3, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 4 GB | ||
Innodisk DESDM-08GS02AE1ST Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
microSD, SLC, SD 3.0, 3SE3, -25° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -25° bis 85°C | |
| Flash Speichermedien | Kapazität | 8 GB | ||
Innodisk DESDM-08GS02AW1ST Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
microSD, SLC, SD 3.0, 3SE3, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 8 GB | ||
