SATA SLIM
// SATA Slim
// 3D TLC
// SATA 3
// 3IE7
// 0° bis 70°C | -40° bis 85°C
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

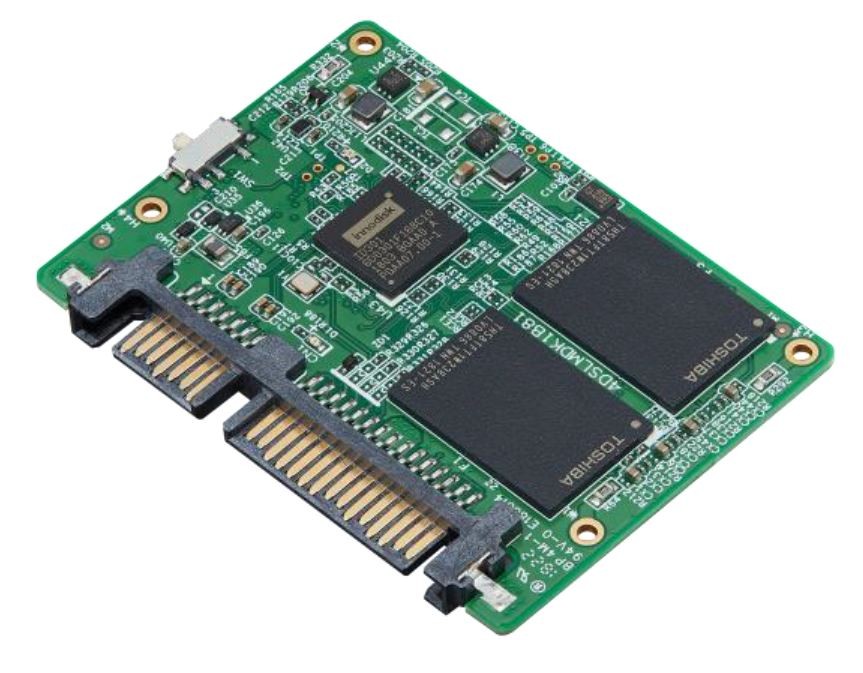

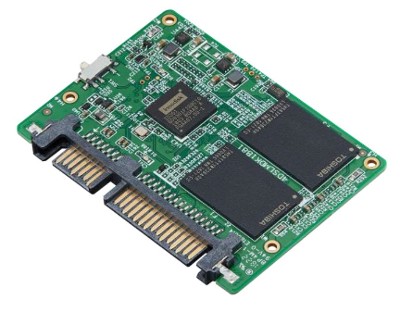

Basismodul: Innodisk SATA Slim 3IE7
| Allgemein | ||||
| SKU / Artikelnummer | SATA Slim 3IE7DHSLM-40GDK1KCADL, DHSLM-40GDK1KWADL, DHSLM-80GDK1KCADL, DHSLM-80GDK1KCAQL, DHSLM-80GDK1KWADL, DHSLM-80GDK1KWAQL, DHSLM-A60DK1KCAQL, DHSLM-A60DK1KWAQL, DHSLM-D2GDK1KCAQL, DHSLM-D2GDK1KWAQL, DHSLM-F4GDK1KCAQL, DHSLM-F4GDK1KWAQL | |||
| Produktgrunddaten | ||||
| Hersteller | Innodisk | |||
| Flash Speichermedien | ||||
| Serie | 3IE7 | |||
| Anschluss (Interface) | SATA 3 | |||
| Flash Aufbau | SATA Slim | |||
| Flash Type | 3D TLC | |||
| Chipgehäuse | BGA (Ball Grid Array) | |||
| Schreib-/Löschzyklen (P/E Limit) | 30000 | |||
| Kapazität | 40 GB, 80 GB, 160 GB, 320 GB, 640 GB | |||
| Controller | ID301 (MK8215 mit innodisk Logo) | |||
| ECC | Wird unterstützt (24 Bit pro 1 KB) | |||
| Maximale Stromaufnahme | 3 W | |||
| iDataguard | wird unterstützt | |||
| iPowerguard | wird unterstützt | |||
| Performance | Flash Chip | Innodisk | ||
| Wärmesensor | Ja | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| ATA Security | Ja | |||
| Advanced Encryption Standard (AES) | Ja | |||
| S.M.A.R.T | Ja | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 70°C, -40° bis 85°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | SATA Slim | ||
| Interface | SATA III | |||
| Breite | 39 mm | |||
| Tiefe | 54 mm | |||
| Höhe | 4 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 Axen | ||
| Referenz Standard | IEC 68-2-6 | |||
| Schock | Messdaten | 1500G, 0.5 ms, 3 Axen | ||
| Referenz Standard | IEC 68-2-27 | |||
| MTBF | MTBF 25°C | 3.000.000 h | ||
| Berechnungsmodell | Telcordia SR-332 GB | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
| Product Change Notification (PCN) | |
| Description This PCN is being issued to address that Innodisk SATA 3IE7 BiCS5 Ultra iSLC series are going to upgrade product firmware (F/W). Current FW New FW S22831i S25C29i S23630i S25C29i Summary of Change Optimize Wear-leveling algorithm Improve device stability against sudden power loss Optimized data protection mechanism in idle mode Enhance R/W operation stability under different scenario Support FW upgrade process without Power off, and improve compatibility change DAS to 1s Add smart id:234(0xEA) to record assert tag Correct smart id:169(0xA9) display issue in 3rd party software | |
| Revision: | F260009 |
| Revision date: | 7. April 2026 |
| Last purchase date: | 7. Mai 2026 |
| Last shipping date: | |
| Betroffene Produkte: |
DHCFA-20GDK1KCADL, DHCFA-20GDK1KCASF, DHCFA-20GDK1KCASL, DHCFA-20GDK1KWADL, DHCFA-20GDK1KWASF, DHCFA-20GDK1KWASL, DHCFA-40GDK1KCADF, DHCFA-40GDK1KCADL, DHCFA-40GDK1KWADF, DHCFA-40GDK1KWADL, DHCFA-80GDK1KCADL, DHCFA-80GDK1KCAQF, DHCFA-80GDK1KCAQL, DHCFA-80GDK1KWADL, DHCFA-80GDK1KWAQF, DHCFA-80GDK1KWAQL, DHCFA-A60DK1KCAQF, DHCFA-A60DK1KCAQL, DHCFA-A60DK1KWAQF, DHCFA-A60DK1KWAQL, DHCFA-D2GDK1KCAQF, DHCFA-D2GDK1KCAQL, DHCFA-D2GDK1KWAQF, DHCFA-D2GDK1KWAQL, DHM24-16GDK1KWASF, DHM24-20GDK1KCASF, DHM24-20GDK1KCASL, DHM24-20GDK1KWASF, DHM24-20GDK1KWASL, DHM24-32GDK1KWADF, DHM24-40GDK1KCADF, DHM24-40GDK1KCADL, DHM24-40GDK1KWADF, DHM24-40GDK1KWADL, DHM24-64GDK1KWAQF, DHM24-80GDK1KCADL, DHM24-80GDK1KCAQF, DHM24-80GDK1KCAQL, DHM24-80GDK1KWADL, DHM24-80GDK1KWAQF, DHM24-80GDK1KWAQL, DHM24-A28DK1KWAQF, DHM24-A60DK1KCAQF, DHM24-A60DK1KCAQL, DHM24-A60DK1KWAQF, DHM24-A60DK1KWAQL, DHM24-B56DK1KWAQF, DHM24-D2GDK1KCAQF, DHM24-D2GDK1KCAQL, DHM24-D2GDK1KWAQF, DHM24-D2GDK1KWAQL, DHM28-40GDK1KCADF, DHM28-40GDK1KCADL, DHM28-40GDK1KWADF, DHM28-40GDK1KWADL, DHM28-80GDK1KCADL, DHM28-80GDK1KCAQF, DHM28-80GDK1KCAQL, DHM28-80GDK1KWADL, DHM28-80GDK1KWAQF, DHM28-80GDK1KWAQL, DHM28-A60DK1KCAQF, DHM28-A60DK1KCAQL, DHM28-A60DK1KWAQF, DHM28-A60DK1KWAQL, DHM28-D2GDK1KCAQF, DHM28-D2GDK1KCAQL, DHM28-D2GDK1KWAQF, DHM28-D2GDK1KWAQL, DHM28-F4GDK1KCAQF, DHM28-F4GDK1KCAQL, DHM28-F4GDK1KWAQF, DHM28-F4GDK1KWAQL, DHMSM-20GDK1KCASL, DHMSM-20GDK1KWASL, DHMSM-40GDK1KCADL, DHMSM-40GDK1KWADL, DHMSM-80GDK1KCADL, DHMSM-80GDK1KCAQL, DHMSM-80GDK1KWADL, DHMSM-80GDK1KWAQL, DHMSM-A60DK1KCAQL, DHMSM-A60DK1KWAQL, DHMSM-D2GDK1KCAQL, DHMSM-D2GDK1KWAQL, DHMSR-20GDK1KCASL, DHMSR-20GDK1KWASL, DHMSR-40GDK1KCADF, DHMSR-40GDK1KCADL, DHMSR-40GDK1KWADF, DHMSR-40GDK1KWADL, DHMSR-80GDK1KCADL, DHMSR-80GDK1KCAQF, DHMSR-80GDK1KCAQL, DHMSR-80GDK1KWADL, DHMSR-80GDK1KWAQF, DHMSR-80GDK1KWAQL, DHMSR-A60DK1KCAQF, DHMSR-A60DK1KCAQL, DHMSR-A60DK1KWAQF, DHMSR-A60DK1KWAQL, DHMSR-D2GDK1KCAQF, DHMSR-D2GDK1KCAQL, DHMSR-D2GDK1KWAQF, DHMSR-D2GDK1KWAQL, DHMSR-F4GDK1KCAQF, DHMSR-F4GDK1KCAQL, DHMSR-F4GDK1KWAQF, DHMSR-F4GDK1KWAQL, DHS25-40GDK1KCCDF, DHS25-40GDK1KCCDL, DHS25-40GDK1KWCDF, DHS25-40GDK1KWCDL, DHS25-80GDK1KCCDL, DHS25-80GDK1KCCQF, DHS25-80GDK1KCCQL, DHS25-80GDK1KWCDL, DHS25-80GDK1KWCQF, DHS25-80GDK1KWCQL, DHS25-A60DK1KCCQF, DHS25-A60DK1KCCQL, DHS25-A60DK1KWCQF, DHS25-A60DK1KWCQL, DHS25-D2GDK1KCCQF, DHS25-D2GDK1KCCQL, DHS25-D2GDK1KWCQF, DHS25-D2GDK1KWCQL, DHS25-F4GDK1KCCQF, DHS25-F4GDK1KCCQL, DHS25-F4GDK1KWCQF, DHS25-F4GDK1KWCQL, DHSLM-40GDK1KCADL, DHSLM-40GDK1KWADL, DHSLM-80GDK1KCADL, DHSLM-80GDK1KCAQL, DHSLM-80GDK1KWADL, DHSLM-80GDK1KWAQL, DHSLM-A60DK1KCAQL, DHSLM-A60DK1KWAQL, DHSLM-D2GDK1KCAQL, DHSLM-D2GDK1KWAQL, DHSLM-F4GDK1KCAQL, DHSLM-F4GDK1KWAQL, DHSSH-20GDK1KCASLA, DHSSH-20GDK1KWASLA, DHSSH-40GDK1KCADLA, DHSSH-40GDK1KWADLA, DHSSH-80GDK1KCADLA, DHSSH-80GDK1KWADLA, DHSSH-A60DK1KCADLA, DHSSH-A60DK1KWADLA, DHSSV-20GDK1KCASFA, DHSSV-20GDK1KCASLA, DHSSV-20GDK1KWASFA, DHSSV-20GDK1KWASLA, DHSSV-40GDK1KCADFA, DHSSV-40GDK1KCADLA, DHSSV-40GDK1KWADFA, DHSSV-40GDK1KWADLA, DHSSV-80GDK1KCADFA, DHSSV-80GDK1KCADLA, DHSSV-80GDK1KWADFA, DHSSV-80GDK1KWADLA, DHSSV-A60DK1KCADFA, DHSSV-A60DK1KCADLA, DHSSV-A60DK1KWADFA, DHSSV-A60DK1KWADLA
|
| Hinweis Dokument: | Innodisk PCN_F260009 SATA 3IE7 BiCS5 Ultra iSLC Series Firmware change notice.pdf |
| Product Change Notification (PCN) | |
| Title: Product PCB material change notice Description: This PCN is being issued to address that multiple products' PCB base material (CCL & PP, NPG150N) will be replaced by subs tute material (NPG151) through a running change process. There are no differences in the design, functionality, and appearance of the affected products, and have been tested to ensure quality remains intact. Summary of Change: The PCB base material (CCL & PP, NPG150N) will be replaced with NPG151. | |
| Revision: | F250001 |
| Revision date: | 2. Januar 2025 |
| Last purchase date: | 2. April 2025 |
| Last shipping date: | |
| Betroffene Produkte: |
CFast 3ME4, DE0H-01GD41AC1DB, DE0H-01GD41AC1SB, DE0H-01GD41AW1DB, DE0H-01GD41AW1SB, DE0H-02GD41AC1DB, DE0H-02GD41AC1SB, DE0H-02GD41AW1DB, DE0H-02GD41AW1SB, DE0H-04GD41AC1DB, DE0H-04GD41AW1DB, DE0H-512D41AC1SB, DE0H-512D41AW1SB, DECFA-08GM41BC1SC, DECFA-08GM41BW1SC, DECFA-16GM41BC1DC, DECFA-16GM41BC1SC, DECFA-16GM41BW1DC, DECFA-16GM41BW1SC, DECFA-32GM41BC1DC, DECFA-32GM41BW1DC, DECFA-64GM41BC1DC, DECFA-64GM41BW1DC, DECFA-A28M41BC1DC, DECFA-A28M41BW1DC, DECFA-B56M41BC1DC, DECFA-B56M41BW1DC, DECFC-01GD53AC2DB, DECFC-01GD53AW2DB, DECFC-02GD53AC2DB, DECFC-02GD53AW2DB, DECFC-04GD53AC2DB, DECFC-04GD53AW2DB, DECFC-08GD53AC2DB, DECFC-08GD53AW2DB, DECFC-16GD53AC2DB, DECFC-16GD53AW2DB, DECFC-32GD53AC2DB, DECFC-32GD53AW2DB, DECFC-512D53AC1DB, DECFC-512D53AC1SB, DECFC-512D53AW1DB, DECFC-512D53AW1SB, DECFC-64GD53AC2DB, DECFC-64GD53AW2DB, DEM24-01TDK1KCAQF, DEM24-01TDK1KCAQL, DEM24-01TDK1KWAQF, DEM24-08GD82SCBDB, DEM24-08GD82SWBDB, DEM24-16GD82SCBQB, DEM24-16GD82SWBQB, DEM24-32GD82SCBQB, DEM24-32GD82SWBQB, DEM24-32GDK1EC1SF, DEM24-32GDK1EW1SF, DEM24-64GD82SCBQB, DEM24-64GD82SWBQB, DEM24-64GDK1EC1DF, DEM24-64GDK1EW1DF, DEM24-64GDK1KCASL, DEM24-64GDK1KWASF, DEM24-A28DK1EC1DF, DEM24-A28DK1EW1DF, DEM24-A28DK1KCADF, DEM24-A28DK1KCADL, DEM24-A28DK1KWADF, DEM24-B56DK1EC1DF, DEM24-B56DK1EW1DF, DEM24-B56DK1KCADL, DEM24-B56DK1KCAQF, DEM24-B56DK1KCAQL, DEM24-B56DK1KWAQF, DEM24-C12DK1ECAQF, DEM24-C12DK1EWAQF, DEM24-C12DK1KCAQF, DEM24-C12DK1KCAQL, DEM24-C12DK1KWAQF, DEM28-01TDK1ECAQF, DEM28-01TDK1EWAQF, DEM28-01TDK1KCAQF, DEM28-01TDK1KCAQL, DEM28-01TDK1KWAQF, DEM28-02TDK1KCAQF, DEM28-02TDK1KCAQL, DEM28-02TDK1KWAQF, DEM28-08GD82SCADB, DEM28-08GD82SWADB, DEM28-08GM41BC1SC, DEM28-08GM41BW1SC, DEM28-08GM41SCADB, DEM28-08GM41SWADB, DEM28-16GM41BC1SC, DEM28-16GM41BW1SC, DEM28-16GM41SCADB, DEM28-16GM41SWADB, DEM28-32GDK1EC1SF, DEM28-32GDK1EW1SF, DEM28-32GM41BC1DC, DEM28-32GM41BW1DC, DEM28-32GM41SCADB, DEM28-32GM41SWADB, DEM28-64GDK1EC1DF, DEM28-64GDK1EW1DF, DEM28-64GDK1KCASL, DEM28-64GDK1KWASF, DEM28-64GM41BC1DC, DEM28-64GM41BW1DC, DEM28-64GM41SCADB, DEM28-64GM41SWADB, DEM28-A28DK1EC1QF, DEM28-A28DK1ECAQJ, DEM28-A28DK1EW1QF, DEM28-A28DK1KCADF, DEM28-A28DK1KCADL, DEM28-A28DK1KWADF, DEM28-A28M41BC1DC, DEM28-A28M41BW1DC, DEM28-B56DK1EC1QF, DEM28-B56DK1ECAQJ, DEM28-B56DK1EW1QF, DEM28-B56DK1KCADL, DEM28-B56DK1KCAQF, DEM28-B56DK1KCAQL, DEM28-B56DK1KWAQF, DEM28-B56M41BC1DC, DEM28-B56M41BW1DC, DEM28-C12DK1EC1QF, DEM28-C12DK1ECAQJ, DEM28-C12DK1EW1QF, DEM28-C12DK1KCAQF, DEM28-C12DK1KCAQL, DEM28-C12DK1KWAQF, DEMSM-04GD07RC1SC, DEMSM-08GD07RC1SC, DEMSM-08GM41BC1SC, DEMSM-08GM41BW1SC, DEMSM-08GM41SCADB, DEMSM-08GM41SWADB, DEMSM-16GD07RC1DC, DEMSM-16GM41BC1DC, DEMSM-16GM41BC1SC, DEMSM-16GM41BW1DC, DEMSM-16GM41BW1SC, DEMSM-16GM41SCADB, DEMSM-16GM41SWADB, DEMSM-32GD07RC1DC, DEMSM-32GM41BC1DC, DEMSM-32GM41BW1DC, DEMSM-32GM41SCADB, DEMSM-32GM41SWADB, DEMSM-64GD07RC1DC, DEMSM-64GM41BC1DC, DEMSM-64GM41BW1DC, DEMSM-64GM41SCADB, DEMSM-64GM41SWADB, DEMSM-A28D07RCADC, DEMSM-A28M41BC1DC, DEMSM-A28M41BW1DC, DEMSR-08GM41BC1SC, DEMSR-08GM41BW1SC, DEMSR-08GM41SCADB, DEMSR-08GM41SWADB, DEMSR-16GD08AC1QB, DEMSR-16GD08AW1QB, DEMSR-16GM41BC1DC, DEMSR-16GM41BC1SC, DEMSR-16GM41BW1DC, DEMSR-16GM41BW1SC, DEMSR-16GM41SCADB, DEMSR-16GM41SWADB, DEMSR-32GD08BC1QC, DEMSR-32GD08BW1QC, DEMSR-32GD08SCAQB, DEMSR-32GD08SWAQB, DEMSR-32GM41BC1DC, DEMSR-32GM41BW1DC, DEMSR-32GM41SCADB, DEMSR-32GM41SWADB, DEMSR-64GD08BC1QC, DEMSR-64GD08BW1QC, DEMSR-64GD08SCAQB, DEMSR-64GD08SWAQB, DEMSR-64GM41BC1DC, DEMSR-64GM41BW1DC, DEMSR-64GM41SCADB, DEMSR-64GM41SWADB, DEMSR-A28D08BC1QC, DEMSR-A28D08BW1QC, DEMSR-A28D08SCAQB, DEMSR-A28D08SWAQB, DEMSR-A28M41BC1DC, DEMSR-A28M41BW1DC, DEMSR-B56D08BC1QC, DEMSR-B56D08BW1QC, DEMSR-B56M41BC1DC, DEMSR-B56M41BW1DC, DEMSR-C12D08BCBQC, DEMSR-C12D08BWBQC, DES18-08GD82SCBQB, DES18-08GD82SCBQBP, DES18-08GD82SWBQB, DES18-08GD82SWBQBP, DES18-16GD82SCBQB, DES18-16GD82SCBQBP, DES18-16GD82SWBQB, DES18-16GD82SWBQBP, DES18-32GD81SWAQB, DES18-32GD82SCBQB, DES18-32GD82SCBQBP, DES18-32GD82SWBQB, DES18-32GD82SWBQBP, DES18-64GD82SCBQB, DES18-64GD82SCBQBP, DES18-64GD82SWBQB, DES18-64GD82SWBQBP, DES18-A28D81SWAQB, DES18-A28D82SCBQB, DES18-A28D82SCBQBP, DES18-A28D82SWBQB, DES18-A28D82SWBQBP, DES18-B56D82SCBQB, DES18-B56D82SCBQBP, DES18-B56D82SWBQB, DES18-B56D82SWBQBP, DES25-08GD08SCAQB, DES25-08GD08SWAQB, DES25-08GD82SCAQB, DES25-08GD82SCAQBP, DES25-08GD82SWAQB, DES25-08GD82SWAQBP, DES25-08GM41BC1SC, DES25-08GM41BW1SC, DES25-08GM41SCADB, DES25-08GM41SWADB, DES25-16GD08SCAQB, DES25-16GD08SWAQB, DES25-16GD82SCAQB, DES25-16GD82SCAQBP, DES25-16GD82SWAQB, DES25-16GD82SWAQBP, DES25-16GM41BC1DC, DES25-16GM41BC1SC, DES25-16GM41BW1DC, DES25-16GM41BW1SC, DES25-16GM41SCADB, DES25-16GM41SWADB, DES25-32GD08BC3QC, DES25-32GD08BW3QC, DES25-32GD08SCAQB, DES25-32GD08SWAQB, DES25-32GD82SCAQB, DES25-32GD82SCAQBP, DES25-32GD82SWAQB, DES25-32GD82SWAQBP, DES25-32GDK1EC3SF, DES25-32GDK1EW3SF, DES25-32GM41BC1DC, DES25-32GM41BW1DC, DES25-32GM41SCADB, DES25-32GM41SWADB, DES25-64GD08BC1QC, DES25-64GD08BC3QC, DES25-64GD08BW1QC, DES25-64GD08BW3QC, DES25-64GD08SCAQB, DES25-64GD08SWAQB, DES25-64GD82SCAQB, DES25-64GD82SCAQBP, DES25-64GD82SWAQB, DES25-64GD82SWAQBP, DES25-64GDK1EC3DF, DES25-64GDK1EW3DF, DES25-64GDK1GC3SL, DES25-64GDK1GW3SL, DES25-64GM41BC1DC, DES25-64GM41BW1DC, DES25-64GM41SCADB, DES25-64GM41SWADB, DES25-A28D08BC1QC, DES25-A28D08BC3QC, DES25-A28D08BW1QC, DES25-A28D08BW3QC, DES25-A28D08SCAQB, DES25-A28D08SWAQB, DES25-A28D82SCAQB, DES25-A28D82SCAQBP, DES25-A28D82SWAQB, DES25-A28D82SWAQBP, DES25-A28DK1EC3QF, DES25-A28DK1EW3QF, DES25-A28DK1GC3DL, DES25-A28DK1GW3DL, DES25-A28M41BC1DC, DES25-A28M41BW1DC, DES25-B56D08BC1QC, DES25-B56D08BC3QC, DES25-B56D08BW1QC, DES25-B56D08BW3QC, DES25-B56D82SCAQB, DES25-B56D82SCAQBP, DES25-B56D82SWAQB, DES25-B56D82SWAQBP, DES25-B56DK1EC3QF, DES25-B56DK1EW3QF, DES25-B56DK1GC3QL, DES25-B56DK1GW3QL, DES25-B56M41BC1DC, DES25-B56M41BW1DC, DES25-C12D08BC1QC, DES25-C12D08BW1QC, DES25-C12DK1EC3QF, DES25-C12DK1EW3QF, DES25-C12DK1GC3QL, DES25-C12DK1GW3QL, DESLM-01TDK1ECAQF, DESLM-01TDK1EWAQF, DESLM-01TDK1KCAQF, DESLM-01TDK1KWAQF, DESLM-02TDK1KCAQF, DESLM-02TDK1KWAQF, DESLM-08GM41BC1SC, DESLM-08GM41BW1SC, DESLM-08GM41SCADB, DESLM-08GM41SWADB, DESLM-16GM41BC1DC, DESLM-16GM41BC1SC, DESLM-16GM41BW1DC, DESLM-16GM41BW1SC, DESLM-16GM41SCADB, DESLM-16GM41SWADB, DESLM-32GDK1EC1SF, DESLM-32GDK1EW1SF, DESLM-32GM41BC1DC, DESLM-32GM41BW1DC, DESLM-32GM41SCADB, DESLM-32GM41SWADB, DESLM-64GDK1EC1DF, DESLM-64GDK1EW1DF, DESLM-64GDK1KWASF, DESLM-64GM41BC1DC, DESLM-64GM41BW1DC, DESLM-64GM41SCADB, DESLM-64GM41SWADB, DESLM-A28DK1EC1QF, DESLM-A28DK1EW1QF, DESLM-A28DK1KCADF, DESLM-A28DK1KWADF, DESLM-A28M41BC1DC, DESLM-A28M41BW1DC, DESLM-B56DK1EC1QF, DESLM-B56DK1EW1QF, DESLM-B56DK1KCAQF, DESLM-B56DK1KWAQF, DESLM-B56M41BC1DC, DESLM-B56M41BW1DC, DESLM-C12DK1EC1QF, DESLM-C12DK1EW1QF, DESLM-C12DK1KCAQF, DESLM-C12DK1KWAQF, DESMH-08GD07SCADB, DESMH-08GD07SCADBF, DESMH-08GD07SWADB, DESMH-08GD07SWADBF, DESMH-08GD09BC1SC, DESMH-08GD09BC1SCF, DESMH-08GD09BW1SC, DESMH-08GD09BW1SCF, DESMH-16GD07SCADB, DESMH-16GD07SCADBF, DESMH-16GD07SWADB, DESMH-16GD07SWADBF, DESMH-16GD09BC1DC, DESMH-16GD09BC1DCF, DESMH-16GD09BC1SC, DESMH-16GD09BC1SCF, DESMH-16GD09BW1DC, DESMH-16GD09BW1DCF, DESMH-16GD09BW1SC, DESMH-16GD09BW1SCF, DESMH-32GD07SCADB, DESMH-32GD07SCADBF, DESMH-32GD07SWADB, DESMH-32GD07SWADBF, DESMH-32GD09BC1DC, DESMH-32GD09BC1DCF, DESMH-32GD09BW1DC, DESMH-32GD09BW1DCF, DESMH-32GM41BCADCA, DESMH-32GM41BCADCB, DESMH-32GM41BWADCA, DESMH-32GM41BWADCB, DESMH-64GD09BC1DC, DESMH-64GD09BC1DCF, DESMH-64GD09BW1DC, DESMH-64GD09BW1DCF, DESMH-64GM41BCADCA, DESMH-64GM41BCADCB, DESMH-64GM41BWADCA, DESMH-64GM41BWADCB, DESMH-A28D09BC1DC, DESMH-A28D09BC1DCF, DESMH-A28D09BW1DC, DESMH-A28D09BW1DCF, DESMH-A28M41BCADCA, DESMH-A28M41BCADCB, DESMH-A28M41BWADCA, DESMH-A28M41BWADCB, DESMH-B56D09BC1DC, DESMH-B56D09BC1DCF, DESMH-B56M41BCADCA, DESMH-B56M41BCADCB, DESMH-B56M41BWADCA, DESMH-B56M41BWADCB, DESML-08GM41SCADBA, DESML-08GM41SCADBB, DESML-08GM41SWADBA, DESML-08GM41SWADBB, DESML-16GM41SCADBA, DESML-16GM41SCADBB, DESML-16GM41SWADBA, DESML-16GM41SWADBB, DESML-32GM41BCADCA, DESML-32GM41BCADCB, DESML-32GM41BWADCA, DESML-32GM41BWADCB, DESML-32GM41SCADBA, DESML-32GM41SCADBB, DESML-32GM41SWADBA, DESML-32GM41SWADBB, DESML-64GM41BCADCA, DESML-64GM41BCADCB, DESML-64GM41BWADCA, DESML-64GM41BWADCB, DESML-64GM41SCADBA, DESML-64GM41SCADBB, DESML-64GM41SWADBA, DESML-64GM41SWADBB, DESML-A28M41BCADCA, DESML-A28M41BCADCB, DESML-A28M41BWADCA, DESML-A28M41BWADCB, DESML-B56M41BCADCA, DESML-B56M41BCADCB, DESML-B56M41BWADCA, DESML-B56M41BWADCB, DESSC-08GD09BC1SC, DESSC-08GD09BC1SCF, DESSC-08GD09BW1SC, DESSC-08GD09BW1SCF, DESSC-08GD09SCADBA, DESSC-08GD09SCADBB, DESSC-08GD09SWADBA, DESSC-08GD09SWADBB, DESSC-08GM41BC1SCA, DESSC-08GM41BC1SCB, DESSC-08GM41BW1SCA, DESSC-08GM41BW1SCB, DESSC-08GM41SCADBA, DESSC-08GM41SCADBB, DESSC-08GM41SWADBA, DESSC-08GM41SWADBB, DESSC-16GD09BC1SC, DESSC-16GD09BC1SCF, DESSC-16GD09BW1SC, DESSC-16GD09BW1SCF, DESSC-16GD09SCADBA, DESSC-16GD09SCADBB, DESSC-16GD09SWADBA, DESSC-16GD09SWADBB, DESSC-16GM41BC1SCA, DESSC-16GM41BC1SCB, DESSC-16GM41BW1SCA, DESSC-16GM41BW1SCB, DESSC-16GM41SCADBA, DESSC-16GM41SCADBB, DESSC-16GM41SWADBA, DESSC-16GM41SWADBB, DESSC-32GD09BC1SC, DESSC-32GD09BC1SCF, DESSC-32GD09BW1SC, DESSC-32GD09BW1SCF, DESSC-32GD09SCADBA, DESSC-32GD09SCADBB, DESSC-32GD09SWADBA, DESSC-32GD09SWADBB, DESSC-32GM41BC1SCA, DESSC-32GM41BC1SCB, DESSC-32GM41BW1SCA, DESSC-32GM41BW1SCB, DESSC-32GM41SCADBA, DESSC-32GM41SCADBB, DESSC-32GM41SWADBA, DESSC-32GM41SWADBB, DESSC-64GD09BCADC, DESSC-64GD09BCADCF, DESSC-64GD09BWADC, DESSC-64GD09BWADCF, DESSC-64GM41BC1SCA, DESSC-64GM41BC1SCB, DESSC-64GM41BCADCA, DESSC-64GM41BCADCB, DESSC-64GM41BW1SCA, DESSC-64GM41BW1SCB, DESSC-64GM41BWADCA, DESSC-64GM41BWADCB, DESSC-A28D09BCADC, DESSC-A28D09BCADCF, DESSC-A28D09BWADC, DESSC-A28D09BWADCF, DESSC-A28M41BCADCA, DESSC-A28M41BCADCB, DESSC-A28M41BWADCA, DESSC-A28M41BWADCB, DESSF-01GD07AC1SB, DESSF-01GD07AC1SBF, DESSF-01GD07AC2SB, DESSF-01GD07AC2SBF, DESSF-01GD07AW1SB, DESSF-01GD07AW1SBF, DESSF-01GD07AW2SB, DESSF-01GD07AW2SBF, DESSF-02GD07AC1SB, DESSF-02GD07AC1SBF, DESSF-02GD07AC2SB, DESSF-02GD07AC2SBF, DESSF-02GD07AW1SB, DESSF-02GD07AW1SBF, DESSF-02GD07AW2SB, DESSF-02GD07AW2SBF, DESSF-04GD07SC2SB, DESSF-04GD07SC2SBF, DESSF-04GD07SCADB, DESSF-04GD07SCADBF, DESSF-04GD07SW2SB, DESSF-04GD07SW2SBF, DESSF-04GD07SWADB, DESSF-04GD07SWADBF, DESSF-08GD07SCADB, DESSF-08GD07SCADBF, DESSF-08GD07SWADB, DESSF-08GD07SWADBF, DESSF-08GD09BC1SC, DESSF-08GD09BC1SCF, DESSF-08GD09BW1SC, DESSF-08GD09BW1SCF, DESSF-08GD09SCADBA, DESSF-08GD09SCADBB, DESSF-08GD09SWADBA, DESSF-08GD09SWADBB, DESSF-16GD07SCADB, DESSF-16GD07SCADBF, DESSF-16GD07SWADB, DESSF-16GD07SWADBF, DESSF-16GD09BC1SC, DESSF-16GD09BC1SCF, DESSF-16GD09BW1SC, DESSF-16GD09BW1SCF, DESSF-16GD09SCADBA, DESSF-16GD09SCADBB, DESSF-16GD09SWADBA, DESSF-16GD09SWADBB, DESSF-32GD07SCADB, DESSF-32GD07SCADBF, DESSF-32GD07SWADB, DESSF-32GD07SWADBF, DESSF-32GD09BC1SC, DESSF-32GD09BC1SCF, DESSF-32GD09BW1SC, DESSF-32GD09BW1SCF, DESSF-32GD09SCADBA, DESSF-32GD09SCADBB, DESSF-32GD09SWADBA, DESSF-32GD09SWADBB, DESSF-64GD09BCADC, DESSF-64GD09BCADCF, DESSF-64GD09BWADC, DESSF-64GD09BWADCF, DESSF-A28D09BCADC, DESSF-A28D09BCADCF, DESSF-A28D09BWADC, DESSF-A28D09BWADCF, DESSH-08GD09BC1SC, DESSH-08GD09BC1SCA, DESSH-08GD09BC1SCB, DESSH-08GD09BC1SCF, DESSH-08GD09BW1SC, DESSH-08GD09BW1SCA, DESSH-08GD09BW1SCB, DESSH-08GD09BW1SCF, DESSH-08GD09SCADBA, DESSH-08GD09SCADBB, DESSH-08GD09SWADBA, DESSH-08GD09SWADBB, DESSH-08GM41BC1SCA, DESSH-08GM41BC1SCB, DESSH-08GM41BW1SCA, DESSH-08GM41BW1SCB, DESSH-08GM41SCADBA, DESSH-08GM41SCADBB, DESSH-08GM41SWADBA, DESSH-08GM41SWADBB, DESSH-16GD09BC1SC, DESSH-16GD09BC1SCA, DESSH-16GD09BC1SCB, DESSH-16GD09BC1SCF, DESSH-16GD09BW1SC, DESSH-16GD09BW1SCA, DESSH-16GD09BW1SCB, DESSH-16GD09BW1SCF, DESSH-16GD09SCADBA, DESSH-16GD09SCADBB, DESSH-16GD09SWADBA, DESSH-16GD09SWADBB, DESSH-16GM41BC1SCA, DESSH-16GM41BC1SCB, DESSH-16GM41BW1SCA, DESSH-16GM41BW1SCB, DESSH-16GM41SCADBA, DESSH-16GM41SCADBB, DESSH-16GM41SWADBA, DESSH-16GM41SWADBB, DESSH-32GD09BC1SC, DESSH-32GD09BC1SCA, DESSH-32GD09BC1SCB, DESSH-32GD09BC1SCF, DESSH-32GD09BW1SC, DESSH-32GD09BW1SCA, DESSH-32GD09BW1SCB, DESSH-32GD09BW1SCF, DESSH-32GD09SCADBA, DESSH-32GD09SCADBB, DESSH-32GD09SWADBA, DESSH-32GD09SWADBB, DESSH-32GM41BC1SCA, DESSH-32GM41BC1SCB, DESSH-32GM41BW1SCA, DESSH-32GM41BW1SCB, DESSH-32GM41SCADBA, DESSH-32GM41SCADBB, DESSH-32GM41SWADBA, DESSH-32GM41SWADBB, DESSH-64GD09BCADC, DESSH-64GD09BCADCA, DESSH-64GD09BCADCB, DESSH-64GD09BCADCF, DESSH-64GD09BWADC, DESSH-64GD09BWADCA, DESSH-64GD09BWADCB, DESSH-64GD09BWADCF, DESSH-64GM41BC1SCA, DESSH-64GM41BC1SCB, DESSH-64GM41BCADCA, DESSH-64GM41BCADCB, DESSH-64GM41BW1SCA, DESSH-64GM41BW1SCB, DESSH-64GM41BWADCA, DESSH-64GM41BWADCB, DESSH-A28D09BCADC, DESSH-A28D09BCADCA, DESSH-A28D09BCADCB, DESSH-A28D09BCADCF, DESSH-A28D09BWADC, DESSH-A28D09BWADCA, DESSH-A28D09BWADCB, DESSH-A28D09BWADCF, DESSH-A28M41BCADCA, DESSH-A28M41BCADCB, DESSH-A28M41BWADCA, DESSH-A28M41BWADCB, DESSL-08GD09BC1SC, DESSL-08GD09BC1SCA, DESSL-08GD09BC1SCB, DESSL-08GD09BC1SCF, DESSL-08GD09BW1SC, DESSL-08GD09BW1SCA, DESSL-08GD09BW1SCB, DESSL-08GD09BW1SCF, DESSL-08GD09SCADBA, DESSL-08GD09SCADBB, DESSL-08GD09SWADBA, DESSL-08GD09SWADBB, DESSL-08GM41BC1SCA, DESSL-08GM41BC1SCB, DESSL-08GM41BW1SCA, DESSL-08GM41BW1SCB, DESSL-08GM41SCADBA, DESSL-08GM41SCADBB, DESSL-08GM41SWADBA, DESSL-08GM41SWADBB, DESSL-16GD09BC1SC, DESSL-16GD09BC1SCA, DESSL-16GD09BC1SCB, DESSL-16GD09BC1SCF, DESSL-16GD09BW1SC, DESSL-16GD09BW1SCA, DESSL-16GD09BW1SCB, DESSL-16GD09BW1SCF, DESSL-16GD09SCADBA, DESSL-16GD09SCADBB, DESSL-16GD09SWADBA, DESSL-16GD09SWADBB, DESSL-16GM41BC1SCA, DESSL-16GM41BC1SCB, DESSL-16GM41BW1SCA, DESSL-16GM41BW1SCB, DESSL-16GM41SCADBA, DESSL-16GM41SCADBB, DESSL-16GM41SWADBA, DESSL-16GM41SWADBB, DESSL-32GD09BC1SC, DESSL-32GD09BC1SCA, DESSL-32GD09BC1SCB, DESSL-32GD09BC1SCF, DESSL-32GD09BW1SC, DESSL-32GD09BW1SCA, DESSL-32GD09BW1SCB, DESSL-32GD09BW1SCF, DESSL-32GD09SCADBA, DESSL-32GD09SCADBB, DESSL-32GD09SWADBA, DESSL-32GD09SWADBB, DESSL-32GM41BC1SCA, DESSL-32GM41BC1SCB, DESSL-32GM41BW1SCA, DESSL-32GM41BW1SCB, DESSL-32GM41SCADBA, DESSL-32GM41SCADBB, DESSL-32GM41SWADBA, DESSL-32GM41SWADBB, DESSL-64GD09BCADC, DESSL-64GD09BCADCF, DESSL-64GD09BCBDCA, DESSL-64GD09BCBDCB, DESSL-64GD09BWADC, DESSL-64GD09BWADCF, DESSL-64GD09BWBDCA, DESSL-64GD09BWBDCB, DESSL-64GM41BC1SCA, DESSL-64GM41BC1SCB, DESSL-64GM41BCADCA, DESSL-64GM41BCADCB, DESSL-64GM41BW1SCA, DESSL-64GM41BW1SCB, DESSL-64GM41BWADCA, DESSL-64GM41BWADCB, DESSL-A28D09BCADC, DESSL-A28D09BCADCF, DESSL-A28D09BCBDCA, DESSL-A28D09BCBDCB, DESSL-A28D09BWADC, DESSL-A28D09BWADCF, DESSL-A28D09BWBDCA, DESSL-A28D09BWBDCB, DESSL-A28M41BCADCA, DESSL-A28M41BCADCB, DESSL-A28M41BWADCA, DESSL-A28M41BWADCB, DESSV-08GD09BC1SC, DESSV-08GD09BC1SCA, DESSV-08GD09BC1SCB, DESSV-08GD09BC1SCF, DESSV-08GD09BW1SC, DESSV-08GD09BW1SCA, DESSV-08GD09BW1SCB, DESSV-08GD09BW1SCF, DESSV-08GD09SC1SC, DESSV-08GD09SC1SCF, DESSV-08GD09SCADBA, DESSV-08GD09SCADBB, DESSV-08GD09SW1SC, DESSV-08GD09SW1SCF, DESSV-08GD09SWADBA, DESSV-08GD09SWADBB, DESSV-16GD09BC1SC, DESSV-16GD09BC1SCA, DESSV-16GD09BC1SCB, DESSV-16GD09BC1SCF, DESSV-16GD09BW1SC, DESSV-16GD09BW1SCA, DESSV-16GD09BW1SCB, DESSV-16GD09BW1SCF, DESSV-16GD09SC1SC, DESSV-16GD09SC1SCF, DESSV-16GD09SCADBA, DESSV-16GD09SCADBB, DESSV-16GD09SW1SC, DESSV-16GD09SW1SCF, DESSV-16GD09SWADBA, DESSV-16GD09SWADBB, DESSV-32GD09BC1SC, DESSV-32GD09BC1SCA, DESSV-32GD09BC1SCB, DESSV-32GD09BC1SCF, DESSV-32GD09BW1SC, DESSV-32GD09BW1SCA, DESSV-32GD09BW1SCB, DESSV-32GD09BW1SCF, DESSV-32GD09SC1SC, DESSV-32GD09SC1SCF, DESSV-32GD09SCADBA, DESSV-32GD09SCADBB, DESSV-32GD09SW1SC, DESSV-32GD09SW1SCF, DESSV-32GD09SWADBA, DESSV-32GD09SWADBB, DESSV-64GD09BCADC, DESSV-64GD09BCADCA, DESSV-64GD09BCADCB, DESSV-64GD09BCADCF, DESSV-64GD09BWADC, DESSV-64GD09BWADCA, DESSV-64GD09BWADCB, DESSV-64GD09BWADCF, DESSV-64GD09SCADC, DESSV-64GD09SCADCF, DESSV-64GD09SWADC, DESSV-64GD09SWADCF, DESSV-A28D09BCADC, DESSV-A28D09BCADCA, DESSV-A28D09BCADCB, DESSV-A28D09BCADCF, DESSV-A28D09BWADC, DESSV-A28D09BWADCA, DESSV-A28D09BWADCB, DESSV-A28D09BWADCF, DESSV-A28D09SCADC, DESSV-A28D09SCADCF, DESSV-A28D09SWADC, DESSV-A28D09SWADCF, DEUA1-04GI61SCASB, DEUA1-04GI61SWASB, DEUA1-08GI61BC1SC, DEUA1-08GI61BC2SC, DEUA1-08GI61BC3SC, DEUA1-08GI61BW1SC, DEUA1-08GI61BW2SC, DEUA1-08GI61BW3SC, DEUA1-08GI61SCASB, DEUA1-08GI61SWASB, DEUA1-16GI61BC1SC, DEUA1-16GI61BC2SC, DEUA1-16GI61BC3SC, DEUA1-16GI61BW1SC, DEUA1-16GI61BW2SC, DEUA1-16GI61BW3SC, DEUA1-16GI61SCASB, DEUA1-16GI61SWASB, DEUA1-32GI61BC1SC, DEUA1-32GI61BC2SC, DEUA1-32GI61BC3SC, DEUA1-32GI61BW1SC, DEUA1-32GI61BW2SC, DEUA1-32GI61BW3SC, DEUA1-32GI61SCASB, DEUA1-32GI61SWASB, DEUA1-64GI61BC1SC, DEUA1-64GI61BC2SC, DEUA1-64GI61BC3SC, DEUA1-64GI61BW1SC, DEUA1-64GI61BW2SC, DEUA1-64GI61BW3SC, DGM24-32GD81BCADC, DGM24-32GD81BWADC, DGM24-32GD82BCADC, DGM24-32GD82BWADC, DGM24-64GD81BCAQC, DGM24-64GD81BWAQC, DGM24-64GD82BCAQC, DGM24-64GD82BWAQC, DGM24-A28D81BCAQC, DGM24-A28D81BWAQC, DGM24-A28D82BCAQC, DGM24-A28D82BWAQC, DGM24-B56D81BCAQC, DGM24-B56D81BWAQC, DGM24-B56D82BCAQC, DGM24-B56D82BWAQC, DGM26-32GD81BCADC, DGM26-32GD81BWADC, DGM26-64GD81BCAQC, DGM26-64GD81BWAQC, DGM26-A28D81BCAQC, DGM26-A28D81BWAQC, DGM26-B56D81BCAQC, DGM26-B56D81BWAQC, DGM28-01TD81BCBQC, DGM28-01TD81BWBQC, DGM28-01TD82BCBQC, DGM28-01TD82BWBQC, DGM28-32GD81BCBDC, DGM28-32GD81BWBDC, DGM28-32GD82BCBDC, DGM28-32GD82BWBDC, DGM28-64GD81BCBQC, DGM28-64GD81BCBQCP, DGM28-64GD81BWBQC, DGM28-64GD81BWBQCP, DGM28-64GD82BCBQC, DGM28-64GD82BWBQC, DGM28-A28D81BCBQC, DGM28-A28D81BCBQCP, DGM28-A28D81BWBQC, DGM28-A28D81BWBQCP, DGM28-A28D82BCBQC, DGM28-A28D82BWBQC, DGM28-B56D81BCBQC, DGM28-B56D81BCBQCP, DGM28-B56D81BWBQC, DGM28-B56D81BWBQCP, DGM28-B56D82BCBQC, DGM28-B56D82BWBQC, DGM28-C12D81BCBQC, DGM28-C12D81BCBQCP, DGM28-C12D81BWBQC, DGM28-C12D81BWBQCP, DGM28-C12D82BCBQC, DGM28-C12D82BWBQC, DGMSR-01TD81BCAQC, DGMSR-01TD81BWAQC, DGMSR-08GD81BC1SC, DGMSR-08GD81BW1SC, DGMSR-08GD82BC1SC, DGMSR-08GD82BW1SC, DGMSR-16GD81BC1DC, DGMSR-16GD81BC1SC, DGMSR-16GD81BW1DC, DGMSR-16GD81BW1SC, DGMSR-16GD82BC1DC, DGMSR-16GD82BW1DC, DGMSR-16GD82SCASN, DGMSR-16GD82SWASN, DGMSR-32GD81BC1DC, DGMSR-32GD81BC1QC, DGMSR-32GD81BW1DC, DGMSR-32GD81BW1QC, DGMSR-32GD82BC1QC, DGMSR-32GD82BW1QC, DGMSR-32GD82SCADN, DGMSR-32GD82SWADN, DGMSR-64GD81BC1QC, DGMSR-64GD81BW1QC, DGMSR-64GD82BC1QC, DGMSR-64GD82BW1QC, DGMSR-64GD82SCAQN, DGMSR-64GD82SWAQN, DGMSR-A28D81BC1QC, DGMSR-A28D81BW1QC, DGMSR-A28D82BC1QC, DGMSR-A28D82BW1QC, DGMSR-A28D82SCAQN, DGMSR-A28D82SWAQN, DGMSR-B56D81BC1QC, DGMSR-B56D81BW1QC, DGMSR-B56D82BC1QC, DGMSR-B56D82BW1QC, DGMSR-B56D82SCAQN, DGMSR-B56D82SWAQN, DGMSR-C12D81BCBQC, DGMSR-C12D81BWBQC, DGMSR-C12D82BCBQC, DGMSR-C12D82BWBQC, DGMSR-C12D82SCAQN, DGMSR-C12D82SW1QC, DGMSR-C12D82SWAQN, DGS18-01TD81BCBQC, DGS18-01TD81BWBQC, DGS18-B56D81BCAQC, DGS18-B56D81BWAQC, DGS18-C12D81BCAQC, DGS18-C12D81BWAQC, DGS25-01TD81BCAQC, DHM24-16GD81BCADC, DHM24-16GD81BWADC, DHM24-16GDK1KWASF, DHM24-20GDK1EC1DF, DHM24-20GDK1EW1DF, DHM24-20GDK1KCASF, DHM24-20GDK1KCASL, DHM24-20GDK1KWASF, DHM24-20GDK1KWASL, DHM24-32GD81BCAQC, DHM24-32GD81BWAQC, DHM24-32GDK1KWADF, DHM24-40GDK1EC1DF, DHM24-40GDK1EW1DF, DHM24-40GDK1KCADF, DHM24-40GDK1KCADL, DHM24-40GDK1KWADF, DHM24-40GDK1KWADL, DHM24-64GD81BCAQC, DHM24-64GD81BWAQC, DHM24-64GDK1KWAQF, DHM24-80GDK1EC1DF, DHM24-80GDK1EW1DF, DHM24-80GDK1KCADL, DHM24-80GDK1KCAQF, DHM24-80GDK1KCAQL, DHM24-80GDK1KWADL, DHM24-80GDK1KWAQF, DHM24-80GDK1KWAQL, DHM24-A28D81BCAQC, DHM24-A28D81BWAQC, DHM24-A28DK1KWAQF, DHM24-A60DK1ECAQF, DHM24-A60DK1EWAQF, DHM24-A60DK1KCAQF, DHM24-A60DK1KCAQL, DHM24-A60DK1KWAQF, DHM24-A60DK1KWAQL, DHM24-B56DK1KWAQF, DHM24-D2GDK1KCAQF, DHM24-D2GDK1KWAQF, DHM28-08GM41BC1DC, DHM28-08GM41BC1SC, DHM28-08GM41BW1DC, DHM28-08GM41BW1SC, DHM28-16GM41BC1DC, DHM28-16GM41BC1SC, DHM28-16GM41BW1DC, DHM28-16GM41BW1SC, DHM28-20GDK1EC1DF, DHM28-20GDK1EW1DF, DHM28-32GD81BCBQC, DHM28-32GD81BCBQCP, DHM28-32GD81BWBQC, DHM28-32GD81BWBQCP, DHM28-32GM41BC1DC, DHM28-32GM41BW1DC, DHM28-40GDK1EC1QF, DHM28-40GDK1EW1QF, DHM28-40GDK1KCADF, DHM28-40GDK1KCADL, DHM28-40GDK1KWADF, DHM28-40GDK1KWADL, DHM28-64GD81BCBQC, DHM28-64GD81BCBQCP, DHM28-64GD81BWBQC, DHM28-64GD81BWBQCP, DHM28-64GM41BC1DC, DHM28-64GM41BW1DC, DHM28-80GDK1EC1QF, DHM28-80GDK1EW1QF, DHM28-80GDK1KCADL, DHM28-80GDK1KCAQF, DHM28-80GDK1KCAQL, DHM28-80GDK1KWADL, DHM28-80GDK1KWAQF, DHM28-80GDK1KWAQL, DHM28-A28D81BCBQC, DHM28-A28D81BCBQCP, DHM28-A28D81BWBQC, DHM28-A28D81BWBQCP, DHM28-A28M41BC1DC, DHM28-A28M41BW1DC, DHM28-A60DK1EC1QF, DHM28-A60DK1EW1QF, DHM28-A60DK1KCAQF, DHM28-A60DK1KCAQL, DHM28-A60DK1KWAQF, DHM28-A60DK1KWAQL, DHM28-B56D81BCBQC, DHM28-B56D81BCBQCP, DHM28-B56D81BWBQC, DHM28-B56D81BWBQCP, DHM28-C12D81BCBQC, DHM28-C12D81BWBQC, DHM28-D2GDK1ECAQF, DHM28-D2GDK1EWAQF, DHM28-D2GDK1KCAQF, DHM28-D2GDK1KCAQL, DHM28-D2GDK1KWAQF, DHM28-D2GDK1KWAQL, DHM28-F4GDK1KCAQF, DHM28-F4GDK1KCAQL, DHM28-F4GDK1KWAQF, DHM28-F4GDK1KWAQL, DHMSM-08GM41BC1DC, DHMSM-08GM41BC1SC, DHMSM-08GM41BW1DC, DHMSM-08GM41BW1SC, DHMSM-16GM41BC1DC, DHMSM-16GM41BW1DC, DHMSM-32GM41BC1DC, DHMSM-32GM41BW1DC, DHMSM-64GM41BC1DC, DHMSM-64GM41BW1DC, DHMSR-08GD81BC1DC, DHMSR-08GD81BW1DC, DHMSR-08GM41BC1DC, DHMSR-08GM41BC1SC, DHMSR-08GM41BW1DC, DHMSR-08GM41BW1SC, DHMSR-16GD08BC1QC, DHMSR-16GD08BW1QC, DHMSR-16GD81BC1QC, DHMSR-16GD81BW1QC, DHMSR-16GM41BC1DC, DHMSR-16GM41BW1DC, DHMSR-32GD08BC1QC, DHMSR-32GD08BW1QC, DHMSR-32GD81BC1QC, DHMSR-32GD81BW1QC, DHMSR-32GM41BC1DC, DHMSR-32GM41BW1DC, DHMSR-64GD08BC1QC, DHMSR-64GD08BCAQC, DHMSR-64GD08BW1QC, DHMSR-64GD08BWAQC, DHMSR-64GD81BC1QC, DHMSR-64GD81BW1QC, DHMSR-64GM41BC1DC, DHMSR-64GM41BW1DC, DHMSR-A28D08BC1QC, DHMSR-A28D08BCAQC, DHMSR-A28D08BW1QC, DHMSR-A28D08BWAQC, DHMSR-A28D81BC1QC, DHMSR-A28D81BW1QC, DHMSR-A28M41BC1DC, DHMSR-A28M41BW1DC, DHMSR-B56D08BCAQC, DHMSR-B56D08BWAQC, DHMSR-B56D81BCBQC, DHMSR-B56D81BWBQC, DHS18-C12D81BCAQC-G58, DHS25-01TD81BCAQC, DHS25-01TD81BWAQC, DHS25-01TD82BCQCP, DHS25-01TD82BWQCP, DHS25-08GD81BC1DCP, DHS25-08GD81BC3DC, DHS25-08GD81BW1DCP, DHS25-08GD81BW3DC, DHS25-08GD82BCDP, DHS25-08GD82BCDQP, DHS25-08GD82BWDCP, DHS25-08GD82BWDQP, DHS25-16GD81BC1DCP, DHS25-16GD81BC1QCP, DHS25-16GD81BC3DC, DHS25-16GD81BC3QC, DHS25-16GD81BW1DCP, DHS25-16GD81BW1QCP, DHS25-16GD81BW3DC, DHS25-16GD81BW3QC, DHS25-16GD82BCQCP, DHS25-16GD82BWQCP, DHS25-20GDK1EC3DF, DHS25-20GDK1EW3DF, DHS25-32GD81BC1QC, DHS25-32GD81BC1QCP, DHS25-32GD81BC3QC, DHS25-32GD81BW1QC, DHS25-32GD81BW1QCP, DHS25-32GD81BW3QC, DHS25-32GD82BCQCP, DHS25-32GD82BWQCP, DHS25-40GDK1EC3QF, DHS25-40GDK1EW3QF, DHS25-64GD81BC1QC, DHS25-64GD81BC1QCP, DHS25-64GD81BC3QC, DHS25-64GD81BW1QC, DHS25-64GD81BW1QCP, DHS25-64GD81BW3QC, DHS25-64GD82BCQCP, DHS25-64GD82BWQCP, DHS25-80GDK1EC3QF, DHS25-80GDK1EW3QF, DHS25-A28D81BC1QCP, DHS25-A28D81BC3QC, DHS25-A28D81BW1QCP, DHS25-A28D81BW3QC, DHS25-A28D82BCQCP, DHS25-A28D82BWQCP, DHS25-A60DK1EC3QF, DHS25-A60DK1EW3QF, DHS25-B56D81BC1QC, DHS25-B56D81BC1QCP, DHS25-B56D81BW1QC, DHS25-B56D81BW1QCP, DHS25-B56D82BCQCP, DHS25-B56D82BWQCP, DHS25-C12D81BCAQC, DHS25-C12D81BCAQCP, DHS25-C12D81BWAQC, DHS25-C12D81BWAQCP, DHS25-C12D82BCQCP, DHS25-C12D82BWQCP, DHSLM-08GM41BC1DC, DHSLM-08GM41BC1SC, DHSLM-08GM41BW1DC, DHSLM-08GM41BW1SC, DHSLM-16GM41BC1DC, DHSLM-16GM41BW1DC, DHSLM-32GM41BC1DC, DHSLM-32GM41BW1DC, DHSLM-40GDK1KCADL, DHSLM-40GDK1KWADL, DHSLM-64GM41BC1DC, DHSLM-64GM41BW1DC, DHSLM-80GDK1KCADL, DHSLM-80GDK1KCAQL, DHSLM-80GDK1KWADL, DHSLM-80GDK1KWAQL, DHSLM-A28M41BC1DC, DHSLM-A28M41BW1DC, DHSLM-A60DK1KCAQL, DHSLM-A60DK1KWAQL, DHSLM-D2GDK1KCAQL, DHSLM-D2GDK1KWAQL, DHSLM-F4GDK1KCAQL, DHSLM-F4GDK1KWAQL, DHSMH-16GM41BCADCA, DHSMH-16GM41BCADCB, DHSMH-16GM41BWADCA, DHSMH-16GM41BWADCB, DHSMH-32GM41BCADCA, DHSMH-32GM41BCADCB, DHSMH-32GM41BWADCA, DHSMH-32GM41BWADCB, DHSMH-64GM41BCADCA, DHSMH-64GM41BCADCB, DHSMH-64GM41BWADCA, DHSMH-64GM41BWADCB, DHSMH-A28M41BCADCA, DHSMH-A28M41BCADCB, DHSMH-A28M41BWADCA, DHSMH-A28M41BWADCB, DHSML-16GM41BCADCA, DHSML-16GM41BCADCB, DHSML-16GM41BWADCA, DHSML-16GM41BWADCB, DHSML-32GM41BCADCA, DHSML-32GM41BCADCB, DHSML-32GM41BWADCA, DHSML-32GM41BWADCB, DHSML-64GM41BCADCA, DHSML-64GM41BCADCB, DHSML-64GM41BWADCA, DHSML-64GM41BWADCB, DHSML-A28M41BCADCA, DHSML-A28M41BCADCB, DHSML-A28M41BWADCA, DHSML-A28M41BWADCB, DHSSC-08GM41BC1SCA, DHSSC-08GM41BC1SCB, DHSSC-08GM41BCASCA, DHSSC-08GM41BCASCB, DHSSC-08GM41BW1SCA, DHSSC-08GM41BW1SCB, DHSSC-08GM41BWASCA, DHSSC-08GM41BWASCB, DHSSC-16GM41BC1SCA, DHSSC-16GM41BC1SCB, DHSSC-16GM41BCASCA, DHSSC-16GM41BCASCB, DHSSC-16GM41BW1SCA, DHSSC-16GM41BW1SCB, DHSSC-16GM41BWASCA, DHSSC-16GM41BWASCB, DHSSC-32GM41BC1SCA, DHSSC-32GM41BC1SCB, DHSSC-32GM41BCASCA, DHSSC-32GM41BCASCB, DHSSC-32GM41BW1SCA, DHSSC-32GM41BW1SCB, DHSSC-32GM41BWASCA, DHSSC-32GM41BWASCB, DHSSH-08GD09BC1SCA, DHSSH-08GD09BC1SCB, DHSSH-08GD09BW1SCA, DHSSH-08GD09BW1SCB, DHSSH-16GD09BC1SCA, DHSSH-16GD09BC1SCB, DHSSH-16GD09BW1SCA, DHSSH-16GD09BW1SCB, DHSSH-32GD09BCADCA, DHSSH-32GD09BCADCB, DHSSH-32GD09BWADCA, DHSSH-32GD09BWADCB, DHSSH-64GD09BCADCA, DHSSH-64GD09BCADCB, DHSSH-64GD09BWADCA, DHSSH-64GD09BWADCB, DHSSL-08GD09BC1SCA, DHSSL-08GD09BC1SCB, DHSSL-08GD09BW1SCA, DHSSL-08GD09BW1SCB, DHSSL-16GD09BC1SCA, DHSSL-16GD09BC1SCB, DHSSL-16GD09BW1SCA, DHSSL-16GD09BW1SCB, DHSSL-32GD09BCBDCA, DHSSL-32GD09BCBDCB, DHSSL-32GD09BWBDCA, DHSSL-32GD09BWBDCB, DHSSL-64GD09BCBDCA, DHSSL-64GD09BCBDCB, DHSSL-64GD09BWBDCA, DHSSL-64GD09BWBDCB, DHSSV-08GD09BC1SCA, DHSSV-08GD09BC1SCB, DHSSV-08GD09BW1SCA, DHSSV-08GD09BW1SCB, DHSSV-16GD09BC1SCA, DHSSV-16GD09BC1SCB, DHSSV-16GD09BW1SCA, DHSSV-16GD09BW1SCB, DHSSV-32GD09BC1SCA, DHSSV-32GD09BC1SCB, DHSSV-32GD09BCADCA, DHSSV-32GD09BCADCB, DHSSV-32GD09BW1SCA, DHSSV-32GD09BW1SCB, DHSSV-32GD09BWADCA, DHSSV-32GD09BWADCB, DHSSV-64GD09BCADCA, DHSSV-64GD09BCADCB, DHSSV-64GD09BWADCA, DHSSV-64GD09BWADCB, DRS25-01TD81BCAQCP, DRS25-01TD81BWAQCP, DRS25-01TD82BCAQCP, DRS25-01TD82BWAQCP, DRS25-08GD81BC1SCP, DRS25-08GD81BW1SCP, DRS25-08GD82BC1SCP, DRS25-08GD82BW1SCP, DRS25-16GD81BC1SCP, DRS25-16GD81BW1SCP, DRS25-16GD82BC1SCP, DRS25-16GD82BW1SCP, DRS25-32GD81BC1DCP, DRS25-32GD81BC1QCP, DRS25-32GD81BW1DCP, DRS25-32GD81BW1QCP, DRS25-32GD82BC1DCP, DRS25-32GD82BC1QCP, DRS25-32GD82BW1DCP, DRS25-32GD82BW1QCP, DRS25-64GD81BC1QCP, DRS25-64GD81BW1QCP, DRS25-64GD82BC1QCP, DRS25-64GD82BW1QCP, DRS25-A28D81BC1QCP, DRS25-A28D81BW1QCP, DRS25-A28D82BC1QCP, DRS25-A28D82BW1QCP, DRS25-B56D81BC1QCP, DRS25-B56D81BW1QCP, DRS25-B56D82BC1QCP, DRS25-B56D82BW1QCP, DRS25-C12D81BC1QCP, DRS25-C12D81BW1QCP, DRS25-C12D82BC1QCP, DRS25-C12D82BW1QCP, DS2A-01GI81C1B, DS2A-01GI81W1B, DS2A-02GI81C1B, DS2A-02GI81W1B, DS2A-04GI81C1B, DS2A-04GI81W1B, DS2A-08GI81C1B, DS2A-08GI81W1B, DS2A-128I81C1B, DS2A-128I81W1B, DS2A-16GI81C1B, DS2A-16GI81W1B, DS2A-256I81C1B, DS2A-256I81W1B, DS2A-32GI81C1B, DS2A-32GI81W1B, DS2A-512I81C1B, DS2A-512I81W1B, DSM28-08GM413C1SC, DSM28-08GM413W1SC, DSM28-16GM413C1SC, DSM28-16GM413W1SC, DSM28-32GD813CAQC, DSM28-32GD813WAQC, DSM28-32GM413C1DC, DSM28-32GM413W1DC, DSM28-64GD813CAQC, DSM28-64GD813WAQC, DSM28-64GM413C1DC, DSM28-64GM413W1DC, DSM28-A28D813CAQC, DSM28-A28D813WAQC, DSM28-A28M413C1DC, DSM28-A28M413W1DC, DSM28-B56D813CAQC, DSM28-B56D813WAQC, DSM28-C12D813CAQC, DSM28-C12D813WAQC, DSSML-16GM413CADCA, DSSML-16GM413CADCB, DSSML-16GM413WADCA, DSSML-16GM413WADCB, DSSML-32GM413CADCA, DSSML-32GM413CADCB, DSSML-32GM413WADCA, DSSML-32GM413WADCB, DSSML-32GM41BCADCA, DSSML-32GM41BCADCB, DSSML-32GM41BWADCA, DSSML-32GM41BWADCB, DSSML-64GM413CADCA, DSSML-64GM413CADCB, DSSML-64GM413WADCA, DSSML-64GM413WADCB, DSSML-64GM41BCADCA, DSSML-64GM41BCADCB, DSSML-64GM41BWADCA, DSSML-64GM41BWADCB, DSSML-A28M413CADCA, DSSML-A28M413CADCB, DSSML-A28M413WADCA, DSSML-A28M413WADCB, DSSML-A28M41BCADCA, DSSML-A28M41BCADCB, DSSML-A28M41BWADCA, DSSML-A28M41BWADCB, DSSML-B56M41BCADCA, DSSML-B56M41BCADCB, DSSML-B56M41BWADCA, DSSML-B56M41BWADCB, DTM28-64GDK1EC1DFxxG, DTM28-64GDK1EC2DFxxG, DTM28-64GDK1EW1DFxxG, DTM28-64GDK1EW2DFxxG, DTM28-64GDK1JC1DFxxG, DTM28-64GDK1JC2DFxxG, DTM28-64GDK1JW1DFxxG, DTM28-64GDK1JW2DFxxG, DTM28-A28DK1EC1QFxxG, DTM28-A28DK1EC2QFxxG, DTM28-A28DK1EW1QFxxG, DTM28-A28DK1EW2QFxxG, DTM28-A28DK1JC1QFxxG, DTM28-A28DK1JC2QFxxG, DTM28-A28DK1JW1QFxxG, DTM28-A28DK1JW2QFxxG, DTM28-B56DK1EC1QFxxG, DTM28-B56DK1EC2QFxxG, DTM28-B56DK1EW1QFxxG, DTM28-B56DK1EW2QFxxG, DTM28-B56DK1JC1QFxxG, DTM28-B56DK1JC2QFxxG, DTM28-B56DK1JW1QFxxG, DTM28-B56DK1JW2QFxxG, DTM28-C12DK1EC1QFxxG, DTM28-C12DK1EC2QFxxG, DTM28-C12DK1EW1QFxxG, DTM28-C12DK1EW2QFxxG, DTM28-C12DK1JC1QFxxG, DTM28-C12DK1JC2QFxxG, DTM28-C12DK1JW1QFxxG, DTM28-C12DK1JW2QFxxG, DUM24-32GDK1EC1SFxxG, DUM24-32GDK1EW1SFxxG, DUM24-64GDK1EC1DFxxG, DUM24-64GDK1EW1DFxxG, DUM24-A28DK1EC1DFxxG, DUM24-A28DK1EW1DFxxG, DUM24-B56DK1EC1DFxxG, DUM24-B56DK1EW1DFxxG, DUM24-C12DK1ECAQFxxG, DUM24-C12DK1EWAQFxxG, DVM28-01TD81BCAQC, DVM28-01TD81BWAQC, DVM28-32GD81BCADC, DVM28-32GD81BWADC, DVM28-64GD81BCAQC, DVM28-64GD81BWAQC, DVM28-A28D81BCAQC, DVM28-A28D81BWAQC, DVM28-B56D81BCAQC, DVM28-B56D81BWAQC, DVM28-C12D81BCAQC, DVM28-C12D81BWAQC, DVMSR-08GD81BC1SC, DVMSR-08GD81BW1SC, DVMSR-16GD81BC1DC, DVMSR-16GD81BC1SC, DVMSR-16GD81BW1DC, DVMSR-16GD81BW1SC, DVMSR-32GD81BC1DC, DVMSR-32GD81BC1QC, DVMSR-32GD81BW1DC, DVMSR-32GD81BW1QC, DVMSR-64GD81BC1QC, DVMSR-64GD81BW1QC, DVMSR-A28D81BC1QC, DVMSR-A28D81BW1QC, DVMSR-B56D81BC1QC, DVMSR-B56D81BW1QC, DVMSR-C12D81BCBQC, DVMSR-C12D81BWBQC, DVS25-01TD81BCAQC, DVS25-01TD81BCAQCP, DVS25-01TD81BWAQC, DVS25-01TD81BWAQCP, DVS25-02TD81BCAQC, DVS25-02TD81BWAQC, DVS25-08GD81BC1SC, DVS25-08GD81BC1SCP, DVS25-08GD81BW1SC, DVS25-08GD81BW1SCP, DVS25-16GD81BC1DC, DVS25-16GD81BC1SCP, DVS25-16GD81BW1DC, DVS25-16GD81BW1SCP, DVS25-32GD81BC1QC, DVS25-32GD81BC1QCP, DVS25-32GD81BW1QC, DVS25-32GD81BW1QCP, DVS25-64GD81BC1QC, DVS25-64GD81BC1QCP, DVS25-64GD81BW1QC, DVS25-64GD81BW1QCP, DVS25-A28D81BC1QC, DVS25-A28D81BC1QCP, DVS25-A28D81BW1QC, DVS25-A28D81BW1QCP, DVS25-B56D81BC1QC, DVS25-B56D81BC1QCP, DVS25-B56D81BW1QC, DVS25-B56D81BW1QCP, DVS25-C12D81BC1QC, DVS25-C12D81BC1QCP, DVS25-C12D81BW1QC, DVS25-C12D81BW1QCP
|
| Hinweis Dokument: | Innodisk [PCN_F250001] Product PCB material change notice.pdf |
| Product Change Notification (PCN) | |
| Title Power IC Substituting Material Adoption_3TE7_3IE7_3TO7 series Description Due to advancements in the manufacturing process by the supplier, Innodisk plans to adopt the new generation of Power IC. Please refer to the affected model table below. The new Power IC is P2P compatible with the previous version, and there are no changes to the PCB layout. Innodisk anticipates no negative impact on the customer's application. The new Power IC will be implemented in SSDs as a running change. Summary of Change Add substituting material 9U9XC238B010 for 9U9XC214B050 Torex Power IC（P2P, no change on PCB） PN Supplier Original Power IC 9U9XC214B050 Torex Substituting Power IC 9U9XC238B010 Torex | |
| Revision: | F240062 |
| Revision date: | 8. November 2024 |
| Last purchase date: | 9. Dezember 2024 |
| Last shipping date: | |
| Betroffene Produkte: |
CFast 3TE7, DECFA-01TDK1KCAQF, DECFA-01TDK1KCAQL, DECFA-01TDK1KWAQF, DECFA-32GDK1EC1SF, DECFA-32GDK1EW1SF, DECFA-64GDK1EC1DF, DECFA-64GDK1EW1DF, DECFA-64GDK1KCASL, DECFA-64GDK1KWASF, DECFA-A28DK1EC1QF, DECFA-A28DK1EW1QF, DECFA-A28DK1GCADL, DECFA-A28DK1GWADL, DECFA-A28DK1KCADF, DECFA-A28DK1KCADL, DECFA-A28DK1KWADF, DECFA-B56DK1EC1QF, DECFA-B56DK1EW1QF, DECFA-B56DK1GCAQL, DECFA-B56DK1GWAQL, DECFA-B56DK1KCADL, DECFA-B56DK1KCAQF, DECFA-B56DK1KCAQL, DECFA-B56DK1KWAQF, DECFA-C12DK1EC1QF, DECFA-C12DK1EW1QF, DECFA-C12DK1GCAQL, DECFA-C12DK1GWAQL, DECFA-C12DK1KCAQF, DECFA-C12DK1KCAQL, DECFA-C12DK1KWAQF, DEM24-01TDK1KCAQF, DEM24-01TDK1KCAQL, DEM24-01TDK1KWAQF, DEM24-32GDK1EC1SF, DEM24-32GDK1EW1SF, DEM24-64GDK1EC1DF, DEM24-64GDK1EW1DF, DEM24-64GDK1KCASL, DEM24-64GDK1KWASF, DEM24-A28DK1EC1DF, DEM24-A28DK1EW1DF, DEM24-A28DK1KCADF, DEM24-A28DK1KCADL, DEM24-A28DK1KWADF, DEM24-B56DK1EC1DF, DEM24-B56DK1EW1DF, DEM24-B56DK1KCADL, DEM24-B56DK1KCAQF, DEM24-B56DK1KCAQL, DEM24-B56DK1KWAQF, DEM24-C12DK1ECAQF, DEM24-C12DK1EWAQF, DEM24-C12DK1KCAQF, DEM24-C12DK1KCAQL, DEM24-C12DK1KWAQF, DEM28-01TDK1ECAQF, DEM28-01TDK1EWAQF, DEM28-01TDK1KCAQF, DEM28-01TDK1KCAQL, DEM28-01TDK1KWAQF, DEM28-02TDK1KCAQF, DEM28-02TDK1KCAQL, DEM28-02TDK1KWAQF, DEM28-32GDK1EC1SF, DEM28-32GDK1EW1SF, DEM28-64GDK1EC1DF, DEM28-64GDK1EW1DF, DEM28-64GDK1KCASL, DEM28-64GDK1KWASF, DEM28-A28DK1EC1QF, DEM28-A28DK1ECAQJ, DEM28-A28DK1EW1QF, DEM28-A28DK1KCADF, DEM28-A28DK1KCADL, DEM28-A28DK1KWADF, DEM28-B56DK1EC1QF, DEM28-B56DK1ECAQJ, DEM28-B56DK1EW1QF, DEM28-B56DK1KCADL, DEM28-B56DK1KCAQF, DEM28-B56DK1KCAQL, DEM28-B56DK1KWAQF, DEM28-C12DK1EC1QF, DEM28-C12DK1ECAQJ, DEM28-C12DK1EW1QF, DEM28-C12DK1KCAQF, DEM28-C12DK1KCAQL, DEM28-C12DK1KWAQF, DEMSM-32GDK1EC1SF, DEMSM-32GDK1EW1SF, DEMSM-64GDK1EC1DF, DEMSM-64GDK1EW1DF, DEMSM-A28DK1EC1DF, DEMSM-A28DK1EW1DF, DEMSM-B56DK1EC1DF, DEMSM-B56DK1EW1DF, DEMSM-C12DK1ECAQF, DEMSM-C12DK1EWAQF, DEMSR-01TDK1ECAQF, DEMSR-01TDK1EWAQF, DEMSR-01TDK1KCAQF, DEMSR-01TDK1KWAQF, DEMSR-02TDK1KCAQF, DEMSR-02TDK1KWAQF, DEMSR-1TBDK1ECAQJ, DEMSR-32GDK1EC1SF, DEMSR-32GDK1EW1SF, DEMSR-64GDK1EC1DF, DEMSR-64GDK1ECADFP, DEMSR-64GDK1EW1DF, DEMSR-64GDK1EWADFP, DEMSR-64GDK1KWASF, DEMSR-A28DK1EC1QF, DEMSR-A28DK1ECAQFP, DEMSR-A28DK1ECAQJ, DEMSR-A28DK1EW1QF, DEMSR-A28DK1EWAQFP, DEMSR-A28DK1KCADF, DEMSR-A28DK1KWADF, DEMSR-B56DK1EC1QF, DEMSR-B56DK1ECAQFP, DEMSR-B56DK1ECAQJ, DEMSR-B56DK1EW1QF, DEMSR-B56DK1EWAQFP, DEMSR-B56DK1KCAQF, DEMSR-B56DK1KWAQF, DEMSR-C12DK1EC1QF, DEMSR-C12DK1ECAQFP, DEMSR-C12DK1ECAQJ, DEMSR-C12DK1EW1QF, DEMSR-C12DK1EWAQFP, DEMSR-C12DK1KCAQF, DEMSR-C12DK1KWAQF, DENSD-32GDK1ECASL, DENSD-64GDK1ECADL, DENSD-A28DK1ECAQL, DENSD-B56DK1ECAQL, DES25-01TDK1EC1QF, DES25-01TDK1EW1QF, DES25-01TDK1GC1QL, DES25-01TDK1GW1QL, DES25-01TDK1KCCQF, DES25-01TDK1KCCQL, DES25-01TDK1KWCQF, DES25-02TDK1GCAQL, DES25-02TDK1GWAQL, DES25-02TDK1KCCQF, DES25-02TDK1KCCQL, DES25-02TDK1KWCQF, DES25-32GDK1EC3SF, DES25-32GDK1EW3SF, DES25-64GDK1EC3DF, DES25-64GDK1EW3DF, DES25-64GDK1GC3SL, DES25-64GDK1GW3SL, DES25-64GDK1KCCSL, DES25-64GDK1KWCSF, DES25-A28DK1EC3QF, DES25-A28DK1EW3QF, DES25-A28DK1GC3DL, DES25-A28DK1GW3DL, DES25-A28DK1KCCDF, DES25-A28DK1KCCDL, DES25-A28DK1KWCDF, DES25-B56DK1EC3QF, DES25-B56DK1EW3QF, DES25-B56DK1GC3QL, DES25-B56DK1GW3QL, DES25-B56DK1KCCDL, DES25-B56DK1KCCQF, DES25-B56DK1KCCQL, DES25-B56DK1KWCQF, DES25-C12DK1EC3QF, DES25-C12DK1EW3QF, DES25-C12DK1GC3QL, DES25-C12DK1GW3QL, DES25-C12DK1KCCQF, DES25-C12DK1KCCQL, DES25-C12DK1KWCQF, DESLM-01TDK1ECAQF, DESLM-01TDK1EWAQF, DESLM-01TDK1KCAQF, DESLM-01TDK1KWAQF, DESLM-02TDK1KCAQF, DESLM-02TDK1KWAQF, DESLM-32GDK1EC1SF, DESLM-32GDK1EW1SF, DESLM-64GDK1EC1DF, DESLM-64GDK1EW1DF, DESLM-64GDK1KWASF, DESLM-A28DK1EC1QF, DESLM-A28DK1EW1QF, DESLM-A28DK1KCADF, DESLM-A28DK1KWADF, DESLM-B56DK1EC1QF, DESLM-B56DK1EW1QF, DESLM-B56DK1KCAQF, DESLM-B56DK1KWAQF, DESLM-C12DK1EC1QF, DESLM-C12DK1EW1QF, DESLM-C12DK1KCAQF, DESLM-C12DK1KWAQF, DESSF-32GDK1EC1SFA, DESSF-32GDK1EW1SFA, DESSF-64GDK1EC1SFA, DESSF-64GDK1EW1SFA, DESSF-64GDK1KCASFA, DESSF-64GDK1KWASFA, DESSF-A28DK1EC1SFA, DESSF-A28DK1ECADFA, DESSF-A28DK1EW1SFA, DESSF-A28DK1EWADFA, DESSF-A28DK1KCADFA, DESSF-A28DK1KWADFA, DESSF-B56DK1ECADFA, DESSF-B56DK1EWADFA, DESSF-B56DK1KCADFA, DESSF-B56DK1KWADFA, DESSF-C12DK1KCADFA, DESSF-C12DK1KWADFA, DESSH-32GDK1EC1SFA, DESSH-32GDK1EW1SFA, DESSH-64GDK1EC1SFA, DESSH-64GDK1EW1SFA, DESSH-64GDK1KCASFA, DESSH-64GDK1KWASFA, DESSH-A28DK1EC1SFA, DESSH-A28DK1ECADFA, DESSH-A28DK1EW1SFA, DESSH-A28DK1EWADFA, DESSH-A28DK1KCADFA, DESSH-A28DK1KWADFA, DESSH-B56DK1ECADFA, DESSH-B56DK1EWADFA, DESSH-B56DK1KCADFA, DESSH-B56DK1KWADFA, DESSH-C12DK1KCADFA, DESSH-C12DK1KWADFA, DESSL-32GDK1EC1SFA, DESSL-32GDK1EW1SFA, DESSL-64GDK1EC1SFA, DESSL-64GDK1EW1SFA, DESSL-64GDK1KCASFA, DESSL-64GDK1KWASFA, DESSL-A28DK1EC1SFA, DESSL-A28DK1ECADFA, DESSL-A28DK1EW1SFA, DESSL-A28DK1EWADFA, DESSL-A28DK1KCADFA, DESSL-A28DK1KWADFA, DESSL-B56DK1ECADFA, DESSL-B56DK1EWADFA, DESSL-B56DK1KCADFA, DESSL-B56DK1KWADFA, DESSL-C12DK1KCADFA, DESSL-C12DK1KWADFA, DESSV-32GDK1EC1SFA, DESSV-32GDK1EW1SFA, DESSV-64GDK1EC1SFA, DESSV-64GDK1EW1SFA, DESSV-64GDK1KCASFA, DESSV-64GDK1KWASFA, DESSV-A28DK1EC1SFA, DESSV-A28DK1ECADFA, DESSV-A28DK1EW1SFA, DESSV-A28DK1EWADFA, DESSV-A28DK1KCADFA, DESSV-A28DK1KWADFA, DESSV-B56DK1ECADFA, DESSV-B56DK1EWADFA, DESSV-B56DK1KCADFA, DESSV-B56DK1KWADFA, DESSV-C12DK1KCADFA, DESSV-C12DK1KWADFA, DHCFA-20GDK1EC1DF, DHCFA-20GDK1EW1DF, DHCFA-20GDK1KCASF, DHCFA-20GDK1KCASL, DHCFA-20GDK1KWASF, DHCFA-20GDK1KWASL, DHCFA-40GDK1EC1QF, DHCFA-40GDK1EW1QF, DHCFA-40GDK1KCADF, DHCFA-40GDK1KCADL, DHCFA-40GDK1KWADF, DHCFA-40GDK1KWADL, DHCFA-80GDK1EC1QF, DHCFA-80GDK1EW1QF, DHCFA-80GDK1KCADL, DHCFA-80GDK1KCAQF, DHCFA-80GDK1KCAQL, DHCFA-80GDK1KWADL, DHCFA-80GDK1KWAQF, DHCFA-80GDK1KWAQL, DHCFA-A60DK1EC1QF, DHCFA-A60DK1EW1QF, DHCFA-A60DK1KCAQF, DHCFA-A60DK1KCAQL, DHCFA-A60DK1KWAQF, DHCFA-A60DK1KWAQL, DHCFA-D2GDK1KCAQF, DHCFA-D2GDK1KCAQL, DHCFA-D2GDK1KWAQF, DHCFA-D2GDK1KWAQL, DHM24-16GDK1KWASF, DHM24-20GDK1EC1DF, DHM24-20GDK1EW1DF, DHM24-20GDK1KCASF, DHM24-20GDK1KCASL, DHM24-20GDK1KWASF, DHM24-20GDK1KWASL, DHM24-32GDK1KWADF, DHM24-40GDK1EC1DF, DHM24-40GDK1EW1DF, DHM24-40GDK1KCADF, DHM24-40GDK1KCADL, DHM24-40GDK1KWADF, DHM24-40GDK1KWADL, DHM24-64GDK1KWAQF, DHM24-80GDK1EC1DF, DHM24-80GDK1EW1DF, DHM24-80GDK1KCADL, DHM24-80GDK1KCAQF, DHM24-80GDK1KCAQL, DHM24-80GDK1KWADL, DHM24-80GDK1KWAQF, DHM24-80GDK1KWAQL, DHM24-A28DK1KWAQF, DHM24-A60DK1ECAQF, DHM24-A60DK1EWAQF, DHM24-A60DK1KCAQF, DHM24-A60DK1KCAQL, DHM24-A60DK1KWAQF, DHM24-A60DK1KWAQL, DHM24-B56DK1KWAQF, DHM24-D2GDK1KCAQF, DHM24-D2GDK1KWAQF, DHM28-20GDK1EC1DF, DHM28-20GDK1EW1DF, DHM28-40GDK1EC1QF, DHM28-40GDK1EW1QF, DHM28-40GDK1KCADF, DHM28-40GDK1KCADL, DHM28-40GDK1KWADF, DHM28-40GDK1KWADL, DHM28-80GDK1EC1QF, DHM28-80GDK1EW1QF, DHM28-80GDK1KCADL, DHM28-80GDK1KCAQF, DHM28-80GDK1KCAQL, DHM28-80GDK1KWADL, DHM28-80GDK1KWAQF, DHM28-80GDK1KWAQL, DHM28-A60DK1EC1QF, DHM28-A60DK1EW1QF, DHM28-A60DK1KCAQF, DHM28-A60DK1KCAQL, DHM28-A60DK1KWAQF, DHM28-A60DK1KWAQL, DHM28-D2GDK1ECAQF, DHM28-D2GDK1EWAQF, DHM28-D2GDK1KCAQF, DHM28-D2GDK1KCAQL, DHM28-D2GDK1KWAQF, DHM28-D2GDK1KWAQL, DHM28-F4GDK1KCAQF, DHM28-F4GDK1KCAQL, DHM28-F4GDK1KWAQF, DHM28-F4GDK1KWAQL, DHMSM-20GDK1KCASL, DHMSM-20GDK1KWASL, DHMSM-40GDK1KCADL, DHMSM-40GDK1KWADL, DHMSM-80GDK1KCADL, DHMSM-80GDK1KCAQL, DHMSM-80GDK1KWADL, DHMSM-80GDK1KWAQL, DHMSM-A60DK1KCAQL, DHMSM-A60DK1KWAQL, DHMSM-D2GDK1KCAQL, DHMSM-D2GDK1KWAQL, DHMSR-20GDK1EC1DF, DHMSR-20GDK1EW1DF, DHMSR-20GDK1KCASL, DHMSR-20GDK1KWASL, DHMSR-40GDK1EC1QF, DHMSR-40GDK1EW1QF, DHMSR-40GDK1KCADF, DHMSR-40GDK1KCADL, DHMSR-40GDK1KWADF, DHMSR-40GDK1KWADL, DHMSR-80GDK1EC1QF, DHMSR-80GDK1EW1QF, DHMSR-80GDK1KCADL, DHMSR-80GDK1KCAQF, DHMSR-80GDK1KCAQL, DHMSR-80GDK1KWADL, DHMSR-80GDK1KWAQF, DHMSR-80GDK1KWAQL, DHMSR-A60DK1EC1QF, DHMSR-A60DK1EW1QF, DHMSR-A60DK1KCAQF, DHMSR-A60DK1KCAQL, DHMSR-A60DK1KWAQF, DHMSR-A60DK1KWAQL, DHMSR-D2GDK1ECAQF, DHMSR-D2GDK1EWAQF, DHMSR-D2GDK1KCAQF, DHMSR-D2GDK1KCAQL, DHMSR-D2GDK1KWAQF, DHMSR-D2GDK1KWAQL, DHS25-20GDK1EC3DF, DHS25-20GDK1EW3DF, DHS25-40GDK1EC3QF, DHS25-40GDK1EW3QF, DHS25-40GDK1GCCDL, DHS25-40GDK1GWCDL, DHS25-40GDK1KCCDF, DHS25-40GDK1KCCDL, DHS25-40GDK1KWCDF, DHS25-40GDK1KWCDL, DHS25-80GDK1EC3QF, DHS25-80GDK1EW3QF, DHS25-80GDK1GCCDL, DHS25-80GDK1GCCQL, DHS25-80GDK1GWCDL, DHS25-80GDK1GWCQL, DHS25-80GDK1KCCDL, DHS25-80GDK1KCCQF, DHS25-80GDK1KCCQL, DHS25-80GDK1KWCDL, DHS25-80GDK1KWCQF, DHS25-80GDK1KWCQL, DHS25-A60DK1EC3QF, DHS25-A60DK1EW3QF, DHS25-A60DK1GCCQL, DHS25-A60DK1GWCQL, DHS25-A60DK1KCCQF, DHS25-A60DK1KCCQL, DHS25-A60DK1KWCQF, DHS25-A60DK1KWCQL, DHS25-D2GDK1EC1QF, DHS25-D2GDK1EW1QF, DHS25-D2GDK1GCAQL, DHS25-D2GDK1GCCQL, DHS25-D2GDK1GWAQL, DHS25-D2GDK1GWCDL, DHS25-D2GDK1KCCQF, DHS25-D2GDK1KCCQL, DHS25-D2GDK1KWCQF, DHS25-D2GDK1KWCQL, DHS25-F4GDK1GCAQL, DHS25-F4GDK1GCCQL, DHS25-F4GDK1GWAQL, DHS25-F4GDK1GWCQL, DHS25-F4GDK1KCCQF, DHS25-F4GDK1KCCQL, DHS25-F4GDK1KWCQF, DHS25-F4GDK1KWCQL, DHSLM-40GDK1KCADL, DHSLM-40GDK1KWADL, DHSLM-80GDK1KCADL, DHSLM-80GDK1KCAQL, DHSLM-80GDK1KWADL, DHSLM-80GDK1KWAQL, DHSLM-A60DK1KCAQL, DHSLM-A60DK1KWAQL, DHSLM-D2GDK1KCAQL, DHSLM-D2GDK1KWAQL, DHSLM-F4GDK1KCAQL, DHSLM-F4GDK1KWAQL, DHSSF-20GDK1EC1SFA, DHSSF-20GDK1EW1SFA, DHSSF-40GDK1ECADFA, DHSSF-40GDK1EWADFA, DHSSF-80GDK1ECADFA, DHSSF-80GDK1EWADFA, DHSSH-20GDK1EC1SFA, DHSSH-20GDK1EW1SFA, DHSSH-40GDK1ECADFA, DHSSH-40GDK1EWADFA, DHSSH-40GDK1KCADLA, DHSSH-40GDK1KWADLA, DHSSH-80GDK1ECADFA, DHSSH-80GDK1EWADFA, DHSSH-80GDK1KCADLA, DHSSH-80GDK1KWADLA, DHSSH-A60DK1KCADLA, DHSSH-A60DK1KWADLA, DHSSL-20GDK1EC1SFA, DHSSL-20GDK1EW1SFA, DHSSL-40GDK1ECADFA, DHSSL-40GDK1EWADFA, DHSSL-80GDK1ECADFA, DHSSL-80GDK1EWADFA, DHSSV-20GDK1EC1SFA, DHSSV-20GDK1EW1SFA, DHSSV-20GDK1KCASLA, DHSSV-20GDK1KWASLA, DHSSV-40GDK1ECADFA, DHSSV-40GDK1EWADFA, DHSSV-40GDK1KCADLA, DHSSV-40GDK1KWADLA, DHSSV-80GDK1ECADFA, DHSSV-80GDK1EWADFA, DHSSV-80GDK1KCADLA, DHSSV-80GDK1KWADLA, DHSSV-A60DK1KCADLA, DHSSV-A60DK1KWADLA, DUM24-32GDK1EC1SFxxG, DUM24-32GDK1EW1SFxxG, DUM24-64GDK1EC1DFxxG, DUM24-64GDK1EW1DFxxG, DUM24-A28DK1EC1DFxxG, DUM24-A28DK1EW1DFxxG, DUM24-B56DK1EC1DFxxG, DUM24-B56DK1EW1DFxxG, DUM24-C12DK1ECAQFxxG, DUM24-C12DK1EWAQFxxG, DUS25-01TDK1EC1QFxxG, DUS25-01TDK1EW1QFxxG, DUS25-01TDK1KCAQFxxG, DUS25-01TDK1KWAQFxxG, DUS25-02TDK1KCAQFxxG, DUS25-02TDK1KWAQFxxG, DUS25-32GDK1EC1SFxxG, DUS25-32GDK1EW1SFxxG, DUS25-64GDK1EC1DFxxG, DUS25-64GDK1EW1DFxxG, DUS25-A28DK1EC1QFxxG, DUS25-A28DK1EW1QFxxG, DUS25-A28DK1KCADFxxG, DUS25-A28DK1KWADFxxG, DUS25-B56DK1EC1QFxxG, DUS25-B56DK1EW1QFxxG, DUS25-B56DK1KCAQFxxG, DUS25-B56DK1KWAQFxxG, DUS25-C12DK1EC1QFxxG, DUS25-C12DK1EW1QFxxG, DUS25-C12DK1KCAQFxxG, DUS25-C12DK1KWAQFxxG
|
| Hinweis Dokument: | Innodisk [PCN_F240062] Power IC Substituting Material Adoption_3TE7_3IE7_3TO7 series.pdf |
Innodisk DHSLM-40GDK1KCADL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Flash Speichermedien | Kapazität | 40 GB | ||
Innodisk DHSLM-40GDK1KWADL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 40 GB | ||
Innodisk DHSLM-80GDK1KCADL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Flash Speichermedien | Kapazität | 80 GB | ||
Innodisk DHSLM-80GDK1KCAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Flash Speichermedien | Kapazität | 80 GB | ||
Innodisk DHSLM-80GDK1KWADL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 80 GB | ||
Innodisk DHSLM-80GDK1KWAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 80 GB | ||
Innodisk DHSLM-A60DK1KCAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Flash Speichermedien | Kapazität | 160 GB | ||
Innodisk DHSLM-A60DK1KWAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 160 GB | ||
Innodisk DHSLM-D2GDK1KCAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Flash Speichermedien | Kapazität | 320 GB | ||
Innodisk DHSLM-D2GDK1KWAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 320 GB | ||
Innodisk DHSLM-F4GDK1KCAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Flash Speichermedien | Kapazität | 640 GB | ||
Innodisk DHSLM-F4GDK1KWAQL Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
SATA Slim, 3D TLC, SATA 3, 3IE7, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Flash Speichermedien | Kapazität | 640 GB | ||
