A Wider Screen for a Better Experience

Aplex, Taipei, Taiwan, 30.04.2024－APLEX Technology Inc., a global industrial computer products solutions provider, provides various LCD sizes of products. Wide touch screen is not only a trend for consumer product, but also for industrial industry as well. 16:9 provides a better user experience. APLEX offers comprehensive 16:9 widescreen product series, specifically in 12.1" widescreen solutions.

Advantages of 16:9 widescreen

By its larger resolution, it presents more information with high-quality and better clarity for users. Besides, 16:9 widescreen has high capability for various applications. It allows multitasking by splitting into numerous screens side-by-side, which can increase your productivity and workflow.

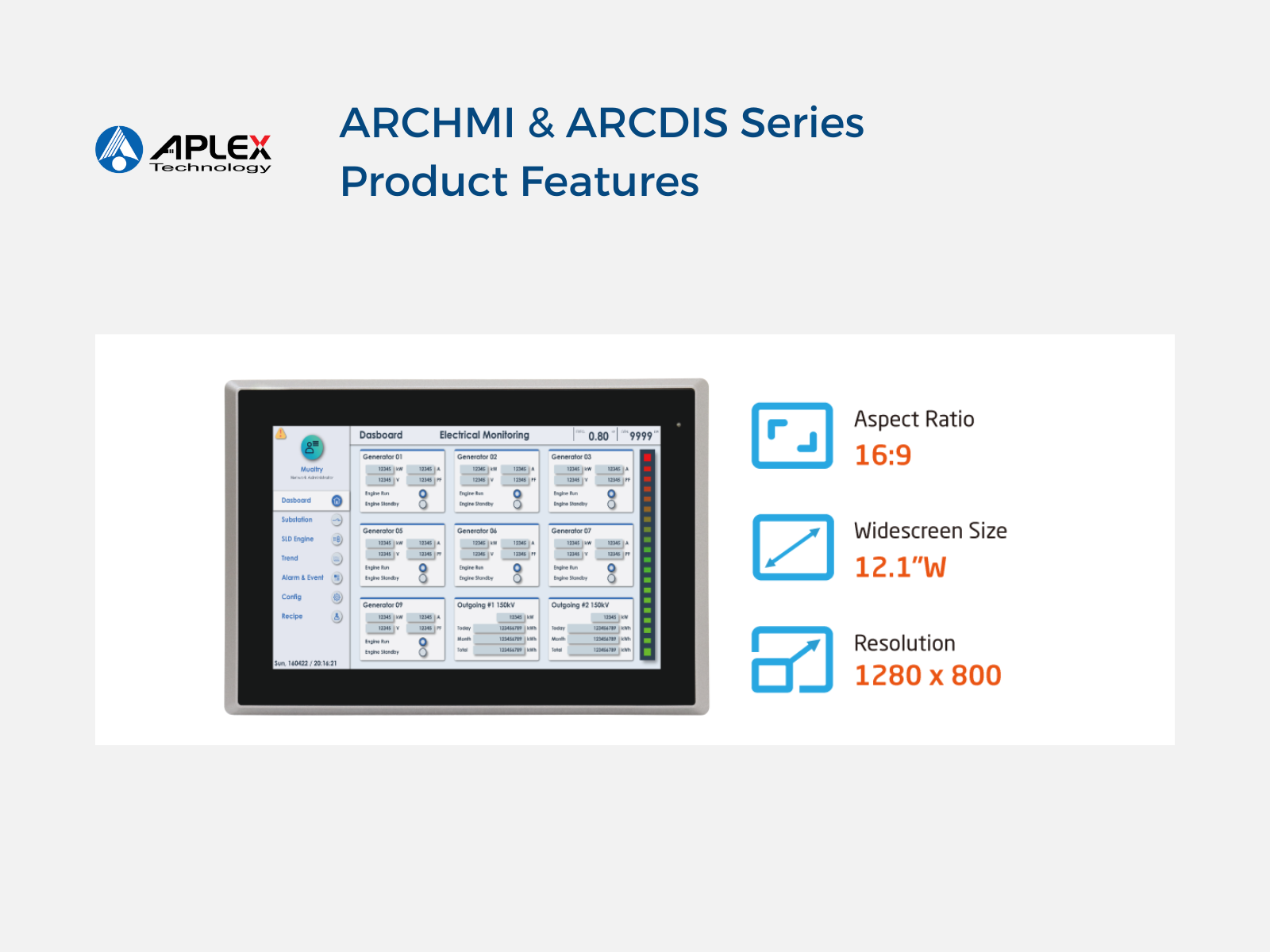

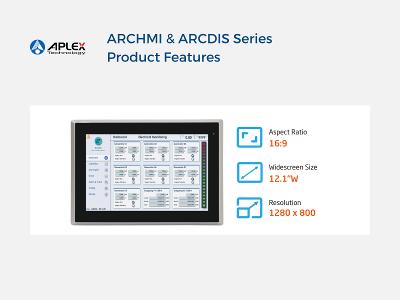

APLEX provides 12.1" Wide size that comes with 12.1" TFT-LCD and 16:9 ratio aspect with resolution 1280 x 800 for smart manufacturing facilities. To have additional space to be more informational, it is perfect for applications that has space constraints.

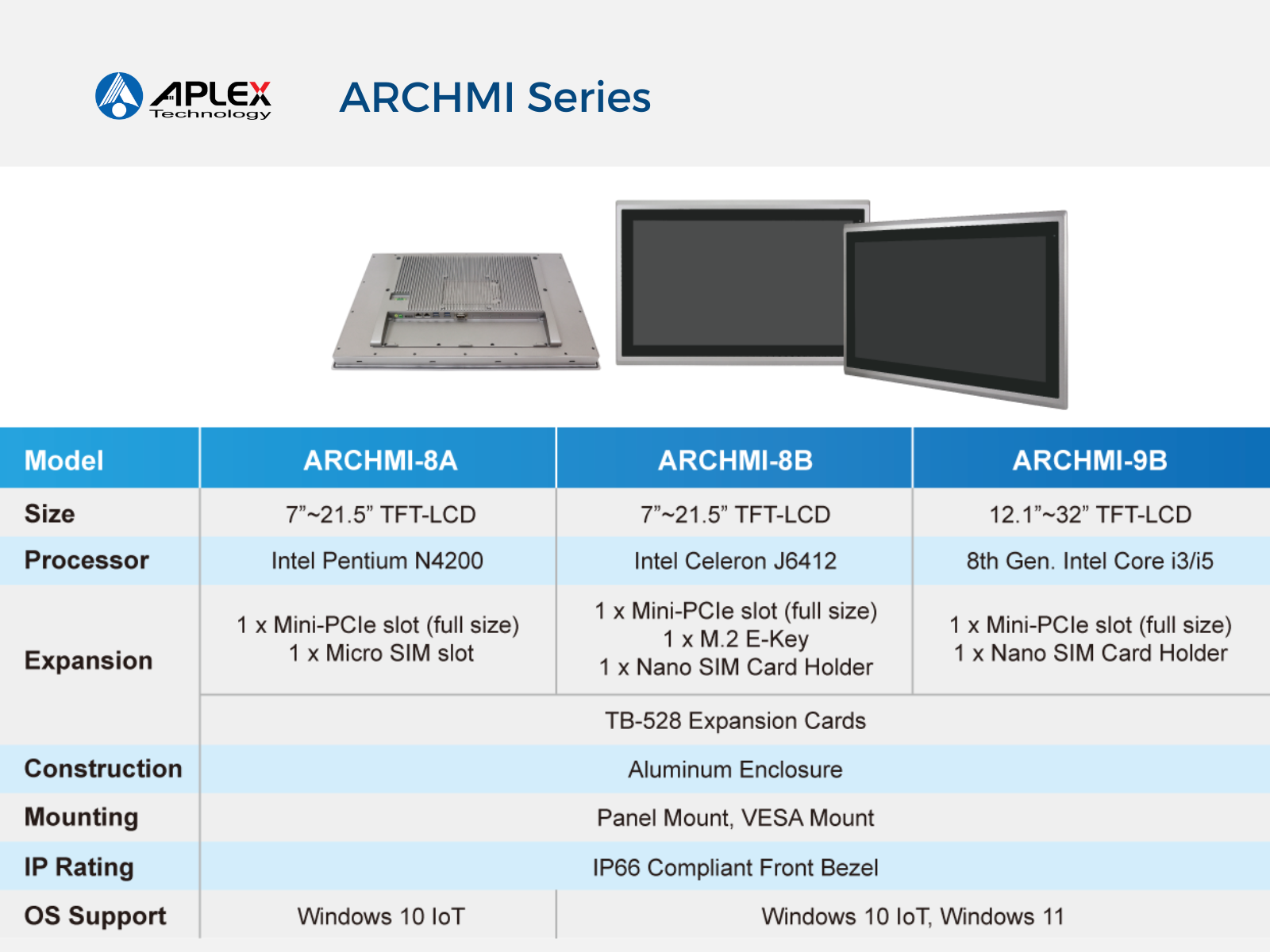

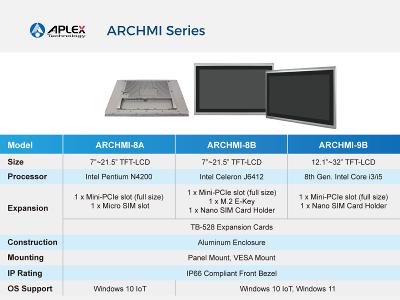

ARCHMI series, the smart manufacturing HMI

APLEX ARCHMI series supports 12.1" widescreen with three different processors, respectively 8th Gen. Intel core i for ARCHMI-9B, Intel Celeron J6412 for ARCHMI-8B, and Intel Pentium N4200 for ARCHMI-8A. ARCHMI series is our high performance fanless factory automation HMI which is constructed with aluminum die-casting enclosure. It has flat front touch screen with IP66-rated front panel. Therefore it is rugged and durable. ARCHMI series comes with USB, COM, DP, LAN and supports various expansion cards for additional functionality and capability like USB, LAN, COM, Mini PCIe and CAN bus module interface, etc. Moreover, backup battery and PoE functions are optional as well.

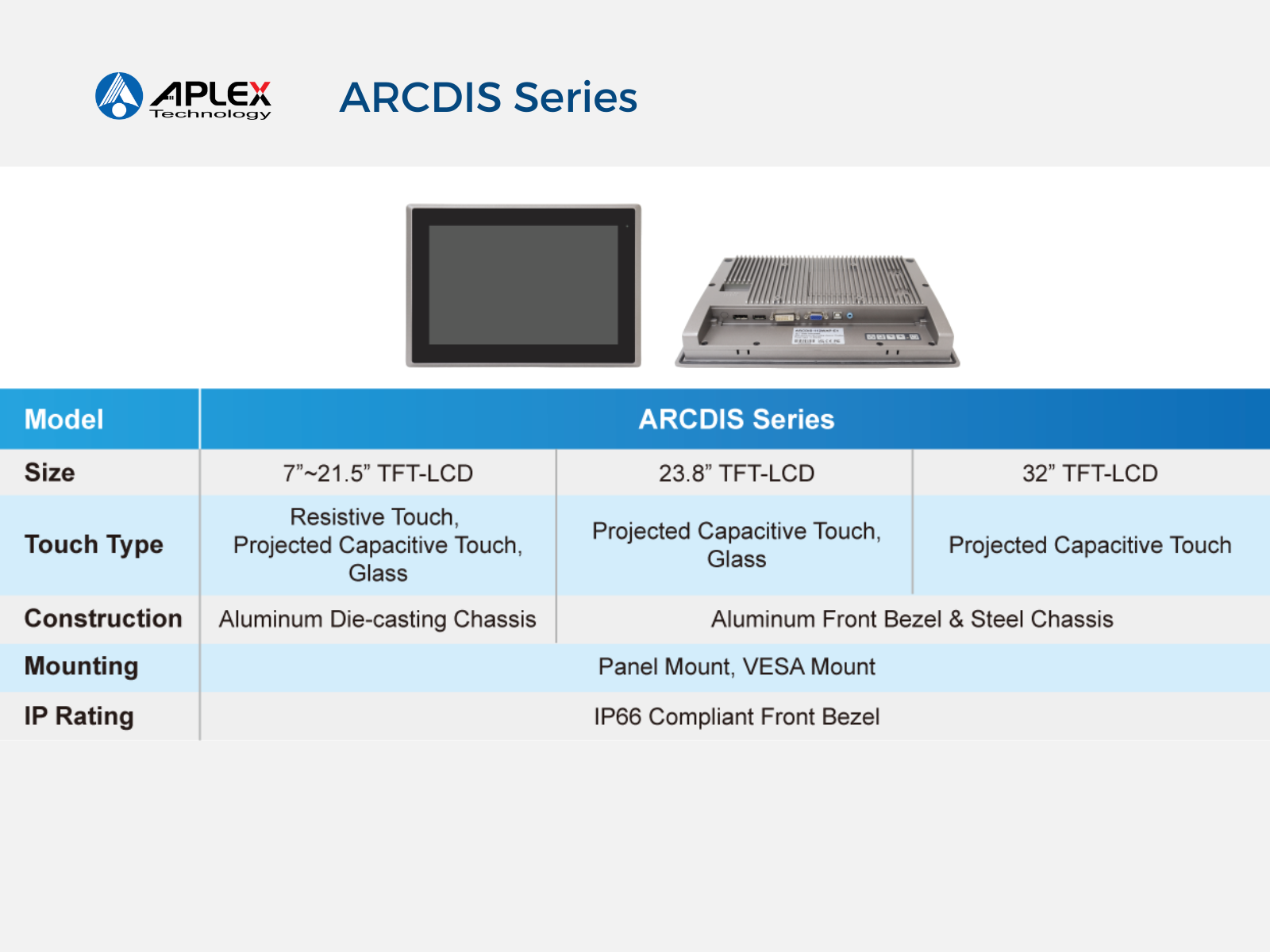

ARCDIS series, the smart manufacturing display

As for display, APLEX ARCDIS also supports 12.1" widescreen. ARCDIS series is the fanless industrial display for smart manufacturing and peripherals. It is constructed by aluminum die-casting enclosure with IP66-rated flat front bezel. It features full range of inputs, including 1 x VGA, 1x DP, 1 x DVI-D or 1 x HDMI. Furthermore, ARCDIS equipped with OSD on the rear side to bring a more convenient and user-friendly operation.

ARCHMI and ARCDIS have common features that they both come with sunlight readable solution, including optical bonding, AR coating, auto dimming and high brightness solution for semi-outdoor applications. In addition, both series are able to operate under wide range temperature from 0 ~ 50°C or optional -20 ~ 60°C.

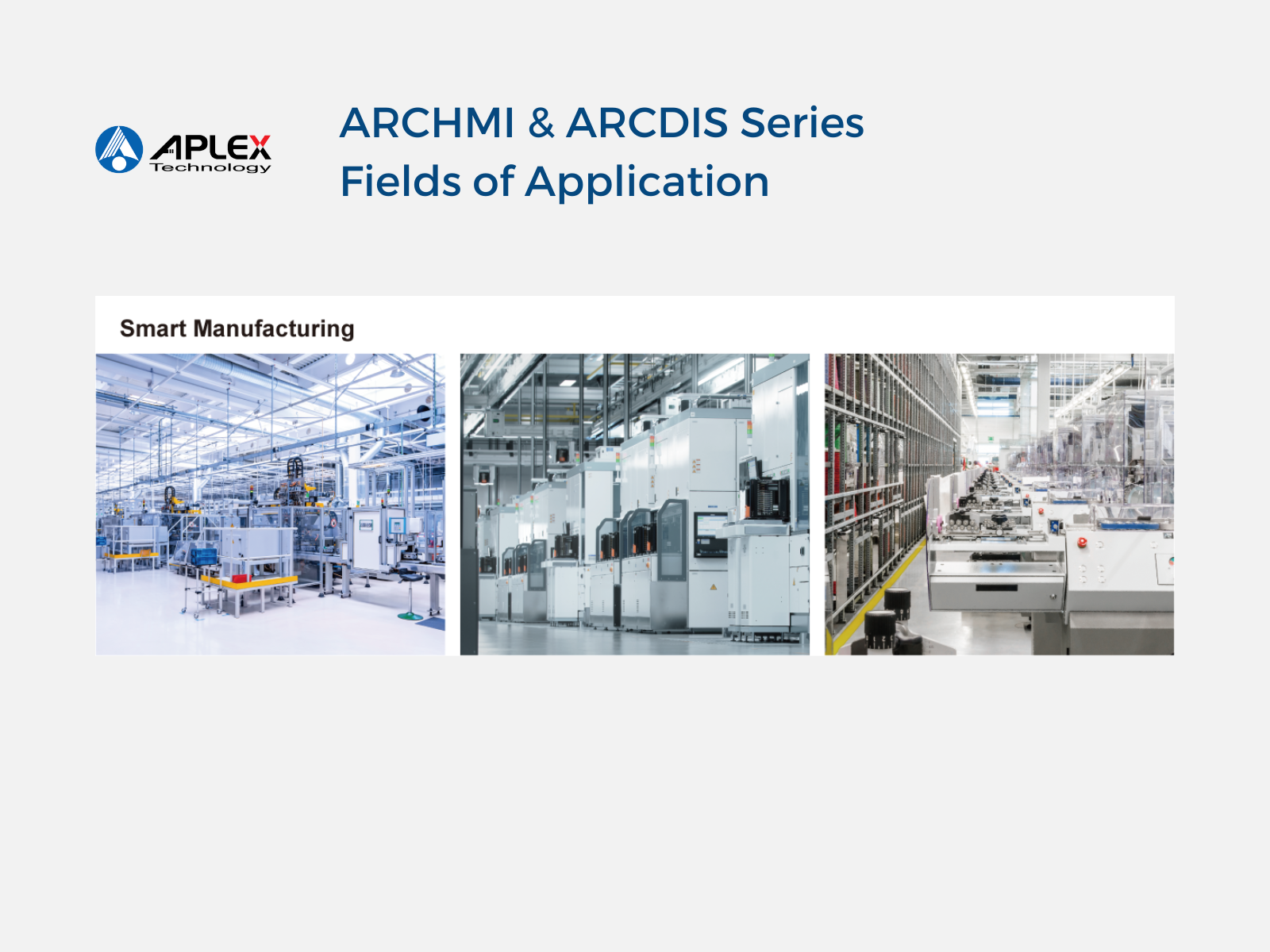

Nonetheless, ARCHMI and ARCDIS series are suitable for smart manufacturing. In order to maximize the information, resolution and productivity, ARCHMI and ARCDIS 12.1" widescreen HMI/ display are your wonderful choice.
