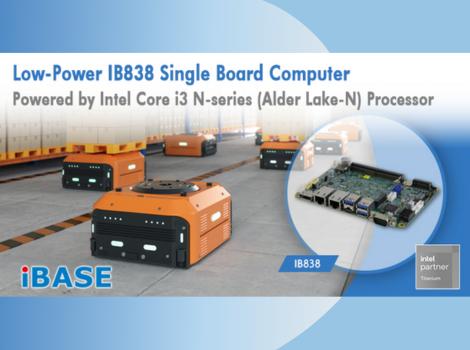

Low-Power IB838 Single Board Computer Powered by Intel Core i3 N-series (Alder Lake-N) Processor

IBASE, Taipei, Taiwan, 07.09.2023 - IBASE Technology Inc. (TPEx: 8050), a renowned provider in the design and manufacturing of embedded computing solutions, rolls out the low-power IB838 3,5" single board computer powered by Intel® Core™ i3 N-series (formerly Alder Lake-N) processor. Combining robust computing performance with advanced features, it is positioned to meet diverse needs across multiple industries, including industrial automation and control, retail displays, transportation, and automotive applications.

Fortified with intelligent power handling and a 9V~36V DC input range, the IB838 ensures reliability and consistent operations in transportation applications that may encounter variable power conditions. Versatile connectivity makes it ideal for automation processes and data acquisition systems. The SBC offers Type-C, DP++, and eDP or LVDS display options, along with a rich set of I/O interfaces, including two Intel® PCI-E 2.5G LAN ports, two USB 2.0 ports, and four USB 3.2 ports (1x Type-C + 3x Type-A).

With CNVi support, the 5G-ready IB838 comes equipped with a high-speed SATA III port and two M.2 sockets (E-key + B-key), providing ample storage and expansion possibilities. Additionally, it boasts four serial ports and digital I/O, facilitating comprehensive connectivity to diverse devices and peripherals. Enhanced security and functionality are integrated through fTPM (firmware-based Trusted Platform Module) and a Watchdog timer for system stability.

IB838 FEATURES

• Intel® Core™ i3 N-series (formerly Alder Lake-N) processor
• 1x DDR5 SO-DIMM, Max. 16GB
• Supports Type-C & DP++ and eDP or LVDS
• 2x Intel® PCI-E 2.5G LAN
• 2x USB 2.0, 4x USB 3.2 (1x Type-C + 3x Type-A), 4x COM, 1x SATA III
• 2x M.2 sockets (E-key + B-key), supports CNVi
• 9V~36V wide-range DC input
• Supports fTPM, Watchdog timer, Digital I/O
