AI System
// AI System
// Intel Alder Lake / Raptor Lake
// 4 x Anzeige
// 2 x Seriell
// 9 x USB (Frontseite)
// 4 x G-LAN (Frontseite)
// 1 x PCIe x1
// 1 x PCIe x4
// 3 x PCIe x16
// 3 x M.2 Slot
// 24~48V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

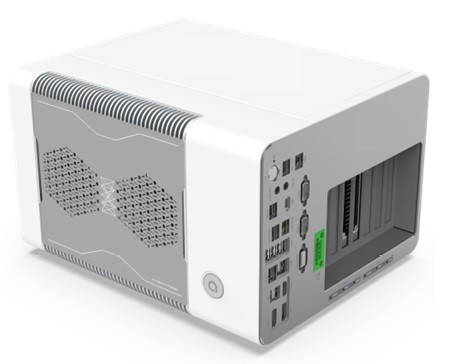

Basismodul: Aplex AITAS-MI500
Allgemein | ||||
SKU / Artikelnummer | AITAS-MI500 | |||
Produktgrunddaten | ||||
Hersteller | Aplex | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Alder Lake / Raptor Lake | |||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel R680E | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 4800 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 128 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
HDMI | Version | 2.0 | ||
Displayport | Version | 1.4 | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x1 | Generation | 3 | ||
x1 Signal | 1 St | |||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
PCIe x16 | x4 Signal | Generation | 3 | |
Anzahl | 1 St | |||
x8 Signal | Generation | 4 | ||
Anzahl | 1 St | |||
x16 Signal | Generation | 4 | ||
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x1, 1x PCIe x4, 3x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4), SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 4 | Key ID | B | ||
Interface | USB 2.0, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 3 St | |||
Controller | Chipsatz | Marvell AQC113 (2.5/5/10 Gbps) | ||
Anzahl | 1 St | |||
Netzwerk | 4x G-LAN | |||
Interne I/O | ||||
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||

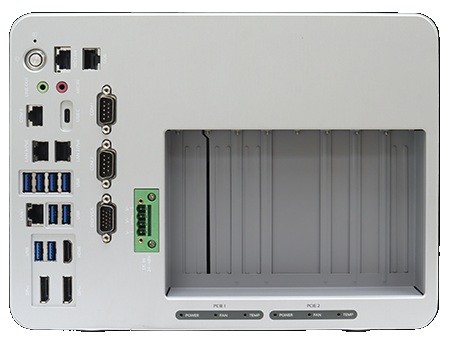

Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
DP++ | 2 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit POE | 2 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
RS-485 | RJ-45 | 1 St | ||
USB | USB v3.2 (Gen 2) | 8 St | ||
USB v3.2 (Gen 2, Type C) | 1 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 24~48V | |||
Anschluss | 4 Pin Terminal Stecker | |||
POE | Anschlüsse | 2 St | ||
Protokoll | IEEE 802.3at / 30W | |||
Stromversorgung - Eingang | DC: 24~48V | |||
Stromaufnahme Maximal | 600 W | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 4 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | AI System | ||
Breite | 340 mm | |||
Tiefe | 279 mm | |||
Höhe | 213 mm | |||
Vibration | Vibration | 1G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 11000 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | System Status | 2 St | ||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04, Ubuntu 22.04 | ||
Unterstützte BS | Windows, Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | LVD, UKCA | |||
RoHS konform | Ja |
