Barebone PC
// Barebone PC
// 2 x Anzeige
// 4 x USB (Frontseite)
// 4 x USB (Rückseite)
// 1 x USB (intern)
// 2 x G-LAN (Rückseite)
// 1 x PCIe x4
// 1 x PCIe x16
// 1 x Mini-PCIe
// 1 x M.2 Slot
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech IPC-320
Allgemein | ||||
SKU / Artikelnummer | IPC-320 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | IPC-320-25A | |||
System | ||||
Prozessor | Sockel | LGA 1700 (H6) | ||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel H610E | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI SPI 256 Mbit | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.2 | |||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 4 | |
Anzahl | 1 St | |||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x PCIe x4, 1x PCIe x16, 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×2 | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 3 St | ||

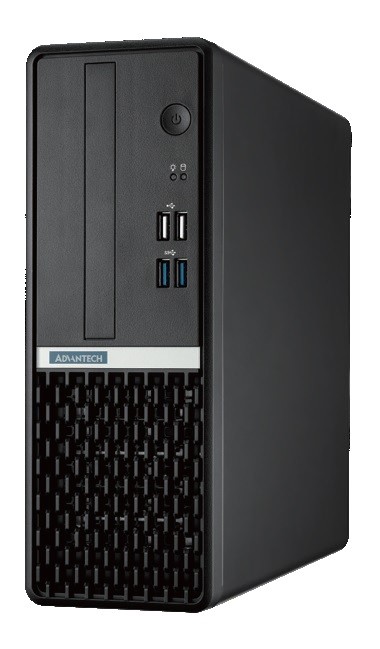

Externe I/O (Frontseite) | ||||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 1) | 2 St | |||

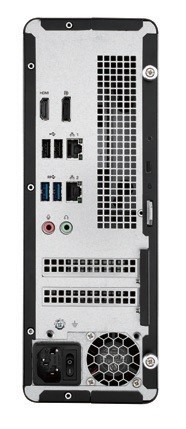

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 1) | 2 St | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Einschübe | 1 St | |
Anschluss | C14 | |||
Stromaufnahme Maximal | 250 W | |||
Einschübe | ||||
Intern | Einbauschacht 3.5" | 1 St | ||
Extern | Einbauschacht 5.25" Slim | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Barebone PC | ||
Breite | 95 mm | |||
Tiefe | 270 mm | |||
Höhe | 300 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Slot Brackets | Low Profile | 2 St | ||
Farbe | Dunkel Grau | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | AWS loT Greengrass Certified | |||
RoHS konform | Ja |
