Edge AI System
// Edge AI System
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// [1,6 | 1,7 | 2 | 2,2] GHz
// Passiv cooled
// [8 GB | -] RAM
// 2 x Display
// [2 | 4] x Serial
// 2 x USB (Front page)
// 2 x USB (sideways)
// 2 x G-LAN (Front page)
// 3 x M.2 Slot
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech EPC-U3233
| Allgemein | ||||
| SKU / Artikelnummer | EPC-U3233 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Whiskey Lake | |||
| Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1528 | |||
| Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
| Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM Datarate | 2400 MT/s | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 32 GB | |||
| Speicher onBoard | 8 GB, - | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB, - | ||
| Intel vPro Plattformqualifizierung | -, Ja | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
| Version | 1.4 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, PCIe ×2 (Gen. 3), SATA III, USB 2.0 | |||
| Unterstütze Abmaße | 2242, 3042 | |||
| Slot 3 | Key ID | E | ||
| Interface | OOB, PCIe ×2 (Gen. 3), USB 2.0, WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

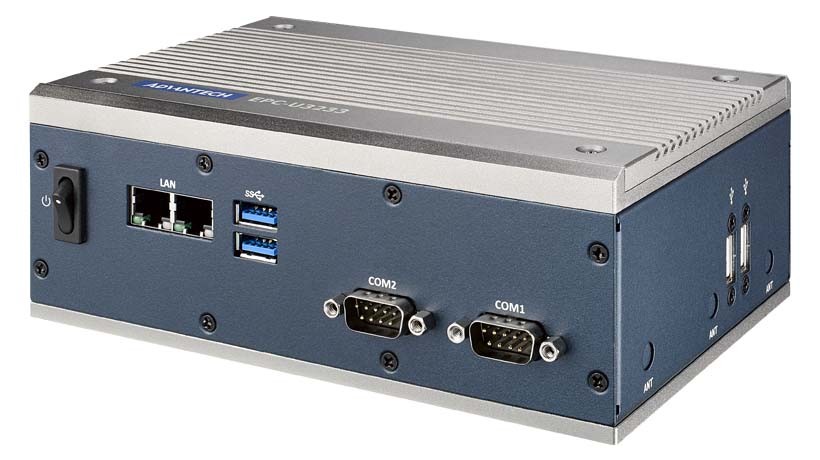

| Externe I/O (Frontseite) | ||||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 | DB-9 | 1 St | |
| RS-232 / 422 / 485 | DB-9 | 1 St | ||
| USB | USB v3.0 | 2 St | ||

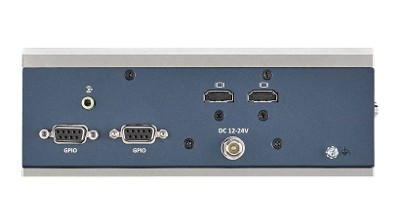

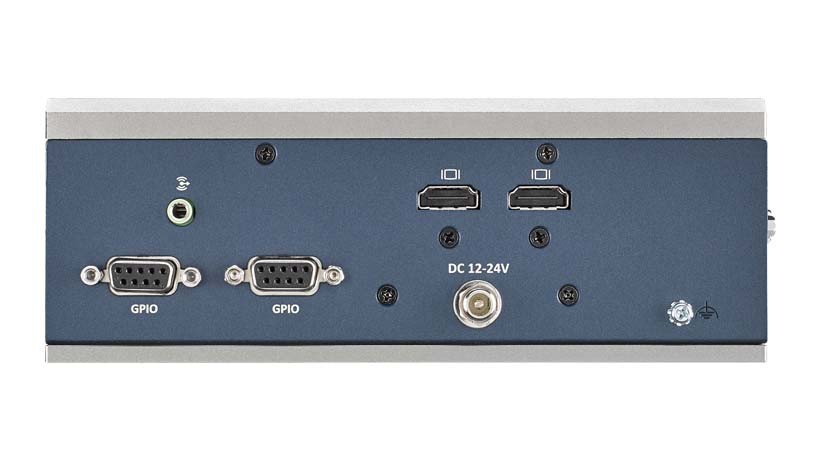

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 2 St | ||
| Audio | Line-Out | 1 St | ||
| Digital I/O | Anzahl | 2 St | ||
| Bits | 8-Bit | |||
| Anschluss | DB-9 | |||

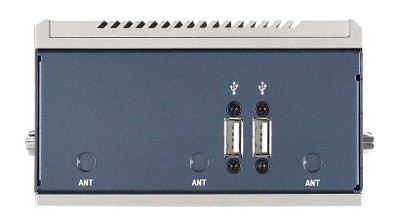

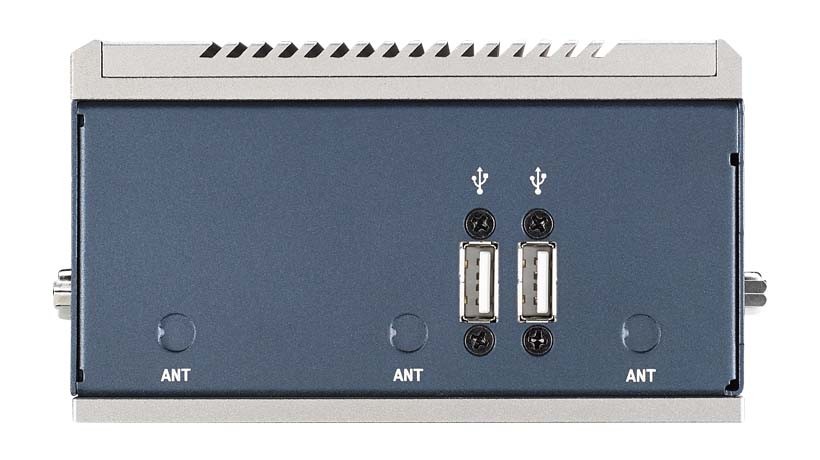

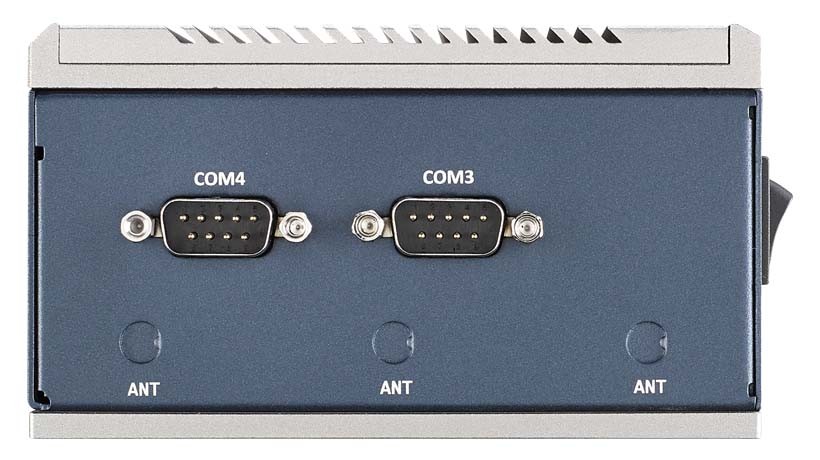

| Externe I/O (seitlich) | ||||
| Seriell | RS-232 | DB-9 | 1 St, - | |
| RS-232 / 422 / 485 | DB-9 | 1 St, - | ||
| USB | USB v2.0 | 2 St | ||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 50°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | Edge AI System | ||
| Breite | 170 mm | |||
| Tiefe | 116,7 mm | |||
| Höhe | 66 mm | |||
| Gewicht | 1900 g | |||
| Bedienelemente | Power | 1 St | ||
| Antennenlöcher | 6 St | |||
| Farbe | Blau / Silber | |||
| Material | Aluminium, Stahl | |||
| Montageoption | Hutschiene (DIN Rail), VESA, Wandmontage | |||
| Zubehör | -, mit Ubuntu 20.04 PN:20706U20DS0004 und 60W Netzteil PN:96PSA-A60W12W7-3, mit Win10 IoT PN:20706WX9VS0110, WiFi module EWM-W192K2 und 60W Netzteil PN:96PSA-A60W12W7-3 | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Linux | Distribution | Ubuntu 20.04, Yocto 3.0 | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| CCC | Ja | |||
| Weitere Zertifikate / Konformitäten | BSMI, CB, Radio Equipment Directive (RED) | |||
| RoHS konform | Ja | |||
