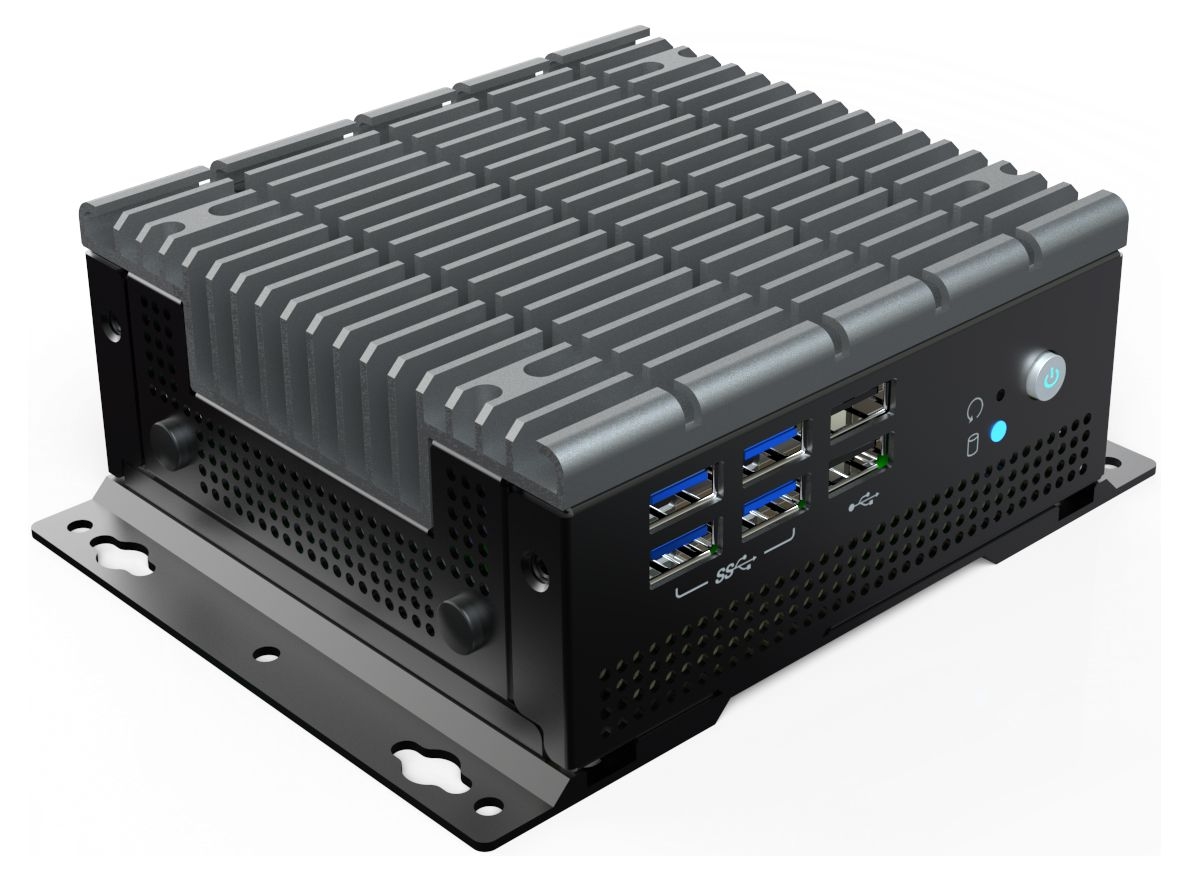

Embedded System
// Embedded System
// [Intel Core i3-6100U | Intel Core i3-7100U | Intel Core i5-6300U | Intel Core i5-7300U | Intel Core i7-6600U | Intel Core i7-7600U]
// [2,3 | 2,4 | 2,6 | 2,8] GHz
// Passiv gekühlt
// 2 x Anzeige
// 6 x USB (Frontseite)
// 2 x G-LAN (Rückseite)
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI EB100-KU
Allgemein | ||||
SKU / Artikelnummer | EB100-KU | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 750-EB1000-000G, 750-EB1000-100G, 750-EB1000-200G, 750-EB1000-300G, 750-EB1000-400G, 750-EB1000-500G | |||
System | ||||
Prozessor | Serie | Intel Skylake / Kaby Lake | ||
Nummer | Intel Core i3-6100U, Intel Core i3-7100U, Intel Core i5-6300U, Intel Core i5-7300U, Intel Core i7-6600U, Intel Core i7-7600U | |||
CPU Kerne | 2 St | |||
Threads | 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2,3 GHz, 2,4 GHz, 2,6 GHz, 2,8 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz, 3,4 GHz, 3,5 GHz, 3,9 GHz, - | |||
Cache | 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 1866 / 2133 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | Insyde SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 2560 x 1600 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||

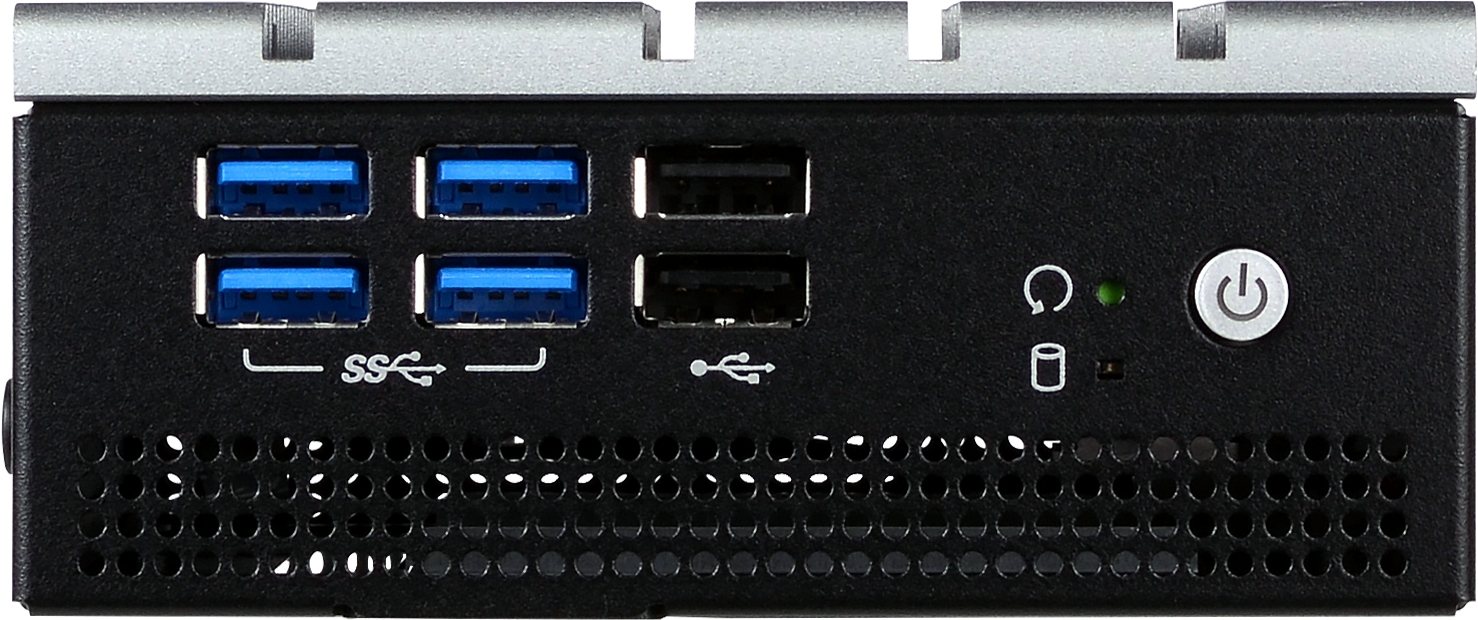

Externe I/O (Frontseite) | ||||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 4 St | |||

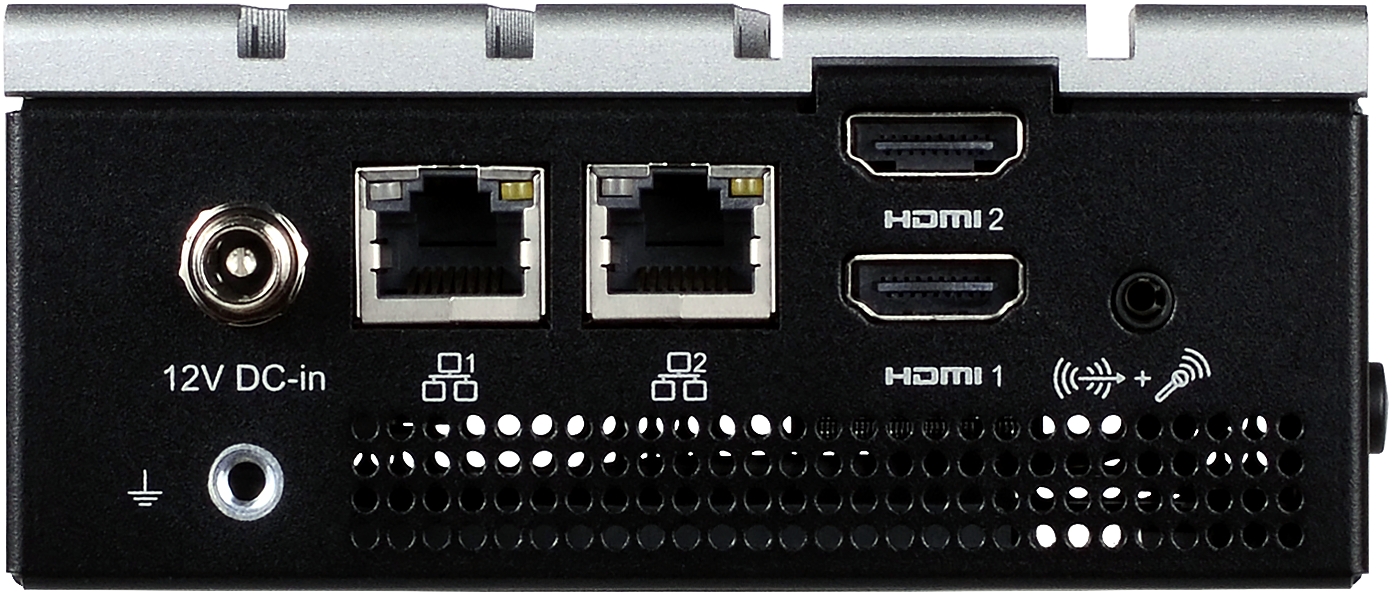

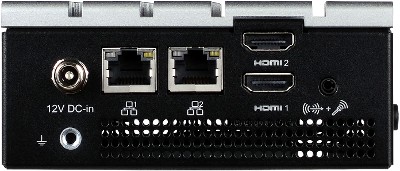

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 40°C | ||
Lagerung | -20° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | Embedded System | ||
Breite | 111 mm | |||
Tiefe | 115 mm | |||
Höhe | 48,7 mm | |||
Vibration | Referenz Standard | IEC 68-2-64 | ||
Schock | Messdaten | 3G, halben Sinusschwingung, 11 ms Dauer | ||
Gewicht | 1000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Material | Aluminium, Stahl | |||
Montageoption | VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q3/2020 | |||
Voraussichtlich bis | Q3/2030 |
