                            Embedded System
// Embedded System
// [- | Intel Celeron G4900T | Intel Core i3-9100TE | Intel Core i7-9700TE]
// [1,8 | 2,2 | 2,9 | -] GHz
// Aktiv (Lüfterkühlung)  cooled
// [4 GB | 8 GB | -]  RAM
// 2 x Display
// 4 x Serial
// 4 x USB (Front page)
// 2 x USB (Back side)
// 2 x G-LAN (Front page)
// 2 x M.2 Slot
// 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
                                                        Standardkonfiguration
                                                        Individualkonfiguration

                                    Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

Basismodul: DFI ES220-CS
| Allgemein | ||||
| SKU / Artikelnummer | ES220-CS | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 750-ES2200-000G, 750-ES2200-100G, 750-ES2200-200G, 750-ES2200-300G, 750-ES2200-400G, 750-ES2200-500G, 750-ES2200-600G, 750-ES2200-700G, 750-ES2200-800G, 750-ES2200-900G | |||
| System | ||||
| Prozessor | Serie | Intel Coffee Lake | ||
| Nummer | -, Intel Celeron G4900T, Intel Core i3-9100TE, Intel Core i7-9700TE | |||
| CPU Kerne | 2 St, 4 St, 8 St, - | |||
| Threads | 4 St, 8 St, - | |||
| Sockel | LGA 1151 (H4) | |||
| Basis Frequenz | 1,8 GHz, 2,2 GHz, 2,9 GHz, - | |||
| Max. Turbo-Taktfrequenz | 3,2 GHz, 3,8 GHz, - | |||
| Cache | 2 MB, 6 MB, 12 MB, - | |||
| Thermal Design Power (TDP) | 35 W | |||
| Chipsatz | Intel C246, Intel H310, Intel Q370 | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| DIMM Datarate | 2666 MT/s | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | -, wird unterstützt | |||
| Speicher onBoard | 4 GB, 8 GB, - | |||
| Storage | Solid State Drive (NVMe SSD) | 64 GB, 128 GB, 256 GB, - | ||
| Hard Drive (HDD) | Anzahl | 2 St, - | ||
| Formfaktor | 2.5", - | |||
| Kapazität | 128 GB, - | |||
| BIOS | Insyde SPI 128 Mbit | |||
| Grafik | ||||
| Prozessor | -, Intel UHD Graphics 610, Intel UHD Graphics 630 | |||
| Leistungsmerkmal | Unterstützung | DirectX 12, OpenCL 2.1, OpenGL 4.5 | ||
| HW Decode | AVC / H.264, HEVC / H.265, JPEG / MJPEG, MPEG2, VC1 / WMV9, VP 8, VP 9 | |||
| HW Encode | AVC / H.264, HEVC / H265, JPEG, MPEG2, VP 8, VP 9 | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0 | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0, WLAN | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||
| Interne I/O | ||||
| Serial-ATA | S-ATA R3.0 (Interface) | 2 St | ||
| Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1 | |||

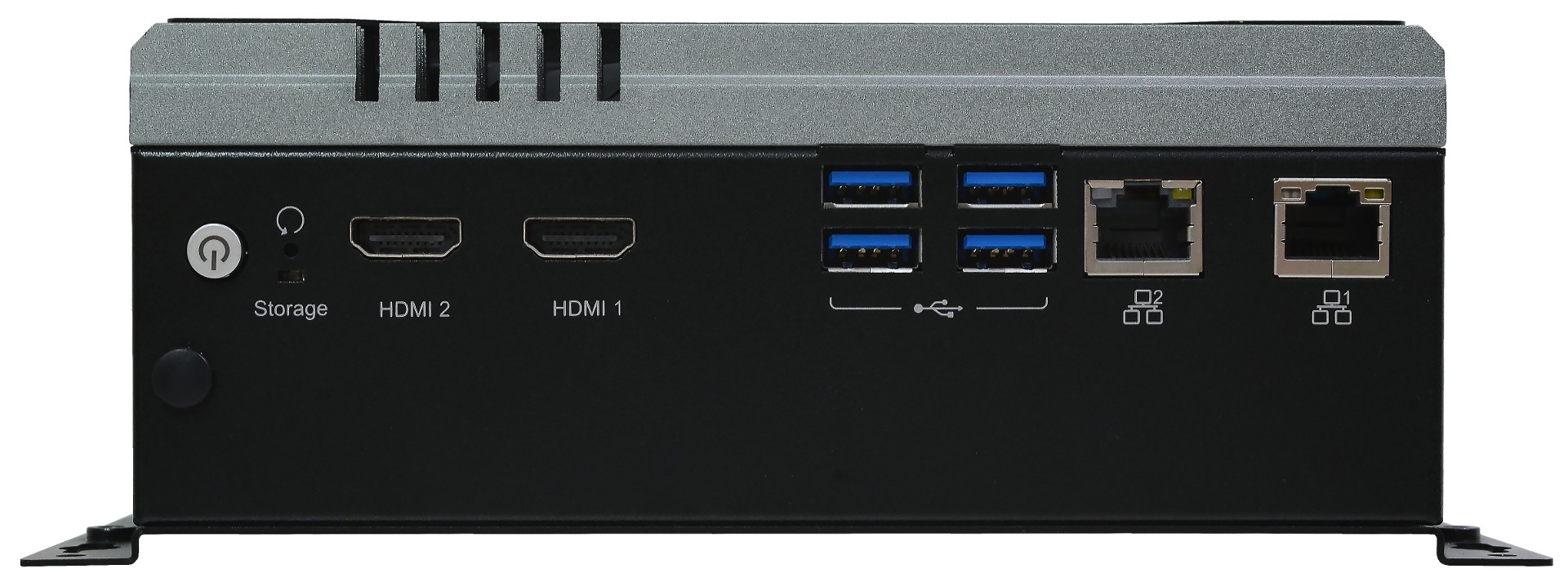

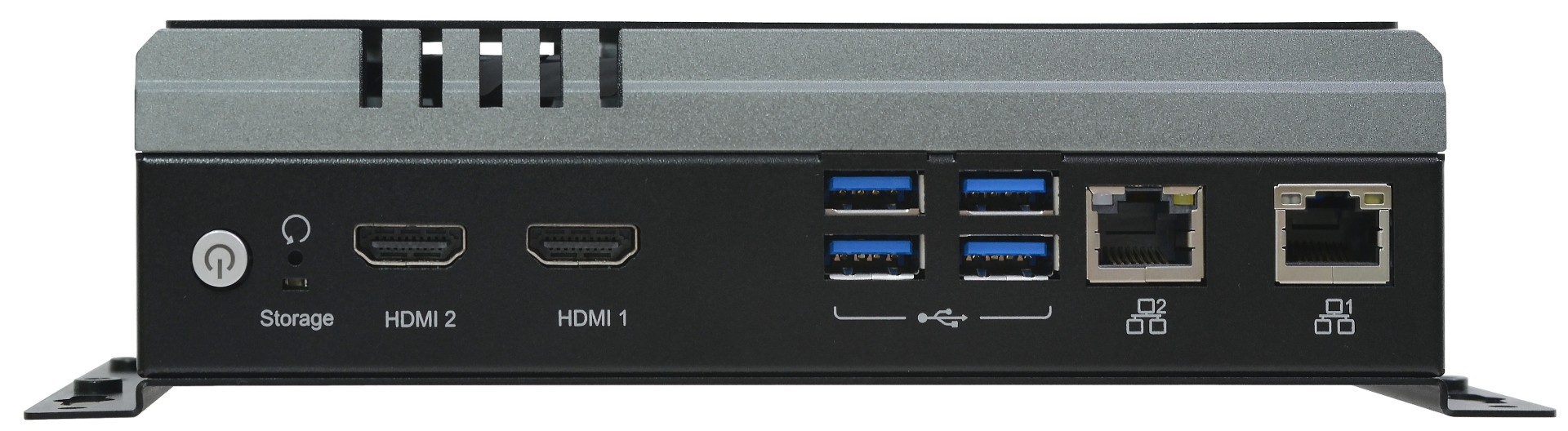

| Externe I/O (Frontseite) | ||||
| Anzeige | HDMI | 2 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| USB | USB v3.1 Gen. 1 | 4 St | ||

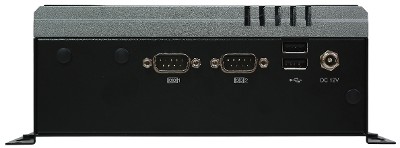

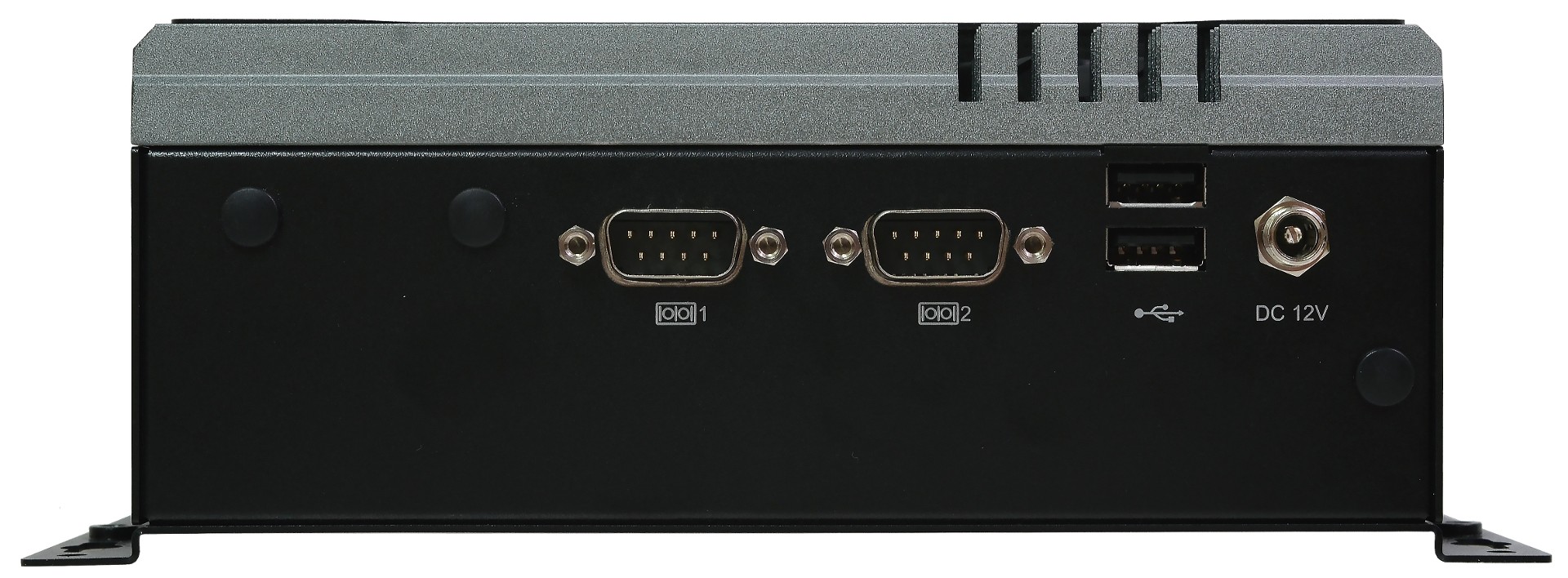

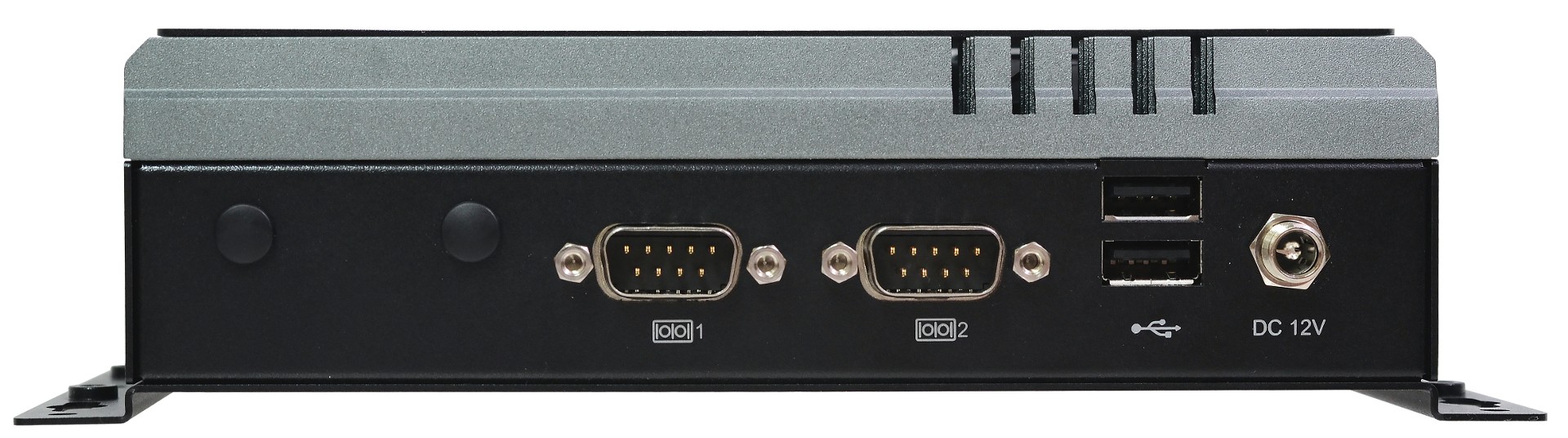

| Externe I/O (Rückseite) | ||||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Digital I/O | Anzahl | 1 St | ||
| Bits | 8-Bit | |||
| Anschluss | DB-9 | |||
| USB | USB v2.0 | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Bereich | 12V | |
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Aktiv | Lüfter | Anzahl | 1 St | |
| Einschübe | ||||
| Intern | Einbauschacht 2.5" | 2 St, - | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -5° bis 45°C | ||
| Lagerung | -20° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Lagerung | 5 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | Embedded System | ||
| Breite | 175 mm | |||
| Tiefe | 120 mm | |||
| Höhe | 48,5 mm, 73,5 mm | |||
| Gewicht | 16 g, 1315 g, 1665 g | |||
| Bedienelemente | Power | 1 St | ||
| Reset | 1 St | |||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Antennenlöcher | 2 St | |||
| Material | Aluminium, Stahl | |||
| Montageoption | VESA, Wandmontage | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Linux | Distribution | Ubuntu 18.04 LTS | ||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | WEEE | |||
| RoHS konform | Ja | |||
| Lebenszyklus | ||||
| Voraussichtlich bis | Q1/2032 | |||

        Gerne beraten wir Sie persönlich.
