Fahrzeug (In-Vehicle) System
// Fahrzeug (In-Vehicle) System
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950]
// [1,3 | 1,6] GHz
// Passiv gekühlt
// 4 GB RAM
// 2 x Anzeige
// 1 x Seriell
// 4 x USB (Rückseite)
// 2 x G-LAN (Rückseite)
// 3 x Mini-PCIe
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

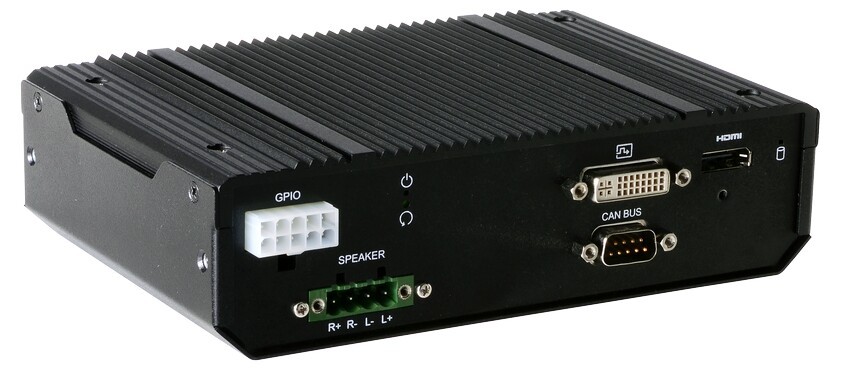

Basismodul: DFI VC230-AL
Allgemein | ||||
SKU / Artikelnummer | VC230-AL | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,3 GHz, 1,6 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6,5 W, 9,5 W, 12 W | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Frequenz | 1600 / 1866 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
BIOS | AMI SPI 64 Mbit | |||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
DVI | Maximale Auflösung | 2560 x 1600 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
Volle Bautiefe | Anzahl | 2 St | ||
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 3x Mini-PCIe | |||
Storage | mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

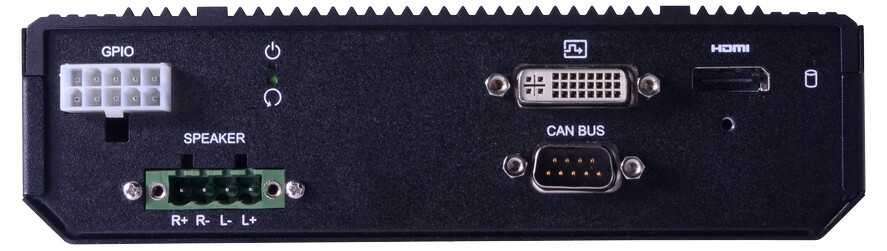

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
DVI | DVI-I Signal | 1 St | ||
Audio | Speaker-Out | 1 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | 10 Pin Terminal Stecker | |||
CAN Bus | Anschluss | DB-9 | ||
Stück | 1 St | |||

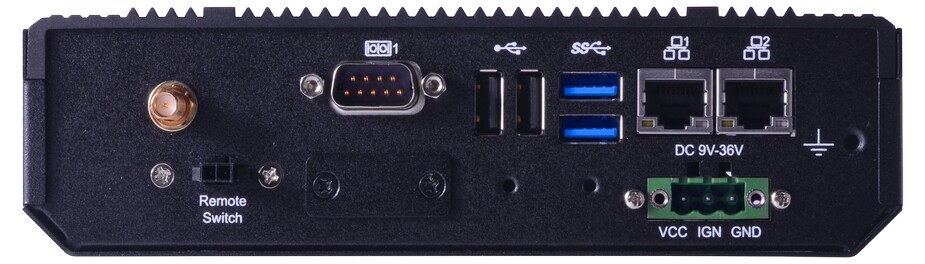

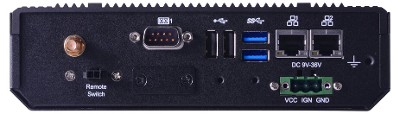

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USB v3.0 | 2 St | |||
Sensor | ||||
GPS Module | u-blox NEO-M8N | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Abmaße | Formfaktor | Fahrzeug (In-Vehicle) System | ||
Breite | 121 mm | |||
Tiefe | 180 mm | |||
Höhe | 50 mm | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 | ||
Schock | Referenz Standard | MIL-STD-810G | ||
Gewicht | 1000 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 2 St | |||
Material | Aluminium, Stahl | |||
Montageoption | VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | CentOS 7, Ubuntu 18.04 LTS | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | E-Mark | |||
Lebenszyklus | ||||
Produktionsstart | Q1/2020 | |||
Voraussichtlich bis | Q4/2031 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
