Qseven (Q7)
Produkt ist EOL (End Of Life)!
// Qseven (Q7)
// [Intel Atom E3825 | Intel Atom E3845]
// [2 GB | 4 GB]
// 1 x G-LAN
// 6 x USB (internal)
// [8 GB | 32 GB] eMMC
// Digital I/O (8-Bit)
// 3 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

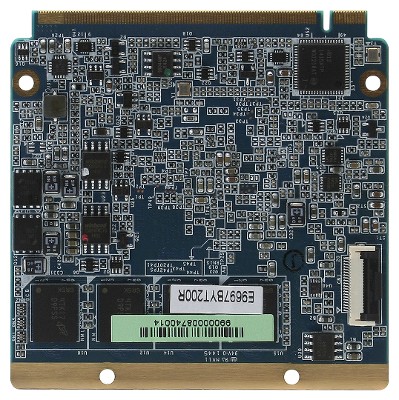

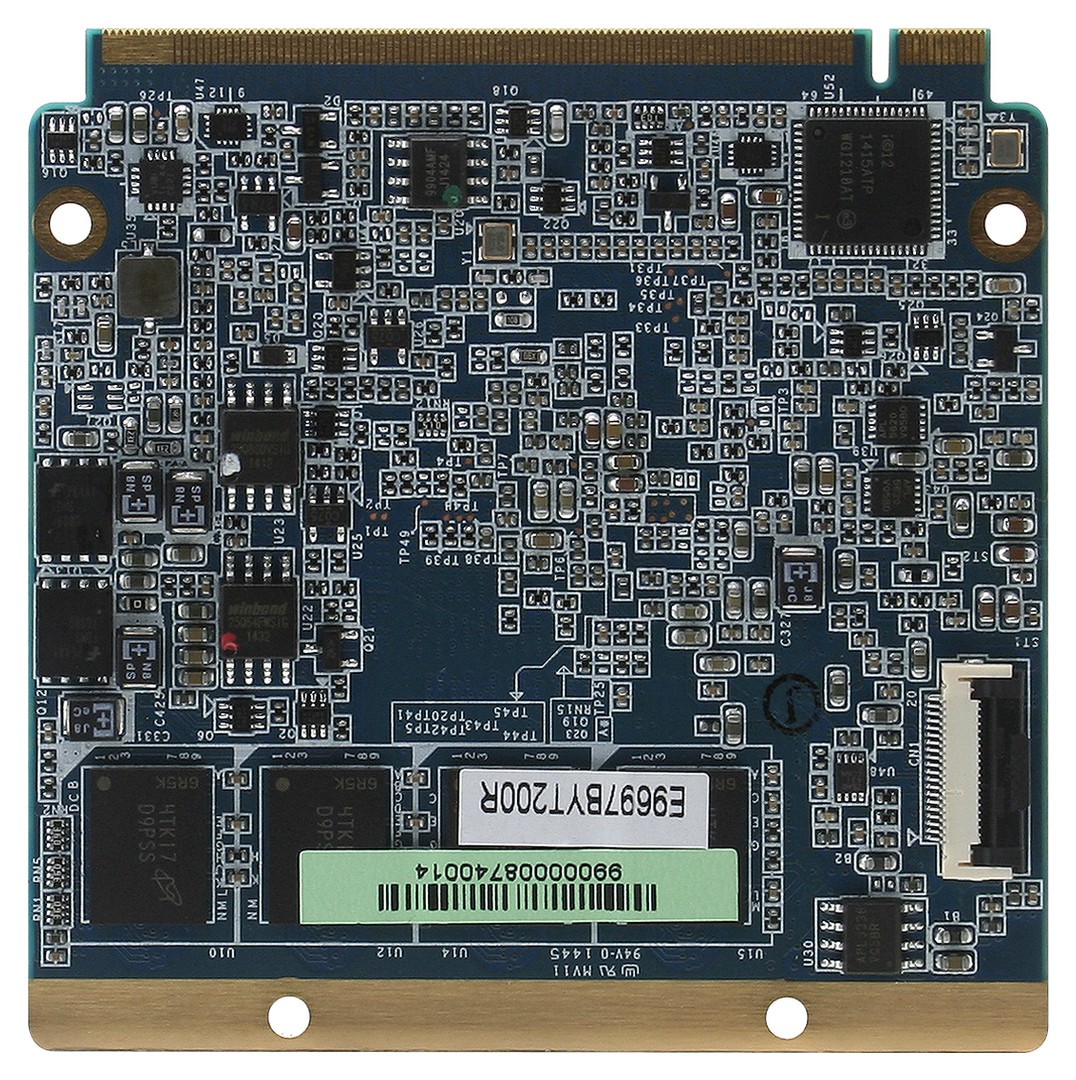

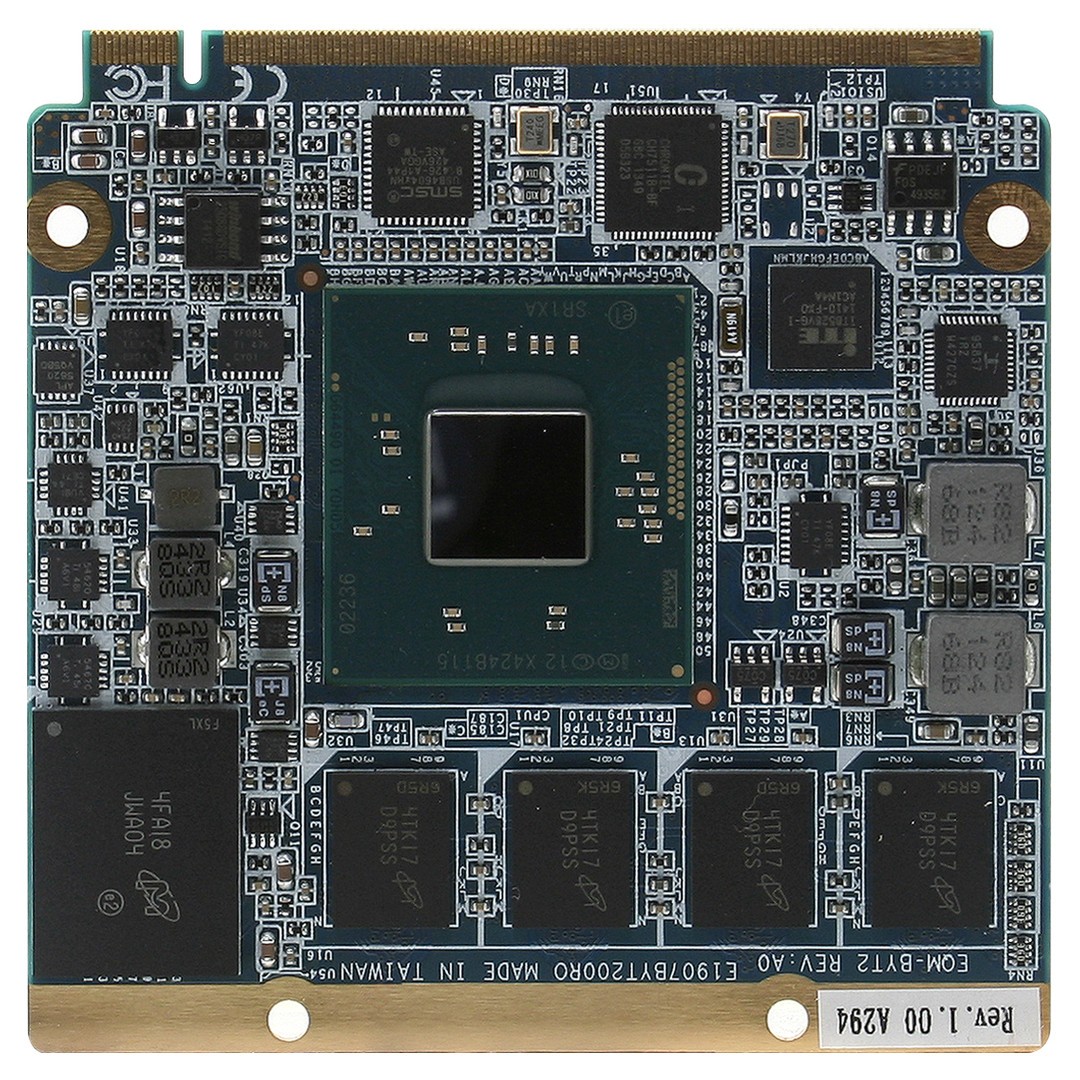

Basismodul: Avalue EQM-BYT2
Allgemein | ||||
SKU / Artikelnummer | EQM-BYT2 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | Intel Bay Trail | ||
Nummer | Intel Atom E3825, Intel Atom E3845 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1170 | |||
Basis Frequenz | 1,33 GHz, 1,91 GHz | |||
Cache | 1 MB, 2 MB | |||
Thermal Design Power (TDP) | 6 W, 10 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR3 | ||
Speicher onBoard | 2 GB, 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 8 GB, 32 GB | ||
BIOS | AMI SPI 64 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8528VG | |
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
LVDS | Bits | 24 Bit | ||
Erweiterung | ||||
PCIe x1 | x1 Signal (Interface) | 3 St | ||
PCIe Schnittstellen | 3x PCIe x1 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O | ||||
Anzeige | HDMI | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Interface | 5 St | |
USB v3.0 | Interface | 1 St | ||
Anzeige | LVDS | Dual Channel | ||
LVDS Interface | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx/CTS/RTS | 1 St | ||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Serial-ATA | S-ATA R2.0 (Interface) | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 5V | |
Anschluss | MXM Anschluss (Q7, 230 Pins) | |||
Stromversorgung - Eingang | DC: 5V | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 8.1 (32-bit) | wird unterstützt | |||
Windows 8.1 (64-bit) | wird unterstützt | |||
Windows 10 (64-bit) | wird unterstützt | |||
Linux | Distribution | Ubuntu 12.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Qseven (Q7) | ||
Breite | 70 mm | |||
Tiefe | 70 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
Kompatibilität | Qseven (Q7) Spezifikation Revision 2.0 | |||
RoHS konform | Ja | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
