Qseven (Q7)
// Qseven (Q7)
// [Intel Atom E3815 | Intel Atom E3826 | Intel Atom E3845 | Intel Celeron N2807]
// [2 GB | 4 GB]
// LVDS|DDI
// 1 x G-LAN
// 1 x USB
// 3 x USB (intern)
// [4 GB | -] eMMC
// 3 x PCIe x1
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

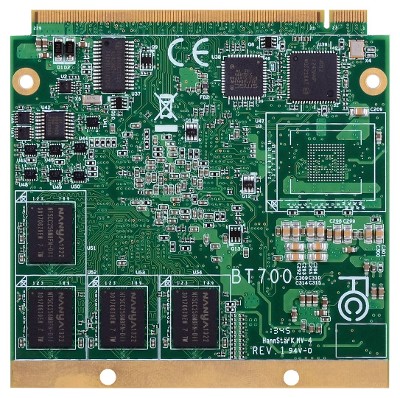

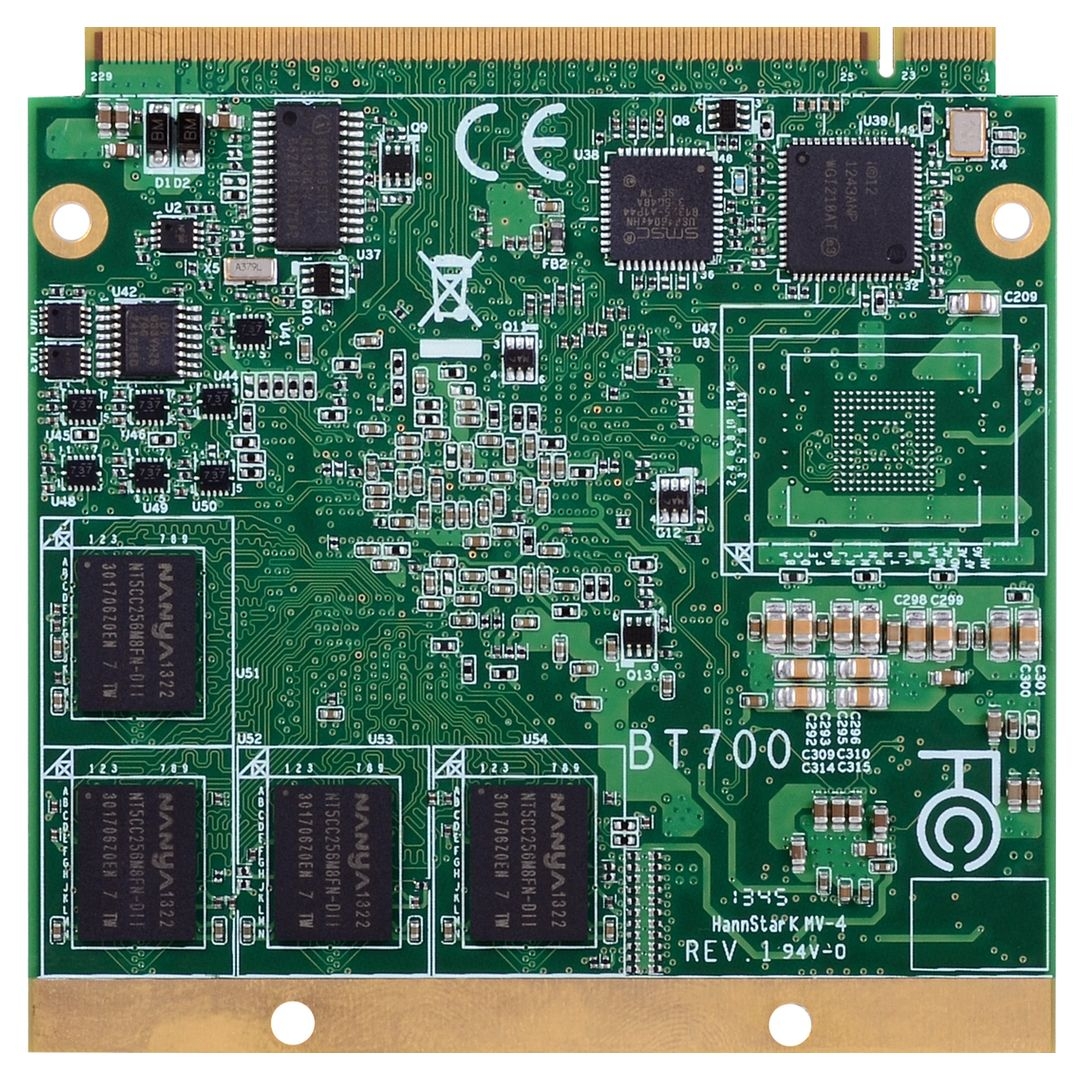

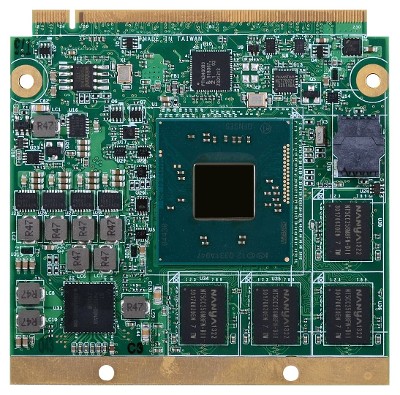

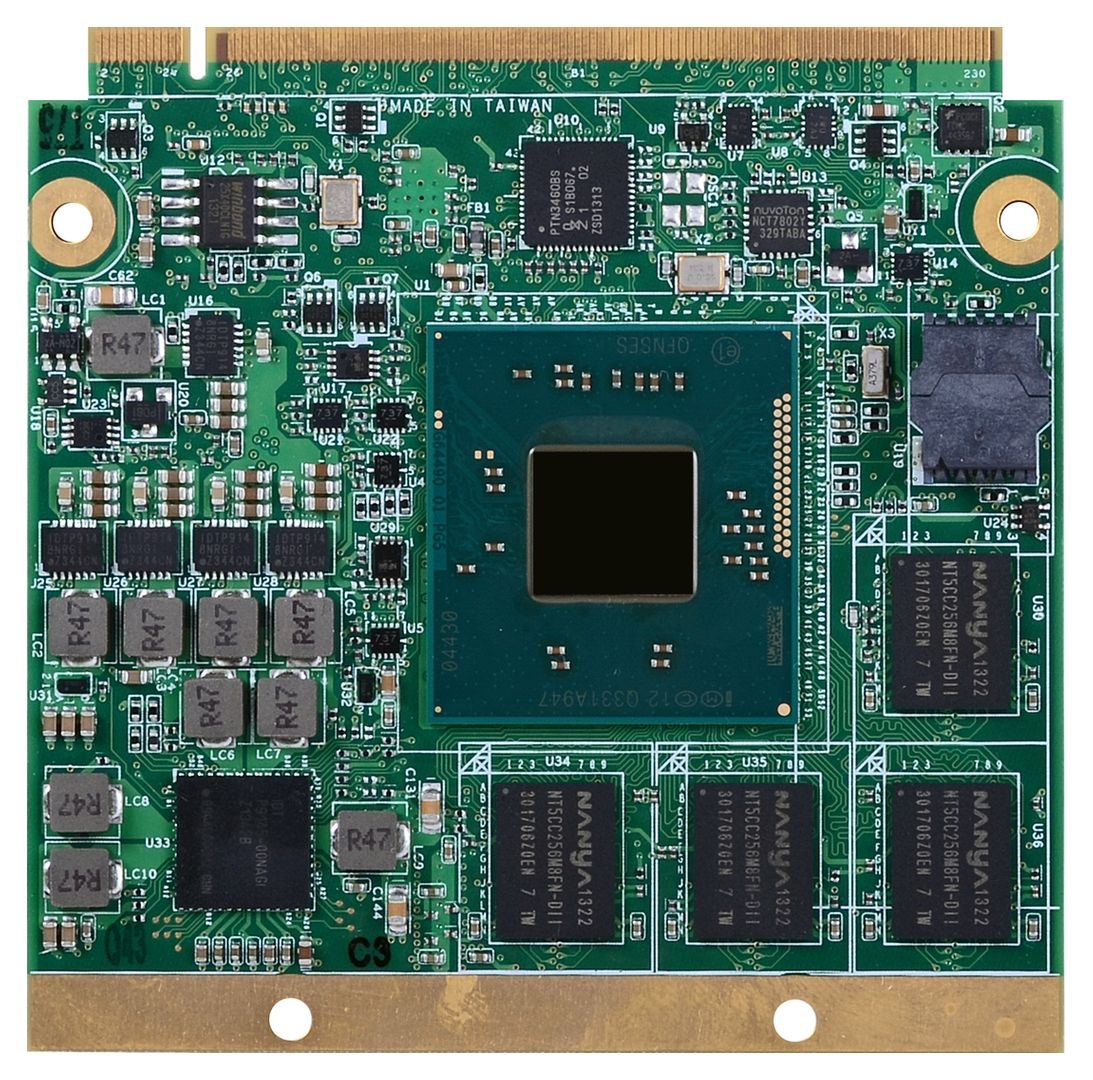

Basismodul: DFI BT700
Allgemein | ||||
SKU / Artikelnummer | BT700 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-BT7004-100G, 770-BT7004-200G, 770-BT7004-600G, 770-BT7004-700G, 770-BT7004-800G, 770-BT7004-900G, 770-BT7004-D00G | |||
System | ||||
Prozessor | Serie | Intel Bay Trail | ||
Nummer | Intel Atom E3815, Intel Atom E3826, Intel Atom E3845, Intel Celeron N2807 | |||
CPU Kerne | 1 St, 2 St, 4 St | |||
Threads | 1 St, 2 St, 4 St | |||
Sockel | BGA 1170 | |||
Basis Frequenz | 1,46 GHz, 1,58 GHz, 1,91 GHz | |||
Max. Turbo-Taktfrequenz | 2,16 GHz, - | |||
Cache | 0,5 MB, 1 MB, 2 MB | |||
Thermal Design Power (TDP) | 4,3 W, 5 W, 7 W, 10 W | |||
Lithographie | 22 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR3 | ||
DIMM Datarate | 1333 MT/s | |||
Maximaler Ausbau | 4 GB | |||
Speicher onBoard | 2 GB, 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 4 GB, - | ||
BIOS | AMI SPI 64 Mbit | |||
Storage | Embedded MultiMedia Card (eMMC) 4 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Leistungsmerkmal | Unterstützung | DirectX 11, OGL 4.0, OpenCL 1.2 | ||
HW Decode | AVC / H.264, MPEG2, MVC, VC1 / WMV9, VP 8 | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Bits | 24 Bit | |||
Bridge | NXP PTN3460 | |||
DDI (Digital Display Interfaces) | DP | Maximale Auflösung | 2560 x 1600 bei 60 Hz | |
DVI | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
HDMI | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Erweiterung | ||||
PCIe x1 | x1 Signal (Interface) | 3 St | ||
PCIe Schnittstellen | 3x PCIe x1 | |||
Storage | SD / MMC-Karte | |||
SDIO | Spezifikation | Version 3.0 (high capacity), Version 3.0 (physical layer), Version 3.0 (SDIO) | ||
Audio | ||||
Chipsatz | Unterstützt High Definition Audio Schnittstelle | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O | ||||
USB | HSIC (High-Speed Inter-Chip) | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Interface | 2 St | |
USB v3.0 | Interface | 1 St | ||
SMBus | 1 St | |||
LPC | 1 St | |||
I²C | 1 St | |||
UART | Tx/Rx/CTS/RTS | 1 St | ||
Serial-ATA | S-ATA R2.0 (3 Gbit/s, 300 MB/s) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | VCC_RTC (ATX Mode), 5V, 5VSB | |||
Anschluss | MXM Anschluss (Q7, 230 Pins) | |||
Stromversorgung - Eingang | DC: VCC_RTC (ATX Mode), 5V, 5VSB | |||
Stromaufnahme Typisch | 13 W | |||
Stromaufnahme Typisch | Mit Atom E3845, 1.91 GHz und 4 GB DDR3L | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 8 (32-bit) | wird unterstützt | |||
Windows 8 (64-bit) | wird unterstützt | |||
Windows 8.1 (32-bit) | wird unterstützt | |||
Windows 8.1 (64-bit) | wird unterstützt | |||
Unterstützte BS | Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -20° bis 70°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Qseven (Q7) | ||
Breite | 70 mm | |||
Tiefe | 70 mm | |||
MTBF | MTBF 25°C | 1.076.860 h | ||
MTBF 45°C | 638.931 h | |||
Berechnungsmodell | Telcordia Issue 2, Method I Case 3 | |||
Umgebung | GB, GC - Ground Benign, Controlled | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Kompatibilität | Qseven (Q7) Spezifikation Revision 2.0 | |||
RoHS konform | Ja | |||
Lebenszyklus | ||||
Produktionsstart | Q4/2014 | |||
Voraussichtlich bis | Q1/2028 | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
