ATX Mainboards
// ATX Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C246 | Intel Q370]
// 288 Pin DIMM DDR4
// 1 x HDMI
// 1 x DVI-D
// 1 x DP++
// 2 x G-LAN
// 6 x USB
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// 3 x PCI
// 1 x PCIe x1
// 1 x PCIe x4
// 1 x PCIe x16
// 1 x Mini-PCIe
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

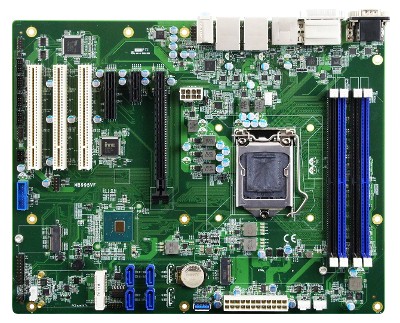

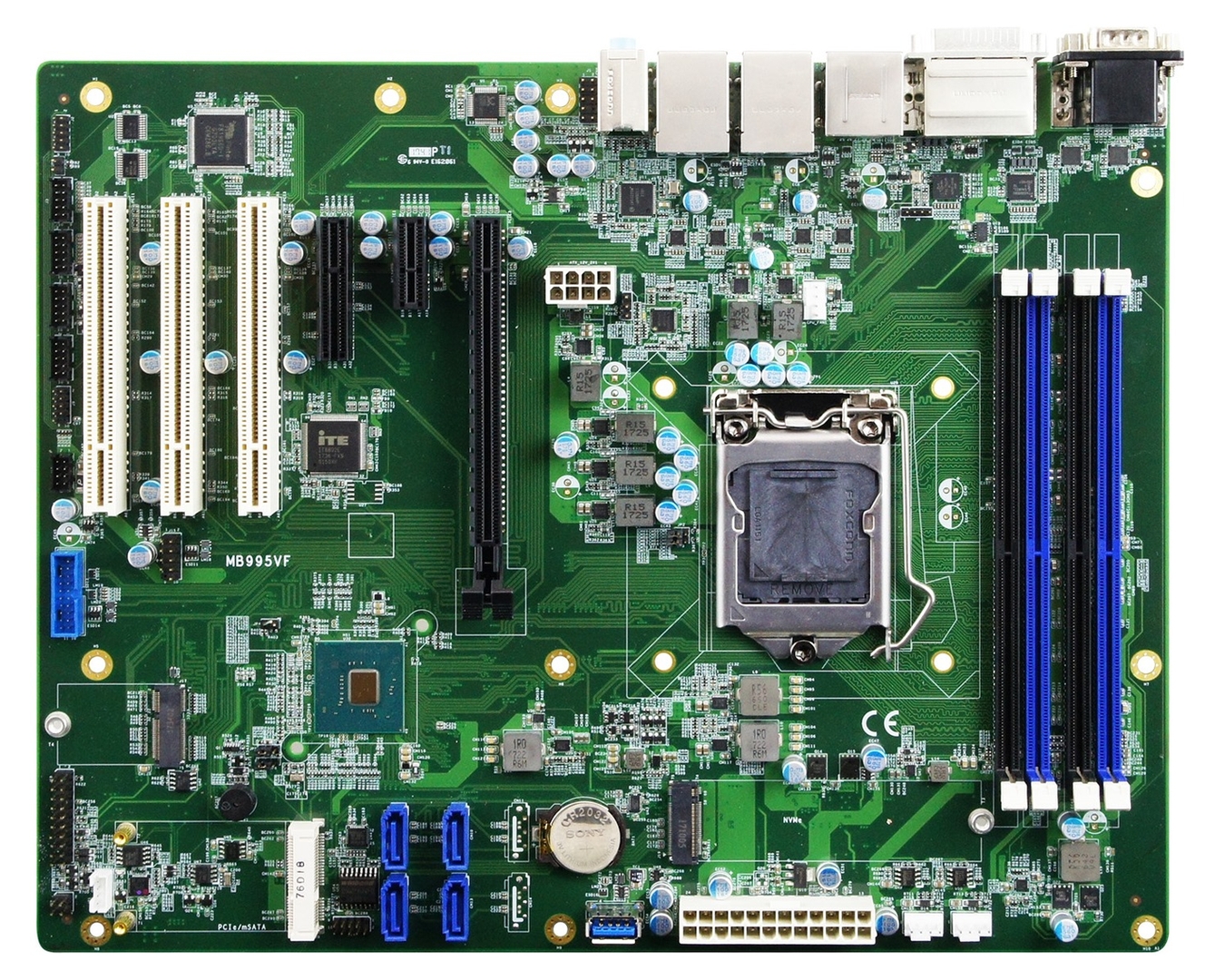

Basismodul: IBASE MB995
| Allgemein | ||||
| SKU / Artikelnummer | MB995 | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| Produkt-ID | MB995VF | |||
| System | ||||
| Prozessor | Serie | Intel Coffee Lake | ||
| Sockel | LGA 1151 (H4) | |||
| Chipsatz | Intel C246, Intel Q370 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Frequenz | 2400 / 2666 MHz | |||
| Steckplätze | 4 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81966D-I | |
| Grafik | ||||
| HDMI | Version | 2.0a | ||
| Displayport | Version | 1.2 | ||
| Dual Mode | Ja (DP++) | |||
| Erweiterung | ||||
| PCI | Anzahl | 3 St | ||
| PCI Schnittstellen | 3x PCI | |||
| PCIe x1 | x1 Signal | 1 St | ||
| PCIe x4 | x4 Signal | 1 St | ||
| PCIe x16 | x16 Signal | Anzahl | 1 St | |
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x1, 1x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2, mSATA | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Active Management Technology (AMT) Version | 11.6 | |||
| Netzwerk | 2x G-LAN | |||

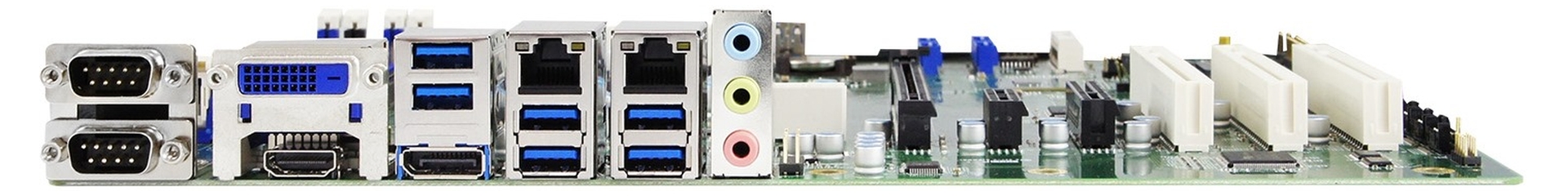

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.0 | 2 St | ||
| USB v3.1 Gen. 1 | 4 St | |||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Anzeige | HDMI | 1 St | ||
| DVI | DVI-D Signal | 1 St | ||
| DP++ | 1 St | |||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Interne I/O | ||||
| USB | USB v3.0 | Ports (2.54 mm Pitch) | 2 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| USBOTG (USB On-The-Go) | Micro USB | 1 St | ||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
| Digital I/O | Bits | 8-Bit | 1 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St, 6 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | ATX | ||
| Breite | 244 mm | |||
| Tiefe | 305 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
