Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Atom x7213E | Intel Atom x7425E | Intel Core i3-N305 | Intel N50 | Intel N97]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// [3 | 4] x USB (Back side)
// 2 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

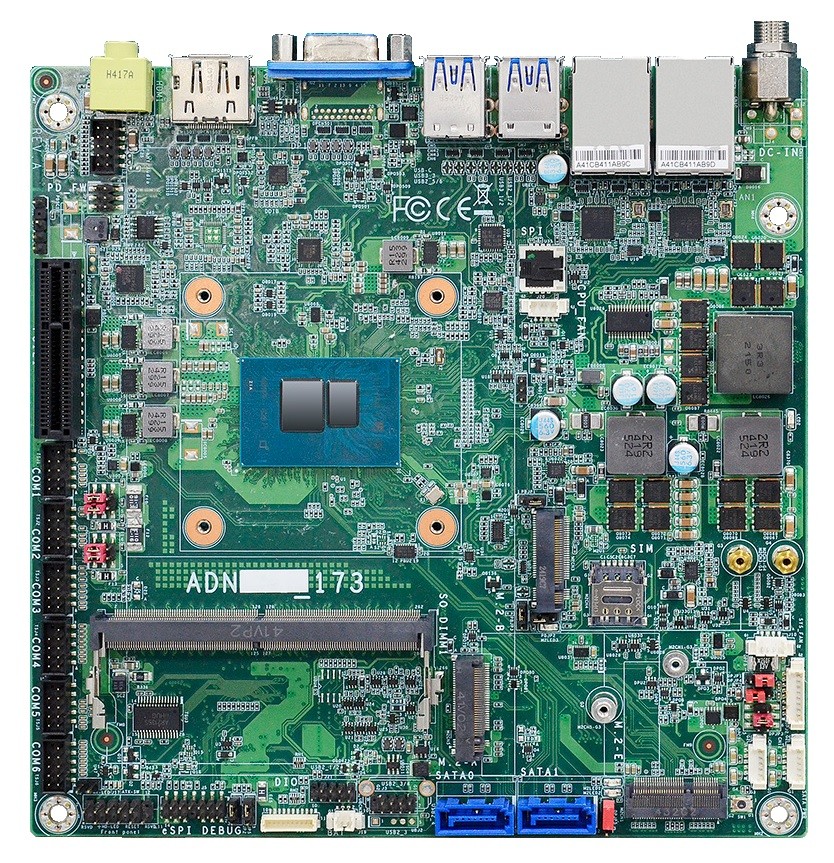

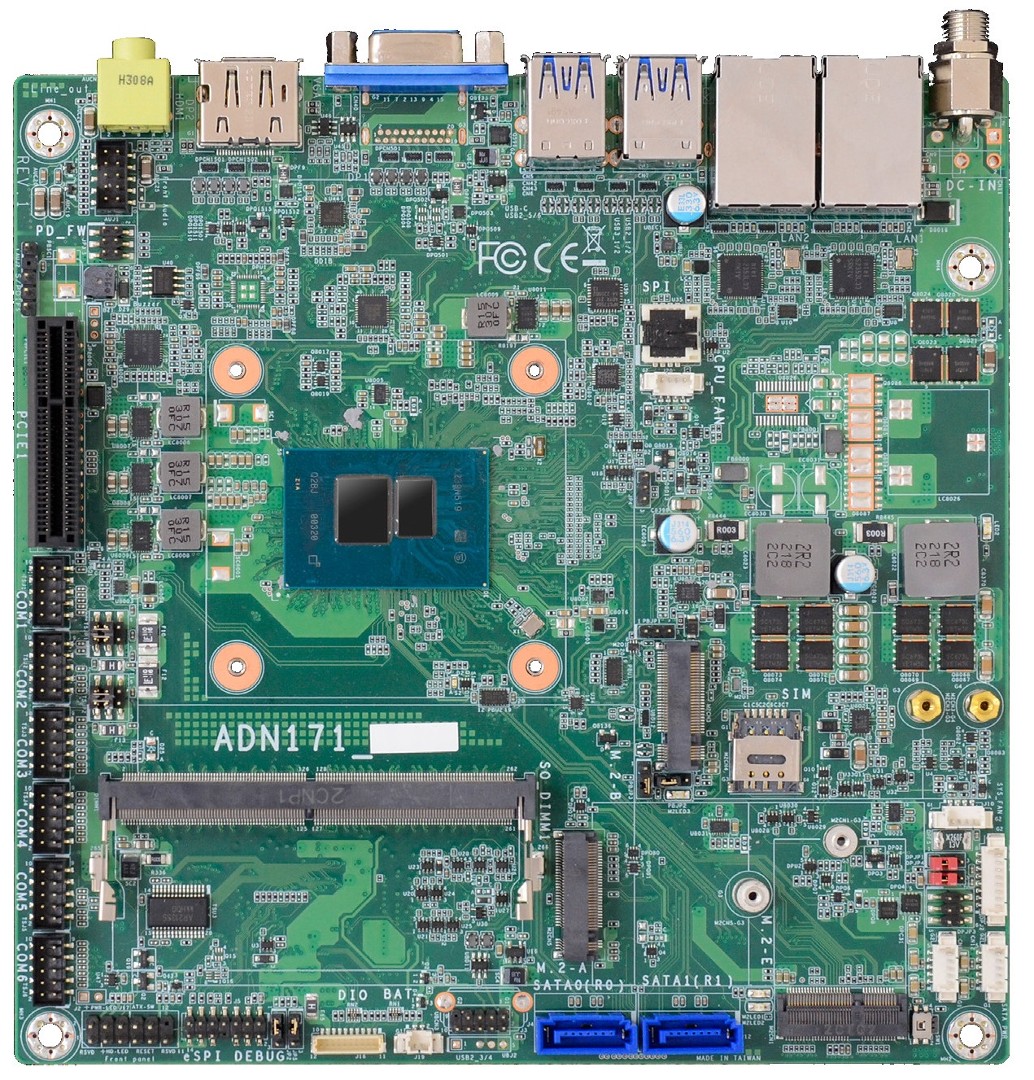

Basismodul: DFI ADN173
Allgemein | ||||
SKU / Artikelnummer | ADN173 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-ADN1731-000G, 770-ADN1731-100G, 770-ADN1731-200G, 770-ADN1731-300G, 770-ADN1731-400G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Atom x7213E, Intel Atom x7425E, Intel Core i3-N305, Intel N50, Intel N97 | |||
CPU Kerne | 2 St, 4 St, 8 St | |||
Threads | 8 St, - | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 10 W, 12 W, 15 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI SPI 256 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8786E | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 2048 x 1536 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 24 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x4 | x2 Signal | 1 St | ||
PCIe Schnittstellen | 1x PCIe x4 | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 3), SATA III, USB 2.0 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | A | ||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | A, B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

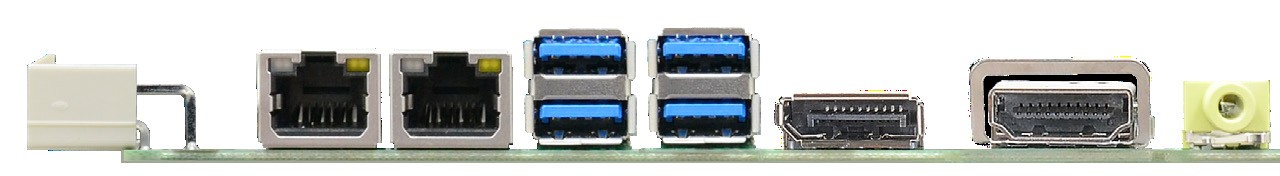

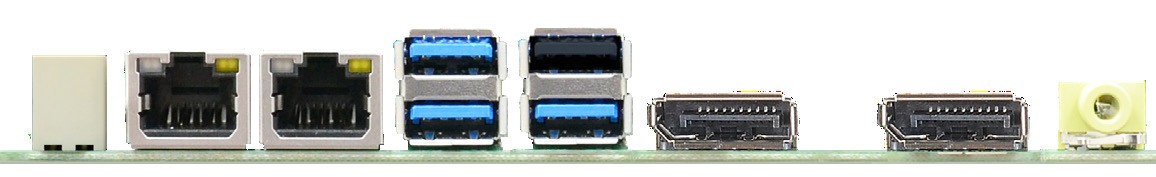

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St, - | ||
HDMI | 1 St, - | |||
DP++ | 1 St, 2 St | |||
DP USB-C | 1 St, - | |||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 1 St, - | ||
USB v3.2 (Gen 2) | 3 St | |||
USB v3.2 (Gen 2, Type C) | 1 St, - | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-In | 1 St | |||
Mic-In | 1 St | |||
S/PDIF | verfügbar | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 4 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -5° bis 65°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Thin Mini-ITX | ||
Breite | 170 mm | |||
Tiefe | 170 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | KC, UKCA | |||
RoHS konform | Ja |
