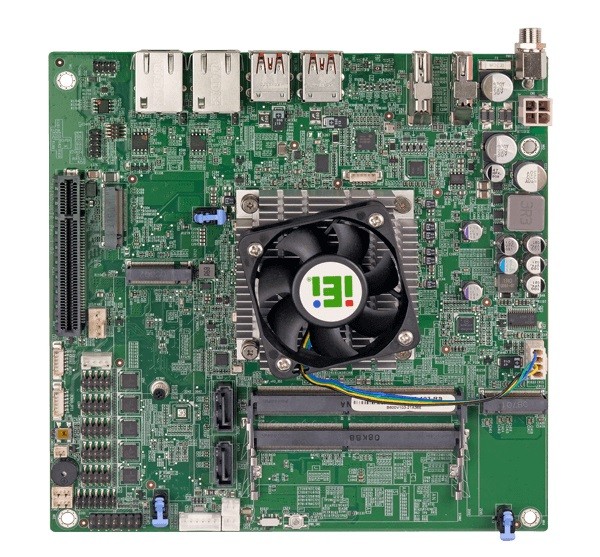

Thin Mini-ITX Mainboards
// Thin Mini-ITX Industrie-Mainboards
// [Intel Celeron 6305 | Intel Celeron 6305E | Intel Core i3-1115G4E | Intel Core i5-1145G7E | Intel Core i7-1185G7E]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (12-Bit)
// 1 x PCIe x8
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IEI KINO-TGL-U
| Allgemein | ||||
| SKU / Artikelnummer | KINO-TGL-U | |||
| Produktgrunddaten | ||||
| Hersteller | IEI | |||
| System | ||||
| Prozessor | Serie | Intel Tiger Lake | ||
| Nummer | Intel Celeron 6305, Intel Celeron 6305E, Intel Core i3-1115G4E, Intel Core i5-1145G7E, Intel Core i7-1185G7E | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1449 | |||
| Basis Frequenz | 1,5 GHz, 1,8 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
| Cache | 4 MB, 6 MB, 8 MB, 12 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 3200 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81966D-I | |
| Grafik | ||||
| Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
| Version | 1.4 | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 1.4 | |||
| Erweiterung | ||||
| PCIe x8 | Generation | 4 | ||
| x4 Signal | 1 St | |||
| PCIe Schnittstellen | 1x PCIe x8 | |||
| M.2 | Slot 1 | Key ID | A | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×2 (Gen. 3) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| M.2 Key IDs | A, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Unterstützt High Definition Audio Schnittstelle | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I225V PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

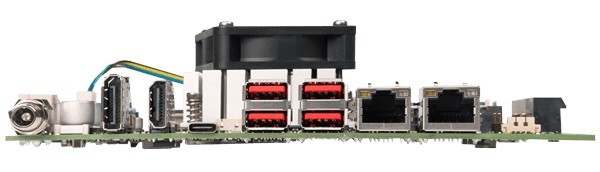

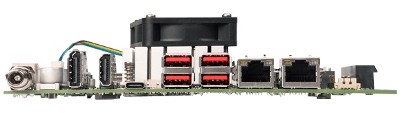

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Displayport | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 2) | 4 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 5 St | |
| RS-422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Digital I/O | Bits | 12-Bit | 1 St | |
| SMBus | 1 St | |||
| I²C | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Intel PTT (wie TPM 2.0) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | DC Jack | |||
| DC | Weitbereich | Ja | ||
| Bereich | 9~36V | |||
| Anschluss | 4 Pin Anschluss (horizontal) | |||
| Stromversorgung - Eingang | DC: 9~36V,9~36V | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -30° bis 70°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | Thin Mini-ITX | ||
| Breite | 170 mm | |||
| Tiefe | 170 mm | |||
| Gewicht | 400 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
