3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core Ultra 5 Processor 225H | Intel Core Ultra 5 Prozessor 125U | Intel Core Ultra 7 Processor 255H | Intel Core Ultra 7 Prozessor 155U]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

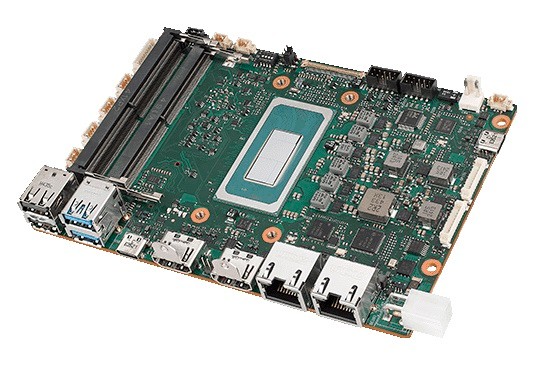

Basismodul: Advantech MIO-5379
Allgemein | ||||
SKU / Artikelnummer | MIO-5379 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Arrow Lake | |||
Nummer | Intel Core Ultra 5 Processor 225H, Intel Core Ultra 5 Prozessor 125U, Intel Core Ultra 7 Processor 255H, Intel Core Ultra 7 Prozessor 155U | |||
CPU Kerne | 12 St, 14 St, 16 St | |||
Threads | 14 St, 16 St | |||
Sockel | BGA 2049 | |||
Performance-core Grundtaktfrequenz | 1,3 GHz, 1,7 GHz, 2 GHz | |||
Performance-core Max Turbo Frequenz | 4,3 GHz, 4,8 GHz, 4,9 GHz, 5,1 GHz | |||
Efficient-core Grundtaktfrequenz | 0,8 GHz, 1,2 GHz, 1,3 GHz, 1,5 GHz | |||
Efficient-core Max Turbo Frequenz | 3,6 GHz, 3,8 GHz, 4,3 GHz, 4,4 GHz | |||
Cache | 12 MB, 18 MB, 24 MB | |||
Grundleistungsaufnahme des Prozessors | 15 W, 28 W | |||
Maximale Turbo-Leistungsaufnahme | 57 W, 115 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 5600 MT/s, 6400 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 96 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel Arc 130T, Intel Arc 140T, Intel Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Version | 2.1 | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×2, USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×2, SATA III, USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 4 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

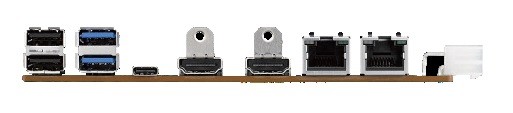

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
DP USB-C | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
RJ-45 mit OOB | 1 St | |||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 2) | 2 St | |||
USB v4.0 Type C | Leistungsabgabe | 100 W | ||
Spezifikation | Generation 2 | |||
Thunderbolt 3 | wird unterstützt | |||
Tunneling | Display Port v.1.4 | |||
Interne I/O | ||||
Seriell | RS-232 / 422 / 485 | Ports (Sonderanschluss) | 4 St | |
Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
I²C | 1 St | |||
CAN Bus | Channel | 2 St | ||
Protokoll | CAN-FD | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-In | 1 St | |||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (vertikal) | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Lagerung | 5 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | 3,5" | ||
Breite | 146 mm | |||
Tiefe | 102 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
