3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron J3455 | Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x USB (internal)
// 5 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12~26V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

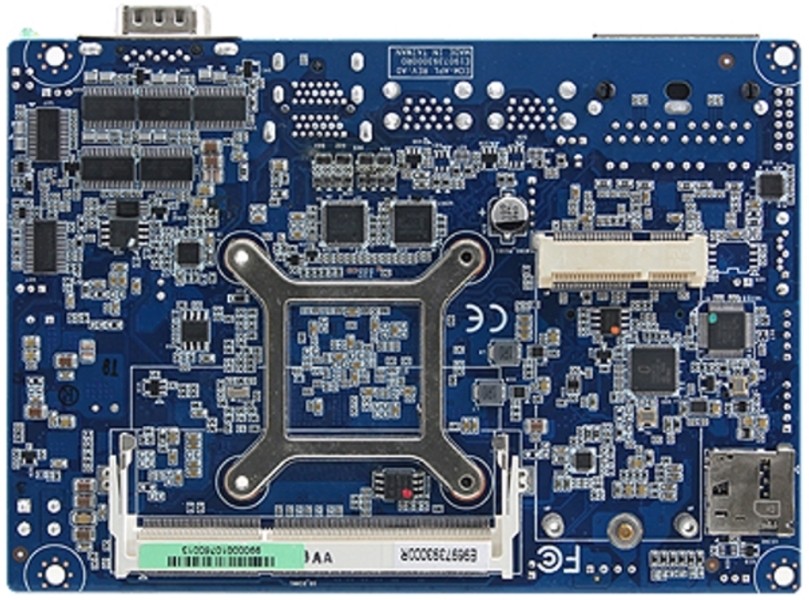

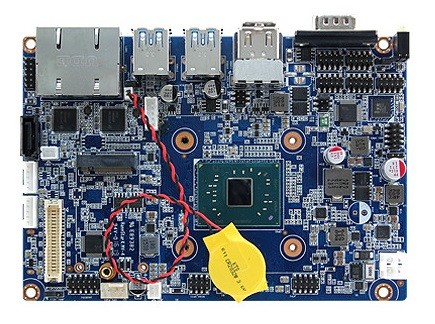

Basismodul: Avalue ECM-APL
Allgemein | ||||
SKU / Artikelnummer | ECM-APL | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron J3455, Intel Celeron N3350, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,5 GHz, 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz, 2,3 GHz, 2,4 GHz, 2,5 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 10 W, 12 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Frequenz | 1333 / 1600 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 128 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8528E / FX, ITE IT8528I | |
Grafik | ||||
Prozessor | Intel HD Graphics Generation 9 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Version | 1.4 | |||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, SATA III, USB 2.0 | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

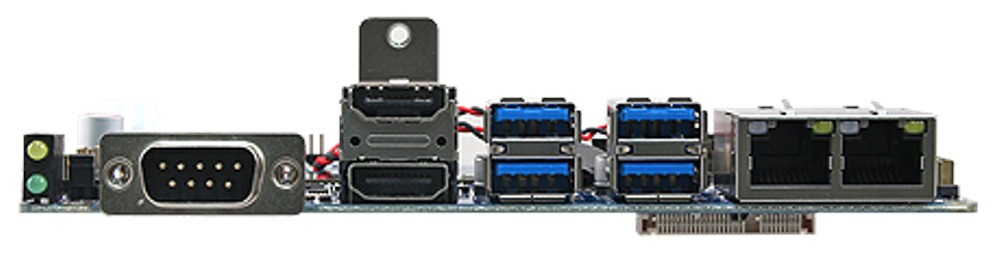

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.0 | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 1 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 5 St | |
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
LPC | 1 St | |||
Serial Peripheral Interface (SPI) | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-In | 1 St | |||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~26V | |||
Anschluss | ATX Anschlussstecker | |||
Stromversorgung - Eingang | DC: 12~26V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 3,5" | ||
Breite | 101 mm | |||
Tiefe | 146 mm | |||
Gewicht | 200 g | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
