Mainboards mit Sonderformat
// Industrie-Mainboards
// [- | Intel Core i7-14700]
// Intel Q670E
// 262 Pin SO-DIMM DDR5
// [512 GB | -] SSD (NVMe)
// LVDS
// 3 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

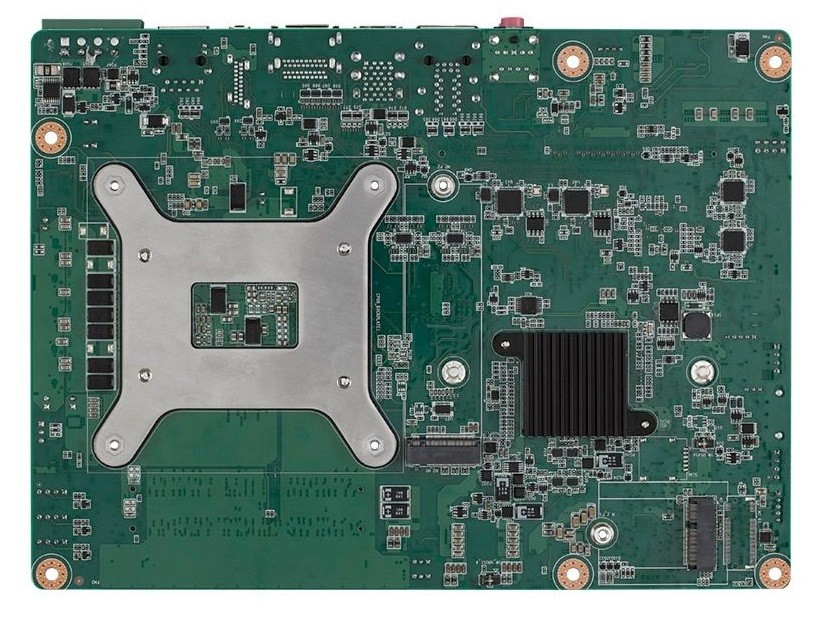

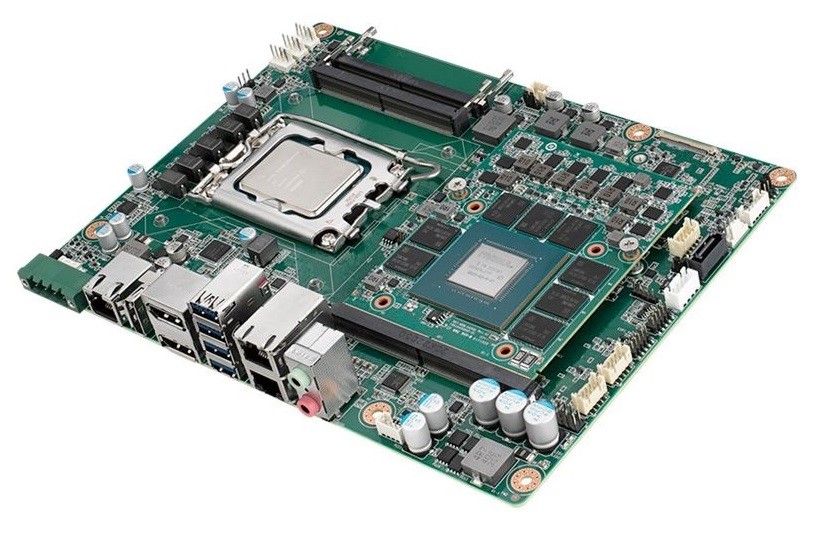

Basismodul: Advantech AIMB-292
| Allgemein | ||||
| SKU / Artikelnummer | AIMB-292 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Serie | Intel Alder Lake / Raptor Lake, Intel Raptor Lake | ||
| Nummer | -, Intel Core i7-14700 | |||
| CPU Kerne | 20 St, - | |||
| Threads | 28 St, - | |||
| Sockel | LGA 1700 (H6) | |||
| Performance-core Grundtaktfrequenz | 2,1 GHz, - | |||
| Performance-core Max Turbo Frequenz | 5,4 GHz, - | |||
| Efficient-core Grundtaktfrequenz | 1,5 GHz, - | |||
| Efficient-core Max Turbo Frequenz | 4,2 GHz, - | |||
| Cache | 33 MB, - | |||
| Thermal Design Power (TDP) | 65 W, - | |||
| Chipsatz | Intel Q670E | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 5600 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 96 GB | |||
| Speicher onBoard | 32 GB, - | |||
| Storage | Solid State Drive (NVMe SSD) | 512 GB, - | ||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Nvidia Quadro RTX3500 Ada, Nvidia Quadro RTX5000 Ada, Nvidia RTX A4500 | |||
| Bildschirme (Multidisplay) | 4 Displays | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Dual Mode | Ja (DP++) | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bridge | Chrontel CH7513A-BF | |||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 4), SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 3x G-LAN | |||

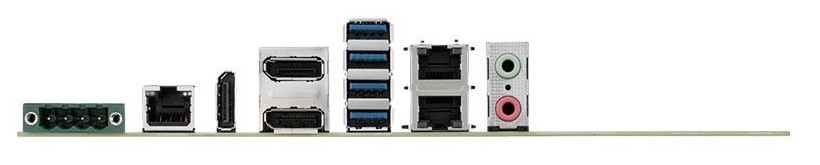

| Externe I/O (Rückseite) | ||||
| Anzeige | Displayport | 2 St | ||
| DP++ | 1 St | |||
| Audio | Combo Jack | 1 St | ||
| Ethernet | RJ-45 | 3 St | ||
| USB | USB v3.2 (Gen 2) | 4 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | |
| Anzeige | LVDS Anschlüsse | 1 St | ||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 24V | |||
| Anschluss | 4 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 24V | |||
| Stromaufnahme Typisch | 62,5 W | |||
| Stromaufnahme Maximal | 100,2 W | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Linux | Distribution | Linux, Ubuntu 22.04 | ||
| Unterstützte BS | Linux, Windows | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 55°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Breite | 170 mm | ||
| Tiefe | 230 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
