Mainboards mit Sonderformat
// Sonderformat Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C236 | Intel H110]
// 288 Pin DIMM DDR4
// [6 | 8] x G-LAN
// 2 x USB
// [1 | 2] x PCIe x8
// [0 | 1] x Mini-PCIe
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

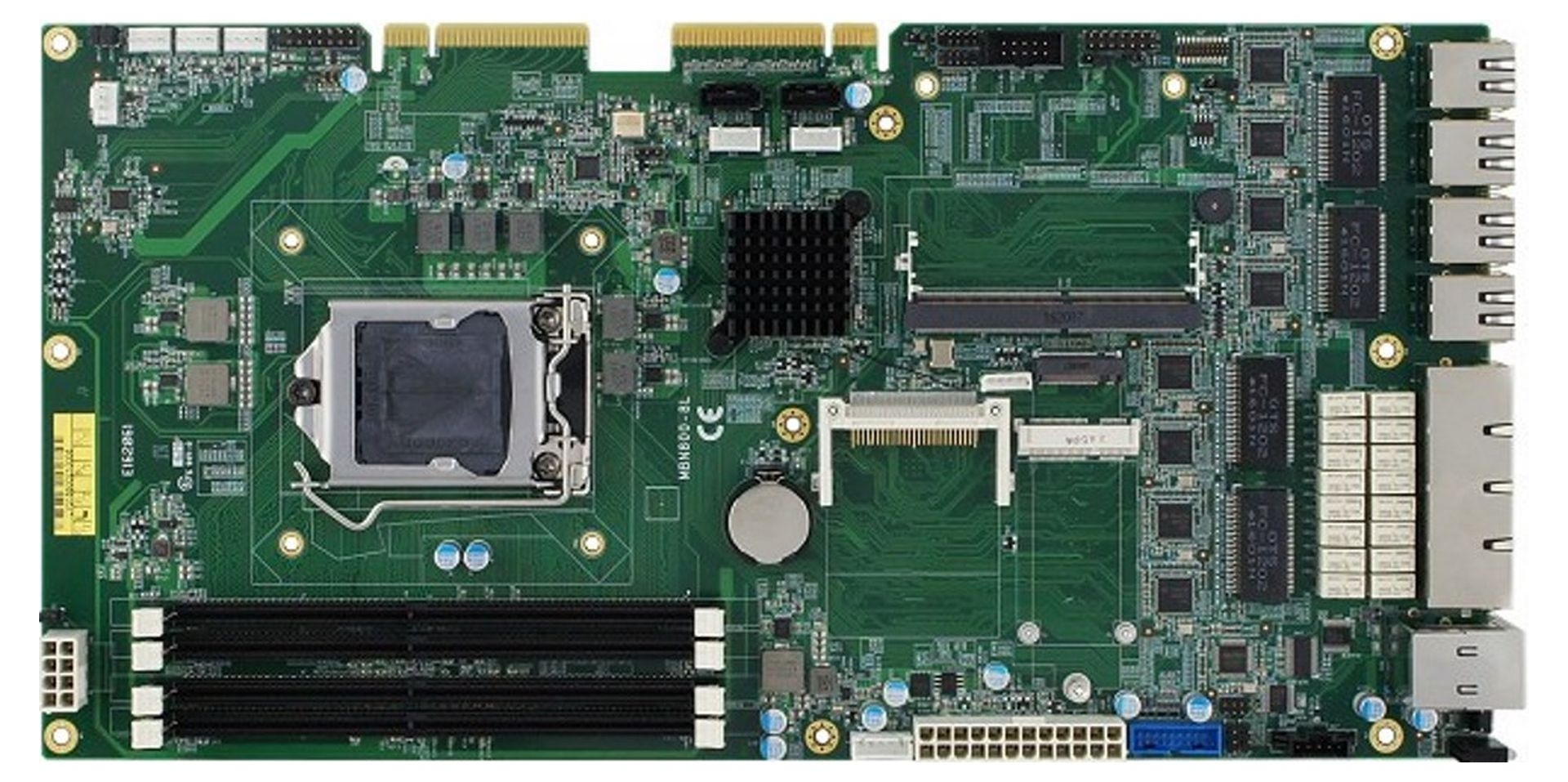

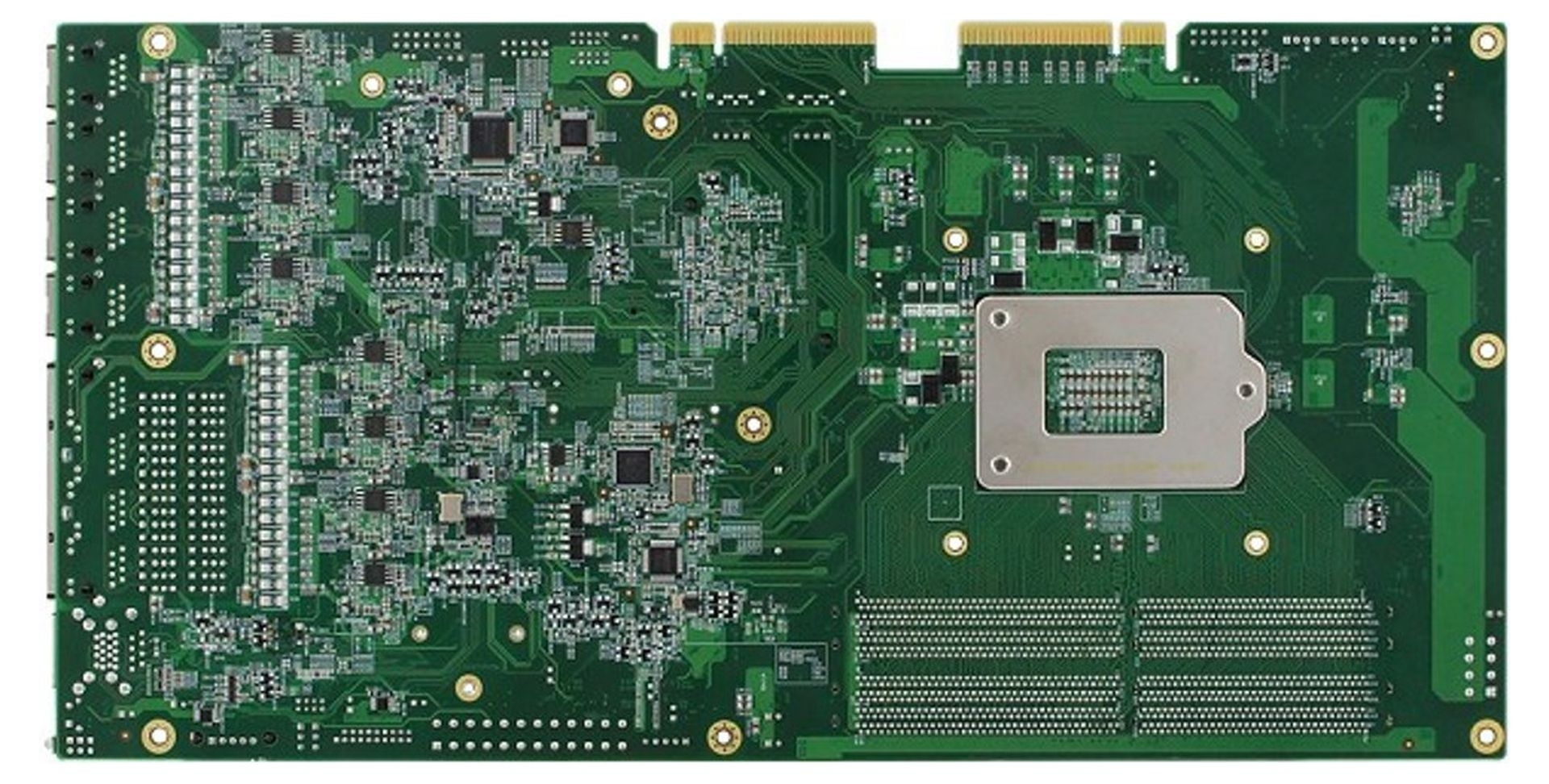

Basismodul: IBASE MBN800
Allgemein | ||||
SKU / Artikelnummer | MBN800 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Serie | Intel Skylake | ||
Sockel | LGA 1151 (H4) | |||
Chipsatz | Intel C236, Intel H110 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 1866 / 2133 MHz | |||
Steckplätze | 2 St, 4 St | |||
Maximaler Ausbau | 32 GB, 64 GB | |||
IPMI | Version | 2.0, - | ||
Erweiterung | ||||
PCIe x8 | x8 Signal | 1 St, 2 St | ||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St, - | |
USB Unterstützung | -, Ja | |||
mSATA Unterstützung | -, Ja | |||
M.2 | Slot 1 | Key ID | M | |
Storage | CF, M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 6 St, 8 St | |||
Bypass | Vorhanden | Ja | ||

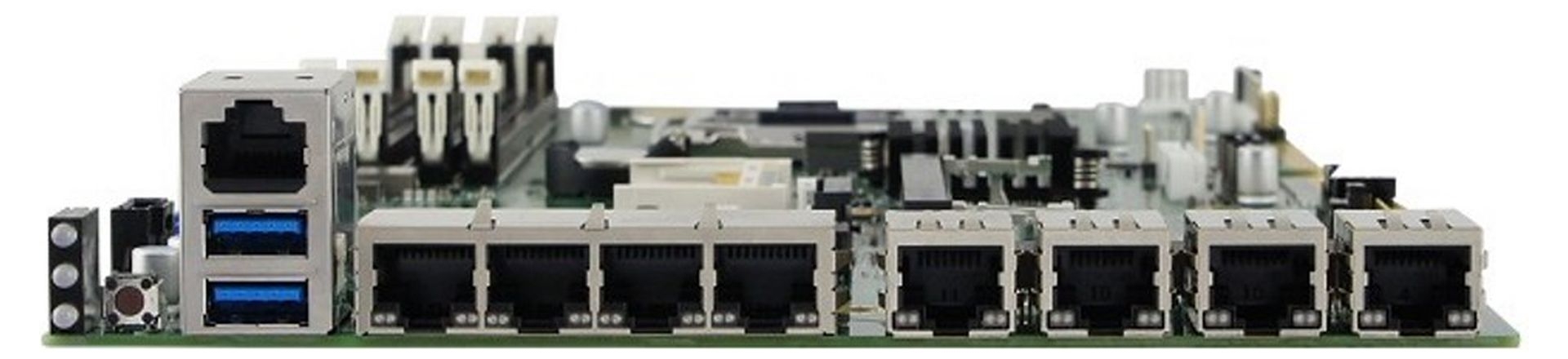

Externe I/O | ||||
Ethernet | RJ-45 | 6 St, 8 St | ||
USB | USB v3.0 | 2 St | ||
Seriell | RS-232 | RJ-45 | 1 St | |
Interne I/O | ||||
Anzeige | VGA (2.54 mm Pitch) | 1 St | ||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Stromversorgung | ||||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Sonderformat | ||
Breite | 183 mm | |||
Tiefe | 350 mm | |||
Bedienelemente | Reset | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Fehler | 1 St | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
Gerne beraten wir Sie persönlich.
