ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 4677 (P5)
// Intel C741
// 288 Pin DIMM DDR5

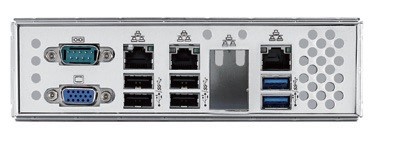

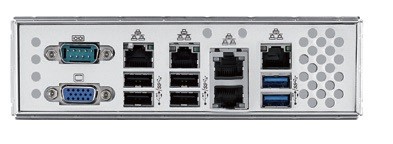

// [3 | 5] x G-LAN (Back side)
// 6 x USB (Back side)
// 7 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x PCIe x4
// 2 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

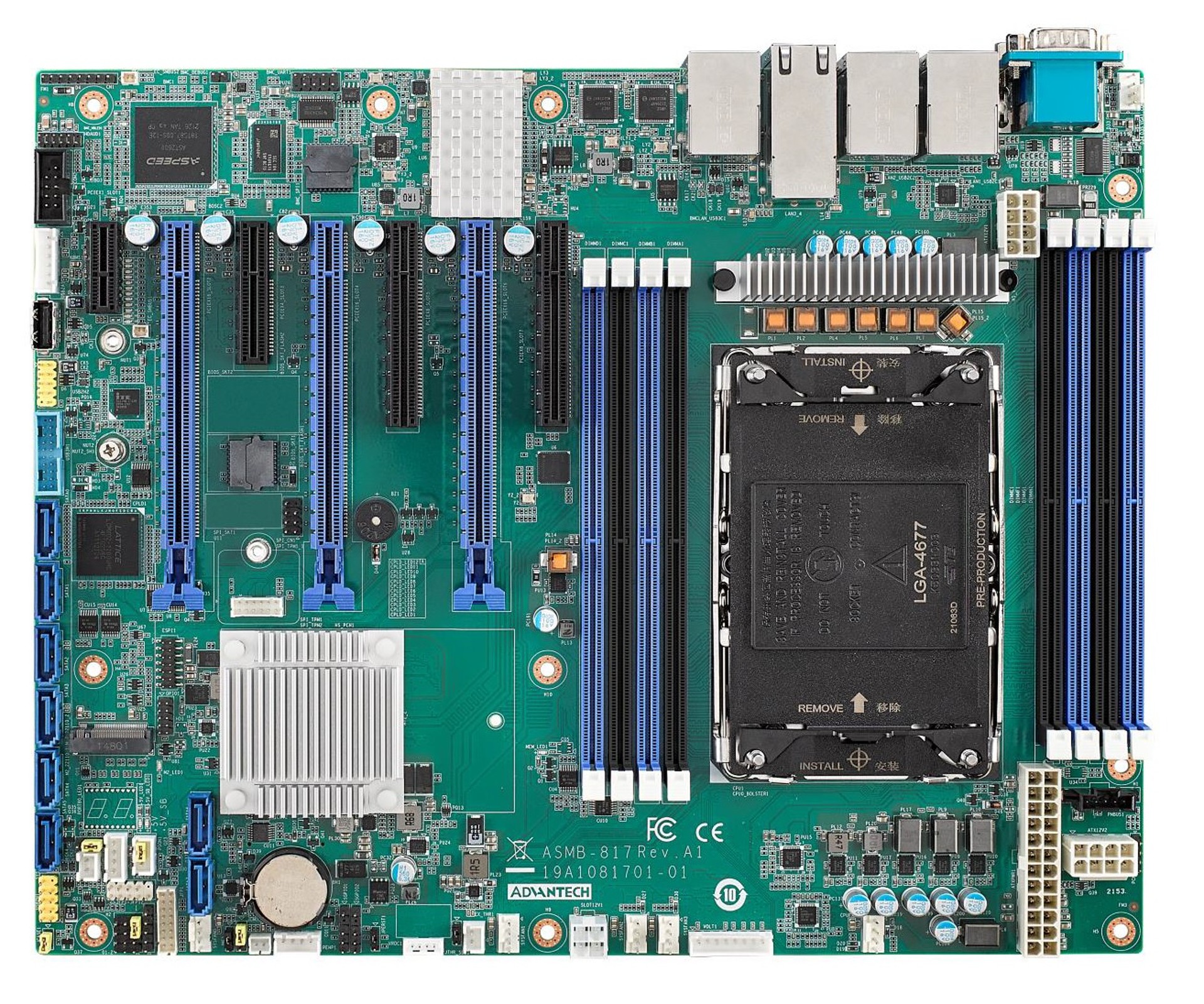

Basismodul: Advantech ASMB-817
| Allgemein | ||||
| SKU / Artikelnummer | ASMB-817 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Serie | Intel Sapphire Rapids | |||
| Sockel | LGA 4677 (P5) | |||
| Thermal Design Power (TDP) | 270 W | |||
| Chipsatz | Intel C741 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| Frequenz | 5200 MHz | |||
| Steckplätze | 8 St | |||
| Maximaler Ausbau | 2048 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI UEFI 512 Mbit SPI | |||
| I/O Controller | Controller 1 | I/O Controller | ITE IT5121VG-I | |
| IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 1 St | |||
| PCIe x4 | Generation | 5 | ||
| x4 Signal | 1 St | |||
| PCIe x8 | Generation | 5 | ||
| x8 Signal | 2 St | |||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 3 St | |||
| PCIe Schnittstellen | 1x PCIe x1, 1x PCIe x4, 2x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | B + M | |
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| M.2 Key IDs | B + M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Intel Integrated Audio | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Controller | Chipsatz | -, Intel X710-AT2 (10 Gbps) | ||
| Anzahl | 1 St, - | |||
| Controller | Chipsatz | Realtek RTL8211FSI (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 3x G-LAN | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| Ethernet | RJ-45 | 2 St, 4 St | ||
| RJ-45 mit OOB | 1 St | |||
| Seriell | RS-232 | DB-9 | 1 St | |
| USB | USB v2.0 | 4 St | ||
| USB v3.2 (Gen 1) | 2 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
| PS/2 | Stiftleiste | 1 St | ||
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |||
| PMBus Stecker | Ja | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | ATX | ||
| Breite | 304 mm | |||
| Tiefe | 244 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
