Panel PC mit IP65 (frontseitig)
// 15" TFT-LCD Panel-PC
// [Intel Core i3-1115G4 | Intel Core i5-1135G7 | Intel Core i7-1165G7]
// Touchscreen ([Analog Resistiv | Kapazitiv])
// Passiv cooled
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 5 x USB (Back side)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue ARC-1538-C1
Allgemein | ||||
SKU / Artikelnummer | ARC-1538-C1 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake-U | |||
Nummer | Intel Core i3-1115G4, Intel Core i5-1135G7, Intel Core i7-1165G7 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 4 St, 8 St | |||
Sockel | BGA 1449 | |||
Max. Turbo-Taktfrequenz | 4,1 GHz, 4,2 GHz, 4,7 GHz | |||
Cache | 6 MB, 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Displayport | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Display | ||||

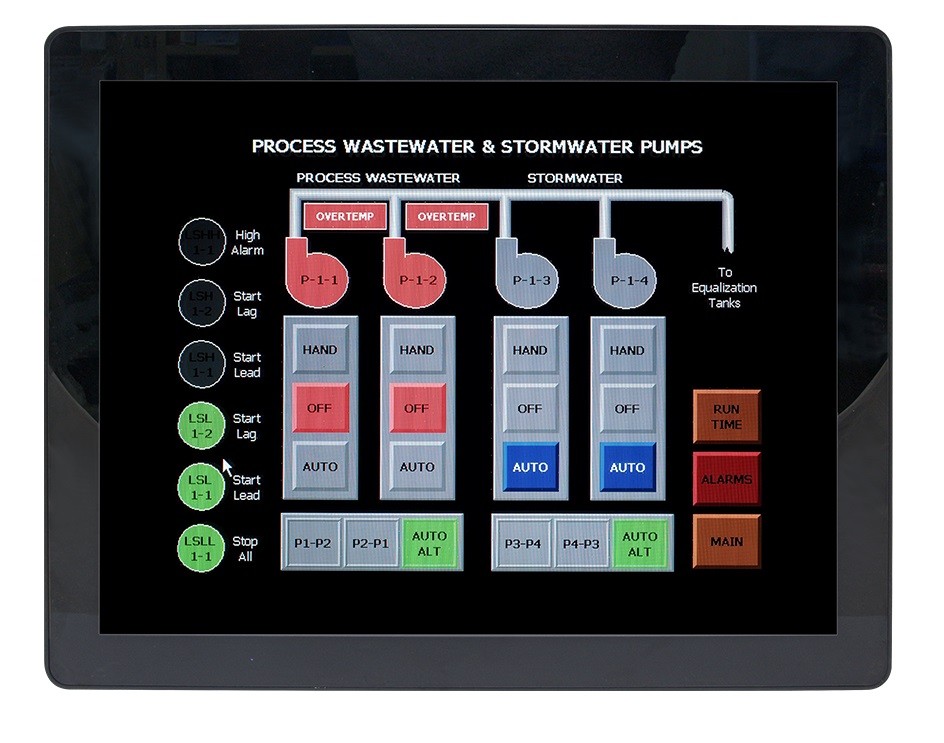

Display Type | 15" TFT-LCD | |||
Max. Auflösung | 1024 x 768 | |||
Seitenverhältnis | 4 : 3 | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 350 cd/m² | |||
Reaktionszeit | 30 ms | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Analog Resistiv, Kapazitiv | ||
Lichtdurchlässigkeit | 85 % | |||
Multitouch | 10-Punkt, - | |||
Audio | Lautsprecher | 2 St | ||
Leistung | 5 W | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B + M | |
Interface | 4G/LTE, 5G / Storage Module, NVMe, PCIe ×4, SATA III, USB 3.0 | |||
Unterstütze Abmaße | 2242, 2260, 2280, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, PCIe ×2, USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B + M, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
IET Interface | SMBus | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

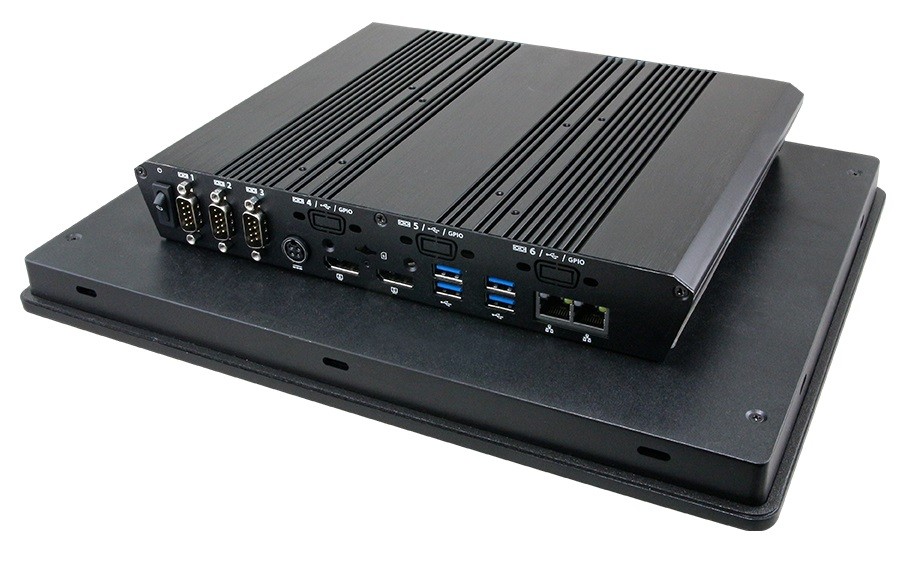

Externe I/O (Rückseite) | ||||
Anzeige | DP++ | 2 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v3.1 Gen. 2 | 4 St | ||
USB v3.2 (Gen 1) | 1 St | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Nuvoton NPCT754AADYX | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Stromaufnahme Maximal | 120 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||

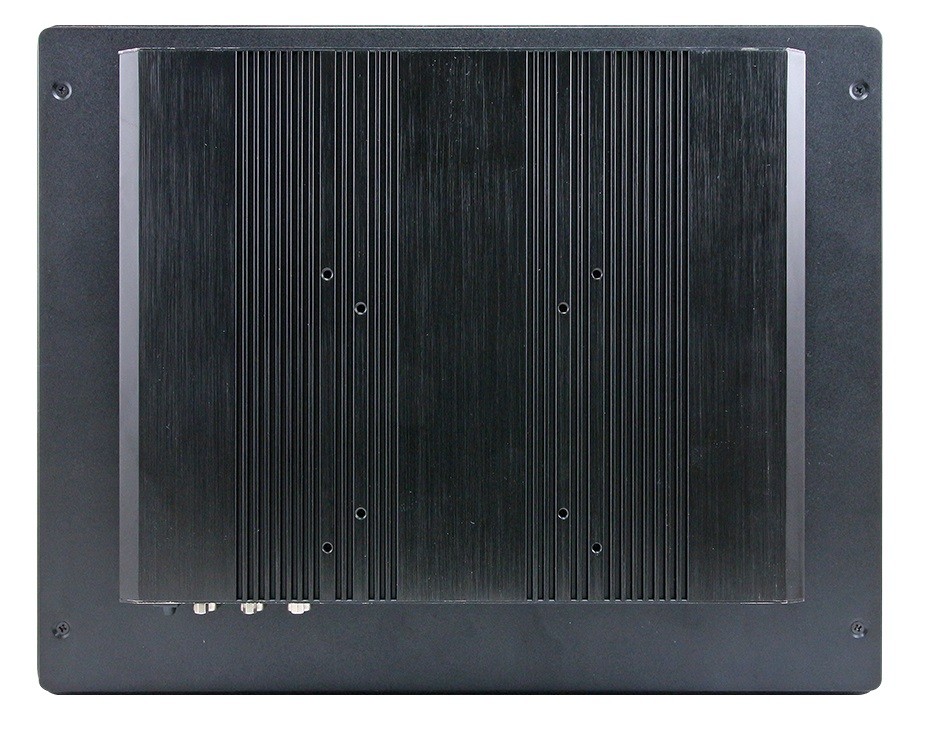

Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 15" | ||
Breite | 350,1 mm | |||
Tiefe | 65 mm | |||
Höhe | 274,51 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Vibration | 1,5G, 5-500Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Sturzprüfung | Referenz Standard | IEC-60068-2-32 | ||
Gewicht | 5800 g | |||
Bedienelemente | Power | 1 St | ||
Antennenlöcher | 6 St | |||
Farbe | Schwarz | |||
Montageoption | Panelmontage, VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | LVD, UKCA, VCCI | |||
RoHS konform | Ja |
