M.2
Produkt ist EOL (End Of Life)!
// M.2
// 3D TLC
// PCI Express Gen. 3
// 3TE6
// 0° bis 70°C | -40° bis 85°C
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

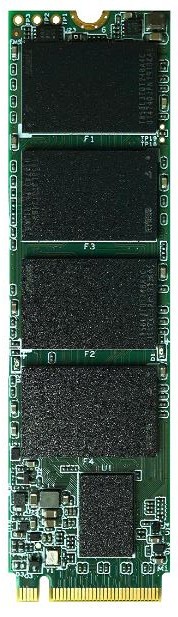

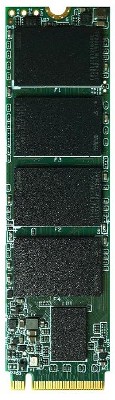

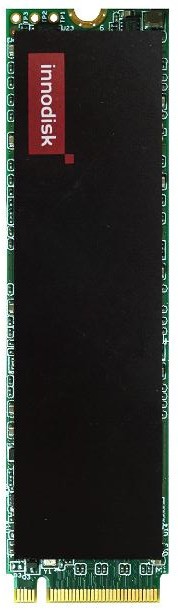

Basismodul: Innodisk M.2 (P80) 3TE6
| Allgemein | ||||
| SKU / Artikelnummer | M.2 (P80) 3TE6DEM28-01TDD1ECAQF, DEM28-01TDD1EWAQF, DEM28-64GDD1ECADF, DEM28-64GDD1EWADF, DEM28-A28DD1ECAQF, DEM28-A28DD1EWAQF, DEM28-B56DD1ECAQF, DEM28-B56DD1EWAQF, DEM28-C12DD1ECAQF, DEM28-C12DD1EWAQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEM28-02TDD1ECAQF, DEM28-02TDD1EWAQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-01TDD1KCAQF, DEM28-01TDD1KWAQF, DEM28-02TDD1KCAQF, DEM28-02TDD1KWAQF, DEM28-A28DD1KCADF, DEM28-A28DD1KWADF, DEM28-B56DD1KCAQF, DEM28-B56DD1KWAQF, DEM28-C12DD1KCAQF, DEM28-C12DD1KWAQF | |||
| Produktgrunddaten | ||||
| Hersteller | Innodisk | |||
| Flash Speichermedien | ||||
| Serie | 3TE6 | |||
| Anschluss (Interface) | PCI Express Gen. 3 | |||
| Flash Aufbau | M.2 (NGFF) | |||
| Key Typ | M | |||
| Flash Type | 3D TLC | |||
| Chipgehäuse | BGA (Ball Grid Array) A | |||
| Schreib-/Löschzyklen (P/E Limit) | 3000 | |||
| Kapazität | 1 TB, 2 TB, 64 GB, 128 GB, 256 GB, 512 GB | |||
| Controller | ID303 (MK1002 with innodisk logo) | |||
| ECC | Wird unterstützt (24 Bit pro 1 KB) | |||
| Channel | 2, 4 | |||
| Maximale Stromaufnahme | 5 W | |||
| iPowerguard | wird unterstützt | |||
| NVMe | Ja | |||
| Performance | Flash Chip | Kioxia (Toshiba) | ||
| Sequentielles Lesen | 1.280 MB/s, 1.550 MB/s, 1.650 MB/s, 675 MB/s | |||
| Sequentielles Schreiben | 1.000 MB/s, 1.650 MB/s, 145 MB/s, 345 MB/s | |||
| 4KB Random (QD32) Lesen | 33000 IOPS, 78500 IOPS, 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 24500 IOPS, 97000 IOPS, 99000 IOPS | |||
| Wärmesensor | Ja | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17), 96 Layers 3D Flash, 112/128 Layers 3D Flash | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 70°C, -40° bis 85°C | ||
| Lagerung | -55° bis 95°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | M.2 | ||
| Typ | 2280 | |||
| Breite | 22 mm | |||
| Tiefe | 80 mm | |||
| Höhe | 1,35 mm, 1,95 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 Axen | ||
| Referenz Standard | IEC 68-2-6 | |||
| Schock | Messdaten | 1500G, 0.5 ms, 3 Axen | ||
| Referenz Standard | IEC 68-2-27 | |||
| MTBF | MTBF 25°C | 3.000.000 h | ||
| Berechnungsmodell | Telcordia SR - 332 GB | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (ESD), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 | |||
| RoHS konform | Ja | |||
| End of Life (EOL) | |
| PCIe 3TE6 Controller Series EOL Notice Description Innodisk hereby announces that we will discontinue 3TE6 controller series products going forward. The 3TE6 successors for PCIe Gen3 Dramless solution are 3TE4 and 3TE8 as below. The products listed below will be phased out of production with a last purchase date: 2024/12/01. If your company's shipping date falls after the last purchase date, please help signing the NCNR agreement, innodisk will reserve the necessary materials you require. | |
| Revision: | F240043-14 |
| Revision date: | 1. September 2024 |
| Last purchase date: | 1. Dezember 2024 |
| Last shipping date: | 1. März 2025 |
| Betroffene Produkte: |
M.2 (P42) 3TE6, DECFX-01TDD1ECADFW, DECFX-01TDD1ECAQF, DECFX-01TDD1ECAQFW, DECFX-01TDD1EWADFW, DECFX-01TDD1EWAQF, DECFX-01TDD1EWAQFW, DECFX-01TDD1KCAQF, DECFX-01TDD1KCAQFW, DECFX-64GDD1ECADF, DECFX-64GDD1ECADFW, DECFX-64GDD1ECAQFW, DECFX-64GDD1EWADF, DECFX-64GDD1EWADFW, DECFX-64GDD1EWAQFW, DECFX-A28DD1ECADFW, DECFX-A28DD1ECAQF, DECFX-A28DD1ECAQFW, DECFX-A28DD1EWADFW, DECFX-A28DD1EWAQF, DECFX-A28DD1EWAQFW, DECFX-A28DD1KCADF, DECFX-A28DD1KCADFW, DECFX-A28DD1KCAQFW, DECFX-B56DD1ECADFW, DECFX-B56DD1ECAQF, DECFX-B56DD1ECAQFW, DECFX-B56DD1EWADFW, DECFX-B56DD1EWAQF, DECFX-B56DD1EWAQFW, DECFX-B56DD1KCAQF, DECFX-B56DD1KCAQFW, DECFX-C12DD1ECADFW, DECFX-C12DD1ECAQF, DECFX-C12DD1ECAQFW, DECFX-C12DD1EWADFW, DECFX-C12DD1EWAQF, DECFX-C12DD1EWAQFW, DECFX-C12DD1KCAQF, DECFX-C12DD1KCAQFW, DEM24-01TDD1ECAQF, DEM24-01TDD1ECCQF, DEM24-01TDD1EWAQF, DEM24-01TDD1EWCQF, DEM24-01TDD1GCAQF, DEM24-01TDD1GWAQF, DEM24-01TDD1KCAQF, DEM24-01TDD1KCAQL, DEM24-01TDD1KCCDF, DEM24-01TDD1KCCQF, DEM24-01TDD1KWAQF, DEM24-01TDD1KWCDF, DEM24-01TDD1KWCQF, DEM24-64GDD1ECADF, DEM24-64GDD1ECCDF, DEM24-64GDD1EWADF, DEM24-64GDD1EWCDF, DEM24-64GDD1KCCQF, DEM24-64GDD1KWCQF, DEM24-A28DD1ECAQF, DEM24-A28DD1ECCQF, DEM24-A28DD1EWAQF, DEM24-A28DD1EWCQF, DEM24-A28DD1GCADF, DEM24-A28DD1GWADF, DEM24-A28DD1KCADF, DEM24-A28DD1KCADL, DEM24-A28DD1KCCDF, DEM24-A28DD1KCCQF, DEM24-A28DD1KWADF, DEM24-A28DD1KWCDF, DEM24-A28DD1KWCQF, DEM24-B56DD1ECAQF, DEM24-B56DD1ECCQF, DEM24-B56DD1EWAQF, DEM24-B56DD1EWCQF, DEM24-B56DD1GCAQF, DEM24-B56DD1GWAQF, DEM24-B56DD1KCADL, DEM24-B56DD1KCAQF, DEM24-B56DD1KCAQL, DEM24-B56DD1KCCDF, DEM24-B56DD1KCCQF, DEM24-B56DD1KWAQF, DEM24-B56DD1KWCDF, DEM24-B56DD1KWCQF, DEM24-C12DD1ECAQF, DEM24-C12DD1ECCQF, DEM24-C12DD1EWAQF, DEM24-C12DD1EWCQF, DEM24-C12DD1GCAQF, DEM24-C12DD1GWAQF, DEM24-C12DD1KCAQF, DEM24-C12DD1KCAQL, DEM24-C12DD1KCCDF, DEM24-C12DD1KCCQF, DEM24-C12DD1KWAQF, DEM24-C12DD1KWCDF, DEM24-C12DD1KWCQF, DEM28-01TDD1ECAQF, DEM28-01TDD1ECCQF, DEM28-01TDD1EWAQF, DEM28-01TDD1EWCQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-01TDD1KCAQF, DEM28-01TDD1KCAQL, DEM28-01TDD1KCCQF, DEM28-01TDD1KWAQF, DEM28-01TDD1KWCQF, DEM28-01TDD2KWAQF, DEM28-02TDD1ECAQF, DEM28-02TDD1ECCDF, DEM28-02TDD1ECCQF, DEM28-02TDD1EWAQF, DEM28-02TDD1EWCDF, DEM28-02TDD1EWCQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-02TDD1KCAQF, DEM28-02TDD1KCCDF, DEM28-02TDD1KCCQF, DEM28-02TDD1KWAQF, DEM28-02TDD1KWCDF, DEM28-02TDD1KWCQF, DEM28-02TDD2KWAQF, DEM28-64GDD1ECADF, DEM28-64GDD1ECCDF, DEM28-64GDD1EWADF, DEM28-64GDD1EWCDF, DEM28-A28DD1ECAQF, DEM28-A28DD1ECCQF, DEM28-A28DD1EWAQF, DEM28-A28DD1EWCQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-A28DD1KCADF, DEM28-A28DD1KCADL, DEM28-A28DD1KCCDF, DEM28-A28DD1KWADF, DEM28-A28DD1KWCDF, DEM28-A28DD2KWADF, DEM28-B56DD1ECAQF, DEM28-B56DD1ECCQF, DEM28-B56DD1EWAQF, DEM28-B56DD1EWCQF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-B56DD1KCADL, DEM28-B56DD1KCAQF, DEM28-B56DD1KCAQL, DEM28-B56DD1KCCQF, DEM28-B56DD1KWAQF, DEM28-B56DD1KWCQF, DEM28-B56DD2KWAQF, DEM28-C12DD1ECAQF, DEM28-C12DD1ECCQF, DEM28-C12DD1EWAQF, DEM28-C12DD1EWCQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEM28-C12DD1KCAQF, DEM28-C12DD1KCAQL, DEM28-C12DD1KCCQF, DEM28-C12DD1KWAQF, DEM28-C12DD1KWCQF, DEM28-C12DD2KWAQF, DHM24-20GDD1ECCDF, DHM24-20GDD1EWCDF, DHM24-40GDD1ECCQF, DHM24-40GDD1EWCQF, DHM24-80GDD1ECCQF, DHM24-80GDD1EWCQF, DHM24-A60DD1ECCQF, DHM24-A60DD1EWCQF, DHM28-20GDD1ECCDF, DHM28-20GDD1EWCDF, DHM28-40GDD1ECCQF, DHM28-40GDD1EWCQF, DHM28-40GDD1KCADL, DHM28-80GDD1ECCQF, DHM28-80GDD1EWCQF, DHM28-80GDD1KCAQL, DHM28-A60DD1ECCQF, DHM28-A60DD1EWCQF, DHM28-A60DD1KCAQL, DHM28-D2GDD1ECCQF, DHM28-D2GDD1EWCQF
|
| Hinweis Dokument: | Innodisk [EOL_F240043-14] PCIe 3TE6 Controller Series EOL Notice.pdf |
| Product Change Notification (PCN) | |
| Description This PCN is being issued to address that Innodisk M.2 P80/P42 SSD 3TE6 are going to upgrade product firmware (F/W) and add pull high resistors of pin 50 of M.2. And The PCN will affect standard part number only. (Note: KX bics5 cTLC has been effective on F2318) Desc. Note The FW is able to do DLMC from V22620 to V23701 in condition that SSD is regarded as data drive. Summary of Change 1.Improve warm boot flow 2.Optimize PCIe link. 3.Improve power¬on initialization process after abnormal power‐off. 4.Improve linux compatibility(Linux Ubuntu kernel V5.19) 5.Add pull high resistors to the PERST signal on M.2 Pin 50 to comply with PCI Express M.2 specifications Note: Seq. and Rnd. Read of M.2 P42 1TB and M.2 P80 2TB will be lower than previous FW version. | |
| Revision: | F2360 |
| Revision date: | 13. Dezember 2023 |
| Last purchase date: | 22. März 2024 |
| Last shipping date: | |
| Betroffene Produkte: |
DEM24-01TDD1ECAQF, DEM24-01TDD1ECCQF, DEM24-01TDD1EWAQF, DEM24-01TDD1EWCQF, DEM24-01TDD1GCAQF, DEM24-01TDD1GWAQF, DEM24-01TDD1KCAQL, DEM24-01TDD1KWAQF, DEM24-01TDD1KWCDF, DEM24-01TDD1KWCQF, DEM24-64GDD1ECADF, DEM24-64GDD1ECCDF, DEM24-64GDD1EWADF, DEM24-64GDD1EWCDF, DEM24-64GDD1KWCQF, DEM24-A28DD1ECAQF, DEM24-A28DD1ECCQF, DEM24-A28DD1EWAQF, DEM24-A28DD1EWCQF, DEM24-A28DD1GCADF, DEM24-A28DD1GWADF, DEM24-A28DD1KCADL, DEM24-A28DD1KWADF, DEM24-A28DD1KWCDF, DEM24-A28DD1KWCQF, DEM24-B56DD1ECAQF, DEM24-B56DD1ECCQF, DEM24-B56DD1EWAQF, DEM24-B56DD1EWCQF, DEM24-B56DD1GCAQF, DEM24-B56DD1GWAQF, DEM24-B56DD1KCADL, DEM24-B56DD1KCAQL, DEM24-B56DD1KWAQF, DEM24-B56DD1KWCDF, DEM24-B56DD1KWCQF, DEM24-C12DD1ECAQF, DEM24-C12DD1ECCQF, DEM24-C12DD1EWAQF, DEM24-C12DD1EWCQF, DEM24-C12DD1GCAQF, DEM24-C12DD1GWAQF, DEM24-C12DD1KCAQL, DEM24-C12DD1KWAQF, DEM24-C12DD1KWCDF, DEM24-C12DD1KWCQF, DEM28-01TDD1ECAQF, DEM28-01TDD1ECCQF, DEM28-01TDD1EWAQF, DEM28-01TDD1EWCQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-01TDD1KCAQL, DEM28-01TDD1KWAQF, DEM28-01TDD1KWCQF, DEM28-02TDD1ECAQF, DEM28-02TDD1ECCDF, DEM28-02TDD1ECCQF, DEM28-02TDD1EWAQF, DEM28-02TDD1EWCDF, DEM28-02TDD1EWCQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-02TDD1KWAQF, DEM28-02TDD1KWCDF, DEM28-02TDD1KWCQF, DEM28-64GDD1ECADF, DEM28-64GDD1ECCDF, DEM28-64GDD1EWADF, DEM28-64GDD1EWCDF, DEM28-A28DD1ECAQF, DEM28-A28DD1ECCQF, DEM28-A28DD1EWAQF, DEM28-A28DD1EWCQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-A28DD1KCADL, DEM28-A28DD1KWADF, DEM28-A28DD1KWCDF, DEM28-B56DD1ECAQF, DEM28-B56DD1ECCQF, DEM28-B56DD1EWAQF, DEM28-B56DD1EWCQF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-B56DD1KCADL, DEM28-B56DD1KCAQL, DEM28-B56DD1KWAQF, DEM28-B56DD1KWCQF, DEM28-C12DD1ECAQF, DEM28-C12DD1ECCQF, DEM28-C12DD1EWAQF, DEM28-C12DD1EWCQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEM28-C12DD1KCAQL, DEM28-C12DD1KWAQF, DEM28-C12DD1KWCQF
|
| Hinweis Dokument: | [PCN_F2360] Firmware update of 3TE6 series.pdf |
| End of Life (EOL) | |
| Kioxia BiCS4 (96 Layers) Flash Relevant Product Notice NCNR Innodisk hereby announces that we will discontinue all Kioxia BiCS4 (96 Layers) relevant flash products going forward. The products listed below would be phased out of production with milestone dates as below! | |
| Revision: | F2310 |
| Revision date: | 14. Dezember 2023 |
| Last purchase date: | 14. März 2024 |
| Last shipping date: | 14. Juni 2024 |
| Betroffene Produkte: |
DEM24-01TDD1GCAQF, DEM24-01TDD1GWAQF, DEM24-01TDK1GCAQF, DEM24-A28DD1GCADF, DEM24-A28DD1GWADF, DEM24-A28DK1GCADF, DEM24-B56DD1GCAQF, DEM24-B56DD1GWAQF, DEM24-B56DK1GCAQF, DEM24-C12DD1GCAQF, DEM24-C12DD1GWAQF, DEM24-C12DK1GCAQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-01TDK1GCAQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-02TDK1GCAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-A28DK1GCADF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-B56DK1GCAQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEM28-C12DK1GCAQF, DEMSR-01TDK1GCAQF, DEMSR-02TDK1GCAQF, DEMSR-A28DK1GCADF, DEMSR-B56DK1GCAQF, DEMSR-C12DK1GCAQF, DGM28-01TDA1GCAEF, DGM28-01TM71GCBQFS, DGM28-02TDA1GCAEF, DGM28-02TM71GCBQF, DGM28-B56DA1GCAQF, DGM28-B56M71GCAQFS, DGM28-C12DA1GCAEF, DGM28-C12M71GCAQFS, DGMSR-01TM71GCAQF, DGMSR-01TM71GCBQF, DGMSR-02TM71GCAQF, DGMSR-02TM71GCBQF, DGMSR-B56M71GCAQF, DGMSR-B56M71GCBQF, DGMSR-C12M71GCAQF, DGMSR-C12M71GCBQF
|
| Hinweis Dokument: | [EOL_F2310] Kioxia BiCS4 (96 Layers) Flash Relevant Product Notice.pdf |
| Product Change Notification (PCN) | |
| Description This PCN is being issued to address that Innodisk M.2 P80/P42 SSD 3TE6 are going to upgrade product firmware (F/W) and add pull high resistors of pin 50 of M.2. Summary of Change 1.Improve warm boot flow 2.Optimize PCIe link. 3.Improve power¬on initialization process after abnormal power off. 4.Improve linux compability(Linux ubuntu kernel V5.19) 5.Add pull‐high resistors to the PERST signal on M.2 Pin 50 to comply with PCI Express M.2 specifications Note: Seq. and Rnd. read of M.2 P42 1TB and M.2 P80 2TB will be lower than privous FW because of specfic confiruration. | |
| Revision: | F2318 |
| Revision date: | 6. November 2023 |
| Last purchase date: | 8. Dezember 2023 |
| Last shipping date: | |
| Betroffene Produkte: |
DEM24-01TDD1KCAQF, DEM24-01TDD1KCCDF, DEM24-01TDD1KCCQF, DEM24-64GDD1KCCQF, DEM24-A28DD1KCADF, DEM24-A28DD1KCCDF, DEM24-A28DD1KCCQF, DEM24-B56DD1KCAQF, DEM24-B56DD1KCCDF, DEM24-B56DD1KCCQF, DEM24-C12DD1KCAQF, DEM24-C12DD1KCCDF, DEM24-C12DD1KCCQF, DEM28-01TDD1KCAQF, DEM28-01TDD1KCCQF, DEM28-02TDD1KCAQF, DEM28-02TDD1KCCDF, DEM28-02TDD1KCCQF, DEM28-A28DD1KCADF, DEM28-A28DD1KCCDF, DEM28-B56DD1KCAQF, DEM28-B56DD1KCCQF, DEM28-C12DD1KCAQF, DEM28-C12DD1KCCQF
|
| Hinweis Dokument: | [PCN_F2318] Firmware update of 3TE6 series (KX Bics5 cTLC).pdf |
| Product Change Notification (PCN) | |
| Description: This PCN is being issued to address that Innodisk PCIe 3TE6 Series are going to have product firmware (F/W) update. And FW version will be V22620 Summary of Change 1.Optimize bad block management 2.Optimize block refresh condition 3.Improve trim efficiency 4.Imporve read retry flow 5.Support New linux OS 6.Optimize Download micro code condition 7.Support New NAND composition | |
| Revision: | F2241 |
| Revision date: | 26. September 2022 |
| Last purchase date: | 6. Januar 2023 |
| Last shipping date: | |
| Betroffene Produkte: |
DECFX-01TDD1ECADFW, DECFX-01TDD1ECAQF, DECFX-01TDD1ECAQFW, DECFX-01TDD1EWADFW, DECFX-01TDD1EWAQF, DECFX-01TDD1EWAQFW, DECFX-01TDD1KCAQF, DECFX-01TDD1KCAQFW, DECFX-64GDD1ECADF, DECFX-64GDD1ECADFW, DECFX-64GDD1ECAQFW, DECFX-64GDD1EWADF, DECFX-64GDD1EWADFW, DECFX-64GDD1EWAQFW, DECFX-A28DD1ECADFW, DECFX-A28DD1ECAQF, DECFX-A28DD1ECAQFW, DECFX-A28DD1EWADFW, DECFX-A28DD1EWAQF, DECFX-A28DD1EWAQFW, DECFX-A28DD1KCADF, DECFX-A28DD1KCADFW, DECFX-A28DD1KCAQFW, DECFX-B56DD1ECADFW, DECFX-B56DD1ECAQF, DECFX-B56DD1ECAQFW, DECFX-B56DD1EWADFW, DECFX-B56DD1EWAQF, DECFX-B56DD1EWAQFW, DECFX-B56DD1KCAQF, DECFX-B56DD1KCAQFW, DECFX-C12DD1ECADFW, DECFX-C12DD1ECAQF, DECFX-C12DD1ECAQFW, DECFX-C12DD1EWADFW, DECFX-C12DD1EWAQF, DECFX-C12DD1EWAQFW, DECFX-C12DD1KCAQF, DECFX-C12DD1KCAQFW, DEM24-01TDD1ECAQF, DEM24-01TDD1ECCQF, DEM24-01TDD1EWAQF, DEM24-01TDD1EWCQF, DEM24-01TDD1GCAQF, DEM24-01TDD1GWAQF, DEM24-01TDD1KCAQF, DEM24-01TDD1KCCDF, DEM24-01TDD1KCCQF, DEM24-64GDD1ECADF, DEM24-64GDD1ECCDF, DEM24-64GDD1EWADF, DEM24-64GDD1EWCDF, DEM24-64GDD1KCCDF, DEM24-64GDD1KCCQF, DEM24-A28DD1ECAQF, DEM24-A28DD1ECCQF, DEM24-A28DD1EWAQF, DEM24-A28DD1EWCQF, DEM24-A28DD1GCADF, DEM24-A28DD1GWADF, DEM24-A28DD1KCADF, DEM24-A28DD1KCCDF, DEM24-A28DD1KCCQF, DEM24-B56DD1ECAQF, DEM24-B56DD1ECCQF, DEM24-B56DD1EWAQF, DEM24-B56DD1EWCQF, DEM24-B56DD1GCAQF, DEM24-B56DD1GWAQF, DEM24-B56DD1KCAQF, DEM24-B56DD1KCCDF, DEM24-B56DD1KCCQF, DEM24-C12DD1ECAQF, DEM24-C12DD1ECCQF, DEM24-C12DD1EWAQF, DEM24-C12DD1EWCQF, DEM24-C12DD1GCAQF, DEM24-C12DD1GWAQF, DEM24-C12DD1KCAQF, DEM24-C12DD1KCCDF, DEM24-C12DD1KCCQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-01TDD1KCADF, DEM28-01TDD1KCAQF, DEM28-01TDD1KCCQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-02TDD1KCAQF, DEM28-02TDD1KCCDF, DEM28-02TDD1KCCQF, DEM28-64GDD1KCADF, DEM28-64GDD1KCAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-A28DD1KCADF, DEM28-A28DD1KCAQF, DEM28-A28DD1KCCDF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-B56DD1KCADF, DEM28-B56DD1KCAQF, DEM28-B56DD1KCCQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEM28-C12DD1KCADF, DEM28-C12DD1KCAQF, DEM28-C12DD1KCCQF
|
| Hinweis Dokument: | [PCN_F2241] PCIe 3TE6 Firmware Update.pdf |
| Product Change Notification (PCN) | |
| Power IC and Thermal sensor Substituting PCBassembly Adoption v1 Description: Due to shortage of power ICs and thermal sensor, Innodisk will adopt substituting PCBassembly into our BOMs. Product families affected are listed in following table with implementation dates. This PCN will affect all part numbers including standard and customized ones. Summary of Change Adopt substituting PCBassembly with new power ICs and thermal sensor into our BOMs. 1. Add substituting material RICHTEK RT5753 and ADI 3309 for Power IC TI TPS62827DMQR. 2. Add substituting material Novosense NST112DSTR for thermal sensor Microchip MCP98244TBE/MNY. | |
| Revision: | F22151 |
| Revision date: | 20. Juni 2022 |
| Last purchase date: | |
| Last shipping date: | 22. Juli 2022 |
| Betroffene Produkte: |
DECFX-01TDD1ECADFW, DECFX-01TDD1ECAQF, DECFX-01TDD1ECAQFW, DECFX-01TDD1EWADFW, DECFX-01TDD1EWAQF, DECFX-01TDD1EWAQFW, DECFX-01TDD1KCAQF, DECFX-01TDD1KCAQFW, DECFX-64GDD1ECADF, DECFX-64GDD1ECADFW, DECFX-64GDD1ECAQFW, DECFX-64GDD1EWADF, DECFX-64GDD1EWADFW, DECFX-64GDD1EWAQFW, DECFX-A28DD1ECADFW, DECFX-A28DD1ECAQF, DECFX-A28DD1ECAQFW, DECFX-A28DD1EWADFW, DECFX-A28DD1EWAQF, DECFX-A28DD1EWAQFW, DECFX-A28DD1KCADF, DECFX-A28DD1KCADFW, DECFX-A28DD1KCAQFW, DECFX-B56DD1ECADFW, DECFX-B56DD1ECAQF, DECFX-B56DD1ECAQFW, DECFX-B56DD1EWADFW, DECFX-B56DD1EWAQF, DECFX-B56DD1EWAQFW, DECFX-B56DD1KCAQF, DECFX-B56DD1KCAQFW, DECFX-C12DD1ECADFW, DECFX-C12DD1ECAQF, DECFX-C12DD1ECAQFW, DECFX-C12DD1EWADFW, DECFX-C12DD1EWAQF, DECFX-C12DD1EWAQFW, DECFX-C12DD1KCAQF, DECFX-C12DD1KCAQFW, DEM28-01TDD1ECAQF, DEM28-01TDD1EWAQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-02TDD1ECAQF, DEM28-02TDD1EWAQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-64GDD1ECADF, DEM28-64GDD1EWADF, DEM28-A28DD1ECAQF, DEM28-A28DD1EWAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-B56DD1ECAQF, DEM28-B56DD1EWAQF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-C12DD1ECAQF, DEM28-C12DD1EWAQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF
|
| Hinweis Dokument: | PCN_F2215-1 Power IC and Thermal sensor Substituting PCB-assembly Adoption - v1.pdf |
| Product Change Notification (PCN) | |
| Description: Due to worldwide shortage of power ICs, Innodisk will adopt substituting PCBassembly into our BOMs. Product families affected are listed in following table with implementation dates. This PCN will affect all part numbers including standard and customized ones. Summary of Change 1. Add substituting material RICHTEK RT5753 for Power IC SILERGY SY8011BDQC & TI TLV62085RLTR. 2. Add substituting material TOREX XCL214 for Power IC SILERGY SY8011BDQC. | |
| Revision: | F2149 |
| Revision date: | 5. November 2021 |
| Last purchase date: | |
| Last shipping date: | |
| Betroffene Produkte: |
CFast 3IE4, CFast 3ME4, DECFA-04GD06SC4DB, DECFA-04GD06SCBDB, DECFA-04GD06SW4DB, DECFA-04GD06SWBDB, DECFA-04GD09AC1SB, DECFA-04GD09AW1SB, DECFA-08GD06SCBQB, DECFA-08GD06SCCQB, DECFA-08GD06SCEDB, DECFA-08GD06SCEQB, DECFA-08GD06SWBQB, DECFA-08GD06SWCQB, DECFA-08GD06SWEDB, DECFA-08GD06SWEQB, DECFA-08GD09AC1DB, DECFA-08GD09AW1DB, DECFA-08GD09BC1SC, DECFA-08GD09BW1SC, DECFA-08GM41BC1SC, DECFA-08GM41BW1SC, DECFA-16GD06SCBQB, DECFA-16GD06SWBQB, DECFA-16GD09BC1DC, DECFA-16GD09BC1SC, DECFA-16GD09BW1DC, DECFA-16GD09BW1SC, DECFA-16GM41BC1DC, DECFA-16GM41BC1SC, DECFA-16GM41BW1DC, DECFA-16GM41BW1SC, DECFA-32GD06SCBQB, DECFA-32GD06SWBQB, DECFA-32GD09BC1DC, DECFA-32GD09BW1DC, DECFA-32GM41BC1DC, DECFA-32GM41BW1DC, DECFA-64GD06SCBQB, DECFA-64GD06SWBQB, DECFA-64GD09BC1DC, DECFA-64GD09BW1DC, DECFA-64GM41BC1DC, DECFA-64GM41BW1DC, DECFA-A28D09BC1DC, DECFA-A28D09BW1DC, DECFA-A28M41BC1DC, DECFA-A28M41BW1DC, DECFA-B56D09BC1DC, DECFA-B56D09BW1DC, DECFA-B56M41BC1DC, DECFA-B56M41BW1DC, DEM24-04GD09SCADB, DEM24-04GD09SWADB, DEM24-08GD09BC1SC, DEM24-08GD09BW1SC, DEM24-08GD09SCADB, DEM24-08GD09SWADB, DEM24-08GM41BC1SC, DEM24-08GM41BW1SC, DEM24-08GM41SCADB, DEM24-08GM41SWADB, DEM24-16GD09BC1DC, DEM24-16GD09BC1SC, DEM24-16GD09BW1DC, DEM24-16GD09BW1SC, DEM24-16GD09SCADB, DEM24-16GD09SWADB, DEM24-16GM41BC1DC, DEM24-16GM41BC1SC, DEM24-16GM41BW1DC, DEM24-16GM41BW1SC, DEM24-16GM41SCADB, DEM24-16GM41SWADB, DEM24-32GD09BC1DC, DEM24-32GD09BW1DC, DEM24-32GD09SCADB, DEM24-32GD09SWADB, DEM24-32GM41BC1DC, DEM24-32GM41BW1DC, DEM24-32GM41SCADB, DEM24-32GM41SWADB, DEM24-64GD09BC1DC, DEM24-64GD09BW1DC, DEM24-64GM41BC1DC, DEM24-64GM41BW1DC, DEM24-64GM41SCADB, DEM24-64GM41SWADB, DEM24-A28D09BC1DC, DEM24-A28D09BW1DC, DEM24-A28M41BC1DC, DEM24-A28M41BW1DC, DEM24-B56M41BCADC, DEM24-B56M41BWADC, DEM26-32GD08BCADC, DEM26-32GD08BWADC, DEM26-64GD08BCAQC, DEM26-64GD08BWAQC, DEM26-A28D08BCAQC, DEM26-A28D08BWAQC, DEM26-B56D08BCAQC, DEM26-B56D08BWAQC, DEM26-C12D08BCAQC, DEM26-C12D08BWAQC, DEM28-01TDD1ECAQF, DEM28-01TDD1EWAQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-02TDD1ECAQF, DEM28-02TDD1EWAQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-08GD82SCADB, DEM28-08GD82SWADB, DEM28-08GM41BC1SC, DEM28-08GM41BW1SC, DEM28-08GM41SCADB, DEM28-08GM41SWADB, DEM28-16GD82SCAQB, DEM28-16GD82SWAQB, DEM28-16GM41BC1SC, DEM28-16GM41BW1SC, DEM28-16GM41SCADB, DEM28-16GM41SWADB, DEM28-32GD82SCAQB, DEM28-32GD82SWAQB, DEM28-32GM41BC1DC, DEM28-32GM41BW1DC, DEM28-32GM41SCADB, DEM28-32GM41SWADB, DEM28-64GD82SCAQB, DEM28-64GD82SWAQB, DEM28-64GDD1ECADF, DEM28-64GDD1EWADF, DEM28-64GM41BC1DC, DEM28-64GM41BW1DC, DEM28-64GM41SCADB, DEM28-64GM41SWADB, DEM28-A28D82SCAQB, DEM28-A28D82SWAQB, DEM28-A28DD1ECAQF, DEM28-A28DD1EWAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-A28M41BC1DC, DEM28-A28M41BW1DC, DEM28-B56D82SCAQB, DEM28-B56D82SWAQB, DEM28-B56DD1ECAQF, DEM28-B56DD1EWAQF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-B56M41BC1DC, DEM28-B56M41BW1DC, DEM28-C12DD1ECAQF, DEM28-C12DD1EWAQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEMLM-08GD09BC1SC, DEMLM-08GD09BW1SC, DEMLM-08GM41BC1SC, DEMLM-08GM41BW1SC, DEMLM-16GD09BC1DC, DEMLM-16GD09BC1SC, DEMLM-16GD09BW1DC, DEMLM-16GD09BW1SC, DEMLM-16GM41BC1DC, DEMLM-16GM41BC1SC, DEMLM-16GM41BW1DC, DEMLM-16GM41BW1SC, DEMLM-32GD09BC1DC, DEMLM-32GD09BW1DC, DEMLM-32GM41BC1DC, DEMLM-32GM41BW1DC, DEMLM-64GM41BC1DC, DEMLM-64GM41BW1DC, DEMLM-A28M41BC1DC, DEMLM-A28M41BW1DC, DEMLM-B56M41BC1DC, DEMLM-B56M41BW1DC, DEMSM-08GM41BC1SC, DEMSM-08GM41BW1SC, DEMSM-08GM41SCADB, DEMSM-08GM41SWADB, DEMSM-16GM41BC1DC, DEMSM-16GM41BC1SC, DEMSM-16GM41BW1DC, DEMSM-16GM41BW1SC, DEMSM-16GM41SCADB, DEMSM-16GM41SWADB, DEMSM-32GM41BC1DC, DEMSM-32GM41BW1DC, DEMSM-32GM41SCADB, DEMSM-32GM41SWADB, DEMSM-64GM41BC1DC, DEMSM-64GM41BW1DC, DEMSM-64GM41SCADB, DEMSM-64GM41SWADB, DEMSM-A28M41BC1DC, DEMSM-A28M41BW1DC, DEMSR-01GD07AC2SB, DEMSR-01GD07AW2SB, DEMSR-02GD07AC2DB, DEMSR-02GD07AW2DB, DEMSR-04GD06SCBDB, DEMSR-04GD06SWBDB, DEMSR-04GD08SCASB, DEMSR-04GD08SWASB, DEMSR-04GD09AC1SB, DEMSR-04GD09AW1SB, DEMSR-08GD06SCBQB, DEMSR-08GD06SWBQB, DEMSR-08GD08SCADB, DEMSR-08GD08SWADB, DEMSR-08GD09AC1DB, DEMSR-08GD09AW1DB, DEMSR-08GD09BC2SC, DEMSR-08GD09BW2SC, DEMSR-08GM41BC1SC, DEMSR-08GM41BW1SC, DEMSR-08GM41SCADB, DEMSR-08GM41SWADB, DEMSR-16GD06SCBQB, DEMSR-16GD06SWBQB, DEMSR-16GD08AC1QB, DEMSR-16GD08AW1QB, DEMSR-16GD08SCAQB, DEMSR-16GD08SWAQB, DEMSR-16GD09BC2DC, DEMSR-16GD09BC2SC, DEMSR-16GD09BW2DC, DEMSR-16GD09BW2SC, DEMSR-16GM41BC1DC, DEMSR-16GM41BC1SC, DEMSR-16GM41BW1DC, DEMSR-16GM41BW1SC, DEMSR-16GM41SCADB, DEMSR-16GM41SWADB, DEMSR-32GD06SCBQB, DEMSR-32GD06SWBQB, DEMSR-32GD08BC1QC, DEMSR-32GD08BW1QC, DEMSR-32GD08SCAQB, DEMSR-32GD08SWAQB, DEMSR-32GD09BC2DC, DEMSR-32GD09BW2DC, DEMSR-32GM41BC1DC, DEMSR-32GM41BW1DC, DEMSR-32GM41SCADB, DEMSR-32GM41SWADB, DEMSR-64GD06SCBQB, DEMSR-64GD06SWBQB, DEMSR-64GD08BC1QC, DEMSR-64GD08BW1QC, DEMSR-64GD08SCAQB, DEMSR-64GD08SWAQB, DEMSR-64GD09BC2DC, DEMSR-64GD09BW2DC, DEMSR-64GM41BC1DC, DEMSR-64GM41BW1DC, DEMSR-64GM41SCADB, DEMSR-64GM41SWADB, DEMSR-A28D08BC1QC, DEMSR-A28D08BW1QC, DEMSR-A28D08SCAQB, DEMSR-A28D08SWAQB, DEMSR-A28D09BC2DC, DEMSR-A28D09BW2DC, DEMSR-A28M41BC1DC, DEMSR-A28M41BW1DC, DEMSR-B56D08BC1QC, DEMSR-B56D08BW1QC, DEMSR-B56M41BC1DC, DEMSR-B56M41BW1DC, DEMSR-C12D08BCBQC, DEMSR-C12D08BWBQC, DES25-01TDK1EC1QF, DES25-01TDK1EW1QF, DES25-01TDK1GC1QL, DES25-01TDK1GW1QL, DES25-01TDK1KCCQF, DES25-02TDK1GCAQL, DES25-02TDK1GWAQL, DES25-02TDK1KCCQF, DES25-08GD06SCCQB, DES25-08GD06SWCQB, DES25-08GD09BC1SC, DES25-08GD09BW1SC, DES25-08GD67SCCQB, DES25-08GD67SCCQBP, DES25-08GD67SWCQB, DES25-08GD67SWCQBP, DES25-08GD82SCAQB, DES25-08GD82SCAQBP, DES25-08GD82SWAQB, DES25-08GD82SWAQBP, DES25-08GM41BC1SC, DES25-08GM41BW1SC, DES25-08GM41SCADB, DES25-08GM41SWADB, DES25-16GD06SCCQB, DES25-16GD06SWCQB, DES25-16GD09BC1DC, DES25-16GD09BC1SC, DES25-16GD09BW1DC, DES25-16GD09BW1SC, DES25-16GD67SCCQB, DES25-16GD67SCCQBP, DES25-16GD67SWCQB, DES25-16GD67SWCQBP, DES25-16GD82SCAQB, DES25-16GD82SCAQBP, DES25-16GD82SWAQB, DES25-16GD82SWAQBP, DES25-16GM41BC1DC, DES25-16GM41BC1SC, DES25-16GM41BW1DC, DES25-16GM41BW1SC, DES25-16GM41SCADB, DES25-16GM41SWADB, DES25-32GD06SCCQB, DES25-32GD06SWCQB, DES25-32GD09BC1DC, DES25-32GD09BW1DC, DES25-32GD67SCCQB, DES25-32GD67SCCQBP, DES25-32GD67SWCQB, DES25-32GD67SWCQBP, DES25-32GD82SCAQB, DES25-32GD82SCAQBP, DES25-32GD82SWAQB, DES25-32GD82SWAQBP, DES25-32GDK1EC3SF, DES25-32GDK1EW3SF, DES25-32GM41BC1DC, DES25-32GM41BW1DC, DES25-32GM41SCADB, DES25-32GM41SWADB, DES25-64GD67SCCQB, DES25-64GD67SCCQBP, DES25-64GD67SWCQB, DES25-64GD67SWCQBP, DES25-64GD82SCAQB, DES25-64GD82SCAQBP, DES25-64GD82SWAQB, DES25-64GD82SWAQBP, DES25-64GDK1EC3DF, DES25-64GDK1EW3DF, DES25-64GM41BC1DC, DES25-64GM41BW1DC, DES25-64GM41SCADB, DES25-64GM41SWADB, DES25-A28D67SCCQB, DES25-A28D67SCCQBP, DES25-A28D67SWCQB, DES25-A28D67SWCQBP, DES25-A28D82SCAQB, DES25-A28D82SCAQBP, DES25-A28D82SWAQB, DES25-A28D82SWAQBP, DES25-A28DK1EC3QF, DES25-A28DK1EW3QF, DES25-A28DK1KCCDF, DES25-A28M41BC1DC, DES25-A28M41BW1DC, DES25-B56D67SCCQB, DES25-B56D67SCCQBP, DES25-B56D67SWCQB, DES25-B56D67SWCQBP, DES25-B56D82SCAQB, DES25-B56D82SCAQBP, DES25-B56D82SWAQB, DES25-B56D82SWAQBP, DES25-B56DK1EC3QF, DES25-B56DK1EW3QF, DES25-B56DK1GC3QL, DES25-B56DK1GW3QL, DES25-B56DK1KCCQF, DES25-B56M41BC1DC, DES25-B56M41BW1DC, DES25-C12DK1EC3QF, DES25-C12DK1EW3QF, DES25-C12DK1GC3QL, DES25-C12DK1GW3QL, DES25-C12DK1KCCQF, DESLM-01TDK1ECAQF, DESLM-01TDK1EWAQF, DESLM-04GD06SCBDB, DESLM-04GD06SWBDB, DESLM-08GD06SCBQB, DESLM-08GD06SWBQB, DESLM-08GD08SCAQB, DESLM-08GD08SWAQB, DESLM-08GD09BC1SC, DESLM-08GD09BW1SC, DESLM-08GM41BC1SC, DESLM-08GM41BW1SC, DESLM-08GM41SCADB, DESLM-08GM41SWADB, DESLM-16GD06SCBQB, DESLM-16GD06SWBQB, DESLM-16GD08SCAQB, DESLM-16GD08SWAQB, DESLM-16GD09BC1DC, DESLM-16GD09BC1SC, DESLM-16GD09BW1DC, DESLM-16GD09BW1SC, DESLM-16GM41BC1DC, DESLM-16GM41BC1SC, DESLM-16GM41BW1DC, DESLM-16GM41BW1SC, DESLM-16GM41SCADB, DESLM-16GM41SWADB, DESLM-32GD06SCBQB, DESLM-32GD06SWBQB, DESLM-32GD08BC1QC, DESLM-32GD08BW1QC, DESLM-32GD08SCAQB, DESLM-32GD08SWAQB, DESLM-32GD09BC1DC, DESLM-32GD09BW1DC, DESLM-32GDK1EC1SF, DESLM-32GDK1EW1SF, DESLM-32GM41BC1DC, DESLM-32GM41BW1DC, DESLM-32GM41SCADB, DESLM-32GM41SWADB, DESLM-64GD06SCBQB, DESLM-64GD06SWBQB, DESLM-64GD08BC1QC, DESLM-64GD08BW1QC, DESLM-64GD08SCAQB, DESLM-64GD08SWAQB, DESLM-64GDK1EC1DF, DESLM-64GDK1EW1DF, DESLM-64GM41BC1DC, DESLM-64GM41BW1DC, DESLM-64GM41SCADB, DESLM-64GM41SWADB, DESLM-A28D06SCBQB, DESLM-A28D06SWBQB, DESLM-A28D08BC1QC, DESLM-A28D08BW1QC, DESLM-A28D08SCAQB, DESLM-A28D08SWAQB, DESLM-A28DK1EC1QF, DESLM-A28DK1EW1QF, DESLM-A28M41BC1DC, DESLM-A28M41BW1DC, DESLM-B56D08BC1QC, DESLM-B56D08BW1QC, DESLM-B56DK1EC1QF, DESLM-B56DK1EW1QF, DESLM-B56M41BC1DC, DESLM-B56M41BW1DC, DESLM-C12DK1EC1QF, DESLM-C12DK1EW1QF, DESSC-01GD07AC1SB, DESSC-01GD07AC1SBF, DESSC-01GD07AC2SB, DESSC-01GD07AC2SBF, DESSC-01GD07AW1SB, DESSC-01GD07AW1SBF, DESSC-01GD07AW2SB, DESSC-01GD07AW2SBF, DESSC-02GD07AC1SB, DESSC-02GD07AC1SBF, DESSC-02GD07AC2SB, DESSC-02GD07AC2SBF, DESSC-02GD07AW1SB, DESSC-02GD07AW1SBF, DESSC-02GD07AW2SB, DESSC-02GD07AW2SBF, DESSC-04GD07SC2SB, DESSC-04GD07SC2SBF, DESSC-04GD07SCADB, DESSC-04GD07SCADBF, DESSC-04GD07SW2SB, DESSC-04GD07SW2SBF, DESSC-04GD07SWADB, DESSC-04GD07SWADBF, DESSC-04GD09SCADBA, DESSC-04GD09SCADBB, DESSC-04GD09SWADBA, DESSC-04GD09SWADBB, DESSC-08GD07SCADB, DESSC-08GD07SCADBF, DESSC-08GD07SWADB, DESSC-08GD07SWADBF, DESSC-08GD09BC1SC, DESSC-08GD09BC1SCF, DESSC-08GD09BW1SC, DESSC-08GD09BW1SCF, DESSC-08GD09SCADBA, DESSC-08GD09SCADBB, DESSC-08GD09SWADBA, DESSC-08GD09SWADBB, DESSC-16GD07SCADB, DESSC-16GD07SCADBF, DESSC-16GD07SWADB, DESSC-16GD07SWADBF, DESSC-16GD09BC1SC, DESSC-16GD09BC1SCF, DESSC-16GD09BW1SC, DESSC-16GD09BW1SCF, DESSC-16GD09SCADBA, DESSC-16GD09SCADBB, DESSC-16GD09SWADBA, DESSC-16GD09SWADBB, DESSC-32GD07SCADB, DESSC-32GD07SCADBF, DESSC-32GD07SWADB, DESSC-32GD07SWADBF, DESSC-32GD09BC1SC, DESSC-32GD09BC1SCF, DESSC-32GD09BW1SC, DESSC-32GD09BW1SCF, DESSC-32GD09SCADBA, DESSC-32GD09SCADBB, DESSC-32GD09SWADBA, DESSC-32GD09SWADBB, DESSC-64GD09BCADC, DESSC-64GD09BCADCF, DESSC-64GD09BWADC, DESSC-64GD09BWADCF, DESSC-A28D09BCADC, DESSC-A28D09BCADCF, DESSC-A28D09BWADC, DESSC-A28D09BWADCF, DESSF-01GD07AC1SB, DESSF-01GD07AC1SBF, DESSF-01GD07AC2SB, DESSF-01GD07AC2SBF, DESSF-01GD07AW1SB, DESSF-01GD07AW1SBF, DESSF-01GD07AW2SB, DESSF-01GD07AW2SBF, DESSF-02GD07AC1SB, DESSF-02GD07AC1SBF, DESSF-02GD07AC2SB, DESSF-02GD07AC2SBF, DESSF-02GD07AW1SB, DESSF-02GD07AW1SBF, DESSF-02GD07AW2SB, DESSF-02GD07AW2SBF, DESSF-04GD07SC2SB, DESSF-04GD07SC2SBF, DESSF-04GD07SCADB, DESSF-04GD07SCADBF, DESSF-04GD07SW2SB, DESSF-04GD07SW2SBF, DESSF-04GD07SWADB, DESSF-04GD07SWADBF, DESSF-04GD09SCADBA, DESSF-04GD09SCADBB, DESSF-04GD09SWADBA, DESSF-04GD09SWADBB, DESSF-08GD07SCADB, DESSF-08GD07SCADBF, DESSF-08GD07SWADB, DESSF-08GD07SWADBF, DESSF-08GD09BC1SC, DESSF-08GD09BC1SCF, DESSF-08GD09BW1SC, DESSF-08GD09BW1SCF, DESSF-08GD09SCADBA, DESSF-08GD09SCADBB, DESSF-08GD09SWADBA, DESSF-08GD09SWADBB, DESSF-16GD07SCADB, DESSF-16GD07SCADBF, DESSF-16GD07SWADB, DESSF-16GD07SWADBF, DESSF-16GD09BC1SC, DESSF-16GD09BC1SCF, DESSF-16GD09BW1SC, DESSF-16GD09BW1SCF, DESSF-16GD09SCADBA, DESSF-16GD09SCADBB, DESSF-16GD09SWADBA, DESSF-16GD09SWADBB, DESSF-32GD07SCADB, DESSF-32GD07SCADBF, DESSF-32GD07SWADB, DESSF-32GD07SWADBF, DESSF-32GD09BC1SC, DESSF-32GD09BC1SCF, DESSF-32GD09BW1SC, DESSF-32GD09BW1SCF, DESSF-32GD09SCADBA, DESSF-32GD09SCADBB, DESSF-32GD09SWADBA, DESSF-32GD09SWADBB, DESSF-64GD09BCADC, DESSF-64GD09BCADCF, DESSF-64GD09BWADC, DESSF-64GD09BWADCF, DESSF-A28D09BCADC, DESSF-A28D09BCADCF, DESSF-A28D09BWADC, DESSF-A28D09BWADCF, DESSH-01GD07AC1SB, DESSH-01GD07AC1SBF, DESSH-01GD07AC2SB, DESSH-01GD07AC2SBF, DESSH-01GD07AW1SB, DESSH-01GD07AW1SBF, DESSH-01GD07AW2SB, DESSH-01GD07AW2SBF, DESSH-02GD07AC1SB, DESSH-02GD07AC1SBF, DESSH-02GD07AC2SB, DESSH-02GD07AC2SBF, DESSH-02GD07AW1SB, DESSH-02GD07AW1SBF, DESSH-02GD07AW2SB, DESSH-02GD07AW2SBF, DESSH-04GD07SC2SB, DESSH-04GD07SC2SBF, DESSH-04GD07SCADB, DESSH-04GD07SCADBF, DESSH-04GD07SW2SB, DESSH-04GD07SW2SBF, DESSH-04GD07SWADB, DESSH-04GD07SWADBF, DESSH-04GD09SCADBA, DESSH-04GD09SCADBB, DESSH-04GD09SWADBA, DESSH-04GD09SWADBB, DESSH-08GD07SCADB, DESSH-08GD07SCADBF, DESSH-08GD07SWADB, DESSH-08GD07SWADBF, DESSH-08GD09BC1SC, DESSH-08GD09BC1SCA, DESSH-08GD09BC1SCB, DESSH-08GD09BC1SCF, DESSH-08GD09BW1SC, DESSH-08GD09BW1SCA, DESSH-08GD09BW1SCB, DESSH-08GD09BW1SCF, DESSH-08GD09SCADBA, DESSH-08GD09SCADBB, DESSH-08GD09SWADBA, DESSH-08GD09SWADBB, DESSH-16GD07SCADB, DESSH-16GD07SCADBF, DESSH-16GD07SWADB, DESSH-16GD07SWADBF, DESSH-16GD09BC1SC, DESSH-16GD09BC1SCA, DESSH-16GD09BC1SCB, DESSH-16GD09BC1SCF, DESSH-16GD09BW1SC, DESSH-16GD09BW1SCA, DESSH-16GD09BW1SCB, DESSH-16GD09BW1SCF, DESSH-16GD09SCADBA, DESSH-16GD09SCADBB, DESSH-16GD09SWADBA, DESSH-16GD09SWADBB, DESSH-32GD07SCADB, DESSH-32GD07SCADBF, DESSH-32GD07SWADB, DESSH-32GD07SWADBF, DESSH-32GD09BC1SC, DESSH-32GD09BC1SCA, DESSH-32GD09BC1SCB, DESSH-32GD09BC1SCF, DESSH-32GD09BW1SC, DESSH-32GD09BW1SCA, DESSH-32GD09BW1SCB, DESSH-32GD09BW1SCF, DESSH-32GD09SCADBA, DESSH-32GD09SCADBB, DESSH-32GD09SWADBA, DESSH-32GD09SWADBB, DESSH-64GD09BCADC, DESSH-64GD09BCADCA, DESSH-64GD09BCADCB, DESSH-64GD09BCADCF, DESSH-64GD09BWADC, DESSH-64GD09BWADCA, DESSH-64GD09BWADCB, DESSH-64GD09BWADCF, DESSH-A28D09BCADC, DESSH-A28D09BCADCA, DESSH-A28D09BCADCB, DESSH-A28D09BCADCF, DESSH-A28D09BWADC, DESSH-A28D09BWADCA, DESSH-A28D09BWADCB, DESSH-A28D09BWADCF, DESSL-01GD07AC1SB, DESSL-01GD07AC1SBF, DESSL-01GD07AC2SB, DESSL-01GD07AC2SBF, DESSL-01GD07AW1SB, DESSL-01GD07AW1SBF, DESSL-01GD07AW2SB, DESSL-01GD07AW2SBF, DESSL-02GD07AC1SB, DESSL-02GD07AC1SBF, DESSL-02GD07AC2SB, DESSL-02GD07AC2SBF, DESSL-02GD07AW1SB, DESSL-02GD07AW1SBF, DESSL-02GD07AW2SB, DESSL-02GD07AW2SBF, DESSL-04GD07SC2SB, DESSL-04GD07SC2SBF, DESSL-04GD07SCADB, DESSL-04GD07SCADBF, DESSL-04GD07SW2SB, DESSL-04GD07SW2SBF, DESSL-04GD07SWADB, DESSL-04GD07SWADBF, DESSL-04GD09SCADBA, DESSL-04GD09SCADBB, DESSL-04GD09SWADBA, DESSL-04GD09SWADBB, DESSL-08GD07SCADB, DESSL-08GD07SCADBF, DESSL-08GD07SWADB, DESSL-08GD07SWADBF, DESSL-08GD09BC1SC, DESSL-08GD09BC1SCA, DESSL-08GD09BC1SCB, DESSL-08GD09BC1SCF, DESSL-08GD09BW1SC, DESSL-08GD09BW1SCA, DESSL-08GD09BW1SCB, DESSL-08GD09BW1SCF, DESSL-08GD09SCADBA, DESSL-08GD09SCADBB, DESSL-08GD09SWADBA, DESSL-08GD09SWADBB, DESSL-16GD07SCADB, DESSL-16GD07SCADBF, DESSL-16GD07SWADB, DESSL-16GD07SWADBF, DESSL-16GD09BC1SC, DESSL-16GD09BC1SCA, DESSL-16GD09BC1SCB, DESSL-16GD09BC1SCF, DESSL-16GD09BW1SC, DESSL-16GD09BW1SCA, DESSL-16GD09BW1SCB, DESSL-16GD09BW1SCF, DESSL-16GD09SCADBA, DESSL-16GD09SCADBB, DESSL-16GD09SWADBA, DESSL-16GD09SWADBB, DESSL-32GD07SCADB, DESSL-32GD07SCADBF, DESSL-32GD07SWADB, DESSL-32GD07SWADBF, DESSL-32GD09BC1SC, DESSL-32GD09BC1SCA, DESSL-32GD09BC1SCB, DESSL-32GD09BC1SCF, DESSL-32GD09BW1SC, DESSL-32GD09BW1SCA, DESSL-32GD09BW1SCB, DESSL-32GD09BW1SCF, DESSL-32GD09SCADBA, DESSL-32GD09SCADBB, DESSL-32GD09SWADBA, DESSL-32GD09SWADBB, DESSL-64GD09BCADC, DESSL-64GD09BCADCF, DESSL-64GD09BCBDCA, DESSL-64GD09BCBDCB, DESSL-64GD09BWADC, DESSL-64GD09BWADCF, DESSL-64GD09BWBDCA, DESSL-64GD09BWBDCB, DESSL-A28D09BCADC, DESSL-A28D09BCADCF, DESSL-A28D09BCBDCA, DESSL-A28D09BCBDCB, DESSL-A28D09BWADC, DESSL-A28D09BWADCF, DESSL-A28D09BWBDCA, DESSL-A28D09BWBDCB, DESSV-01GD07AC1SB, DESSV-01GD07AC1SBF, DESSV-01GD07AC2SB, DESSV-01GD07AC2SBF, DESSV-01GD07AW1SB, DESSV-01GD07AW1SBF, DESSV-01GD07AW2SB, DESSV-01GD07AW2SBF, DESSV-02GD07AC1SB, DESSV-02GD07AC1SBF, DESSV-02GD07AC2SB, DESSV-02GD07AC2SBF, DESSV-02GD07AW1SB, DESSV-02GD07AW1SBF, DESSV-02GD07AW2SB, DESSV-02GD07AW2SBF, DESSV-04GD07SC2SB, DESSV-04GD07SC2SBF, DESSV-04GD07SCADB, DESSV-04GD07SCADBF, DESSV-04GD07SW2DB, DESSV-04GD07SW2SBF, DESSV-04GD07SWADB, DESSV-04GD07SWADBF, DESSV-04GD09SCADBA, DESSV-04GD09SCADBB, DESSV-04GD09SWADBA, DESSV-04GD09SWADBB, DESSV-08GD07SCADB, DESSV-08GD07SCADBF, DESSV-08GD07SWADB, DESSV-08GD07SWADBF, DESSV-08GD09BC1SC, DESSV-08GD09BC1SCA, DESSV-08GD09BC1SCB, DESSV-08GD09BC1SCF, DESSV-08GD09BW1SC, DESSV-08GD09BW1SCA, DESSV-08GD09BW1SCB, DESSV-08GD09BW1SCF, DESSV-08GD09SC1SC, DESSV-08GD09SC1SCF, DESSV-08GD09SCADBA, DESSV-08GD09SCADBB, DESSV-08GD09SW1SC, DESSV-08GD09SW1SCF, DESSV-08GD09SWADBA, DESSV-08GD09SWADBB, DESSV-16GD07SCADB, DESSV-16GD07SCADBF, DESSV-16GD07SWADB, DESSV-16GD07SWADBF, DESSV-16GD09BC1SC, DESSV-16GD09BC1SCA, DESSV-16GD09BC1SCB, DESSV-16GD09BC1SCF, DESSV-16GD09BW1SC, DESSV-16GD09BW1SCA, DESSV-16GD09BW1SCB, DESSV-16GD09BW1SCF, DESSV-16GD09SC1SC, DESSV-16GD09SC1SCF, DESSV-16GD09SCADBA, DESSV-16GD09SCADBB, DESSV-16GD09SW1SC, DESSV-16GD09SW1SCF, DESSV-16GD09SWADBA, DESSV-16GD09SWADBB, DESSV-32GD07SCADB, DESSV-32GD07SCADBF, DESSV-32GD07SWADB, DESSV-32GD07SWADBF, DESSV-32GD09BC1SC, DESSV-32GD09BC1SCA, DESSV-32GD09BC1SCB, DESSV-32GD09BC1SCF, DESSV-32GD09BW1SC, DESSV-32GD09BW1SCA, DESSV-32GD09BW1SCB, DESSV-32GD09BW1SCF, DESSV-32GD09SC1SC, DESSV-32GD09SC1SCF, DESSV-32GD09SCADBA, DESSV-32GD09SCADBB, DESSV-32GD09SW1SC, DESSV-32GD09SW1SCF, DESSV-32GD09SWADBA, DESSV-32GD09SWADBB, DESSV-64GD09BCADC, DESSV-64GD09BCADCA, DESSV-64GD09BCADCB, DESSV-64GD09BCADCF, DESSV-64GD09BWADC, DESSV-64GD09BWADCA, DESSV-64GD09BWADCB, DESSV-64GD09BWADCF, DESSV-64GD09SCADC, DESSV-64GD09SCADCF, DESSV-64GD09SWADC, DESSV-64GD09SWADCF, DESSV-A28D09BCADC, DESSV-A28D09BCADCA, DESSV-A28D09BCADCB, DESSV-A28D09BCADCF, DESSV-A28D09BWADC, DESSV-A28D09BWADCA, DESSV-A28D09BWADCB, DESSV-A28D09BWADCF, DESSV-A28D09SCADC, DESSV-A28D09SCADCF, DESSV-A28D09SWADC, DESSV-A28D09SWADCF, DEUA1-04GI61SCASB, DEUA1-04GI61SWASB, DEUA1-08GI61BC1SC, DEUA1-08GI61BC2SC, DEUA1-08GI61BW1SC, DEUA1-08GI61BW2SC, DEUA1-08GI61SCASB, DEUA1-08GI61SWASB, DEUA1-16GI61BC1SC, DEUA1-16GI61BC2SC, DEUA1-16GI61BW1SC, DEUA1-16GI61BW2SC, DEUA1-16GI61SCASB, DEUA1-16GI61SWASB, DEUA1-32GI61BC1SC, DEUA1-32GI61BC2SC, DEUA1-32GI61BW1SC, DEUA1-32GI61BW2SC, DEUA1-32GI61SCASB, DEUA1-32GI61SWASB, DEUA1-64GI61BC1SC, DEUA1-64GI61BC2SC, DEUA1-64GI61BW1SC, DEUA1-64GI61BW2SC, DGCFA-32GD81BCADC, DGCFA-32GD81BWADC, DGCFA-64GD81BCAQC, DGCFA-64GD81BWAQC, DGCFA-A28D81BCAQC, DGCFA-A28D81BWAQC, DGCFA-B56D81BCAQC, DGCFA-B56D81BWAQC, DGM28-01TD81BCBQC, DGM28-01TD81BWBQC, DGM28-01TD82BCBQC, DGM28-01TD82BWBQC, DGM28-01TM71ECAQF, DGM28-01TM71ECBQFS, DGM28-01TM71EWAQF, DGM28-01TM71EWBQFS, DGM28-01TM71GCBQFS, DGM28-01TM71KCBQF, DGM28-02TM71ECAQF, DGM28-02TM71EWAQF, DGM28-02TM71GCBQF, DGM28-02TM71KCBQF, DGM28-32GD81BCBDC, DGM28-32GD81BWBDC, DGM28-32GD82BCBDC, DGM28-32GD82BWBDC, DGM28-64GD81BCBQC, DGM28-64GD81BWBQC, DGM28-64GD82BCBQC, DGM28-64GD82BWBQC, DGM28-A28D81BCBQC, DGM28-A28D81BWBQC, DGM28-A28D82BCBQC, DGM28-A28D82BWBQC, DGM28-A28M71EC1QF, DGM28-A28M71ECBQFS, DGM28-A28M71EW1QF, DGM28-A28M71EWBQFS, DGM28-A28M71KCBDFS, DGM28-B56D81BCBQC, DGM28-B56D81BWBQC, DGM28-B56D82BCBQC, DGM28-B56D82BWBQC, DGM28-B56M71EC1QF, DGM28-B56M71ECBQFS, DGM28-B56M71EW1QF, DGM28-B56M71EWBQFS, DGM28-B56M71GCAQFS, DGM28-B56M71KCBQFS, DGM28-C12D81BCBQC, DGM28-C12D81BWBQC, DGM28-C12D82BCBQC, DGM28-C12D82BWBQC, DGM28-C12M71EC1QF, DGM28-C12M71ECBQFS, DGM28-C12M71EW1QF, DGM28-C12M71EWBQFS, DGM28-C12M71GCAQFS, DGM28-C12M71KCBQF, DGS18-01TM71EC1QF, DGS18-01TM71EC1QFP, DGS18-01TM71EC2QF, DGS18-01TM71EC2QFP, DGS18-01TM71EW1QF, DGS18-01TM71EW1QFP, DGS18-01TM71EW2QF, DGS18-01TM71EW2QFP, DGS18-A28M71EC1QF, DGS18-A28M71EC1QFP, DGS18-A28M71EC2QF, DGS18-A28M71EC2QFP, DGS18-A28M71EW1QF, DGS18-A28M71EW1QFP, DGS18-A28M71EW2QF, DGS18-A28M71EW2QFP, DGS18-B56M71EC1QF, DGS18-B56M71EC1QFP, DGS18-B56M71EC2QF, DGS18-B56M71EC2QFP, DGS18-B56M71EW1QF, DGS18-B56M71EW1QFP, DGS18-B56M71EW2QF, DGS18-B56M71EW2QFP, DGS18-C12M71EC1QF, DGS18-C12M71EC1QFP, DGS18-C12M71EC2QF, DGS18-C12M71EC2QFP, DGS18-C12M71EW1QF, DGS18-C12M71EW1QFP, DGS18-C12M71EW2QF, DGS18-C12M71EW2QFP, DGS25-01TD81BCAQC, DGS25-01TM71EC1QF, DGS25-01TM71EW1QF, DGS25-01TM71KCAQF, DGS25-01TM72EC1QF, DGS25-01TM72EW1QF, DGS25-02TM71ECAQF, DGS25-02TM71EWAQF, DGS25-02TM71KCAQF, DGS25-02TM72ECAQF, DGS25-02TM72EWAQF, DGS25-04TM71KCAQF, DGS25-A28M71EC1QF, DGS25-A28M71EC3QF, DGS25-A28M71EW1QF, DGS25-A28M71EW3QF, DGS25-A28M71KCCDF, DGS25-A28M72EC1QF, DGS25-A28M72EC3QF, DGS25-A28M72EW1QF, DGS25-A28M72EW3QF, DGS25-B56M71EC1QF, DGS25-B56M71EC3QF, DGS25-B56M71EW1QF, DGS25-B56M71EW3QF, DGS25-B56M71KCCQF, DGS25-B56M72EC1QF, DGS25-B56M72EC3QF, DGS25-B56M72EW1QF, DGS25-B56M72EW3QF, DGS25-C12M71EC1QF, DGS25-C12M71EC3QF, DGS25-C12M71EW1QF, DGS25-C12M71EW3QF, DGS25-C12M71KCCQF, DGS25-C12M72EC1QF, DGS25-C12M72EC3QF, DGS25-C12M72EW1QF, DGS25-C12M72EW3QF, DGSLM-08GD81BC1SC, DGSLM-08GD81BW1SC, DGSLM-16GD81BC1DC, DGSLM-16GD81BC1SC, DGSLM-16GD81BW1DC, DGSLM-16GD81BW1SC, DGSLM-32GD81BC1DC, DGSLM-32GD81BC1QC, DGSLM-32GD81BW1DC, DGSLM-32GD81BW1QC, DGSLM-32GD81SCADN, DGSLM-32GD81SWADN, DGSLM-32GD82BC1QC, DGSLM-32GD82BW1QC, DGSLM-64GD81BC1QC, DGSLM-64GD81BW1QC, DGSLM-64GD81SCAQN, DGSLM-64GD81SWAQN, DGSLM-64GD82BC1QC, DGSLM-64GD82BW1QC, DGSLM-A28D81BC1QC, DGSLM-A28D81BW1QC, DGSLM-A28D82BC1QC, DGSLM-A28D82BW1QC, DGSLM-B56D81BC1QC, DGSLM-B56D81BW1QC, DGSLM-B56D82BC1QC, DGSLM-B56D82BW1QC, DGSLM-C12D81BCAQC, DGSLM-C12D81BWAQC, DGSML-32GD81BCBDCA, DGSML-32GD81BCBDCB, DGSML-32GD81BWBDCA, DGSML-32GD81BWBDCB, DGSML-64GD81BCBQCA, DGSML-64GD81BCBQCB, DGSML-64GD81BWBQCA, DGSML-64GD81BWBQCB, DGSML-A28D81BCBQCA, DGSML-A28D81BCBQCB, DGSML-A28D81BWBQCA, DGSML-A28D81BWBQCB, DGSML-B56D81BCBQCA, DGSML-B56D81BCBQCB, DGSML-B56D81BWBQCA, DGSML-B56D81BWBQCB, DHCFA-08GD09BC1DC, DHCFA-08GD09BC1SC, DHCFA-08GD09BW1DC, DHCFA-08GD09BW1SC, DHCFA-08GM41BC1DC, DHCFA-08GM41BC1SC, DHCFA-08GM41BW1DC, DHCFA-08GM41BW1SC, DHCFA-16GD09BC1DC, DHCFA-16GD09BW1DC, DHCFA-16GM41BC1DC, DHCFA-16GM41BW1DC, DHCFA-32GD09BC1DC, DHCFA-32GD09BW1DC, DHCFA-32GM41BC1DC, DHCFA-32GM41BW1DC, DHCFA-64GD09BC1DC, DHCFA-64GD09BW1DC, DHCFA-64GM41BC1DC, DHCFA-64GM41BW1DC, DHCFA-A28D09BC1DC, DHCFA-A28D09BW1DC, DHCFA-A28M41BC1DC, DHCFA-A28M41BW1DC, DHM24-08GM41BC1DC, DHM24-08GM41BC1SC, DHM24-08GM41BW1DC, DHM24-08GM41BW1SC, DHM24-16GM41BC1DC, DHM24-16GM41BW1DC, DHM24-32GM41BC1DC, DHM24-32GM41BW1DC, DHM24-64GM41BC1DC, DHM24-64GM41BW1DC, DHM24-A28M41BCADC, DHM24-A28M41BWADC, DHM28-08GM41BC1DC, DHM28-08GM41BC1SC, DHM28-08GM41BW1DC, DHM28-08GM41BW1SC, DHM28-16GM41BC1DC, DHM28-16GM41BC1SC, DHM28-16GM41BW1DC, DHM28-16GM41BW1SC, DHM28-32GD81BCBQC, DHM28-32GD81BWBQC, DHM28-32GM41BC1DC, DHM28-32GM41BW1DC, DHM28-64GD81BCBQC, DHM28-64GD81BWBQC, DHM28-64GM41BC1DC, DHM28-64GM41BW1DC, DHM28-A28D81BCBQC, DHM28-A28D81BWBQC, DHM28-A28M41BC1DC, DHM28-A28M41BW1DC, DHM28-B56D81BCBQC, DHM28-B56D81BWBQC, DHM28-C12D81BCBQC, DHM28-C12D81BWBQC, DHMSM-08GM41BC1DC, DHMSM-08GM41BC1SC, DHMSM-08GM41BW1DC, DHMSM-08GM41BW1SC, DHMSM-16GM41BC1DC, DHMSM-16GM41BW1DC, DHMSM-32GM41BC1DC, DHMSM-32GM41BW1DC, DHMSM-64GM41BC1DC, DHMSM-64GM41BW1DC, DHMSR-08GM41BC1DC, DHMSR-08GM41BC1SC, DHMSR-08GM41BW1DC, DHMSR-08GM41BW1SC, DHMSR-16GM41BC1DC, DHMSR-16GM41BW1DC, DHMSR-32GM41BC1DC, DHMSR-32GM41BW1DC, DHMSR-64GM41BC1DC, DHMSR-64GM41BW1DC, DHMSR-A28M41BC1DC, DHMSR-A28M41BW1DC, DHS25-01TD81BCAQC, DHS25-01TD81BWAQC, DHS25-01TD82BCQCP, DHS25-01TD82BWQCP, DHS25-08GD09BC1DC, DHS25-08GD09BC1SC, DHS25-08GD09BW1DC, DHS25-08GD09BW1SC, DHS25-08GD81BC1DCP, DHS25-08GD81BC3DC, DHS25-08GD81BW1DCP, DHS25-08GD81BW3DC, DHS25-08GD82BCDP, DHS25-08GD82BCDQP, DHS25-08GD82BWDCP, DHS25-08GD82BWDQP, DHS25-08GM41BC1DC, DHS25-08GM41BC1SC, DHS25-08GM41BW1DC, DHS25-08GM41BW1SC, DHS25-16GD09BC1DC, DHS25-16GD09BW1DC, DHS25-16GD81BC1DCP, DHS25-16GD81BC1QCP, DHS25-16GD81BC3DC, DHS25-16GD81BC3QC, DHS25-16GD81BW1DCP, DHS25-16GD81BW1QCP, DHS25-16GD81BW3DC, DHS25-16GD81BW3QC, DHS25-16GD82BCQCP, DHS25-16GD82BWQCP, DHS25-16GM41BC1DC, DHS25-16GM41BW1DC, DHS25-20GDK1EC3DF, DHS25-20GDK1EW3DF, DHS25-32GD81BC1QC, DHS25-32GD81BC1QCP, DHS25-32GD81BC3QC, DHS25-32GD81BC3QCP, DHS25-32GD81BW1QC, DHS25-32GD81BW1QCP, DHS25-32GD81BW3QC, DHS25-32GD82BCQCP, DHS25-32GD82BWQCP, DHS25-32GM41BC1DC, DHS25-32GM41BW1DC, DHS25-40GDK1EC3QF, DHS25-40GDK1EW3QF, DHS25-64GD81BC1QC, DHS25-64GD81BC1QCP, DHS25-64GD81BC3QC, DHS25-64GD81BW1QC, DHS25-64GD81BW1QCP, DHS25-64GD81BW3QC, DHS25-64GD82BCQCP, DHS25-64GD82BWQCP, DHS25-64GM41BC1DC, DHS25-64GM41BW1DC, DHS25-80GDK1EC3QF, DHS25-80GDK1EW3QF, DHS25-A28D81BC1QCP, DHS25-A28D81BC3QC, DHS25-A28D81BW1QCP, DHS25-A28D81BW3QC, DHS25-A28D82BCQCP, DHS25-A28D82BWQCP, DHS25-A28M41BC1DC, DHS25-A28M41BW1DC, DHS25-A60DK1EC3QF, DHS25-A60DK1EW3QF, DHS25-B56D81BC1QC, DHS25-B56D81BC1QCP, DHS25-B56D81BW1QC, DHS25-B56D81BW1QCP, DHS25-B56D82BCQCP, DHS25-B56D82BWQCP, DHS25-C12D81BCAQC, DHS25-C12D81BCAQCP, DHS25-C12D81BWAQC, DHS25-C12D81BWAQCP, DHS25-C12D82BCQCP, DHS25-C12D82BWQCP, DHS25-D2GDK1EC1QF, DHS25-D2GDK1EW1QF, DHSLM-08GM41BC1DC, DHSLM-08GM41BC1SC, DHSLM-08GM41BW1DC, DHSLM-08GM41BW1SC, DHSLM-16GM41BC1DC, DHSLM-16GM41BW1DC, DHSLM-32GM41BC1DC, DHSLM-32GM41BW1DC, DHSLM-64GM41BC1DC, DHSLM-64GM41BW1DC, DHSLM-A28M41BC1DC, DHSLM-A28M41BW1DC, DHSSH-08GD09BC1SCA, DHSSH-08GD09BC1SCB, DHSSH-08GD09BW1SCA, DHSSH-08GD09BW1SCB, DHSSH-16GD09BC1SCA, DHSSH-16GD09BC1SCB, DHSSH-16GD09BW1SCA, DHSSH-16GD09BW1SCB, DHSSH-32GD09BCADCA, DHSSH-32GD09BCADCB, DHSSH-32GD09BWADCA, DHSSH-32GD09BWADCB, DHSSH-64GD09BCADCA, DHSSH-64GD09BCADCB, DHSSH-64GD09BWADCA, DHSSH-64GD09BWADCB, DHSSL-08GD09BC1SCA, DHSSL-08GD09BC1SCB, DHSSL-08GD09BW1SCA, DHSSL-08GD09BW1SCB, DHSSL-16GD09BC1SCA, DHSSL-16GD09BC1SCB, DHSSL-16GD09BW1SCA, DHSSL-16GD09BW1SCB, DHSSL-32GD09BCBDCA, DHSSL-32GD09BCBDCB, DHSSL-32GD09BWBDCA, DHSSL-32GD09BWBDCB, DHSSL-64GD09BCBDCA, DHSSL-64GD09BCBDCB, DHSSL-64GD09BWBDCA, DHSSL-64GD09BWBDCB, DHSSV-08GD09BC1SCA, DHSSV-08GD09BC1SCB, DHSSV-08GD09BW1SCA, DHSSV-08GD09BW1SCB, DHSSV-16GD09BC1SCA, DHSSV-16GD09BC1SCB, DHSSV-16GD09BW1SCA, DHSSV-16GD09BW1SCB, DHSSV-32GD09BC1SCA, DHSSV-32GD09BC1SCB, DHSSV-32GD09BCADCA, DHSSV-32GD09BCADCB, DHSSV-32GD09BW1SCA, DHSSV-32GD09BW1SCB, DHSSV-32GD09BWADCA, DHSSV-32GD09BWADCB, DHSSV-64GD09BCADCA, DHSSV-64GD09BCADCB, DHSSV-64GD09BWADCA, DHSSV-64GD09BWADCB, DRS25-01TD81BCAQCP, DRS25-01TD81BWAQCP, DRS25-01TD82BCAQCP, DRS25-01TD82BWAQCP, DRS25-01TM72EC1QFP, DRS25-01TM72EW1QFP, DRS25-02TM72ECAQFP, DRS25-02TM72EWAQFP, DRS25-08GD70SCAQB, DRS25-08GD70SWAQB, DRS25-08GD81BC1SCP, DRS25-08GD81BW1SCP, DRS25-08GD82BC1SCP, DRS25-08GD82BW1SCP, DRS25-16GD70SCAQB, DRS25-16GD70SWAQB, DRS25-16GD81BC1SCP, DRS25-16GD81BW1SCP, DRS25-16GD82BC1SCP, DRS25-16GD82BW1SCP, DRS25-32GD70SCAQB, DRS25-32GD70SWAQB, DRS25-32GD81BC1DCP, DRS25-32GD81BC1QCP, DRS25-32GD81BW1DCP, DRS25-32GD81BW1QCP, DRS25-32GD82BC1DCP, DRS25-32GD82BC1QCP, DRS25-32GD82BW1DCP, DRS25-32GD82BW1QCP, DRS25-64GD70BCAQC, DRS25-64GD70BWAQC, DRS25-64GD70SCAQB, DRS25-64GD70SWAQB, DRS25-64GD81BC1QCP, DRS25-64GD81BW1QCP, DRS25-64GD82BC1QCP, DRS25-64GD82BW1QCP, DRS25-A28D70BCAQC, DRS25-A28D70BWAQC, DRS25-A28D70SCAQB, DRS25-A28D70SWAQB, DRS25-A28D81BC1QCP, DRS25-A28D81BW1QCP, DRS25-A28D82BC1QCP, DRS25-A28D82BW1QCP, DRS25-A28M72EC1QFP, DRS25-A28M72EW1QFP, DRS25-B56D70BCAQC, DRS25-B56D70BWAQC, DRS25-B56D70SCAQB, DRS25-B56D70SWAQB, DRS25-B56D81BC1QCP, DRS25-B56D81BW1QCP, DRS25-B56D82BC1QCP, DRS25-B56D82BW1QCP, DRS25-B56M72EC1QFP, DRS25-B56M72EW1QFP, DRS25-C12D70BCAQC, DRS25-C12D70BWAQC, DRS25-C12D70SCAQT, DRS25-C12D70SWAQT, DRS25-C12D81BC1QCP, DRS25-C12D81BW1QCP, DRS25-C12D82BC1QCP, DRS25-C12D82BW1QCP, DRS25-C12M72EC1QFP, DRS25-C12M72EW1QFP, DSM28-08GM413C1SC, DSM28-08GM413W1SC, DSM28-16GM413C1SC, DSM28-16GM413W1SC, DSM28-32GD813CAQC, DSM28-32GD813WAQC, DSM28-32GM413C1DC, DSM28-32GM413W1DC, DSM28-64GD813CAQC, DSM28-64GD813WAQC, DSM28-64GM413C1DC, DSM28-64GM413W1DC, DSM28-A28D813CAQC, DSM28-A28D813WAQC, DSM28-A28M413C1DC, DSM28-A28M413W1DC, DSM28-B56D813CAQC, DSM28-B56D813WAQC, DSM28-C12D813CAQC, DSM28-C12D813WAQC, DSSML-16GD813CBDCA, DSSML-16GD813CBDCB, DSSML-16GD813WBDCA, DSSML-16GD813WBDCB, DSSML-32GD813CBQCA, DSSML-32GD813CBQCB, DSSML-32GD813WBQCA, DSSML-32GD813WBQCB, DSSML-64GD813CBQCA, DSSML-64GD813CBQCB, DSSML-64GD813WBQCA, DSSML-64GD813WBQCB, DSSML-A28D813CBQCA, DSSML-A28D813CBQCB, DSSML-A28D813WBQCA, DSSML-A28D813WBQCB, DVCFA-32GD81BCADC, DVCFA-32GD81BWADC, DVCFA-64GD81BCAQC, DVCFA-64GD81BWAQC, DVCFA-A28D81BCAQC, DVCFA-A28D81BWAQC, DVCFA-B56D81BCAQC, DVCFA-B56D81BWAQC, DVM28-01TD81BCAQC, DVM28-01TD81BWAQC, DVM28-64GD81BCAQC, DVM28-64GD81BWAQC, DVM28-A28D81BCAQC, DVM28-A28D81BWAQC, DVM28-B56D81BCAQC, DVM28-B56D81BWAQC, DVM28-C12D81BCAQC, DVM28-C12D81BWAQC, DVS25-01TD81BCAQC, DVS25-01TD81BCAQCP, DVS25-01TD81BWAQC, DVS25-01TD81BWAQCP, DVS25-02TD81BCAQC, DVS25-02TD81BWAQC, DVS25-08GD81BC1SC, DVS25-08GD81BC1SCP, DVS25-08GD81BW1SC, DVS25-08GD81BW1SCP, DVS25-16GD81BC1DC, DVS25-16GD81BC1SCP, DVS25-16GD81BW1DC, DVS25-16GD81BW1SCP, DVS25-32GD81BC1QC, DVS25-32GD81BC1QCP, DVS25-32GD81BW1QC, DVS25-32GD81BW1QCP, DVS25-64GD81BC1QC, DVS25-64GD81BC1QCP, DVS25-64GD81BW1QC, DVS25-64GD81BW1QCP, DVS25-A28D81BC1QC, DVS25-A28D81BC1QCP, DVS25-A28D81BW1QC, DVS25-A28D81BW1QCP, DVS25-B56D81BC1QC, DVS25-B56D81BC1QCP, DVS25-B56D81BW1QC, DVS25-B56D81BW1QCP, DVS25-C12D81BC1QC, DVS25-C12D81BC1QCP, DVS25-C12D81BW1QC, DVS25-C12D81BW1QCP, DVSLM-08GD81BC1SC, DVSLM-08GD81BW1SC, DVSLM-16GD81BC1DC, DVSLM-16GD81BC1SC, DVSLM-16GD81BW1DC, DVSLM-16GD81BW1SC, DVSLM-32GD81BC1DC, DVSLM-32GD81BC1QC, DVSLM-32GD81BW1DC, DVSLM-32GD81BW1QC, DVSLM-64GD81BC1QC, DVSLM-64GD81BW1QC, DVSLM-A28D81BC1QC, DVSLM-A28D81BW1QC, DVSLM-B56D81BC1QC, DVSLM-B56D81BW1QC, DVSLM-C12D81BCAQC, DVSLM-C12D81BWAQC
|
| Hinweis Dokument: | [PCN_F2149] Power IC Substituting PCB-Assembly Adoption.pdf |
| Product Change Notification (PCN) | |
| Due to worldwide shortage of power ICs, Innodisk will adopt substituting PCBassembly into our BOMs. All product families affected are listed in following table. This PCN will affect all part numbers including standard and customized ones. Summary of Change 1. Add substituting material RICHTEK RT5753 for Power IC SILERGY SY8011BDQC & TI TLV62085RLTR. 2. Add substituting material TOREX XCL214 for Power IC SILERGY SY8011BDQC. | |
| Revision: | F2146 |
| Revision date: | 19. Oktober 2021 |
| Last purchase date: | 22. November 2021 |
| Last shipping date: | |
| Betroffene Produkte: |
M.2 (S42) 3IE4, DECFA-04GD06SC4DB, DECFA-04GD06SCBDB, DECFA-04GD06SW4DB, DECFA-04GD06SWBDB, DECFA-08GD06SCBQB, DECFA-08GD06SCCQB, DECFA-08GD06SCEDB, DECFA-08GD06SCEQB, DECFA-08GD06SWBQB, DECFA-08GD06SWCQB, DECFA-08GD06SWEDB, DECFA-08GD06SWEQB, DECFA-08GM41BC1SC, DECFA-08GM41BW1SC, DECFA-08GM41SCADB, DECFA-08GM41SWADB, DECFA-16GD06SCBQB, DECFA-16GD06SWBQB, DECFA-16GM41BC1DC, DECFA-16GM41BC1SC, DECFA-16GM41BW1DC, DECFA-16GM41BW1SC, DECFA-16GM41SCADB, DECFA-16GM41SWADB, DECFA-32GD06SCBQB, DECFA-32GD06SWBQB, DECFA-32GM41BC1DC, DECFA-32GM41BW1DC, DECFA-32GM41SCADB, DECFA-32GM41SWADB, DECFA-64GD06SCBQB, DECFA-64GD06SWBQB, DECFA-64GM41BC1DC, DECFA-64GM41BW1DC, DECFA-64GM41SCADB, DECFA-64GM41SWADB, DECFA-A28M41BC1DC, DECFA-A28M41BW1DC, DECFA-B56M41BC1DC, DECFA-B56M41BW1DC, DEM24-08GM41BC1SC, DEM24-08GM41BW1SC, DEM24-08GM41SCADB, DEM24-08GM41SWADB, DEM24-16GM41BC1DC, DEM24-16GM41BC1SC, DEM24-16GM41BW1DC, DEM24-16GM41BW1SC, DEM24-16GM41SCADB, DEM24-16GM41SWADB, DEM24-32GM41BC1DC, DEM24-32GM41BW1DC, DEM24-32GM41SCADB, DEM24-32GM41SWADB, DEM24-64GM41BC1DC, DEM24-64GM41BW1DC, DEM24-64GM41SCADB, DEM24-64GM41SWADB, DEM24-A28M41BC1DC, DEM24-A28M41BW1DC, DEM24-B56M41BCADC, DEM24-B56M41BWADC, DEM28-01TDD1ECAQF, DEM28-01TDD1EWAQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-02TDD1ECAQF, DEM28-02TDD1EWAQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-08GM41BC1SC, DEM28-08GM41BW1SC, DEM28-08GM41SCADB, DEM28-08GM41SWADB, DEM28-16GM41BC1SC, DEM28-16GM41BW1SC, DEM28-16GM41SCADB, DEM28-16GM41SWADB, DEM28-32GM41BC1DC, DEM28-32GM41BW1DC, DEM28-32GM41SCADB, DEM28-32GM41SWADB, DEM28-64GDD1ECADF, DEM28-64GDD1EWADF, DEM28-64GM41BC1DC, DEM28-64GM41BW1DC, DEM28-64GM41SCADB, DEM28-64GM41SWADB, DEM28-A28DD1ECAQF, DEM28-A28DD1EWAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-A28M41BC1DC, DEM28-A28M41BW1DC, DEM28-B56DD1ECAQF, DEM28-B56DD1EWAQF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-B56M41BC1DC, DEM28-B56M41BW1DC, DEM28-C12DD1ECAQF, DEM28-C12DD1EWAQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF, DEMLM-08GM41BC1SC, DEMLM-08GM41BW1SC, DEMLM-16GM41BC1DC, DEMLM-16GM41BC1SC, DEMLM-16GM41BW1DC, DEMLM-16GM41BW1SC, DEMLM-32GM41BC1DC, DEMLM-32GM41BW1DC, DEMLM-64GM41BC1DC, DEMLM-64GM41BW1DC, DEMLM-A28M41BC1DC, DEMLM-A28M41BW1DC, DEMLM-B56M41BC1DC, DEMLM-B56M41BW1DC, DEMSM-08GM41BC1SC, DEMSM-08GM41BW1SC, DEMSM-08GM41SCADB, DEMSM-08GM41SWADB, DEMSM-16GM41BC1DC, DEMSM-16GM41BC1SC, DEMSM-16GM41BW1DC, DEMSM-16GM41BW1SC, DEMSM-16GM41SCADB, DEMSM-16GM41SWADB, DEMSM-32GM41BC1DC, DEMSM-32GM41BW1DC, DEMSM-32GM41SCADB, DEMSM-32GM41SWADB, DEMSM-64GM41BC1DC, DEMSM-64GM41BW1DC, DEMSM-64GM41SCADB, DEMSM-64GM41SWADB, DEMSM-A28M41BC1DC, DEMSM-A28M41BW1DC, DEMSR-08GM41BC1SC, DEMSR-08GM41BW1SC, DEMSR-08GM41SCADB, DEMSR-08GM41SWADB, DEMSR-16GM41BC1DC, DEMSR-16GM41BC1SC, DEMSR-16GM41BW1DC, DEMSR-16GM41BW1SC, DEMSR-16GM41SCADB, DEMSR-16GM41SWADB, DEMSR-32GM41BC1DC, DEMSR-32GM41BW1DC, DEMSR-32GM41SCADB, DEMSR-32GM41SWADB, DEMSR-64GM41BC1DC, DEMSR-64GM41BW1DC, DEMSR-64GM41SCADB, DEMSR-64GM41SWADB, DEMSR-A28M41BC1DC, DEMSR-A28M41BW1DC, DEMSR-B56M41BC1DC, DEMSR-B56M41BW1DC, DES25-01TDK1EC1QF, DES25-01TDK1EW1QF, DES25-01TDK1GC1QL, DES25-01TDK1GW1QL, DES25-01TDK1KCCQF, DES25-02TDK1GCAQL, DES25-02TDK1GWAQL, DES25-02TDK1KCCQF, DES25-08GD82SCAQB, DES25-08GD82SCAQBP, DES25-08GD82SWAQB, DES25-08GD82SWAQBP, DES25-08GM41BC1SC, DES25-08GM41BW1SC, DES25-08GM41SCADB, DES25-08GM41SWADB, DES25-16GD82SCAQB, DES25-16GD82SCAQBP, DES25-16GD82SWAQB, DES25-16GD82SWAQBP, DES25-16GM41BC1DC, DES25-16GM41BC1SC, DES25-16GM41BW1DC, DES25-16GM41BW1SC, DES25-16GM41SCADB, DES25-16GM41SWADB, DES25-32GD82SCAQB, DES25-32GD82SCAQBP, DES25-32GD82SWAQB, DES25-32GD82SWAQBP, DES25-32GDK1EC3SF, DES25-32GDK1EW3SF, DES25-32GM41BC1DC, DES25-32GM41BW1DC, DES25-32GM41SCADB, DES25-32GM41SWADB, DES25-64GD82SCAQB, DES25-64GD82SCAQBP, DES25-64GD82SWAQB, DES25-64GD82SWAQBP, DES25-64GDK1EC3DF, DES25-64GDK1EW3DF, DES25-64GM41BC1DC, DES25-64GM41BW1DC, DES25-64GM41SCADB, DES25-64GM41SWADB, DES25-A28D82SCAQB, DES25-A28D82SCAQBP, DES25-A28D82SWAQB, DES25-A28D82SWAQBP, DES25-A28DK1EC3QF, DES25-A28DK1EW3QF, DES25-A28DK1KCCDF, DES25-A28M41BC1DC, DES25-A28M41BW1DC, DES25-B56D82SCAQB, DES25-B56D82SCAQBP, DES25-B56D82SWAQB, DES25-B56D82SWAQBP, DES25-B56DK1EC3QF, DES25-B56DK1EW3QF, DES25-B56DK1GC3QL, DES25-B56DK1GW3QL, DES25-B56DK1KCCQF, DES25-B56M41BC1DC, DES25-B56M41BW1DC, DES25-C12DK1EC3QF, DES25-C12DK1EW3QF, DES25-C12DK1GC3QL, DES25-C12DK1GW3QL, DES25-C12DK1KCCQF, DESLM-01TDK1ECAQF, DESLM-01TDK1EWAQF, DESLM-08GM41BC1SC, DESLM-08GM41BW1SC, DESLM-08GM41SCADB, DESLM-08GM41SWADB, DESLM-16GM41BC1DC, DESLM-16GM41BC1SC, DESLM-16GM41BW1DC, DESLM-16GM41BW1SC, DESLM-16GM41SCADB, DESLM-16GM41SWADB, DESLM-32GDK1EC1SF, DESLM-32GDK1EW1SF, DESLM-32GM41BC1DC, DESLM-32GM41BW1DC, DESLM-32GM41SCADB, DESLM-32GM41SWADB, DESLM-64GDK1EC1DF, DESLM-64GDK1EW1DF, DESLM-64GM41BC1DC, DESLM-64GM41BW1DC, DESLM-64GM41SCADB, DESLM-64GM41SWADB, DESLM-A28DK1EC1QF, DESLM-A28DK1EW1QF, DESLM-A28M41BC1DC, DESLM-A28M41BW1DC, DESLM-B56DK1EC1QF, DESLM-B56DK1EW1QF, DESLM-B56M41BC1DC, DESLM-B56M41BW1DC, DESLM-C12DK1EC1QF, DESLM-C12DK1EW1QF, DESSC-01GD07AC1SB, DESSC-01GD07AC1SBF, DESSC-01GD07AC2SB, DESSC-01GD07AC2SBF, DESSC-01GD07AW1SB, DESSC-01GD07AW1SBF, DESSC-01GD07AW2SB, DESSC-01GD07AW2SBF, DESSC-02GD07AC1SB, DESSC-02GD07AC1SBF, DESSC-02GD07AC2SB, DESSC-02GD07AC2SBF, DESSC-02GD07AW1SB, DESSC-02GD07AW1SBF, DESSC-02GD07AW2SB, DESSC-02GD07AW2SBF, DESSC-04GD07SC2SB, DESSC-04GD07SC2SBF, DESSC-04GD07SCADB, DESSC-04GD07SCADBF, DESSC-04GD07SW2SB, DESSC-04GD07SW2SBF, DESSC-04GD07SWADB, DESSC-04GD07SWADBF, DESSC-08GD07SCADB, DESSC-08GD07SCADBF, DESSC-08GD07SWADB, DESSC-08GD07SWADBF, DESSC-16GD07SCADB, DESSC-16GD07SCADBF, DESSC-16GD07SWADB, DESSC-16GD07SWADBF, DESSC-32GD07SCADB, DESSC-32GD07SCADBF, DESSC-32GD07SWADB, DESSC-32GD07SWADBF, DESSF-01GD07AC1SB, DESSF-01GD07AC1SBF, DESSF-01GD07AC2SB, DESSF-01GD07AC2SBF, DESSF-01GD07AW1SB, DESSF-01GD07AW1SBF, DESSF-01GD07AW2SB, DESSF-01GD07AW2SBF, DESSF-02GD07AC1SB, DESSF-02GD07AC1SBF, DESSF-02GD07AC2SB, DESSF-02GD07AC2SBF, DESSF-02GD07AW1SB, DESSF-02GD07AW1SBF, DESSF-02GD07AW2SB, DESSF-02GD07AW2SBF, DESSF-04GD07SC2SB, DESSF-04GD07SC2SBF, DESSF-04GD07SCADB, DESSF-04GD07SCADBF, DESSF-04GD07SW2SB, DESSF-04GD07SW2SBF, DESSF-04GD07SWADB, DESSF-04GD07SWADBF, DESSF-08GD07SCADB, DESSF-08GD07SCADBF, DESSF-08GD07SWADB, DESSF-08GD07SWADBF, DESSF-16GD07SCADB, DESSF-16GD07SCADBF, DESSF-16GD07SWADB, DESSF-16GD07SWADBF, DESSF-32GD07SCADB, DESSF-32GD07SCADBF, DESSF-32GD07SWADB, DESSF-32GD07SWADBF, DESSH-01GD07AC1SB, DESSH-01GD07AC1SBF, DESSH-01GD07AC2SB, DESSH-01GD07AC2SBF, DESSH-01GD07AW1SB, DESSH-01GD07AW1SBF, DESSH-01GD07AW2SB, DESSH-01GD07AW2SBF, DESSH-02GD07AC1SB, DESSH-02GD07AC1SBF, DESSH-02GD07AC2SB, DESSH-02GD07AC2SBF, DESSH-02GD07AW1SB, DESSH-02GD07AW1SBF, DESSH-02GD07AW2SB, DESSH-02GD07AW2SBF, DESSH-04GD07SC2SB, DESSH-04GD07SC2SBF, DESSH-04GD07SCADB, DESSH-04GD07SCADBF, DESSH-04GD07SW2SB, DESSH-04GD07SW2SBF, DESSH-04GD07SWADB, DESSH-04GD07SWADBF, DESSH-04GD09SCADBA, DESSH-04GD09SCADBB, DESSH-04GD09SWADBA, DESSH-04GD09SWADBB, DESSH-08GD07SCADB, DESSH-08GD07SCADBF, DESSH-08GD07SWADB, DESSH-08GD07SWADBF, DESSH-08GD09BC1SC, DESSH-08GD09BC1SCA, DESSH-08GD09BC1SCB, DESSH-08GD09BC1SCF, DESSH-08GD09BW1SC, DESSH-08GD09BW1SCA, DESSH-08GD09BW1SCB, DESSH-08GD09BW1SCF, DESSH-08GD09SCADBA, DESSH-08GD09SCADBB, DESSH-08GD09SWADBA, DESSH-08GD09SWADBB, DESSH-16GD07SCADB, DESSH-16GD07SCADBF, DESSH-16GD07SWADB, DESSH-16GD07SWADBF, DESSH-16GD09BC1SC, DESSH-16GD09BC1SCA, DESSH-16GD09BC1SCB, DESSH-16GD09BC1SCF, DESSH-16GD09BW1SC, DESSH-16GD09BW1SCA, DESSH-16GD09BW1SCB, DESSH-16GD09BW1SCF, DESSH-16GD09SCADBA, DESSH-16GD09SCADBB, DESSH-16GD09SWADBA, DESSH-16GD09SWADBB, DESSH-32GD07SCADB, DESSH-32GD07SCADBF, DESSH-32GD07SWADB, DESSH-32GD07SWADBF, DESSH-32GD09BC1SC, DESSH-32GD09BC1SCA, DESSH-32GD09BC1SCB, DESSH-32GD09BC1SCF, DESSH-32GD09BW1SC, DESSH-32GD09BW1SCA, DESSH-32GD09BW1SCB, DESSH-32GD09BW1SCF, DESSH-32GD09SCADBA, DESSH-32GD09SCADBB, DESSH-32GD09SWADBA, DESSH-32GD09SWADBB, DESSH-64GD09BCADC, DESSH-64GD09BCADCA, DESSH-64GD09BCADCB, DESSH-64GD09BCADCF, DESSH-64GD09BWADC, DESSH-64GD09BWADCA, DESSH-64GD09BWADCB, DESSH-64GD09BWADCF, DESSH-A28D09BCADC, DESSH-A28D09BCADCA, DESSH-A28D09BCADCB, DESSH-A28D09BCADCF, DESSH-A28D09BWADC, DESSH-A28D09BWADCA, DESSH-A28D09BWADCB, DESSH-A28D09BWADCF, DESSL-01GD07AC1SB, DESSL-01GD07AC1SBF, DESSL-01GD07AC2SB, DESSL-01GD07AC2SBF, DESSL-01GD07AW1SB, DESSL-01GD07AW1SBF, DESSL-01GD07AW2SB, DESSL-01GD07AW2SBF, DESSL-02GD07AC1SB, DESSL-02GD07AC1SBF, DESSL-02GD07AC2SB, DESSL-02GD07AC2SBF, DESSL-02GD07AW1SB, DESSL-02GD07AW1SBF, DESSL-02GD07AW2SB, DESSL-02GD07AW2SBF, DESSL-04GD07SC2SB, DESSL-04GD07SC2SBF, DESSL-04GD07SCADB, DESSL-04GD07SCADBF, DESSL-04GD07SW2SB, DESSL-04GD07SW2SBF, DESSL-04GD07SWADB, DESSL-04GD07SWADBF, DESSL-08GD07SCADB, DESSL-08GD07SCADBF, DESSL-08GD07SWADB, DESSL-08GD07SWADBF, DESSL-16GD07SCADB, DESSL-16GD07SCADBF, DESSL-16GD07SWADB, DESSL-16GD07SWADBF, DESSL-32GD07SCADB, DESSL-32GD07SCADBF, DESSL-32GD07SWADB, DESSL-32GD07SWADBF, DESSV-01GD07AC1SB, DESSV-01GD07AC1SBF, DESSV-01GD07AC2SB, DESSV-01GD07AC2SBF, DESSV-01GD07AW1SB, DESSV-01GD07AW1SBF, DESSV-01GD07AW2SB, DESSV-01GD07AW2SBF, DESSV-02GD07AC1SB, DESSV-02GD07AC1SBF, DESSV-02GD07AC2SB, DESSV-02GD07AC2SBF, DESSV-02GD07AW1SB, DESSV-02GD07AW1SBF, DESSV-02GD07AW2SB, DESSV-02GD07AW2SBF, DESSV-04GD07SC2SB, DESSV-04GD07SC2SBF, DESSV-04GD07SCADB, DESSV-04GD07SCADBF, DESSV-04GD07SW2DB, DESSV-04GD07SW2SBF, DESSV-04GD07SWADB, DESSV-04GD07SWADBF, DESSV-08GD07SCADB, DESSV-08GD07SCADBF, DESSV-08GD07SWADB, DESSV-08GD07SWADBF, DESSV-16GD07SCADB, DESSV-16GD07SCADBF, DESSV-16GD07SWADB, DESSV-16GD07SWADBF, DESSV-32GD07SCADB, DESSV-32GD07SCADBF, DESSV-32GD07SWADB, DESSV-32GD07SWADBF, DEUA1-04GI61SCASB, DEUA1-04GI61SWASB, DEUA1-08GI61BC1SC, DEUA1-08GI61BC2SC, DEUA1-08GI61BW1SC, DEUA1-08GI61BW2SC, DEUA1-08GI61SCASB, DEUA1-08GI61SWASB, DEUA1-16GI61BC1SC, DEUA1-16GI61BC2SC, DEUA1-16GI61BW1SC, DEUA1-16GI61BW2SC, DEUA1-16GI61SCASB, DEUA1-16GI61SWASB, DEUA1-32GI61BC1SC, DEUA1-32GI61BC2SC, DEUA1-32GI61BW1SC, DEUA1-32GI61BW2SC, DEUA1-32GI61SCASB, DEUA1-32GI61SWASB, DEUA1-64GI61BC1SC, DEUA1-64GI61BC2SC, DEUA1-64GI61BW1SC, DEUA1-64GI61BW2SC, DGCFA-32GD81BCADC, DGCFA-32GD81BWADC, DGCFA-64GD81BCAQC, DGCFA-64GD81BWAQC, DGCFA-A28D81BCAQC, DGCFA-A28D81BWAQC, DGCFA-B56D81BCAQC, DGCFA-B56D81BWAQC, DGS25-01TD81BCAQC, DGSLM-08GD81BC1SC, DGSLM-08GD81BW1SC, DGSLM-16GD81BC1DC, DGSLM-16GD81BC1SC, DGSLM-16GD81BW1DC, DGSLM-16GD81BW1SC, DGSLM-32GD81BC1DC, DGSLM-32GD81BC1QC, DGSLM-32GD81BW1DC, DGSLM-32GD81BW1QC, DGSLM-32GD81SCADN, DGSLM-32GD81SWADN, DGSLM-32GD82BC1QC, DGSLM-32GD82BW1QC, DGSLM-64GD81BC1QC, DGSLM-64GD81BW1QC, DGSLM-64GD81SCAQN, DGSLM-64GD81SWAQN, DGSLM-64GD82BC1QC, DGSLM-64GD82BW1QC, DGSLM-A28D81BC1QC, DGSLM-A28D81BW1QC, DGSLM-A28D82BC1QC, DGSLM-A28D82BW1QC, DGSLM-B56D81BC1QC, DGSLM-B56D81BW1QC, DGSLM-B56D82BC1QC, DGSLM-B56D82BW1QC, DGSLM-C12D81BCAQC, DGSLM-C12D81BWAQC, DHCFA-08GM41BC1DC, DHCFA-08GM41BC1SC, DHCFA-08GM41BW1DC, DHCFA-08GM41BW1SC, DHCFA-16GM41BC1DC, DHCFA-16GM41BW1DC, DHCFA-32GM41BC1DC, DHCFA-32GM41BW1DC, DHCFA-64GM41BC1DC, DHCFA-64GM41BW1DC, DHCFA-A28M41BC1DC, DHCFA-A28M41BW1DC, DHM24-08GM41BC1DC, DHM24-08GM41BC1SC, DHM24-08GM41BW1DC, DHM24-08GM41BW1SC, DHM24-16GM41BC1DC, DHM24-16GM41BW1DC, DHM24-32GM41BC1DC, DHM24-32GM41BW1DC, DHM24-64GM41BC1DC, DHM24-64GM41BW1DC, DHM24-A28M41BCADC, DHM24-A28M41BWADC, DHM28-08GM41BC1DC, DHM28-08GM41BC1SC, DHM28-08GM41BW1DC, DHM28-08GM41BW1SC, DHM28-16GM41BC1DC, DHM28-16GM41BC1SC, DHM28-16GM41BW1DC, DHM28-16GM41BW1SC, DHM28-32GM41BC1DC, DHM28-32GM41BW1DC, DHM28-64GM41BC1DC, DHM28-64GM41BW1DC, DHM28-A28M41BC1DC, DHM28-A28M41BW1DC, DHMSM-08GM41BC1DC, DHMSM-08GM41BC1SC, DHMSM-08GM41BW1DC, DHMSM-08GM41BW1SC, DHMSM-16GM41BC1DC, DHMSM-16GM41BW1DC, DHMSM-32GM41BC1DC, DHMSM-32GM41BW1DC, DHMSM-64GM41BC1DC, DHMSM-64GM41BW1DC, DHMSR-08GM41BC1DC, DHMSR-08GM41BC1SC, DHMSR-08GM41BW1DC, DHMSR-08GM41BW1SC, DHMSR-16GM41BC1DC, DHMSR-16GM41BW1DC, DHMSR-32GM41BC1DC, DHMSR-32GM41BW1DC, DHMSR-64GM41BC1DC, DHMSR-64GM41BW1DC, DHMSR-A28M41BC1DC, DHMSR-A28M41BW1DC, DHS25-01TD81BCAQC, DHS25-01TD81BWAQC, DHS25-01TD82BCQCP, DHS25-01TD82BWQCP, DHS25-08GD81BC1DCP, DHS25-08GD81BC3DC, DHS25-08GD81BW1DCP, DHS25-08GD81BW3DC, DHS25-08GD82BCDP, DHS25-08GD82BCDQP, DHS25-08GD82BWDCP, DHS25-08GD82BWDQP, DHS25-08GM41BC1DC, DHS25-08GM41BC1SC, DHS25-08GM41BW1DC, DHS25-08GM41BW1SC, DHS25-16GD81BC1DCP, DHS25-16GD81BC1QCP, DHS25-16GD81BC3DC, DHS25-16GD81BC3QC, DHS25-16GD81BW1DCP, DHS25-16GD81BW1QCP, DHS25-16GD81BW3DC, DHS25-16GD81BW3QC, DHS25-16GD82BCQCP, DHS25-16GD82BWQCP, DHS25-16GM41BC1DC, DHS25-16GM41BW1DC, DHS25-20GDK1EC3DF, DHS25-20GDK1EW3DF, DHS25-32GD81BC1QC, DHS25-32GD81BC1QCP, DHS25-32GD81BC3QC, DHS25-32GD81BC3QCP, DHS25-32GD81BW1QC, DHS25-32GD81BW1QCP, DHS25-32GD81BW3QC, DHS25-32GD82BCQCP, DHS25-32GD82BWQCP, DHS25-32GM41BC1DC, DHS25-32GM41BW1DC, DHS25-40GDK1EC3QF, DHS25-40GDK1EW3QF, DHS25-64GD81BC1QC, DHS25-64GD81BC1QCP, DHS25-64GD81BC3QC, DHS25-64GD81BW1QC, DHS25-64GD81BW1QCP, DHS25-64GD81BW3QC, DHS25-64GD82BCQCP, DHS25-64GD82BWQCP, DHS25-64GM41BC1DC, DHS25-64GM41BW1DC, DHS25-80GDK1EC3QF, DHS25-80GDK1EW3QF, DHS25-A28D81BC1QCP, DHS25-A28D81BC3QC, DHS25-A28D81BW1QCP, DHS25-A28D81BW3QC, DHS25-A28D82BCQCP, DHS25-A28D82BWQCP, DHS25-A28M41BC1DC, DHS25-A28M41BW1DC, DHS25-A60DK1EC3QF, DHS25-A60DK1EW3QF, DHS25-B56D81BC1QC, DHS25-B56D81BC1QCP, DHS25-B56D81BW1QC, DHS25-B56D81BW1QCP, DHS25-B56D82BCQCP, DHS25-B56D82BWQCP, DHS25-C12D81BCAQC, DHS25-C12D81BCAQCP, DHS25-C12D81BWAQC, DHS25-C12D81BWAQCP, DHS25-C12D82BCQCP, DHS25-C12D82BWQCP, DHS25-D2GDK1EC1QF, DHS25-D2GDK1EW1QF, DHSLM-08GM41BC1DC, DHSLM-08GM41BC1SC, DHSLM-08GM41BW1DC, DHSLM-08GM41BW1SC, DHSLM-16GM41BC1DC, DHSLM-16GM41BW1DC, DHSLM-32GM41BC1DC, DHSLM-32GM41BW1DC, DHSLM-64GM41BC1DC, DHSLM-64GM41BW1DC, DHSLM-A28M41BC1DC, DHSLM-A28M41BW1DC, DHSSH-08GD09BC1SCA, DHSSH-08GD09BC1SCB, DHSSH-08GD09BW1SCA, DHSSH-08GD09BW1SCB, DHSSH-16GD09BC1SCA, DHSSH-16GD09BC1SCB, DHSSH-16GD09BW1SCA, DHSSH-16GD09BW1SCB, DHSSH-32GD09BCADCA, DHSSH-32GD09BCADCB, DHSSH-32GD09BWADCA, DHSSH-32GD09BWADCB, DHSSH-64GD09BCADCA, DHSSH-64GD09BCADCB, DHSSH-64GD09BWADCA, DHSSH-64GD09BWADCB, DRS25-01TD81BCAQCP, DRS25-01TD81BWAQCP, DRS25-01TD82BCAQCP, DRS25-01TD82BWAQCP, DRS25-08GD81BC1SCP, DRS25-08GD81BW1SCP, DRS25-08GD82BC1SCP, DRS25-08GD82BW1SCP, DRS25-16GD81BC1SCP, DRS25-16GD81BW1SCP, DRS25-16GD82BC1SCP, DRS25-16GD82BW1SCP, DRS25-32GD81BC1DCP, DRS25-32GD81BC1QCP, DRS25-32GD81BW1DCP, DRS25-32GD81BW1QCP, DRS25-32GD82BC1DCP, DRS25-32GD82BC1QCP, DRS25-32GD82BW1DCP, DRS25-32GD82BW1QCP, DRS25-64GD81BC1QCP, DRS25-64GD81BW1QCP, DRS25-64GD82BC1QCP, DRS25-64GD82BW1QCP, DRS25-A28D81BC1QCP, DRS25-A28D81BW1QCP, DRS25-A28D82BC1QCP, DRS25-A28D82BW1QCP, DRS25-B56D81BC1QCP, DRS25-B56D81BW1QCP, DRS25-B56D82BC1QCP, DRS25-B56D82BW1QCP, DRS25-C12D81BC1QCP, DRS25-C12D81BW1QCP, DRS25-C12D82BC1QCP, DRS25-C12D82BW1QCP, DSM28-08GM413C1SC, DSM28-08GM413W1SC, DSM28-16GM413C1SC, DSM28-16GM413W1SC, DSM28-32GM413C1DC, DSM28-32GM413W1DC, DSM28-64GM413C1DC, DSM28-64GM413W1DC, DSM28-A28M413C1DC, DSM28-A28M413W1DC, DVCFA-32GD81BCADC, DVCFA-32GD81BWADC, DVCFA-64GD81BCAQC, DVCFA-64GD81BWAQC, DVCFA-A28D81BCAQC, DVCFA-A28D81BWAQC, DVCFA-B56D81BCAQC, DVCFA-B56D81BWAQC, DVS25-01TD81BCAQC, DVS25-01TD81BCAQCP, DVS25-01TD81BWAQC, DVS25-01TD81BWAQCP, DVS25-02TD81BCAQC, DVS25-02TD81BWAQC, DVS25-08GD81BC1SC, DVS25-08GD81BC1SCP, DVS25-08GD81BW1SC, DVS25-08GD81BW1SCP, DVS25-16GD81BC1DC, DVS25-16GD81BC1SCP, DVS25-16GD81BW1DC, DVS25-16GD81BW1SCP, DVS25-32GD81BC1QC, DVS25-32GD81BC1QCP, DVS25-32GD81BW1QC, DVS25-32GD81BW1QCP, DVS25-64GD81BC1QC, DVS25-64GD81BC1QCP, DVS25-64GD81BW1QC, DVS25-64GD81BW1QCP, DVS25-A28D81BC1QC, DVS25-A28D81BC1QCP, DVS25-A28D81BW1QC, DVS25-A28D81BW1QCP, DVS25-B56D81BC1QC, DVS25-B56D81BC1QCP, DVS25-B56D81BW1QC, DVS25-B56D81BW1QCP, DVS25-C12D81BC1QC, DVS25-C12D81BC1QCP, DVS25-C12D81BW1QC, DVS25-C12D81BW1QCP, DVSLM-08GD81BC1SC, DVSLM-08GD81BW1SC, DVSLM-16GD81BC1DC, DVSLM-16GD81BC1SC, DVSLM-16GD81BW1DC, DVSLM-16GD81BW1SC, DVSLM-32GD81BC1DC, DVSLM-32GD81BC1QC, DVSLM-32GD81BW1DC, DVSLM-32GD81BW1QC, DVSLM-64GD81BC1QC, DVSLM-64GD81BW1QC, DVSLM-A28D81BC1QC, DVSLM-A28D81BW1QC, DVSLM-B56D81BC1QC, DVSLM-B56D81BW1QC, DVSLM-C12D81BCAQC, DVSLM-C12D81BWAQC
|
| Hinweis Dokument: | [PCN_F2146] Power IC Substituting PCB-Assembly Adoption.pdf |
| Product Change Notification (PCN) | |
| his PCN is being issued to address that Innodisk PCIe 3TE6 Series are going to have product firmware (F/W) update. New FW: V21118 | |
| Revision: | F2136 |
| Revision date: | 24. August 2021 |
| Last purchase date: | 24. Oktober 2021 |
| Last shipping date: | |
| Betroffene Produkte: |
DECFX-01TDD1ECADFW, DECFX-01TDD1ECAQF, DECFX-01TDD1ECAQFW, DECFX-01TDD1EWADFW, DECFX-01TDD1EWAQF, DECFX-01TDD1EWAQFW, DECFX-64GDD1ECADF, DECFX-64GDD1ECADFW, DECFX-64GDD1ECAQFW, DECFX-64GDD1EWADF, DECFX-64GDD1EWADFW, DECFX-64GDD1EWAQFW, DECFX-A28DD1ECADFW, DECFX-A28DD1ECAQF, DECFX-A28DD1ECAQFW, DECFX-A28DD1EWADFW, DECFX-A28DD1EWAQF, DECFX-A28DD1EWAQFW, DECFX-B56DD1ECADFW, DECFX-B56DD1ECAQF, DECFX-B56DD1ECAQFW, DECFX-B56DD1EWADFW, DECFX-B56DD1EWAQF, DECFX-B56DD1EWAQFW, DECFX-C12DD1ECADFW, DECFX-C12DD1ECAQF, DECFX-C12DD1ECAQFW, DECFX-C12DD1EWADFW, DECFX-C12DD1EWAQF, DECFX-C12DD1EWAQFW, DEM28-01TDD1ECAQF, DEM28-01TDD1EWAQF, DEM28-01TDD1GCAQF, DEM28-01TDD1GWAQF, DEM28-02TDD1ECAQF, DEM28-02TDD1EWAQF, DEM28-02TDD1GCAQF, DEM28-02TDD1GWAQF, DEM28-64GDD1ECADF, DEM28-64GDD1EWADF, DEM28-A28DD1ECAQF, DEM28-A28DD1EWAQF, DEM28-A28DD1GCADF, DEM28-A28DD1GWADF, DEM28-B56DD1ECAQF, DEM28-B56DD1EWAQF, DEM28-B56DD1GCAQF, DEM28-B56DD1GWAQF, DEM28-C12DD1ECAQF, DEM28-C12DD1EWAQF, DEM28-C12DD1GCAQF, DEM28-C12DD1GWAQF
|
| Hinweis Dokument: | [PCN_F2136] PCIe 3TE6 Firmware Update.pdf |
Innodisk DEM28-01TDD1ECAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 1 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-01TDD1EWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 1 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-01TDD1GCAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 1 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-01TDD1GWAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 1 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-01TDD1KCAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 1 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-01TDD1KWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 1 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-02TDD1ECAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 2 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-02TDD1EWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 2 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-02TDD1GCAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 2 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-02TDD1GWAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 2 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-02TDD1KCAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 2 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-02TDD1KWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 2 TB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-64GDD1ECADF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 64 GB | ||
| Channel | 2 | |||
| Performance | Sequentielles Lesen | 675 MB/s | ||
| Sequentielles Schreiben | 145 MB/s | |||
| 4KB Random (QD32) Lesen | 33000 IOPS | |||
| 4KB Random (QD32) Schreiben | 24500 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-64GDD1EWADF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 64 GB | ||
| Channel | 2 | |||
| Performance | Sequentielles Lesen | 675 MB/s | ||
| Sequentielles Schreiben | 145 MB/s | |||
| 4KB Random (QD32) Lesen | 33000 IOPS | |||
| 4KB Random (QD32) Schreiben | 24500 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-A28DD1ECAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 128 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.280 MB/s | ||
| Sequentielles Schreiben | 345 MB/s | |||
| 4KB Random (QD32) Lesen | 78500 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-A28DD1EWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 128 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.280 MB/s | ||
| Sequentielles Schreiben | 345 MB/s | |||
| 4KB Random (QD32) Lesen | 78500 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-A28DD1GCADF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 128 GB | ||
| Channel | 2 | |||
| Performance | Sequentielles Lesen | 1.280 MB/s | ||
| Sequentielles Schreiben | 345 MB/s | |||
| 4KB Random (QD32) Lesen | 78500 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-A28DD1GWADF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 128 GB | ||
| Channel | 2 | |||
| Performance | Sequentielles Lesen | 1.280 MB/s | ||
| Sequentielles Schreiben | 345 MB/s | |||
| 4KB Random (QD32) Lesen | 78500 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-A28DD1KCADF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 128 GB | ||
| Channel | 2 | |||
| Performance | Sequentielles Lesen | 1.280 MB/s | ||
| Sequentielles Schreiben | 345 MB/s | |||
| 4KB Random (QD32) Lesen | 78500 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-A28DD1KWADF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 128 GB | ||
| Channel | 2 | |||
| Performance | Sequentielles Lesen | 1.280 MB/s | ||
| Sequentielles Schreiben | 345 MB/s | |||
| 4KB Random (QD32) Lesen | 78500 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-B56DD1ECAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 256 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.550 MB/s | ||
| Sequentielles Schreiben | 1.000 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-B56DD1EWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 256 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.550 MB/s | ||
| Sequentielles Schreiben | 1.000 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-B56DD1GCAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 256 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.550 MB/s | ||
| Sequentielles Schreiben | 1.000 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-B56DD1GWAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 256 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.550 MB/s | ||
| Sequentielles Schreiben | 1.000 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-B56DD1KCAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 256 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.550 MB/s | ||
| Sequentielles Schreiben | 1.000 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-B56DD1KWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 256 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.550 MB/s | ||
| Sequentielles Schreiben | 1.000 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 97000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-C12DD1ECAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 512 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-C12DD1EWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 512 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
Innodisk DEM28-C12DD1GCAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 512 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-C12DD1GWAQF (EOL) (Achtung EOL: LTB 14.03.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 512 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 96 Layers 3D Flash | |||
Innodisk DEM28-C12DD1KCAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 1,35 mm | ||
| Flash Speichermedien | Kapazität | 512 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Innodisk DEM28-C12DD1KWAQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, 3D TLC, PCI Express Gen. 3, 3TE6, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 1,95 mm | ||
| Flash Speichermedien | Kapazität | 512 GB | ||
| Channel | 4 | |||
| Performance | Sequentielles Lesen | 1.650 MB/s | ||
| Sequentielles Schreiben | 1.650 MB/s | |||
| 4KB Random (QD32) Lesen | 127000 IOPS | |||
| 4KB Random (QD32) Schreiben | 99000 IOPS | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
Bitte konfigurieren Sie Ihr Wunschprodukt.
Sie haben bestimmte Spezifikationswünsche einzelner Komponenten?
Mit unserem Auswahlassistenten finden Sie schnell das Passende.
Gerne helfen wir Ihnen bei der Auswahl geeigneter Komponenten, speziell für Ihre Anwendung.
Kontaktieren Sie uns und erzählen Sie uns von Ihrer Idee.
Wir freuen uns, Ihnen mitteilen zu können, dass wir für viele unserer Produkte auf unserer Website wieder Ihre persönlichen Einkaufspreise anzeigen können.
Einhergehend mit unseren regelmäßigen Preis-Updates können Sie ab sofort Ihre Bestellanfragen wieder wie gewohnt über unseren Webshop tätigen.
Für einige Produkte in unserem Portfolio können wir aufgrund der aktuellen Liefersituation und Preisentwicklung nur Tagespreise angeben. Bitte erfragen Sie diese telefonisch über unsere Vertriebs-Hotline +49(0)6122-17071-50 oder senden Sie eine Anfrage per E-Mail an sales@rosch-computer.de.
 3TE8 with Innodisk NAND.jpg)
 4TE3 with InnoNAND.jpg)
 3TE8.jpg)
 4TE3 with InnoNAND.jpg)
 4TG2-P.jpg)
