M.2
Produkt ist EOL (End Of Life)!
// M.2
// Kioxia 3D TLC
// PCI Express Gen. 3
// 3TG6-P
// 0° bis 70°C | -40° bis 85°C
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

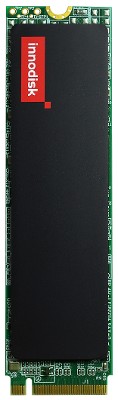

Basismodul: Innodisk M.2 (P80) 3TG6-P
| Allgemein | ||||
| SKU / Artikelnummer | M.2 (P80) 3TG6-PDGM28-01TDC1ECBEF, DGM28-01TDC1EWBEFH, DGM28-01TDC1KCBEF, DGM28-01TDC1KWBEFH, DGM28-02TDC1KCBEF, DGM28-02TDC1KWBEFH, DGM28-A28DC1ECBQF, DGM28-A28DC1EWBQFH, DGM28-A28DC1KCBDF, DGM28-A28DC1KWBDFH, DGM28-B56DC1ECBEF, DGM28-B56DC1EWBEFH, DGM28-B56DC1KCBQF, DGM28-B56DC1KWBQFH, DGM28-C12DC1ECBEF, DGM28-C12DC1EWBEFH, DGM28-C12DC1KCBEF, DGM28-C12DC1KWBEFH | |||
| Produktgrunddaten | ||||
| Hersteller | Innodisk | |||
| Flash Speichermedien | ||||
| Serie | 3TG6-P | |||
| Anschluss (Interface) | PCI Express Gen. 3 | |||
| Flash Aufbau | M.2 (NGFF) | |||
| Key Typ | M | |||
| Flash Type | Kioxia 3D TLC | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
| Schreib-/Löschzyklen (P/E Limit) | 3000 | |||
| Kapazität | 1 TB, 2 TB, 128 GB, 256 GB, 512 GB | |||
| Controller | ID302 (MK1001 with innodisk logo) | |||
| ECC | Wird unterstützt (24 Bit pro 1 KB) | |||
| Channel | 2, 4, 8 | |||
| Maximale Stromaufnahme | 8 W | |||
| NVMe | Ja | |||
| Wärmesensor | Ja | |||
| TRIM | wird unterstützt | |||
| Externer DRAM Buffer | wird unterstützt | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17), 112/128 Layers 3D Flash | |||
| ATA Security | Ja | |||
| S.M.A.R.T | Ja | |||
| Customized | -, H/W WT solution | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||

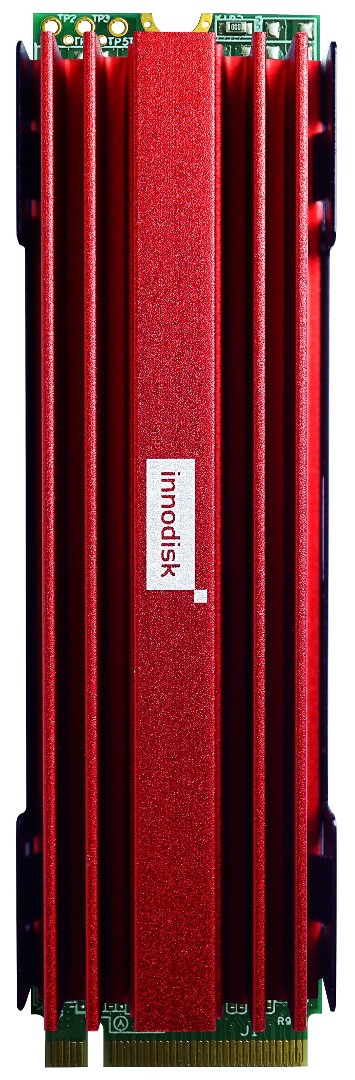

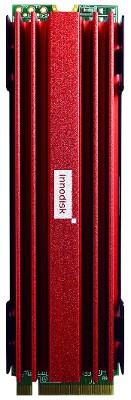

| Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 70°C, -40° bis 85°C | ||
| Lagerung | -55° bis 95°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | M.2 | ||
| Typ | 2280 | |||
| Breite | 22 mm | |||
| Tiefe | 80 mm | |||
| Höhe | 3,95 mm, 14,45 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 Axen | ||
| Referenz Standard | IEC 68-2-6 | |||
| Schock | Messdaten | 1500G, 0.5 ms, 3 Axen | ||
| Referenz Standard | IEC 68-2-27 | |||
| Gewicht | 8 g | |||
| MTBF | MTBF 25°C | 3.000.000 h | ||
| Berechnungsmodell | Telcordia SR-332 | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | EN 55022 | |||
| RoHS konform | Ja | |||
| Product Change Notification (PCN) | |
| Description This PCN is being issued to address that Innodisk PCIe 3TG6-P are going to upgrade product firmware (F/W). Desc. Note Innodisk anticipates no negative impact to customer’s application. There is no functional implication to customer's application but improve reliability, and qualification of these changes may not be necessary. Summary of Change FW Change note (from C22822 to C24329) Fixed the assertion issue caused by the inability to rebuild the table during an abnormal power-off. Fixed the issue of block misjudgment after an abnormal power-off. Corrected the reversed DAS control and changed it to 1s. Improve compatibility issues under Linux. Optimise table process Fixed the permit not being reset after a table swap's source returns. Fix the failure caused by abnormal power-off during FW updates. | |
| Revision: | F240056 |
| Revision date: | 18. Dezember 2024 |
| Last purchase date: | 18. März 2025 |
| Last shipping date: | |
| Betroffene Produkte: |
DGM28-01TDC1KCBEF, DGM28-01TDC1KCBEL, DGM28-01TDC1KCDEL, DGM28-01TDC1KWBEFH, DGM28-02TDC1KCBEF, DGM28-02TDC1KCBEL, DGM28-02TDC1KWBEFH, DGM28-A28DC1KCBDF, DGM28-A28DC1KCBDL, DGM28-A28DC1KWBDFH, DGM28-B56DC1KCBQF, DGM28-B56DC1KCBQL, DGM28-B56DC1KWBQFH, DGM28-C12DC1KCBEF, DGM28-C12DC1KCBEL, DGM28-C12DC1KWBEFH
|
| Hinweis Dokument: | Innodisk [PCN_F240056] PCIe 3TG6-P Firmware Change Notice.pdf |
| End of Life (EOL) | |
| PCIe 3TG6-P Controller Series EOL Notice NCNR Description Innodisk hereby announces that we will discontinue PCIe 3TG6-P controller series products going forward. The products listed below would be phased out of production with a last purchase date. | |
| Revision: | F240050 |
| Revision date: | 30. August 2024 |
| Last purchase date: | 1. Dezember 2024 |
| Last shipping date: | 1. März 2025 |
| Betroffene Produkte: |
M.2 (P80) 3TG6-P, DGM28-01TDC1ECBEF, DGM28-01TDC1EWBEFH, DGM28-01TDC1GCBEL, DGM28-01TDC1GWBELH, DGM28-01TDC1KCBEF, DGM28-01TDC1KCBEL, DGM28-01TDC1KCDEL, DGM28-01TDC1KWBEFH, DGM28-02TDC1GCBEL, DGM28-02TDC1GWBEQH, DGM28-02TDC1KCBEF, DGM28-02TDC1KCBEL, DGM28-02TDC1KWBEFH, DGM28-A28DC1ECBQF, DGM28-A28DC1EWBQFH, DGM28-A28DC1GCBDL, DGM28-A28DC1GWBDLH, DGM28-A28DC1KCBDF, DGM28-A28DC1KCBDL, DGM28-A28DC1KWBDFH, DGM28-B56DC1ECBEF, DGM28-B56DC1EWBEFH, DGM28-B56DC1GCBQL, DGM28-B56DC1GWBQLH, DGM28-B56DC1KCBQF, DGM28-B56DC1KCBQL, DGM28-B56DC1KWBQFH, DGM28-C12DC1ECBEF, DGM28-C12DC1EWBEFH, DGM28-C12DC1GCBEL, DGM28-C12DC1GWBELH, DGM28-C12DC1KCBEF, DGM28-C12DC1KCBEL, DGM28-C12DC1KWBEFH
|
| Hinweis Dokument: | Innodisk [EOL_F240050] PCIe 3TG6-P Controller Series EOL Notice.pdf |
| Product Change Notification (PCN) | |
| This PCN is being issued to address that the series mentioned below are going to adopt substituting on-board DDR4 IC due to the DRAM process technology advancement. This component substitution does not pose any potential risks to the SSD functionality and no additionality action is required from the user. All the standard PNs and customized PNs are affected by this change. The products with the new DDR4 IC will be implemented as a running change atier September 26th, 2024. PCIe: 4TG2-P/4IG2-P/4TS2-P/3TG3-P/3TG6-P SATA: 3TG6-P/3IE6-P/3TS6-P/3TV6-P Summary of Change Due to supply conditions, Innodisk hereby announces that the on-board DDR4 IC will change from 1xnm to 1znm. And this change for all the product using DDR4 1xnm IC. Item Manufature PN (1xnm) Manufature PN (1znm) 4Gb 8bit K4A4G085WF-BCTD K4A4G085WG-BCWE 4Gb 16bit K4A4G165WF-BCTD K4A4G165WG-BCWE 8Gb 8bit K4A8G085WC-BCTD K4A8G085WG-BCWE 8Gb 16bit K4A8G165WC-BCTD K4A8G165WG-BCWE 16Gb 8bit K4AAG085WA-BCTD K4AAG085WC-BCWE 16Gb 16bit K4AAG165WA-BCTD K4AAG165WC-BCWE | |
| Revision: | F240012 |
| Revision date: | 26. Juni 2024 |
| Last purchase date: | 26. September 2024 |
| Last shipping date: | |
| Betroffene Produkte: |
DEV-MXM-6DP, DI5-9GDPB-P1-GP, E1.S 4TG2-P, DGE1S-01TDP2KCAEFP, DGE1S-01TDP2KCAEFPH, DGE1S-01TDP2KCAEFPH1, DGE1S-01TDP2KWAEFP, DGE1S-01TDP2KWAEFPH, DGE1S-01TDP2KWAEFPH1, DGE1S-02TDP2KCAEFP, DGE1S-02TDP2KCAEFPH, DGE1S-02TDP2KCAEFPH1, DGE1S-02TDP2KWAEFP, DGE1S-02TDP2KWAEFPH, DGE1S-02TDP2KWAEFPH1, DGE1S-04TDP2KCAEFP, DGE1S-04TDP2KCAEFPH, DGE1S-04TDP2KCAEFPH1, DGE1S-04TDP2KWAEFP, DGE1S-04TDP2KWAEFPH, DGE1S-04TDP2KWAEFPH1, DGE1S-08TDP2KCBEFP, DGE1S-08TDP2KCBEFPH, DGE1S-08TDP2KCBEFPH1, DGE1S-08TDP2KWBEFP, DGE1S-08TDP2KWBEFPH, DGE1S-08TDP2KWBEFPH1, DGE1S-C12DP2KCAEFP, DGE1S-C12DP2KCAEFPH, DGE1S-C12DP2KCAEFPH1, DGE1S-C12DP2KWAEFP, DGE1S-C12DP2KWAEFPH, DGE1S-C12DP2KWAEFPH1, DGEU2-01TDA1ECAEH, DGEU2-01TDA1HWAEH, DGEU2-01TDC1ECAEF, DGEU2-01TDC1EWAEF, DGEU2-01TDP1KCBEFP, DGEU2-01TDP1KWBEFP, DGEU2-01TDP2KCBEFP, DGEU2-01TDP2KWBEFP, DGEU2-02TDA1ECAEH, DGEU2-02TDA1HWAEH, DGEU2-02TDC1ECAEF, DGEU2-02TDC1EWAEF, DGEU2-02TDP1KCBEFP, DGEU2-02TDP1KWBEFP, DGEU2-02TDP2KCBEFP, DGEU2-02TDP2KWBEFP, DGEU2-04TDP1KCBEFP, DGEU2-04TDP1KWBEFP, DGEU2-04TDP2KCBEFP, DGEU2-04TDP2KWBEFP, DGEU2-08TDP1KCBEFP, DGEU2-08TDP1KWBEFP, DGEU2-08TDP2KCBEFP, DGEU2-08TDP2KWBEFP, DGEU2-A28DA1ECADH, DGEU2-A28DA1HWADH, DGEU2-A28DC1ECAQF, DGEU2-A28DC1EWAQF, DGEU2-B56DA1ECAQH, DGEU2-B56DA1HWAQH, DGEU2-B56DC1ECAEF, DGEU2-B56DC1EWAEF, DGEU2-C12DA1ECAEH, DGEU2-C12DA1HWAEH, DGEU2-C12DC1ECAEF, DGEU2-C12DC1EWAEF, DGEU2-C12DP1KCBEFP, DGEU2-C12DP1KWBEFP, DGEU2-C12DP2KCBEFP, DGEU2-C12DP2KWBEFP, DGEU2-C12TDA1ECAEH, DGEU2-C12TDA1HWAEH, DGM21-02TDA1ECAEH, DGM24-01TM71KCAQF, DGM24-01TM71KCAQL, DGM24-01TM71KWAQF, DGM24-A28M71ECAQF, DGM24-A28M71ECCQF, DGM24-A28M71EWAQF, DGM24-A28M71EWCQF, DGM24-A28M71GCBDL, DGM24-A28M71GCCDL, DGM24-A28M71GWBDL, DGM24-A28M71GWCDL, DGM24-A28M71KCADF, DGM24-A28M71KCADL, DGM24-A28M71KWADF, DGM24-A28M72ECAQF, DGM24-A28M72EWAQF, DGM24-B56M71ECAQF, DGM24-B56M71ECCQF, DGM24-B56M71EWAQF, DGM24-B56M71EWCQF, DGM24-B56M71GCAQL, DGM24-B56M71GCCQL, DGM24-B56M71GWAQL, DGM24-B56M71GWCQL, DGM24-B56M71KCADL, DGM24-B56M71KCAQF, DGM24-B56M71KCAQL, DGM24-B56M72ECAQF, DGM24-B56M72EWAQF, DGM24-C12M71ECAQF, DGM24-C12M71ECCQF, DGM24-C12M71EWAQF, DGM24-C12M71EWCQF, DGM24-C12M71GCAQL, DGM24-C12M71GCCQL, DGM24-C12M71GWAQL, DGM24-C12M71GWCQL, DGM24-C12M71KCAQF, DGM24-C12M71KCAQL, DGM24-C12M72ECAQF, DGM24-C12M72EWAQF, DGM28-01TDA1GCAEF, DGM28-01TDA1GCAEL, DGM28-01TDA1GWAELH, DGM28-01TDA1HCBEH, DGM28-01TDA1HWBEHH, DGM28-01TDA2ECBEH, DGM28-01TDA2HWBEHH, DGM28-01TDC1ECBEF, DGM28-01TDC1EWBEFH, DGM28-01TDC1GCBEL, DGM28-01TDC1KCBEF, DGM28-01TDC1KWBEFH, DGM28-01TDP1KCCEF, DGM28-01TDP1KCCEL, DGM28-01TDP1KCDEFP, DGM28-01TDP1KWCEFH, DGM28-01TDP1KWDEFPH, DGM28-01TDP2KCCEF, DGM28-01TDP2KCCEL, DGM28-01TDP2KCDEFP, DGM28-01TDP2KWCEFH, DGM28-01TDP2KWDEFPH, DGM28-01TM71ECAQF, DGM28-01TM71ECAQFP, DGM28-01TM71ECBQF, DGM28-01TM71ECBQFP, DGM28-01TM71ECBQFS, DGM28-01TM71EWAQF, DGM28-01TM71EWAQFP, DGM28-01TM71EWBQF, DGM28-01TM71EWBQFP, DGM28-01TM71EWBQFS, DGM28-01TM71GCAQL, DGM28-01TM71GCAQLP, DGM28-01TM71GCAQQS, DGM28-01TM71GCBQFS, DGM28-01TM71GCBQLP, DGM28-01TM71GWAQLP, DGM28-01TM71GWAQQS, DGM28-01TM71GWBQL, DGM28-01TM71KCBQF, DGM28-01TM71KCBQFP, DGM28-01TM71KCBQLP, DGM28-01TM71KCBQLS, DGM28-01TM71KCCQFS, DGM28-01TM71KWBQFP, DGM28-01TM71KWCQFS, DGM28-01TM72ECAQF, DGM28-01TM72ECBQF, DGM28-01TM72EWAQF, DGM28-01TM72EWBQF, DGM28-01TM72KCCQFS, DGM28-01TM72KWCQFS, DGM28-02TDA1ECBEH, DGM28-02TDA1GCAEF, DGM28-02TDA2ECBEH, DGM28-02TDC1KCBEF, DGM28-02TDC1KWBEFH, DGM28-02TDP1KCCEF, DGM28-02TDP1KCCEL, DGM28-02TDP1KCDEFP, DGM28-02TDP1KWCEFH, DGM28-02TDP1KWDEFPH, DGM28-02TDP2KCCEF, DGM28-02TDP2KCCEL, DGM28-02TDP2KCDEFP, DGM28-02TDP2KWCEFH, DGM28-02TDP2KWDEFPH, DGM28-02TM71ECAQF, DGM28-02TM71EWAQF, DGM28-02TM71GCAQQ, DGM28-02TM71GCBQF, DGM28-02TM71GWAQQ, DGM28-02TM71KCBQF, DGM28-02TM71KCBQFP, DGM28-02TM71KCBQL, DGM28-02TM71KCBQLP, DGM28-02TM71KCCQF, DGM28-02TM71KWBQFP, DGM28-02TM71KWCQF, DGM28-02TM72KCCQF, DGM28-02TM72KWCQF, DGM28-04TDP1KCCEF, DGM28-04TDP1KCCEQ, DGM28-04TDP1KWCEFH, DGM28-04TDP2KCCEF, DGM28-04TDP2KCCEQ, DGM28-04TDP2KWCEFH, DGM28-A28DA1HCADH, DGM28-A28DA1HWADHH, DGM28-A28DA2ECBDH, DGM28-A28DA2HWADHH, DGM28-A28DC1ECBQF, DGM28-A28DC1EWBQFH, DGM28-A28DC1KCBDF, DGM28-A28DC1KWBDFH, DGM28-A28M71EC1QF, DGM28-A28M71ECAQFP, DGM28-A28M71ECBQFP, DGM28-A28M71ECBQFS, DGM28-A28M71EW1QF, DGM28-A28M71EWAQFP, DGM28-A28M71EWBQFP, DGM28-A28M71EWBQFS, DGM28-A28M71GC1DL, DGM28-A28M71GW1DL, DGM28-A28M71KCBDFP, DGM28-A28M71KCBDFS, DGM28-A28M71KCBDLP, DGM28-A28M71KCBDLS, DGM28-A28M71KCCDFS, DGM28-A28M71KWBDFP, DGM28-A28M71KWCDFS, DGM28-A28M72ECAQF, DGM28-A28M72EWAQF, DGM28-A28M72KCCDFS, DGM28-A28M72KWCDFS, DGM28-B56DA1GCAQF, DGM28-B56DA1GCAQL, DGM28-B56DA1GWAQLH, DGM28-B56DA1HCAQH, DGM28-B56DA1HWAQHH, DGM28-B56DA2ECBQH, DGM28-B56DA2HWAQHH, DGM28-B56DC1ECBEF, DGM28-B56DC1EWBEFH, DGM28-B56DC1KCBQF, DGM28-B56DC1KWBQFH, DGM28-B56DP1KCCQF, DGM28-B56DP1KWCQFH, DGM28-B56DP2KCCQF, DGM28-B56DP2KWCQFH, DGM28-B56M71EC1QF, DGM28-B56M71ECAQFP, DGM28-B56M71ECBQFP, DGM28-B56M71ECBQFS, DGM28-B56M71EW1QF, DGM28-B56M71EWAQFP, DGM28-B56M71EWBQFP, DGM28-B56M71EWBQFS, DGM28-B56M71GC1QL, DGM28-B56M71GCAQFS, DGM28-B56M71GCAQLP, DGM28-B56M71GCAQLS, DGM28-B56M71GCBQLP, DGM28-B56M71GW1QL, DGM28-B56M71GWAQLP, DGM28-B56M71GWAQLS, DGM28-B56M71KCBQFP, DGM28-B56M71KCBQFS, DGM28-B56M71KCBQLP, DGM28-B56M71KCBQLS, DGM28-B56M71KCCQFS, DGM28-B56M71KWBQFP, DGM28-B56M71KWCQFS, DGM28-B56M72ECAQF, DGM28-B56M72EWAQF, DGM28-B56M72KCCQFS, DGM28-B56M72KWCQFS, DGM28-C12DA1GCAEF, DGM28-C12DA1GCAEL, DGM28-C12DA1GWAELH, DGM28-C12DA1HCAEH, DGM28-C12DA1HWAEHH, DGM28-C12DA2ECBEH, DGM28-C12DA2HWAEHH, DGM28-C12DC1ECBEF, DGM28-C12DC1EWBEFH, DGM28-C12DC1KCBEF, DGM28-C12DC1KWBEFH, DGM28-C12DP1KCCEF, DGM28-C12DP1KCCEL, DGM28-C12DP1KCDEFP, DGM28-C12DP1KWCEFH, DGM28-C12DP1KWDEFPH, DGM28-C12DP2KCCEF, DGM28-C12DP2KCCEL, DGM28-C12DP2KCDEFP, DGM28-C12DP2KWCEFH, DGM28-C12DP2KWDEFPH, DGM28-C12M71EC1QF, DGM28-C12M71ECAQFP, DGM28-C12M71ECBQFP, DGM28-C12M71ECBQFS, DGM28-C12M71EW1QF, DGM28-C12M71EWAQFP, DGM28-C12M71EWBQFP, DGM28-C12M71EWBQFS, DGM28-C12M71GC1QL, DGM28-C12M71GCAQFS, DGM28-C12M71GCAQLP, DGM28-C12M71GCAQLS, DGM28-C12M71GCBQLP, DGM28-C12M71GW1QL, DGM28-C12M71GWAQLP, DGM28-C12M71GWAQLS, DGM28-C12M71KCBQF, DGM28-C12M71KCBQFP, DGM28-C12M71KCBQLP, DGM28-C12M71KCBQLS, DGM28-C12M71KCCQFS, DGM28-C12M71KWBQFP, DGM28-C12M71KWCQFS, DGM28-C12M72ECAQF, DGM28-C12M72EWAQF, DGM28-C12M72KCCQFS, DGM28-C12M72KWCQFS, DGMSR-01TM71ECAQF, DGMSR-01TM71ECBQF, DGMSR-01TM71EWAQF, DGMSR-01TM71EWBQF, DGMSR-01TM71GCAQF, DGMSR-01TM71GCAQL, DGMSR-01TM71GCBQF, DGMSR-01TM71GCBQL, DGMSR-01TM71GWAQL, DGMSR-01TM71GWBQL, DGMSR-01TM71KCAQF, DGMSR-01TM71KCAQL, DGMSR-01TM71KWAQF, DGMSR-02TM71GCAQF, DGMSR-02TM71GCAQQ, DGMSR-02TM71GCBQF, DGMSR-02TM71GCBQQ, DGMSR-02TM71GWAQQ, DGMSR-02TM71GWBQQ, DGMSR-02TM71KCAQF, DGMSR-02TM71KCAQL, DGMSR-02TM71KWAQF, DGMSR-A28M71EC1QF, DGMSR-A28M71EC1QL, DGMSR-A28M71ECBQF, DGMSR-A28M71EW1QF, DGMSR-A28M71EWBQF, DGMSR-A28M71KCADF, DGMSR-A28M71KCADL, DGMSR-A28M71KCAQF, DGMSR-A28M71KWADF, DGMSR-B56M71EC1QF, DGMSR-B56M71EC1QL, DGMSR-B56M71ECBQF, DGMSR-B56M71EW1QF, DGMSR-B56M71EWBQF, DGMSR-B56M71GCAQF, DGMSR-B56M71GCAQL, DGMSR-B56M71GCBQF, DGMSR-B56M71GCBQL, DGMSR-B56M71GWAQL, DGMSR-B56M71GWBQL, DGMSR-B56M71KCADL, DGMSR-B56M71KCAQF, DGMSR-B56M71KCAQL, DGMSR-B56M71KWAQF, DGMSR-C12M71EC1QF, DGMSR-C12M71ECAQL, DGMSR-C12M71ECBQF, DGMSR-C12M71EW1QF, DGMSR-C12M71EWBQF, DGMSR-C12M71GCAQF, DGMSR-C12M71GCAQL, DGMSR-C12M71GCBQF, DGMSR-C12M71GCBQL, DGMSR-C12M71GWAQL, DGMSR-C12M71GWBQL, DGMSR-C12M71KCAQF, DGMSR-C12M71KCAQL, DGMSR-C12M71KWAQF, DGS18-01TM71EC1QF, DGS18-01TM71EC1QFP, DGS18-01TM71EC2QF, DGS18-01TM71EC2QFP, DGS18-01TM71EW1QF, DGS18-01TM71EW1QFP, DGS18-01TM71EW2QF, DGS18-01TM71EW2QFP, DGS18-A28M71EC1QF, DGS18-A28M71EC1QFP, DGS18-A28M71EC2QF, DGS18-A28M71EC2QFP, DGS18-A28M71EW1QF, DGS18-A28M71EW1QFP, DGS18-A28M71EW2QF, DGS18-A28M71EW2QFP, DGS18-B56M71EC1QF, DGS18-B56M71EC1QFP, DGS18-B56M71EC2QF, DGS18-B56M71EC2QFP, DGS18-B56M71EW1QF, DGS18-B56M71EW1QFP, DGS18-B56M71EW2QF, DGS18-B56M71EW2QFP, DGS18-C12M71EC1QF, DGS18-C12M71EC1QFP, DGS18-C12M71EC2QF, DGS18-C12M71EC2QFP, DGS18-C12M71EW1QF, DGS18-C12M71EW1QFP, DGS18-C12M71EW2QF, DGS18-C12M71EW2QFP, DGS25-01TM71EC1QF, DGS25-01TM71ECCQF, DGS25-01TM71EW1QF, DGS25-01TM71EWCQF, DGS25-01TM71GC1QL, DGS25-01TM71GW1QL, DGS25-01TM71KCAQF, DGS25-01TM71KCAQL, DGS25-01TM71KCBQF, DGS25-01TM71KWAQF, DGS25-01TM72EC1QF, DGS25-01TM72EW1QF, DGS25-01TM72KCAQF, DGS25-01TM72KWAQF, DGS25-02TM71ECAQF, DGS25-02TM71EWAQF, DGS25-02TM71GCAQL, DGS25-02TM71GWAQL, DGS25-02TM71KCAQF, DGS25-02TM71KCAQL, DGS25-02TM71KCBQF, DGS25-02TM71KWAQF, DGS25-02TM72ECAQF, DGS25-02TM72EWAQF, DGS25-02TM72KCAQF, DGS25-02TM72KWAQF, DGS25-04TM71KCAQF, DGS25-04TM71KCAQL, DGS25-04TM71KWAQF, DGS25-04TM72KCAQF, DGS25-04TM72KWAQF, DGS25-A28M71EC1QF, DGS25-A28M71EC3QF, DGS25-A28M71ECCDF, DGS25-A28M71EW1QF, DGS25-A28M71EW3QF, DGS25-A28M71EWCDF, DGS25-A28M71GC1DL, DGS25-A28M71GC3DL, DGS25-A28M71GW1DL, DGS25-A28M71GW3DL, DGS25-A28M71KCASF, DGS25-A28M71KCASL, DGS25-A28M71KCCDF, DGS25-A28M71KCCDL, DGS25-A28M71KWASF, DGS25-A28M71KWCDF, DGS25-A28M72EC1QF, DGS25-A28M72EC3QF, DGS25-A28M72EW1QF, DGS25-A28M72EW3QF, DGS25-A28M72KCCDF, DGS25-A28M72KWCDF, DGS25-B56M71EC1QF, DGS25-B56M71EC3QF, DGS25-B56M71ECCQF, DGS25-B56M71EW1QF, DGS25-B56M71EW3QF, DGS25-B56M71EWCQF, DGS25-B56M71GC1QL, DGS25-B56M71GC3QL, DGS25-B56M71GW1QL, DGS25-B56M71GW3QL, DGS25-B56M71KCADF, DGS25-B56M71KCASL, DGS25-B56M71KCCQF, DGS25-B56M71KCCQL, DGS25-B56M71KWADF, DGS25-B56M71KWCQF, DGS25-B56M72EC1QF, DGS25-B56M72EC3QF, DGS25-B56M72EW1QF, DGS25-B56M72EW3QF, DGS25-B56M72KCCQF, DGS25-B56M72KWCQF, DGS25-C12M71EC1QF, DGS25-C12M71EC3QF, DGS25-C12M71ECCQF, DGS25-C12M71EW1QF, DGS25-C12M71EW3QF, DGS25-C12M71EWCQF, DGS25-C12M71GC1QL, DGS25-C12M71GC3QL, DGS25-C12M71GW1QL, DGS25-C12M71GW3QL, DGS25-C12M71KCADL, DGS25-C12M71KCAQF, DGS25-C12M71KCCQF, DGS25-C12M71KCCQL, DGS25-C12M71KWAQF, DGS25-C12M71KWCQF, DGS25-C12M72EC1QF, DGS25-C12M72EC3QF, DGS25-C12M72EW1QF, DGS25-C12M72EW3QF, DGS25-C12M72KCCQF, DGS25-C12M72KWCQF, DGSLM-A28M71EC1QF, DGSLM-A28M71EW1QF, DGSLM-B56M71EC1QF, DGSLM-B56M71EW1QF, DGSLM-C12M71EC1QF, DGSLM-C12M71EW1QF, DGSML-A28M71ECAQFA, DGSML-A28M71EWAQFA, DGSML-B56M71ECAQFA, DGSML-B56M71EWAQFA, DHEU2-1T2DP1KCAEL, DHEU2-1T2DP1KWAEL, DHEU2-1T2DP2KCAEL, DHEU2-1T2DP2KWAEL, DHEU2-A60DP1KCAEL, DHEU2-A60DP1KWAEL, DHEU2-A60DP2KCAEL, DHEU2-A60DP2KWAEL, DHEU2-D2GDP1KCAEL, DHEU2-D2GDP1KWAEL, DHEU2-D2GDP2KCAEL, DHEU2-D2GDP2KWAEL, DHEU2-F4GDP1KCAEL, DHEU2-F4GDP1KWAEL, DHEU2-F4GDP2KCAEL, DHEU2-F4GDP2KWAEL, DHM21-1T2DP1KCBEQP, DHM21-1T2DP1KWBEQPH, DHM21-A60DP1KCBELP, DHM21-A60DP1KWBELPH, DHM21-D2GDP1KCBELP, DHM21-D2GDP1KWBELPH, DHM21-F4GDP1KCBELP, DHM21-F4GDP1KWBELPH, DHM24-80GM71ECAQF, DHM24-80GM71ECCQF, DHM24-80GM71EWAQF, DHM24-80GM71EWCQF, DHM24-A60M71ECAQF, DHM24-A60M71ECCQF, DHM24-A60M71EWAQF, DHM24-A60M71EWCQF, DHM28-1T2DP1KCCEF, DHM28-1T2DP1KCCEQ, DHM28-1T2DP1KWCEFH, DHM28-1T2DP1KWCEQH, DHM28-1T2DP2KCCEF, DHM28-1T2DP2KCCEQ, DHM28-1T2DP2KWCEFH, DHM28-1T2DP2KWCEQH, DHM28-40GDC1GCADL, DHM28-40GDC1GWADLH, DHM28-80GDC1GCAQL, DHM28-80GDC1GWAQLH, DHM28-80GM71ECAQFS, DHM28-80GM71EWAQFS, DHM28-A60DC1GCAEL, DHM28-A60DC1GWAELH, DHM28-A60DP1KCCEF, DHM28-A60DP1KCCEL, DHM28-A60DP1KWCEFH, DHM28-A60DP1KWCELH, DHM28-A60DP2KCCEF, DHM28-A60DP2KCCEL, DHM28-A60DP2KWCEFH, DHM28-A60DP2KWCELH, DHM28-A60M71ECAQFS, DHM28-A60M71EWAQFS, DHM28-D2GDC1GCAEL, DHM28-D2GDC1GWAELH, DHM28-D2GDP1KCCEF, DHM28-D2GDP1KCCEL, DHM28-D2GDP1KWCEFH, DHM28-D2GDP1KWCELH, DHM28-D2GDP2KCCEF, DHM28-D2GDP2KCCEL, DHM28-D2GDP2KWCEFH, DHM28-D2GDP2KWCELH, DHM28-D2GM71ECAQFS, DHM28-D2GM71EWAQFS, DHM28-F4GDC1GCAEQ, DHM28-F4GDC1GWAEQH, DHM28-F4GDP1KCCEF, DHM28-F4GDP1KCCEL, DHM28-F4GDP1KWCEFH, DHM28-F4GDP1KWCELH, DHM28-F4GDP2KCCEF, DHM28-F4GDP2KCCEL, DHM28-F4GDP2KWCEFH, DHM28-F4GDP2KWCELH, DHM28-F4GM71ECAQF, DHM28-F4GM71EWAQF, DHS25-08GD82BCDP, DHS25-1T2M71KCAQFP, DHS25-1T2M71KCAQLP, DHS25-1T2M71KWAQFP, DHS25-1T2M71KWAQLP, DHS25-80GM71EC3QF, DHS25-80GM71EW3QF, DHS25-A60M71EC3QF, DHS25-A60M71EW3QF, DHS25-A60M71KCAQFP, DHS25-A60M71KCAQLP, DHS25-A60M71KWAQFP, DHS25-A60M71KWAQLP, DHS25-D2GM71EC1QF, DHS25-D2GM71EW1QF, DHS25-D2GM71KCAQFP, DHS25-D2GM71KCAQLP, DHS25-D2GM71KWAQFP, DHS25-D2GM71KWAQLP, DHS25-F4GM71ECAQF, DHS25-F4GM71EWAQF, DHS25-F4GM71KCAQFP, DHS25-F4GM71KCAQLP, DHS25-F4GM71KWAQFP, DHS25-F4GM71KWAQLP, DRS25-01TM72EC1QFP, DRS25-01TM72EW1QFP, DRS25-02TM72ECAQFP, DRS25-02TM72EWAQFP, DRS25-A28M72EC1QFP, DRS25-A28M72EW1QFP, DRS25-B56M72EC1QFP, DRS25-B56M72EW1QFP, DRS25-C12M72EC1QFP, DRS25-C12M72EW1QFP, DSE1S-1T6DP2KCAEFP, DSE1S-1T6DP2KCAEFPH, DSE1S-1T6DP2KCAEFPH1, DSE1S-1T6DP2KWAEFP, DSE1S-1T6DP2KWAEFPH, DSE1S-1T6DP2KWAEFPH1, DSE1S-1T9DP2NCAEFP, DSE1S-1T9DP2NCAEFPH, DSE1S-1T9DP2NCAEFPH1, DSE1S-3T2DP2KCAEFP, DSE1S-3T2DP2KCAEFPH, DSE1S-3T2DP2KCAEFPH1, DSE1S-3T2DP2KWAEFP, DSE1S-3T2DP2KWAEFPH, DSE1S-3T2DP2KWAEFPH1, DSE1S-400DP2KCAEFP, DSE1S-400DP2KCAEFPH, DSE1S-400DP2KCAEFPH1, DSE1S-400DP2KWAEFP, DSE1S-400DP2KWAEFPH, DSE1S-400DP2KWAEFPH1, DSE1S-800DP2KCAEFP, DSE1S-800DP2KCAEFPH, DSE1S-800DP2KCAEFPH1, DSE1S-800DP2KWAEFP, DSE1S-800DP2KWAEFPH, DSE1S-800DP2KWAEFPH1, DSE1S-960DP2NCAEFP, DSE1S-960DP2NCAEFPH, DSE1S-960DP2NCAEFPH1, DSE3S-12TDP2KCAEFP, DSE3S-12TDP2KWAEFP, DSE3S-1T6DP2KCAEFP, DSE3S-1T6DP2KWAEFP, DSE3S-3T2DP2KCAEFP, DSE3S-3T2DP2KWAEFP, DSE3S-400DP2KCAEFP, DSE3S-400DP2KWAEFP, DSE3S-6T4DP2KCAEFP, DSE3S-6T4DP2KWAEFP, DSE3S-800DP2KCAEFP, DSE3S-800DP2KWAEFP, DSEU2-1T6DP1KCAEF, DSEU2-1T6DP1KWAEF, DSEU2-1T6DP1LCAEH, DSEU2-1T6DP1NCBEF, DSEU2-1T9DP1LCAEH, DSEU2-1T9DP1NCBEF, DSEU2-3T2DP1KCAEF, DSEU2-3T2DP1KWAEF, DSEU2-3T2DP1LCAEH, DSEU2-3T2DP1NCAEF, DSEU2-3T8DP1LCAEH, DSEU2-3T8DP1NCAEF, DSEU2-400DP1KCAEF, DSEU2-400DP1KWAEF, DSEU2-400DP1LCAEH, DSEU2-480DP1LCAEH, DSEU2-6T4DP1KCAEF, DSEU2-6T4DP1KWAEF, DSEU2-800DP1KCAEF, DSEU2-800DP1KWAEF, DSEU2-800DP1LCAEH, DSEU2-800DP1NCBEF, DSEU2-960DP1LCAEH, DSEU2-960DP1NCBEF, DSM21-1T6DP1KCBEFP, DSM21-1T6DP1KWBEFPH, DSM21-3T2DP1KCBEFP, DSM21-3T2DP1KWBEFPH, DSM21-400DP1KCBEFP, DSM21-400DP1KWBEFPH, DSM21-800DP1KCBEFP, DSM21-800DP1KWBEFPH, DSM28-1T6DP1KCCEF, DSM28-1T6DP1KCDEFP, DSM28-1T6DP1KCDELP, DSM28-1T6DP1KWCEFH, DSM28-1T6DP1KWDEFPH, DSM28-1T6DP1KWDELPH, DSM28-1T6DP1LCCEH, DSM28-1T6DP1NCCEF, DSM28-1T6DP2KCCEF, DSM28-1T6DP2KWCEFH, DSM28-1T6M71KCBQFP, DSM28-1T6M71KWBQFP, DSM28-1T6M71NCBQFP, DSM28-1T9DP1LCCEH, DSM28-1T9DP1NCCEF, DSM28-200M71KCBDFP, DSM28-200M71KWBDFP, DSM28-200M71NCBDFP, DSM28-3T2DP1KCCEF, DSM28-3T2DP1KWCEFH, DSM28-3T2DP1LCCEH, DSM28-3T2DP2KCCEF, DSM28-3T2DP2KWCEFH, DSM28-3T8DP1LCCEH, DSM28-400DP1KCCEF, DSM28-400DP1KCDEFP, DSM28-400DP1KCDELP, DSM28-400DP1KWCEFH, DSM28-400DP1KWDEFPH, DSM28-400DP1KWDELPH, DSM28-400DP1LCCEH, DSM28-400DP1NCCEF, DSM28-400DP2KCCEF, DSM28-400DP2KWCEFH, DSM28-400M71KCBQFP, DSM28-400M71KWBQFP, DSM28-400M71NCBQFP, DSM28-480DP1LCCEH, DSM28-480DP1NCCEF, DSM28-800DP1KCCEF, DSM28-800DP1KCDEFP, DSM28-800DP1KCDELP, DSM28-800DP1KWCEFH, DSM28-800DP1KWDEFPH, DSM28-800DP1KWDELPH, DSM28-800DP1LCCEH, DSM28-800DP1NCCEF, DSM28-800DP2KCCEF, DSM28-800DP2KWCEFH, DSM28-800M71KCBQFP, DSM28-800M71KWBQFP, DSM28-800M71NCBQFP, DSM28-960DP1LCCEH, DSM28-960DP1NCCEF, DSS25-1T6M71KCAQFP, DSS25-1T6M71KWAQFP, DSS25-1T6M72KCAQFP, DSS25-1T6M72KWAQFP, DSS25-200M71KCADFP, DSS25-200M71KWADFP, DSS25-200M72KCADFP, DSS25-200M72KWADFP, DSS25-3T2M71KCAQFP, DSS25-3T2M71KWAQFP, DSS25-3T2M72KCAQFP, DSS25-3T2M72KWAQFP, DSS25-400M71KCAQFP, DSS25-400M71KWAQFP, DSS25-400M72KCAQFP, DSS25-400M72KWAQFP, DSS25-800M71KCAQFP, DSS25-800M71KWAQFP, DSS25-800M72KCAQFP, DSS25-800M72KWAQFP, DVS25-01TM72KCAQFP, DVS25-01TM72KWAQFP, DVS25-02TM72KCAQFP, DVS25-02TM72KWAQFP, DVS25-04TM72KCAQFP, DVS25-04TM72KWAQFP, DVS25-A28M72KCASFP, DVS25-A28M72KWASFP, DVS25-B56M72KCADFP, DVS25-B56M72KWADFP, DVS25-C12M72KCAQFP, DVS25-C12M72KWAQFP
|
| Hinweis Dokument: | Innodisk [PCN_F240012] DDR4 IC Substitution Notice from 1xnm to 1znm.pdf |
| Product Change Notification (PCN) | |
| Description: Due to worldwide shortage of power ICs, Innodisk will adopt substituting materials into our BOMs. All product families affected are listed in the following table. This PCN will affect all part numbers including standard and customized ones. Summary of Change 1. Add substituting material CYNTEC MUN3CAD03SE Power IC for TI TPS82084SIL | |
| Revision: | F2224 |
| Revision date: | 15. Juli 2022 |
| Last purchase date: | |
| Last shipping date: | |
| Betroffene Produkte: |
1.8 SATA SSD 3SE, 2.5 SATA SSD 3TG6-P, 2.5 SATA SSD 3TG6-P AES, 2.5 SATA SSD 3TG6-P IN, FL-mSATA mini 3TE7, M.2 (P80) 3TG6-P, M.2 (S42) 3IE7, M.2 (S42) 3TE7, M.2 (S42) 3TE7 IN, M.2 (S42) 3TG6-P, M.2 (S42) 3TO7, M.2 (S80) 3IE7, M.2 (S80) 3MG2-P, M.2 (S80) 3SE2-P AES, M.2 (S80) 3TE7, M.2 (S80) 3TE7 IN, M.2 (S80) 3TG6-P IN, M.2 (S80) 3TG6-P SS, SATA Slim 3TG6-P, SATADOM-MH 3ME4, SATADOM-ML 3ME4, SATADOM-ML 3SE4, SATADOM-ML 3TG6-P, SATADOM-SH 3ME4, SATADOM-SH 3TE7, SATADOM-SH Type C 3ME4, SATADOM-SH Type D 3ME4, SATADOM-SH Type D 3TE7, SATADOM-SL 3ME4, SATADOM-SL 3TE7, SATADOM-SV 3ME4, SATADOM-SV 3TE7, mSATA 3MG2-P, mSATA 3MG2-P AES, mSATA 3TG6-P IN, DEM24-01TDK1GCAQF, DEM24-01TDK1KCAQF, DEM24-01TDK1KWAQF, DEM24-32GDK1EC1SF, DEM24-32GDK1EW1SF, DEM24-64GDK1EC1DF, DEM24-64GDK1EW1DF, DEM24-A28DK1EC1DF, DEM24-A28DK1EW1DF, DEM24-A28DK1GCADF, DEM24-A28DK1KCADF, DEM24-A28DK1KWADF, DEM24-B56DK1EC1DF, DEM24-B56DK1EW1DF, DEM24-B56DK1GCAQF, DEM24-B56DK1KCAQF, DEM24-B56DK1KWAQF, DEM24-C12DK1ECAQF, DEM24-C12DK1EWAQF, DEM24-C12DK1GCAQF, DEM24-C12DK1KCAQF, DEM24-C12DK1KWAQF, DEM28-01TDK1ECAQF, DEM28-01TDK1EWAQF, DEM28-01TDK1GCAQF, DEM28-01TDK1KCAQF, DEM28-01TDK1KWAQF, DEM28-02TDK1GCAQF, DEM28-02TDK1KCAQF, DEM28-02TDK1KWAQF, DEM28-08GD82SCADB, DEM28-08GD82SWADB, DEM28-16GD82SCAQB, DEM28-16GD82SWAQB, DEM28-32GD82SCAQB, DEM28-32GD82SWAQB, DEM28-32GDK1EC1SF, DEM28-32GDK1EW1SF, DEM28-64GD82SCAQB, DEM28-64GD82SWAQB, DEM28-64GDK1EC1DF, DEM28-64GDK1EW1DF, DEM28-A28D82SCAQB, DEM28-A28D82SWAQB, DEM28-A28DK1EC1QF, DEM28-A28DK1EW1QF, DEM28-A28DK1GCADF, DEM28-A28DK1KCADF, DEM28-A28DK1KWADF, DEM28-B56D82SCAQB, DEM28-B56D82SWAQB, DEM28-B56DK1EC1QF, DEM28-B56DK1EW1QF, DEM28-B56DK1GCAQF, DEM28-B56DK1KCAQF, DEM28-B56DK1KWAQF, DEM28-C12DK1EC1QF, DEM28-C12DK1EW1QF, DEM28-C12DK1GCAQF, DEM28-C12DK1KCAQF, DEM28-C12DK1KWAQF, DEMSM-32GDK1EC1SF, DEMSM-32GDK1EW1SF, DEMSM-64GDK1EC1DF, DEMSM-64GDK1EW1DF, DEMSM-A28DK1EC1DF, DEMSM-A28DK1EW1DF, DEMSM-B56DK1EC1DF, DEMSM-B56DK1EW1DF, DEMSM-C12DK1ECAQF, DEMSM-C12DK1EWAQF, DES18-08GD06SCBQB, DES18-08GD06SWBQB, DES18-16GD06SCBQB, DES18-16GD06SWBQB, DES18-32GD06SCBQB, DES18-32GD06SWBQB, DES18-64GD06SCBQB, DES18-64GD06SWBQB, DES18-A28D06SCBQB, DES18-A28D06SWBQB, DES18-B56D06SCBQB, DES18-B56D06SWBQB, DESMH-32GM41BCADCA, DESMH-32GM41BCADCB, DESMH-32GM41BWADCA, DESMH-32GM41BWADCB, DESMH-64GM41BCADCA, DESMH-64GM41BCADCB, DESMH-64GM41BWADCA, DESMH-64GM41BWADCB, DESMH-A28M41BCADCA, DESMH-A28M41BCADCB, DESMH-A28M41BWADCA, DESMH-A28M41BWADCB, DESMH-B56M41BCADCA, DESMH-B56M41BCADCB, DESMH-B56M41BWADCA, DESMH-B56M41BWADCB, DESML-08GM41SCADBA, DESML-08GM41SCADBB, DESML-08GM41SWADBA, DESML-08GM41SWADBB, DESML-16GM41SCADBA, DESML-16GM41SCADBB, DESML-16GM41SWADBA, DESML-16GM41SWADBB, DESML-32GM41BCADCA, DESML-32GM41BCADCB, DESML-32GM41BWADCA, DESML-32GM41BWADCB, DESML-32GM41SCADBA, DESML-32GM41SCADBB, DESML-32GM41SWADBA, DESML-32GM41SWADBB, DESML-64GM41BCADCA, DESML-64GM41BCADCB, DESML-64GM41BWADCA, DESML-64GM41BWADCB, DESML-64GM41SCADBA, DESML-64GM41SCADBB, DESML-64GM41SWADBA, DESML-64GM41SWADBB, DESML-A28M41BCADCA, DESML-A28M41BCADCB, DESML-A28M41BWADCA, DESML-A28M41BWADCB, DESML-B56M41BCADCA, DESML-B56M41BCADCB, DESML-B56M41BWADCA, DESML-B56M41BWADCB, DESSC-08GM41BC1SCA, DESSC-08GM41BC1SCB, DESSC-08GM41BW1SCA, DESSC-08GM41BW1SCB, DESSC-16GM41BC1SCA, DESSC-16GM41BC1SCB, DESSC-16GM41BW1SCA, DESSC-16GM41BW1SCB, DESSC-32GM41BC1SCA, DESSC-32GM41BC1SCB, DESSC-32GM41BW1SCA, DESSC-32GM41BW1SCB, DESSC-64GM41BC1SCA, DESSC-64GM41BC1SCB, DESSC-64GM41BCADCA, DESSC-64GM41BCADCB, DESSC-64GM41BW1SCA, DESSC-64GM41BW1SCB, DESSC-64GM41BWADCA, DESSC-64GM41BWADCB, DESSC-A28M41BCADCA, DESSC-A28M41BCADCB, DESSC-A28M41BWADCA, DESSC-A28M41BWADCB, DESSF-08GM41BC1SCA, DESSF-08GM41BC1SCB, DESSF-08GM41BW1SCA, DESSF-08GM41BW1SCB, DESSF-16GM41BC1SCA, DESSF-16GM41BC1SCB, DESSF-16GM41BW1SCA, DESSF-16GM41BW1SCB, DESSF-32GDK1EC1SFA, DESSF-32GDK1EW1SFA, DESSF-32GM41BC1SCA, DESSF-32GM41BC1SCB, DESSF-32GM41BW1SCA, DESSF-32GM41BW1SCB, DESSF-64GDK1EC1SFA, DESSF-64GDK1EW1SFA, DESSF-64GM41BC1SCA, DESSF-64GM41BC1SCB, DESSF-64GM41BCADCA, DESSF-64GM41BCADCB, DESSF-64GM41BW1SCA, DESSF-64GM41BW1SCB, DESSF-64GM41BWADCA, DESSF-64GM41BWADCB, DESSF-A28DK1EC1SFA, DESSF-A28DK1ECADFA, DESSF-A28DK1EW1SFA, DESSF-A28DK1EWADFA, DESSF-A28M41BCADCA, DESSF-A28M41BCADCB, DESSF-A28M41BWADCA, DESSF-A28M41BWADCB, DESSF-B56DK1ECADFA, DESSF-B56DK1EWADFA, DESSH-08GM41BC1SCA, DESSH-08GM41BC1SCB, DESSH-08GM41BW1SCA, DESSH-08GM41BW1SCB, DESSH-16GM41BC1SCA, DESSH-16GM41BC1SCB, DESSH-16GM41BW1SCA, DESSH-16GM41BW1SCB, DESSH-32GDK1EC1SFA, DESSH-32GDK1EW1SFA, DESSH-32GM41BC1SCA, DESSH-32GM41BC1SCB, DESSH-32GM41BW1SCA, DESSH-32GM41BW1SCB, DESSH-64GDK1EC1SFA, DESSH-64GDK1EW1SFA, DESSH-64GM41BC1SCA, DESSH-64GM41BC1SCB, DESSH-64GM41BCADCA, DESSH-64GM41BCADCB, DESSH-64GM41BW1SCA, DESSH-64GM41BW1SCB, DESSH-64GM41BWADCA, DESSH-64GM41BWADCB, DESSH-A28DK1EC1SFA, DESSH-A28DK1ECADFA, DESSH-A28DK1EW1SFA, DESSH-A28DK1EWADFA, DESSH-A28M41BCADCA, DESSH-A28M41BCADCB, DESSH-A28M41BWADCA, DESSH-A28M41BWADCB, DESSH-B56DK1ECADFA, DESSH-B56DK1EWADFA, DESSL-08GM41BC1SCA, DESSL-08GM41BC1SCB, DESSL-08GM41BW1SCA, DESSL-08GM41BW1SCB, DESSL-16GM41BC1SCA, DESSL-16GM41BC1SCB, DESSL-16GM41BW1SCA, DESSL-16GM41BW1SCB, DESSL-32GDK1EC1SFA, DESSL-32GDK1EW1SFA, DESSL-32GM41BC1SCA, DESSL-32GM41BC1SCB, DESSL-32GM41BW1SCA, DESSL-32GM41BW1SCB, DESSL-64GDK1EC1SFA, DESSL-64GDK1EW1SFA, DESSL-64GM41BC1SCA, DESSL-64GM41BC1SCB, DESSL-64GM41BCADCA, DESSL-64GM41BCADCB, DESSL-64GM41BW1SCA, DESSL-64GM41BW1SCB, DESSL-64GM41BWADCA, DESSL-64GM41BWADCB, DESSL-A28DK1EC1SFA, DESSL-A28DK1ECADFA, DESSL-A28DK1EW1SFA, DESSL-A28DK1EWADFA, DESSL-A28M41BCADCA, DESSL-A28M41BCADCB, DESSL-A28M41BWADCA, DESSL-A28M41BWADCB, DESSL-B56DK1ECADFA, DESSL-B56DK1EWADFA, DESSV-08GM41BC1SCA, DESSV-08GM41BC1SCB, DESSV-08GM41BW1SCA, DESSV-08GM41BW1SCB, DESSV-16GM41BC1SCA, DESSV-16GM41BC1SCB, DESSV-16GM41BW1SCA, DESSV-16GM41BW1SCB, DESSV-32GDK1EC1SFA, DESSV-32GDK1EW1SFA, DESSV-32GM41BC1SCA, DESSV-32GM41BC1SCB, DESSV-32GM41BW1SCA, DESSV-32GM41BW1SCB, DESSV-64GDK1EC1SFA, DESSV-64GDK1EW1SFA, DESSV-64GM41BC1SCA, DESSV-64GM41BC1SCB, DESSV-64GM41BCADCA, DESSV-64GM41BCADCB, DESSV-64GM41BW1SCA, DESSV-64GM41BW1SCB, DESSV-64GM41BWADCA, DESSV-64GM41BWADCB, DESSV-A28DK1EC1SFA, DESSV-A28DK1ECADFA, DESSV-A28DK1EW1SFA, DESSV-A28DK1EWADFA, DESSV-A28M41BCADCA, DESSV-A28M41BCADCB, DESSV-A28M41BWADCA, DESSV-A28M41BWADCB, DESSV-B56DK1ECADFA, DESSV-B56DK1EWADFA, DGM24-01TM71KCAQF, DGM24-01TM71KWAQF, DGM24-A28M71KCADF, DGM24-B56M71KCAQF, DGM24-C12M71KCAQF, DGM28-01TD81BCBQC, DGM28-01TD81BWBQC, DGM28-01TM71ECBQFS, DGM28-01TM71EWBQFS, DGM28-32GD81BCBDC, DGM28-32GD81BWBDC, DGM28-64GD81BCBQC, DGM28-64GD81BWBQC, DGM28-A28D81BCBQC, DGM28-A28D81BWBQC, DGM28-A28M71ECBQFS, DGM28-A28M71EWBQFS, DGM28-B56D81BCBQC, DGM28-B56D81BWBQC, DGM28-B56M71ECBQFS, DGM28-B56M71EWBQFS, DGM28-C12D81BCBQC, DGM28-C12D81BWBQC, DGM28-C12M71ECBQFS, DGM28-C12M71EWBQFS, DGMSR-01TD81BCAQC, DGMSR-01TD81BWAQC, DGMSR-01TM71GCAQL, DGMSR-01TM71GCBQL, DGMSR-01TM71GWAQL, DGMSR-01TM71GWBQL, DGMSR-01TM71KCAQL, DGMSR-02TM71GCAQQ, DGMSR-02TM71GCBQQ, DGMSR-02TM71GWAQQ, DGMSR-02TM71GWBQQ, DGMSR-02TM71KCAQL, DGMSR-08GD81BC1SC, DGMSR-08GD81BW1SC, DGMSR-08GD82BC1SC, DGMSR-08GD82BW1SC, DGMSR-16GD81BC1DC, DGMSR-16GD81BC1SC, DGMSR-16GD81BW1DC, DGMSR-16GD81BW1SC, DGMSR-16GD82BC1DC, DGMSR-16GD82BW1DC, DGMSR-16GD82SCASN, DGMSR-16GD82SWASN, DGMSR-32GD81BC1DC, DGMSR-32GD81BC1QC, DGMSR-32GD81BW1DC, DGMSR-32GD81BW1QC, DGMSR-32GD82BC1QC, DGMSR-32GD82BW1QC, DGMSR-32GD82SCADN, DGMSR-32GD82SWADN, DGMSR-64GD81BC1QC, DGMSR-64GD81BW1QC, DGMSR-64GD82BC1QC, DGMSR-64GD82BW1QC, DGMSR-64GD82SCAQN, DGMSR-64GD82SWAQN, DGMSR-A28D81BC1QC, DGMSR-A28D81BW1QC, DGMSR-A28D82BC1QC, DGMSR-A28D82BW1QC, DGMSR-A28D82SCAQN, DGMSR-A28D82SWAQN, DGMSR-A28M71EC1QL, DGMSR-A28M71KCADL, DGMSR-B56D81BC1QC, DGMSR-B56D81BW1QC, DGMSR-B56D82BC1QC, DGMSR-B56D82BW1QC, DGMSR-B56D82SCAQN, DGMSR-B56D82SWAQN, DGMSR-B56M71EC1QL, DGMSR-B56M71GCAQL, DGMSR-B56M71GCBQL, DGMSR-B56M71GWAQL, DGMSR-B56M71GWBQL, DGMSR-B56M71KCADL, DGMSR-B56M71KCAQL, DGMSR-C12D81BCBQC, DGMSR-C12D81BWBQC, DGMSR-C12D82BCBQC, DGMSR-C12D82BWBQC, DGMSR-C12D82SCAQN, DGMSR-C12D82SW1QC, DGMSR-C12D82SWAQN, DGMSR-C12M71ECAQL, DGMSR-C12M71GCAQL, DGMSR-C12M71GCBQL, DGMSR-C12M71GWAQL, DGMSR-C12M71GWBQL, DGMSR-C12M71KCAQL, DGS25-01TM71EC1QF, DGS25-01TM71ECCQF, DGS25-01TM71EW1QF, DGS25-01TM71EWCQF, DGS25-01TM71KCAQF, DGS25-01TM71KCBQF, DGS25-01TM71KWAQF, DGS25-01TM72EC1QF, DGS25-01TM72EW1QF, DGS25-01TM72KCAQF, DGS25-02TM71ECAQF, DGS25-02TM71EWAQF, DGS25-02TM71KCAQF, DGS25-02TM71KCBQF, DGS25-02TM71KWAQF, DGS25-02TM72ECAQF, DGS25-02TM72EWAQF, DGS25-02TM72KCAQF, DGS25-04TM71KCAQF, DGS25-04TM71KWAQF, DGS25-04TM72KCAQF, DGS25-A28M71EC1QF, DGS25-A28M71EC3QF, DGS25-A28M71ECCDF, DGS25-A28M71EW1QF, DGS25-A28M71EW3QF, DGS25-A28M71EWCDF, DGS25-A28M71KCASF, DGS25-A28M71KCCDF, DGS25-A28M71KWASF, DGS25-A28M72EC1QF, DGS25-A28M72EC3QF, DGS25-A28M72EW1QF, DGS25-A28M72EW3QF, DGS25-B56M71EC1QF, DGS25-B56M71EC3QF, DGS25-B56M71ECCQF, DGS25-B56M71EW1QF, DGS25-B56M71EW3QF, DGS25-B56M71EWCQF, DGS25-B56M71KCADF, DGS25-B56M71KCCQF, DGS25-B56M71KWADF, DGS25-B56M72EC1QF, DGS25-B56M72EC3QF, DGS25-B56M72EW1QF, DGS25-B56M72EW3QF, DGS25-C12M71EC1QF, DGS25-C12M71EC3QF, DGS25-C12M71ECCQF, DGS25-C12M71EW1QF, DGS25-C12M71EW3QF, DGS25-C12M71EWCQF, DGS25-C12M71KCAQF, DGS25-C12M71KCCQF, DGS25-C12M71KWAQF, DGS25-C12M72EC1QF, DGS25-C12M72EC3QF, DGS25-C12M72EW1QF, DGS25-C12M72EW3QF, DGSLM-A28M71EC1QF, DGSLM-A28M71EW1QF, DGSLM-B56M71EC1QF, DGSLM-B56M71EW1QF, DGSLM-C12M71EC1QF, DGSLM-C12M71EW1QF, DGSML-A28M71ECAQFA, DGSML-A28M71EWAQFA, DGSML-B56M71ECAQFA, DGSML-B56M71EWAQFA, DHM24-20GDK1EC1DF, DHM24-20GDK1EW1DF, DHM24-40GDK1EC1DF, DHM24-40GDK1EW1DF, DHM24-80GDK1EC1DF, DHM24-80GDK1EW1DF, DHM24-A60DK1ECAQF, DHM24-A60DK1EWAQF, DHM28-20GDK1EC1DF, DHM28-20GDK1EW1DF, DHM28-40GDK1EC1QF, DHM28-40GDK1EW1QF, DHM28-80GDK1EC1QF, DHM28-80GDK1EW1QF, DHM28-A60DK1EC1QF, DHM28-A60DK1EW1QF, DHM28-D2GDK1ECAQF, DHM28-D2GDK1EWAQF, DUM24-32GDK1EC1SFxxG, DUM24-32GDK1EW1SFxxG, DUM24-64GDK1EC1DFxxG, DUM24-64GDK1EW1DFxxG, DUM24-A28DK1EC1DFxxG, DUM24-A28DK1EW1DFxxG, DUM24-B56DK1EC1DFxxG, DUM24-B56DK1EW1DFxxG, DUM24-C12DK1ECAQFxxG, DUM24-C12DK1EWAQFxxG
|
| Hinweis Dokument: | [PCN_F2224] Power IC Substituting Material Adoption.pdf |
| Product Change Notification (PCN) | |
| Summary of Change New Function New Flash support: Kioxia Bics4?Innodisk NAND_Bics4 Support onfield Firmware update: Update tool_Download Microcode. Modification Fixed power cycling issue: adjusting NAND init procedure avoid power onoff issue in low temperature Change Smart_Health info: composite temperature = the current temperature reported by the external thermal sensor Optimal read performance and Garbage Collection Fixed performance issue: limited performance after power_state_idle during FIO linear read test Change DRAM setting with Innodisk NAND_Bics4 | |
| Revision: | F2118 |
| Revision date: | 12. April 2021 |
| Last purchase date: | |
| Last shipping date: | 11. Juli 2021 |
| Betroffene Produkte: |
M.2 (P80) 3TG6-P
|
| Hinweis Dokument: | PCN_F2118 PCIe M.2 (P80) 3TG6-P_ Firmware Changes.pdf |
Innodisk DGM28-01TDC1ECBEF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 1 TB | |||
| Channel | 8 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-01TDC1EWBEFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 1 TB | |||
| Channel | 8 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-01TDC1KCBEF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 1 TB | |||
| Channel | 8 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-01TDC1KWBEFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 1 TB | |||
| Channel | 8 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-02TDC1KCBEF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 2 TB | |||
| Channel | 8 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-02TDC1KWBEFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 2 TB | |||
| Channel | 8 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-A28DC1ECBQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 128 GB | |||
| Channel | 4 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-A28DC1EWBQFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 128 GB | |||
| Channel | 4 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-A28DC1KCBDF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 128 GB | |||
| Channel | 2 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-A28DC1KWBDFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 128 GB | |||
| Channel | 2 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-B56DC1ECBEF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 256 GB | |||
| Channel | 8 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-B56DC1EWBEFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 256 GB | |||
| Channel | 8 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-B56DC1KCBQF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 256 GB | |||
| Channel | 4 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-B56DC1KWBQFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 256 GB | |||
| Channel | 4 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-C12DC1ECBEF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 512 GB | |||
| Channel | 8 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-C12DC1EWBEFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 512 GB | |||
| Channel | 8 | |||
| Flash Mode | 64 Layers 3D Flash (BiCS3 / B16 / B17) | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-C12DC1KCBEF (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, 0° bis 70°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | 0° bis 70°C | |
| Abmaße | Höhe | 3,95 mm | ||
| Flash Speichermedien | Customized | - | ||
| Kapazität | 512 GB | |||
| Channel | 8 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Innodisk DGM28-C12DC1KWBEFH (EOL) (Achtung EOL: LTB 01.12.2024) Vollständiges Datenblatt anzeigen Datenblatt schliessen Preis: bitte hier anmelden
|
||||
|
M.2, Kioxia 3D TLC, PCI Express Gen. 3, 3TG6-P, -40° bis 85°C
|
||||
| Mechanik / Umgebung | Temperatur | Betrieb | -40° bis 85°C | |
| Abmaße | Höhe | 14,45 mm | ||
| Flash Speichermedien | Customized | H/W WT solution | ||
| Kapazität | 512 GB | |||
| Channel | 8 | |||
| Flash Mode | 112/128 Layers 3D Flash | |||
| Chipgehäuse | BGA (Ball Grid Array) B | |||
Bitte konfigurieren Sie Ihr Wunschprodukt.
Sie haben bestimmte Spezifikationswünsche einzelner Komponenten?
Mit unserem Auswahlassistenten finden Sie schnell das Passende.
Gerne helfen wir Ihnen bei der Auswahl geeigneter Komponenten, speziell für Ihre Anwendung.
Kontaktieren Sie uns und erzählen Sie uns von Ihrer Idee.
Wir freuen uns, Ihnen mitteilen zu können, dass wir für viele unserer Produkte auf unserer Website wieder Ihre persönlichen Einkaufspreise anzeigen können.
Einhergehend mit unseren regelmäßigen Preis-Updates können Sie ab sofort Ihre Bestellanfragen wieder wie gewohnt über unseren Webshop tätigen.
Für einige Produkte in unserem Portfolio können wir aufgrund der aktuellen Liefersituation und Preisentwicklung nur Tagespreise angeben. Bitte erfragen Sie diese telefonisch über unsere Vertriebs-Hotline +49(0)6122-17071-50 oder senden Sie eine Anfrage per E-Mail an sales@rosch-computer.de.
 4TG2-P.jpg)
 4TE2.jpg)
 4TE3.jpg)
 3TE4.jpg)
 3TE6.jpg)
 3TE8.jpg)
 4TE2.jpg)
 4TE3.jpg)
 3TE4.jpg)
 3TE6 AES.jpg)
 3TO8.jpg)
 4TE2.jpg)
 4TE3.jpg)
 4TE3 iCell.jpg)
 4TG2-P iCell.jpg)
